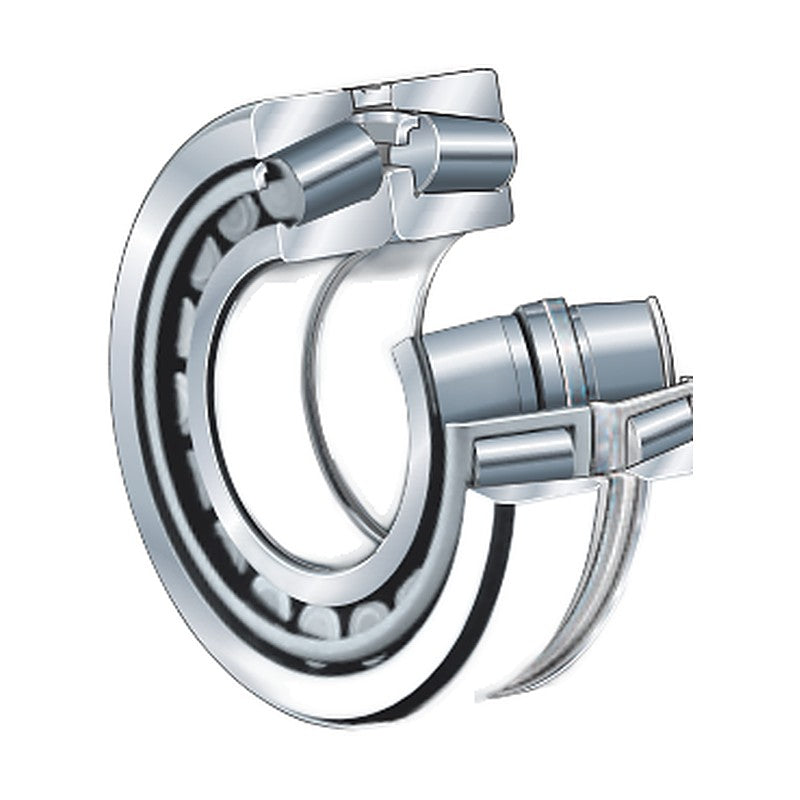

FAG N11CA Matched Pair Tapered Roller Bearings (X Arrangement)

Matched pairs of tapered roller bearings in X arrangement (suffix N11CA) from series 313, 320, 322 and 329, supplied with defined axial internal clearance as stated in the designation.

Key features

Two single row tapered roller bearings matched in X arrangement
Axial internal clearance range given by the A..-.. suffix (in micrometres)
Supports radial loads and axial loads in both directions
Basic load ratings stated for the bearing pair
Ready-to-fit unit; no clearance adjustment needed on mounting

Specifications

Brand	FAG
Product type	Tapered Roller Bearings
Arrangement	X (face-to-face)
Suffix	N11CA
Series	313, 320, 322, 329
Bore d	30 - 340 mm
Outside diameter D	72 - 460 mm
Pair width 2T	41.5 - 228 mm
Source	FAG Rolling Bearings HR 1 catalogue, p. 492-495

31306-A-N11CA-A50-90		d: 30 mm \| D: 72 mm \| 2T: 41.5 mm \| Cr: 77 kN \| C0r: 93 kN \| m: 0.85 kg
31307-A-N11CA-A40-70		d: 35 mm \| D: 80 mm \| 2T: 45.5 mm \| Cr: 103 kN \| C0r: 128 kN \| m: 1.13 kg
31308-A-N11CA-A50-90		d: 40 mm \| D: 90 mm \| 2T: 50.5 mm \| Cr: 130 kN \| C0r: 165 kN \| m: 1.52 kg
31309-A-N11CA-A60-100		d: 45 mm \| D: 100 mm \| 2T: 54.5 mm \| Cr: 165 kN \| C0r: 217 kN \| m: 2.1 kg
31310-A-N11CA-A60-100		d: 50 mm \| D: 110 mm \| 2T: 58.5 mm \| Cr: 189 kN \| C0r: 250 kN \| m: 2.9 kg
31311-A-N11CA-A80-120		d: 55 mm \| D: 120 mm \| 2T: 63 mm \| Cr: 210 kN \| C0r: 275 kN \| m: 3.4 kg
31312-A-N11CA-A80-120		d: 60 mm \| D: 130 mm \| 2T: 67 mm \| Cr: 250 kN \| C0r: 335 kN \| m: 4.2 kg
31313-A-N11CA-A80-120		d: 65 mm \| D: 140 mm \| 2T: 72 mm \| Cr: 280 kN \| C0r: 375 kN \| m: 5.05 kg
31314-A-N11CA-A100-140		d: 70 mm \| D: 150 mm \| 2T: 76 mm \| Cr: 320 kN \| C0r: 435 kN \| m: 6.2 kg
31315-N11CA-A100-140		d: 75 mm \| D: 160 mm \| 2T: 80 mm \| Cr: 350 kN \| C0r: 475 kN \| m: 7.2 kg
32016-X-N11CA-A150-200		d: 80 mm \| D: 125 mm \| 2T: 58 mm \| Cr: 235 kN \| C0r: 420 kN \| m: 2.58 kg
31316-N11CA-A100-140		d: 80 mm \| D: 170 mm \| 2T: 85 mm \| Cr: 390 kN \| C0r: 540 kN \| m: 8.9 kg
31317-N11CA-A120-160		d: 85 mm \| D: 180 mm \| 2T: 89 mm \| Cr: 435 kN \| C0r: 600 kN \| m: 10.4 kg
31318-N11CA-A120-160		d: 90 mm \| D: 190 mm \| 2T: 93 mm \| Cr: 470 kN \| C0r: 650 kN \| m: 11.8 kg
31318-N11CA-A160-200		d: 90 mm \| D: 190 mm \| 2T: 93 mm \| Cr: 470 kN \| C0r: 650 kN \| m: 11.8 kg
31319-A-N11CA-A120-160		d: 95 mm \| D: 200 mm \| 2T: 99 mm \| Cr: 520 kN \| C0r: 740 kN \| m: 14 kg
32020-X-N11CA-A200-230		d: 100 mm \| D: 150 mm \| 2T: 64 mm \| Cr: 295 kN \| C0r: 570 kN \| m: 4 kg
31320-X-N11CA-A120-160		d: 100 mm \| D: 215 mm \| 2T: 113 mm \| Cr: 660 kN \| C0r: 960 kN \| m: 19 kg
32222-A-N11CA-A250-280		d: 110 mm \| D: 200 mm \| 2T: 112 mm \| Cr: 710 kN \| C0r: 1180 kN \| m: 14.9 kg
31322-X-N11CA-A140-180		d: 110 mm \| D: 240 mm \| 2T: 126 mm \| Cr: 790 kN \| C0r: 1170 kN \| m: 26.2 kg
32224-A-N11CA-A230-280		d: 120 mm \| D: 215 mm \| 2T: 123 mm \| Cr: 830 kN \| C0r: 1450 kN \| m: 19.1 kg
31324-X-N11CA-A140-180		d: 120 mm \| D: 260 mm \| 2T: 136 mm \| Cr: 930 kN \| C0r: 1400 kN \| m: 33.7 kg
32026-X-N11CA-A200-250		d: 130 mm \| D: 200 mm \| 2T: 90 mm \| Cr: 560 kN \| C0r: 1100 kN \| m: 10.3 kg
31326-X-N11CA-A160-200		d: 130 mm \| D: 280 mm \| 2T: 144 mm \| Cr: 1050 kN \| C0r: 1590 kN \| m: 40.9 kg
32228-A-N11CA-A250-300		d: 140 mm \| D: 250 mm \| 2T: 143.5 mm \| Cr: 1100 kN \| C0r: 1980 kN \| m: 29.5 kg
31328-X-N11CA-A160-200		d: 140 mm \| D: 300 mm \| 2T: 154 mm \| Cr: 1200 kN \| C0r: 1810 kN \| m: 45.6 kg
32030-X-N11CA-A280-330		d: 150 mm \| D: 225 mm \| 2T: 96 mm \| Cr: 660 kN \| C0r: 1350 kN \| m: 13.1 kg
31330-X-N11CA-A180-230		d: 150 mm \| D: 320 mm \| 2T: 164 mm \| Cr: 1360 kN \| C0r: 2090 kN \| m: 57.7 kg
32234-A-N11CA-A300-380		d: 170 mm \| D: 310 mm \| 2T: 182 mm \| Cr: 1680 kN \| C0r: 3100 kN \| m: 59.4 kg
32038-X-N11CA-A350-400		d: 190 mm \| D: 290 mm \| 2T: 128 mm \| Cr: 1080 kN \| C0r: 2250 kN \| m: 29.6 kg
32040-X-N11CA-A350-400		d: 200 mm \| D: 310 mm \| 2T: 140 mm \| Cr: 1300 kN \| C0r: 2750 kN \| m: 39.1 kg
32944-N11CA-A420-470		d: 220 mm \| D: 300 mm \| 2T: 102 mm \| Cr: 850 kN \| C0r: 1960 kN \| m: 20.3 kg
32244-A-N11CA-A400-450		d: 220 mm \| D: 400 mm \| 2T: 228 mm \| Cr: 2650 kN \| C0r: 5100 kN \| m: 123 kg
32048-X-N11CA-A450-500		d: 240 mm \| D: 360 mm \| 2T: 152 mm \| Cr: 1540 kN \| C0r: 3350 kN \| m: 58.3 kg
32960-N11CA-A650-700		d: 300 mm \| D: 420 mm \| 2T: 152 mm \| Cr: 1760 kN \| C0r: 4300 kN \| m: 63.6 kg
32964-N11CA-A600-650		d: 320 mm \| D: 440 mm \| 2T: 152 mm \| Cr: 1810 kN \| C0r: 4550 kN \| m: 67.2 kg
32968-N11CA-A550-600		d: 340 mm \| D: 460 mm \| 2T: 152 mm \| Cr: 1850 kN \| C0r: 4750 kN \| m: 73.1 kg

Tapered Roller BearingsFAG

37 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG N11CA Matched Pair Tapered Roller Bearings (X Arrangement)

Brand FAG·Tapered Roller Bearings

Available part numbers (37)

31306-A-N11CA-A50-90, 31307-A-N11CA-A40-70, 31308-A-N11CA-A50-90, 31309-A-N11CA-A60-100, 31310-A-N11CA-A60-100, 31311-A-N11CA-A80-120, 31312-A-N11CA-A80-120, 31313-A-N11CA-A80-120, 31314-A-N11CA-A100-140, 31315-N11CA-A100-140 + 27 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	31306-A-N11CA-A50-90	d: 30 mm \| D: 72 mm \| 2T: 41.5 mm \| Cr: 77 kN \| C0r: 93 kN \| m: 0.85 kg
	31307-A-N11CA-A40-70	d: 35 mm \| D: 80 mm \| 2T: 45.5 mm \| Cr: 103 kN \| C0r: 128 kN \| m: 1.13 kg
	31308-A-N11CA-A50-90	d: 40 mm \| D: 90 mm \| 2T: 50.5 mm \| Cr: 130 kN \| C0r: 165 kN \| m: 1.52 kg
	31309-A-N11CA-A60-100	d: 45 mm \| D: 100 mm \| 2T: 54.5 mm \| Cr: 165 kN \| C0r: 217 kN \| m: 2.1 kg
	31310-A-N11CA-A60-100	d: 50 mm \| D: 110 mm \| 2T: 58.5 mm \| Cr: 189 kN \| C0r: 250 kN \| m: 2.9 kg
	31311-A-N11CA-A80-120	d: 55 mm \| D: 120 mm \| 2T: 63 mm \| Cr: 210 kN \| C0r: 275 kN \| m: 3.4 kg
	31312-A-N11CA-A80-120	d: 60 mm \| D: 130 mm \| 2T: 67 mm \| Cr: 250 kN \| C0r: 335 kN \| m: 4.2 kg
	31313-A-N11CA-A80-120	d: 65 mm \| D: 140 mm \| 2T: 72 mm \| Cr: 280 kN \| C0r: 375 kN \| m: 5.05 kg
	31314-A-N11CA-A100-140	d: 70 mm \| D: 150 mm \| 2T: 76 mm \| Cr: 320 kN \| C0r: 435 kN \| m: 6.2 kg
	31315-N11CA-A100-140	d: 75 mm \| D: 160 mm \| 2T: 80 mm \| Cr: 350 kN \| C0r: 475 kN \| m: 7.2 kg
	32016-X-N11CA-A150-200	d: 80 mm \| D: 125 mm \| 2T: 58 mm \| Cr: 235 kN \| C0r: 420 kN \| m: 2.58 kg
	31316-N11CA-A100-140	d: 80 mm \| D: 170 mm \| 2T: 85 mm \| Cr: 390 kN \| C0r: 540 kN \| m: 8.9 kg
	31317-N11CA-A120-160	d: 85 mm \| D: 180 mm \| 2T: 89 mm \| Cr: 435 kN \| C0r: 600 kN \| m: 10.4 kg
	31318-N11CA-A120-160	d: 90 mm \| D: 190 mm \| 2T: 93 mm \| Cr: 470 kN \| C0r: 650 kN \| m: 11.8 kg
	31318-N11CA-A160-200	d: 90 mm \| D: 190 mm \| 2T: 93 mm \| Cr: 470 kN \| C0r: 650 kN \| m: 11.8 kg
	31319-A-N11CA-A120-160	d: 95 mm \| D: 200 mm \| 2T: 99 mm \| Cr: 520 kN \| C0r: 740 kN \| m: 14 kg
	32020-X-N11CA-A200-230	d: 100 mm \| D: 150 mm \| 2T: 64 mm \| Cr: 295 kN \| C0r: 570 kN \| m: 4 kg
	31320-X-N11CA-A120-160	d: 100 mm \| D: 215 mm \| 2T: 113 mm \| Cr: 660 kN \| C0r: 960 kN \| m: 19 kg
	32222-A-N11CA-A250-280	d: 110 mm \| D: 200 mm \| 2T: 112 mm \| Cr: 710 kN \| C0r: 1180 kN \| m: 14.9 kg
	31322-X-N11CA-A140-180	d: 110 mm \| D: 240 mm \| 2T: 126 mm \| Cr: 790 kN \| C0r: 1170 kN \| m: 26.2 kg
	32224-A-N11CA-A230-280	d: 120 mm \| D: 215 mm \| 2T: 123 mm \| Cr: 830 kN \| C0r: 1450 kN \| m: 19.1 kg
	31324-X-N11CA-A140-180	d: 120 mm \| D: 260 mm \| 2T: 136 mm \| Cr: 930 kN \| C0r: 1400 kN \| m: 33.7 kg
	32026-X-N11CA-A200-250	d: 130 mm \| D: 200 mm \| 2T: 90 mm \| Cr: 560 kN \| C0r: 1100 kN \| m: 10.3 kg
	31326-X-N11CA-A160-200	d: 130 mm \| D: 280 mm \| 2T: 144 mm \| Cr: 1050 kN \| C0r: 1590 kN \| m: 40.9 kg
	32228-A-N11CA-A250-300	d: 140 mm \| D: 250 mm \| 2T: 143.5 mm \| Cr: 1100 kN \| C0r: 1980 kN \| m: 29.5 kg
	31328-X-N11CA-A160-200	d: 140 mm \| D: 300 mm \| 2T: 154 mm \| Cr: 1200 kN \| C0r: 1810 kN \| m: 45.6 kg
	32030-X-N11CA-A280-330	d: 150 mm \| D: 225 mm \| 2T: 96 mm \| Cr: 660 kN \| C0r: 1350 kN \| m: 13.1 kg
	31330-X-N11CA-A180-230	d: 150 mm \| D: 320 mm \| 2T: 164 mm \| Cr: 1360 kN \| C0r: 2090 kN \| m: 57.7 kg
	32234-A-N11CA-A300-380	d: 170 mm \| D: 310 mm \| 2T: 182 mm \| Cr: 1680 kN \| C0r: 3100 kN \| m: 59.4 kg
	32038-X-N11CA-A350-400	d: 190 mm \| D: 290 mm \| 2T: 128 mm \| Cr: 1080 kN \| C0r: 2250 kN \| m: 29.6 kg
	32040-X-N11CA-A350-400	d: 200 mm \| D: 310 mm \| 2T: 140 mm \| Cr: 1300 kN \| C0r: 2750 kN \| m: 39.1 kg
	32944-N11CA-A420-470	d: 220 mm \| D: 300 mm \| 2T: 102 mm \| Cr: 850 kN \| C0r: 1960 kN \| m: 20.3 kg
	32244-A-N11CA-A400-450	d: 220 mm \| D: 400 mm \| 2T: 228 mm \| Cr: 2650 kN \| C0r: 5100 kN \| m: 123 kg
	32048-X-N11CA-A450-500	d: 240 mm \| D: 360 mm \| 2T: 152 mm \| Cr: 1540 kN \| C0r: 3350 kN \| m: 58.3 kg
	32960-N11CA-A650-700	d: 300 mm \| D: 420 mm \| 2T: 152 mm \| Cr: 1760 kN \| C0r: 4300 kN \| m: 63.6 kg
	32964-N11CA-A600-650	d: 320 mm \| D: 440 mm \| 2T: 152 mm \| Cr: 1810 kN \| C0r: 4550 kN \| m: 67.2 kg
	32968-N11CA-A550-600	d: 340 mm \| D: 460 mm \| 2T: 152 mm \| Cr: 1850 kN \| C0r: 4750 kN \| m: 73.1 kg
