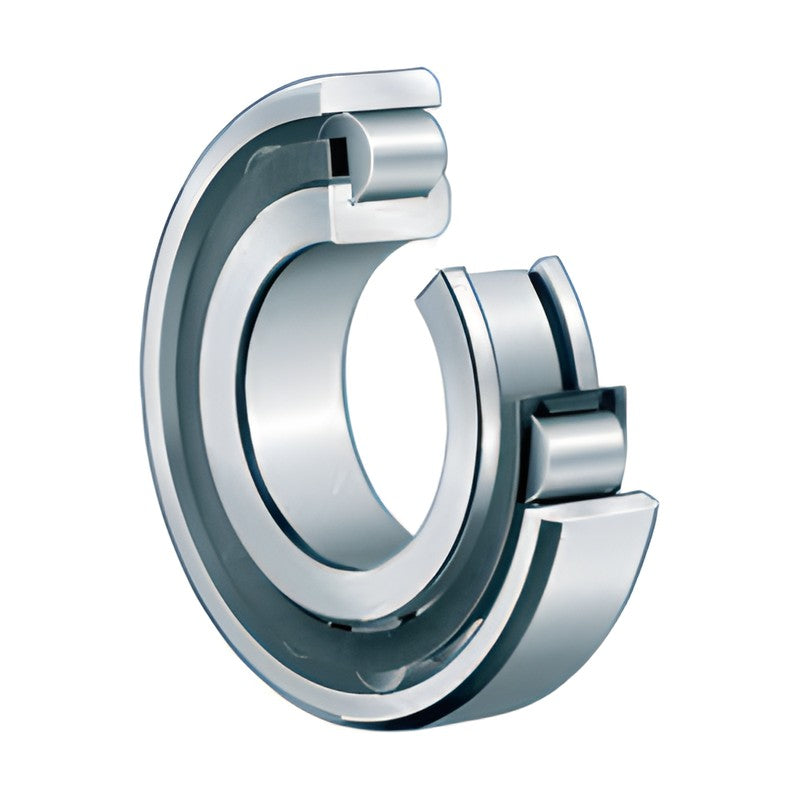

FAG N2..-E Cylindrical Roller Bearings (Non-locating)

FAG N2..-E Cylindrical Roller Bearings (Non-locating)

FAG single row cylindrical roller bearings with cage, N2..-E series, outer ring without ribs, for use as non-locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • TVP2 polyamide cage or M1 machined brass cage as printed
  • Separable design for simple mounting and dismounting
  • X-life performance grade on E-TVP2 sizes
  • Axial displacement between shaft and housing within the bearing

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series N2
Function Non-locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 350-363
N202-E-TVP2 d: 15 mm | D: 35 mm | B: 11 mm | C: 15.1 kN | C0: 10.4 kN | nG: 22000 rpm
N203-E-TVP2 d: 17 mm | D: 40 mm | B: 12 mm | C: 20.8 kN | C0: 14.6 kN | nG: 18000 rpm
N204-E-TVP2 d: 20 mm | D: 47 mm | B: 14 mm | C: 32.5 kN | C0: 24.7 kN | nG: 16000 rpm
N205-E-TVP2 d: 25 mm | D: 52 mm | B: 15 mm | C: 34.5 kN | C0: 27.5 kN | nG: 15000 rpm
N206-E-TVP2 d: 30 mm | D: 62 mm | B: 16 mm | C: 45 kN | C0: 36 kN | nG: 12000 rpm
N207-E-TVP2 d: 35 mm | D: 72 mm | B: 17 mm | C: 58 kN | C0: 48.5 kN | nG: 10000 rpm
N208-E-TVP2 d: 40 mm | D: 80 mm | B: 18 mm | C: 63 kN | C0: 53 kN | nG: 9000 rpm
N209-E-TVP2 d: 45 mm | D: 85 mm | B: 19 mm | C: 72 kN | C0: 63 kN | nG: 8500 rpm
N210-E-TVP2 d: 50 mm | D: 90 mm | B: 20 mm | C: 75 kN | C0: 69 kN | nG: 8000 rpm
N211-E-TVP2 d: 55 mm | D: 100 mm | B: 21 mm | C: 99 kN | C0: 95 kN | nG: 7000 rpm
N212-E-TVP2 d: 60 mm | D: 110 mm | B: 22 mm | C: 111 kN | C0: 102 kN | nG: 6300 rpm
N213-E-TVP2 d: 65 mm | D: 120 mm | B: 23 mm | C: 127 kN | C0: 119 kN | nG: 6000 rpm
N214-E-TVP2 d: 70 mm | D: 125 mm | B: 24 mm | C: 140 kN | C0: 137 kN | nG: 5300 rpm
N215-E-TVP2 d: 75 mm | D: 130 mm | B: 25 mm | C: 154 kN | C0: 156 kN | nG: 5300 rpm
N216-E-TVP2 d: 80 mm | D: 140 mm | B: 26 mm | C: 165 kN | C0: 167 kN | nG: 4800 rpm
N217-E-TVP2 d: 85 mm | D: 150 mm | B: 28 mm | C: 194 kN | C0: 194 kN | nG: 4500 rpm
N218-E-TVP2 d: 90 mm | D: 160 mm | B: 30 mm | C: 215 kN | C0: 217 kN | nG: 4300 rpm
N219-E-TVP2 d: 95 mm | D: 170 mm | B: 32 mm | C: 260 kN | C0: 265 kN | nG: 3800 rpm
N220-E-TVP2 d: 100 mm | D: 180 mm | B: 34 mm | C: 295 kN | C0: 305 kN | nG: 3800 rpm
N221-E-M1 d: 105 mm | D: 190 mm | B: 36 mm | C: 310 kN | C0: 320 kN | nG: 5600 rpm
N222-E-TVP2 d: 110 mm | D: 200 mm | B: 38 mm | C: 345 kN | C0: 365 kN | nG: 3400 rpm
N224-E-TVP2 d: 120 mm | D: 215 mm | B: 40 mm | C: 390 kN | C0: 415 kN | nG: 3200 rpm
N226-E-TVP2 d: 130 mm | D: 230 mm | B: 40 mm | C: 425 kN | C0: 445 kN | nG: 3000 rpm
N228-E-M1 d: 140 mm | D: 250 mm | B: 42 mm | C: 460 kN | C0: 510 kN | nG: 4800 rpm
N230-E-M1 d: 150 mm | D: 270 mm | B: 45 mm | C: 520 kN | C0: 590 kN | nG: 4500 rpm
N232-E-M1 d: 160 mm | D: 290 mm | B: 48 mm | C: 590 kN | C0: 670 kN | nG: 4300 rpm
N234-E-M1 d: 170 mm | D: 310 mm | B: 52 mm | C: 700 kN | C0: 780 kN | nG: 3600 rpm
N236-E-M1 d: 180 mm | D: 320 mm | B: 52 mm | C: 730 kN | C0: 830 kN | nG: 3600 rpm
N238-E-M1 d: 190 mm | D: 340 mm | B: 55 mm | C: 680 kN | C0: 930 kN | nG: 3200 rpm
N240-E-M1 d: 200 mm | D: 360 mm | B: 58 mm | C: 750 kN | C0: 1040 kN | nG: 3000 rpm
N248-E-M1 d: 240 mm | D: 440 mm | B: 72 mm | C: 1140 kN | C0: 1600 kN | nG: 2600 rpm
