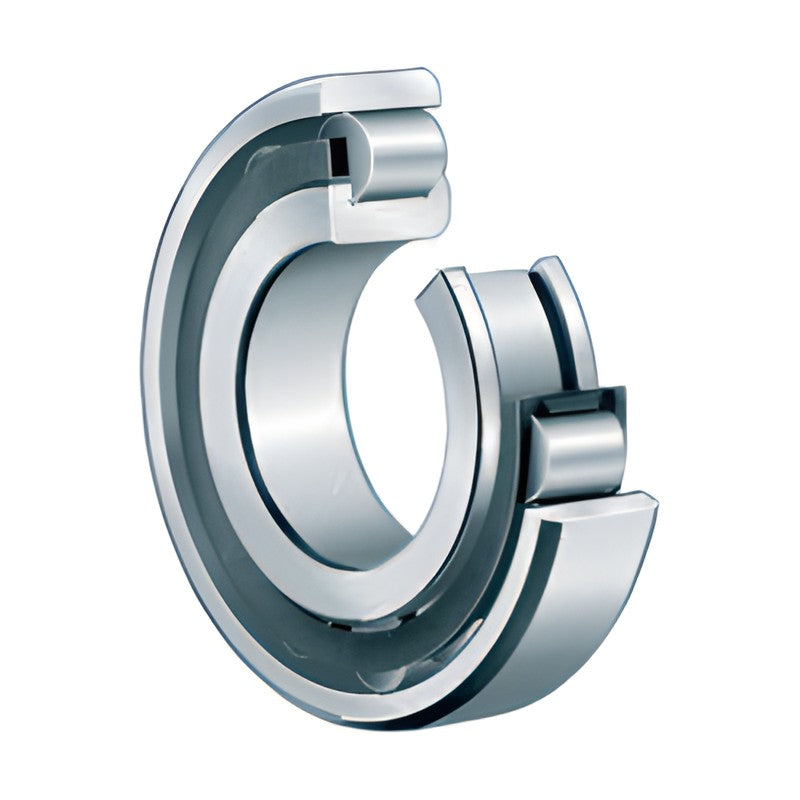

FAG N3..-E Cylindrical Roller Bearings (Non-locating)

FAG N3..-E Cylindrical Roller Bearings (Non-locating)

FAG single row cylindrical roller bearings with cage, N3..-E series, outer ring without ribs, for use as non-locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • TVP2 polyamide cage or M1 machined brass cage as printed
  • Separable design for simple mounting and dismounting
  • X-life performance grade on E-TVP2 sizes
  • Axial displacement between shaft and housing within the bearing

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series N3
Function Non-locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 350-361
N305-E-TVP2 d: 25 mm | D: 62 mm | B: 17 mm | C: 48 kN | C0: 36.5 kN | nG: 12000 rpm
N306-E-TVP2 d: 30 mm | D: 72 mm | B: 19 mm | C: 61 kN | C0: 48 kN | nG: 10000 rpm
N307-E-TVP2 d: 35 mm | D: 80 mm | B: 21 mm | C: 76 kN | C0: 63 kN | nG: 9000 rpm
N308-E-TVP2 d: 40 mm | D: 90 mm | B: 23 mm | C: 95 kN | C0: 78 kN | nG: 7500 rpm
N309-E-TVP2 d: 45 mm | D: 100 mm | B: 25 mm | C: 115 kN | C0: 98 kN | nG: 6700 rpm
N310-E-TVP2 d: 50 mm | D: 110 mm | B: 27 mm | C: 130 kN | C0: 113 kN | nG: 6300 rpm
N311-E-TVP2 d: 55 mm | D: 120 mm | B: 29 mm | C: 159 kN | C0: 139 kN | nG: 5600 rpm
N312-E-TVP2 d: 60 mm | D: 130 mm | B: 31 mm | C: 177 kN | C0: 157 kN | nG: 5000 rpm
N313-E-TVP2 d: 65 mm | D: 140 mm | B: 33 mm | C: 214 kN | C0: 191 kN | nG: 4800 rpm
N314-E-TVP2 d: 70 mm | D: 150 mm | B: 35 mm | C: 242 kN | C0: 222 kN | nG: 4500 rpm
N315-E-TVP2 d: 75 mm | D: 160 mm | B: 37 mm | C: 285 kN | C0: 265 kN | nG: 4000 rpm
N316-E-TVP2 d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 275 kN | nG: 3800 rpm
N317-E-M1 d: 85 mm | D: 180 mm | B: 41 mm | C: 340 kN | C0: 325 kN | nG: 5600 rpm
N318-E-M1 d: 90 mm | D: 190 mm | B: 43 mm | C: 370 kN | C0: 350 kN | nG: 5300 rpm
N319-E-M1 d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 380 kN | nG: 5300 rpm
N320-E-M1 d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 425 kN | nG: 5000 rpm
N322-E-M1 d: 110 mm | D: 240 mm | B: 50 mm | C: 520 kN | C0: 510 kN | nG: 4800 rpm
N324-E-M1 d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 600 kN | nG: 4500 rpm
N326-E-M1 d: 130 mm | D: 280 mm | B: 58 mm | C: 720 kN | C0: 720 kN | nG: 4300 rpm
N328-E-M1 d: 140 mm | D: 300 mm | B: 62 mm | C: 790 kN | C0: 800 kN | nG: 3800 rpm
N330-E-M1 d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 930 kN | nG: 3600 rpm
N332-E-M1 d: 160 mm | D: 340 mm | B: 68 mm | C: 865 kN | C0: 1060 kN | nG: 3000 rpm
N334-E-M1 d: 170 mm | D: 360 mm | B: 72 mm | C: 965 kN | C0: 1220 kN | nG: 3000 rpm
Cylindrical Roller BearingsFAG
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG N3..-E Cylindrical Roller Bearings (Non-locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (23)

N305-E-TVP2, N306-E-TVP2, N307-E-TVP2, N308-E-TVP2, N309-E-TVP2, N310-E-TVP2, N311-E-TVP2, N312-E-TVP2, N313-E-TVP2, N314-E-TVP2 + 13 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N305-E-TVP2d: 25 mm | D: 62 mm | B: 17 mm | C: 48 kN | C0: 36.5 kN | nG: 12000 rpm
N306-E-TVP2d: 30 mm | D: 72 mm | B: 19 mm | C: 61 kN | C0: 48 kN | nG: 10000 rpm
N307-E-TVP2d: 35 mm | D: 80 mm | B: 21 mm | C: 76 kN | C0: 63 kN | nG: 9000 rpm
N308-E-TVP2d: 40 mm | D: 90 mm | B: 23 mm | C: 95 kN | C0: 78 kN | nG: 7500 rpm
N309-E-TVP2d: 45 mm | D: 100 mm | B: 25 mm | C: 115 kN | C0: 98 kN | nG: 6700 rpm
N310-E-TVP2d: 50 mm | D: 110 mm | B: 27 mm | C: 130 kN | C0: 113 kN | nG: 6300 rpm
N311-E-TVP2d: 55 mm | D: 120 mm | B: 29 mm | C: 159 kN | C0: 139 kN | nG: 5600 rpm
N312-E-TVP2d: 60 mm | D: 130 mm | B: 31 mm | C: 177 kN | C0: 157 kN | nG: 5000 rpm
N313-E-TVP2d: 65 mm | D: 140 mm | B: 33 mm | C: 214 kN | C0: 191 kN | nG: 4800 rpm
N314-E-TVP2d: 70 mm | D: 150 mm | B: 35 mm | C: 242 kN | C0: 222 kN | nG: 4500 rpm
N315-E-TVP2d: 75 mm | D: 160 mm | B: 37 mm | C: 285 kN | C0: 265 kN | nG: 4000 rpm
N316-E-TVP2d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 275 kN | nG: 3800 rpm
N317-E-M1d: 85 mm | D: 180 mm | B: 41 mm | C: 340 kN | C0: 325 kN | nG: 5600 rpm
N318-E-M1d: 90 mm | D: 190 mm | B: 43 mm | C: 370 kN | C0: 350 kN | nG: 5300 rpm
N319-E-M1d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 380 kN | nG: 5300 rpm
N320-E-M1d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 425 kN | nG: 5000 rpm
N322-E-M1d: 110 mm | D: 240 mm | B: 50 mm | C: 520 kN | C0: 510 kN | nG: 4800 rpm
N324-E-M1d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 600 kN | nG: 4500 rpm
N326-E-M1d: 130 mm | D: 280 mm | B: 58 mm | C: 720 kN | C0: 720 kN | nG: 4300 rpm
N328-E-M1d: 140 mm | D: 300 mm | B: 62 mm | C: 790 kN | C0: 800 kN | nG: 3800 rpm
N330-E-M1d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 930 kN | nG: 3600 rpm
N332-E-M1d: 160 mm | D: 340 mm | B: 68 mm | C: 865 kN | C0: 1060 kN | nG: 3000 rpm
N334-E-M1d: 170 mm | D: 360 mm | B: 72 mm | C: 965 kN | C0: 1220 kN | nG: 3000 rpm
