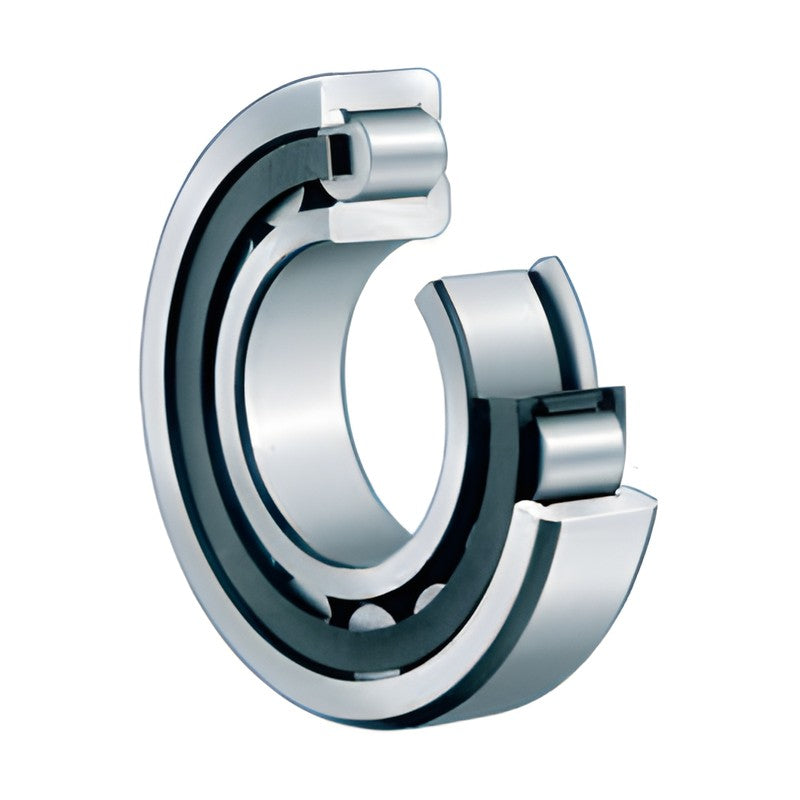

FAG NJ22 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

FAG NJ22 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

FAG single row cylindrical roller bearings with cage, NJ22 series, semi-locating; also listed with HJ angle ring as a locating unit.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • NJ: semi-locating, axial location in one direction
  • Supplied alone or with HJ angle ring (NJ + HJ) as a locating bearing
  • TVP2 polyamide or M1 machined brass cage as printed

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NJ22
Function Semi-locating (NJ), locating (NJ + HJ)
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 366-391
NJ2203-E-TVP2 d: 17 mm | D: 40 mm | B: 16 mm | C: 28.5 kN | C0: 21.9 kN | nG: 18000 rpm
NJ2203-E-TVP2 + HJ2203-E d: 17 mm | D: 40 mm | B: 16 mm | C: 28.5 kN | C0: 21.9 kN | nG: 18000 rpm
NJ2204-E-TVP2 d: 20 mm | D: 47 mm | B: 18 mm | C: 38.5 kN | C0: 31 kN | nG: 16000 rpm
NJ2204-E-TVP2 + HJ2204-E d: 20 mm | D: 47 mm | B: 18 mm | C: 38.5 kN | C0: 31 kN | nG: 16000 rpm
NJ2205-E-TVP2 d: 25 mm | D: 52 mm | B: 18 mm | C: 41.5 kN | C0: 34.5 kN | nG: 15000 rpm
NJ2205-E-TVP2 + HJ2205-E d: 25 mm | D: 52 mm | B: 18 mm | C: 41.5 kN | C0: 34.5 kN | nG: 15000 rpm
NJ2206-E-TVP2 d: 30 mm | D: 62 mm | B: 20 mm | C: 57 kN | C0: 48.5 kN | nG: 12000 rpm
NJ2206-E-TVP2 + HJ2206-E d: 30 mm | D: 62 mm | B: 20 mm | C: 57 kN | C0: 48.5 kN | nG: 12000 rpm
NJ2207-E-TVP2 d: 35 mm | D: 72 mm | B: 23 mm | C: 72 kN | C0: 64 kN | nG: 10000 rpm
NJ2207-E-TVP2 + HJ2207-E d: 35 mm | D: 72 mm | B: 23 mm | C: 72 kN | C0: 64 kN | nG: 10000 rpm
NJ2208-E-TVP2 d: 40 mm | D: 80 mm | B: 23 mm | C: 83 kN | C0: 75 kN | nG: 9000 rpm
NJ2208-E-TVP2 + HJ2208-E d: 40 mm | D: 80 mm | B: 23 mm | C: 83 kN | C0: 75 kN | nG: 9000 rpm
NJ2209-E-TVP2 d: 45 mm | D: 85 mm | B: 23 mm | C: 87 kN | C0: 82 kN | nG: 8500 rpm
NJ2209-E-TVP2 + HJ2209-E d: 45 mm | D: 85 mm | B: 23 mm | C: 87 kN | C0: 82 kN | nG: 8500 rpm
NJ2210-E-TVP2 d: 50 mm | D: 90 mm | B: 23 mm | C: 92 kN | C0: 88 kN | nG: 8000 rpm
NJ2210-E-TVP2 + HJ210-E d: 50 mm | D: 90 mm | B: 23 mm | C: 92 kN | C0: 88 kN | nG: 8000 rpm
NJ2211-E-TVP2 d: 55 mm | D: 100 mm | B: 25 mm | C: 117 kN | C0: 118 kN | nG: 7000 rpm
NJ2211-E-TVP2 + HJ2211-E d: 55 mm | D: 100 mm | B: 25 mm | C: 117 kN | C0: 118 kN | nG: 7000 rpm
NJ2212-E-TVP2 d: 60 mm | D: 110 mm | B: 28 mm | C: 151 kN | C0: 152 kN | nG: 6300 rpm
NJ2212-E-TVP2 + HJ212-E d: 60 mm | D: 110 mm | B: 28 mm | C: 151 kN | C0: 152 kN | nG: 6300 rpm
NJ2213-E-TVP2 d: 65 mm | D: 120 mm | B: 31 mm | C: 176 kN | C0: 181 kN | nG: 5600 rpm
NJ2213-E-TVP2 + HJ2213-E d: 65 mm | D: 120 mm | B: 31 mm | C: 176 kN | C0: 181 kN | nG: 5600 rpm
NJ2214-E-TVP2 d: 70 mm | D: 125 mm | B: 31 mm | C: 184 kN | C0: 194 kN | nG: 5300 rpm
NJ2214-E-TVP2 + HJ2214-E d: 70 mm | D: 125 mm | B: 31 mm | C: 184 kN | C0: 194 kN | nG: 5300 rpm
NJ2215-E-TVP2 d: 75 mm | D: 130 mm | B: 31 mm | C: 191 kN | C0: 207 kN | nG: 5300 rpm
NJ2215-E-TVP2 + HJ2215-E d: 75 mm | D: 130 mm | B: 31 mm | C: 191 kN | C0: 207 kN | nG: 5300 rpm
NJ2216-E-TVP2 d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 243 kN | nG: 4800 rpm
NJ2216-E-TVP2 + HJ216-E d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 243 kN | nG: 4800 rpm
NJ2217-E-TVP2 d: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 275 kN | nG: 4500 rpm
NJ2217-E-TVP2 + HJ2217-E d: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 275 kN | nG: 4500 rpm
NJ2218-E-TVP2 d: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 315 kN | nG: 4300 rpm
NJ2218-E-TVP2 + HJ2218-E d: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 315 kN | nG: 4300 rpm
NJ2219-E-TVP2 d: 95 mm | D: 170 mm | B: 43 mm | C: 340 kN | C0: 370 kN | nG: 3800 rpm
NJ2219-E-TVP2 + HJ2219-E d: 95 mm | D: 170 mm | B: 43 mm | C: 340 kN | C0: 370 kN | nG: 3800 rpm
NJ2220-E-TVP2 d: 100 mm | D: 180 mm | B: 46 mm | C: 395 kN | C0: 445 kN | nG: 3800 rpm
NJ2220-E-TVP2 + HJ2220-E d: 100 mm | D: 180 mm | B: 46 mm | C: 395 kN | C0: 445 kN | nG: 3800 rpm
NJ2222-E-TVP2 d: 110 mm | D: 200 mm | B: 53 mm | C: 455 kN | C0: 520 kN | nG: 3400 rpm
NJ2222-E-TVP2 + HJ2222-E d: 110 mm | D: 200 mm | B: 53 mm | C: 455 kN | C0: 520 kN | nG: 3400 rpm
NJ2224-E-TVP2 d: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 610 kN | nG: 3200 rpm
NJ2224-E-TVP2 + HJ2224-E d: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 610 kN | nG: 3200 rpm
NJ2226-E-TVP2 d: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 730 kN | nG: 3000 rpm
NJ2226-E-TVP2 + HJ2226-E d: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 730 kN | nG: 3000 rpm
NJ2228-E-M1 d: 140 mm | D: 250 mm | B: 68 mm | C: 670 kN | C0: 830 kN | nG: 4500 rpm
NJ2228-E-M1 + HJ2228-E d: 140 mm | D: 250 mm | B: 68 mm | C: 670 kN | C0: 830 kN | nG: 4500 rpm
NJ2230-E-M1 d: 150 mm | D: 270 mm | B: 73 mm | C: 780 kN | C0: 970 kN | nG: 4300 rpm
NJ2230-E-M1 + HJ2230-E d: 150 mm | D: 270 mm | B: 73 mm | C: 780 kN | C0: 970 kN | nG: 4300 rpm
NJ2232-E-M1 d: 160 mm | D: 290 mm | B: 80 mm | C: 940 kN | C0: 1170 kN | nG: 3800 rpm
NJ2232-E-M1 + HJ2232-E d: 160 mm | D: 290 mm | B: 80 mm | C: 940 kN | C0: 1170 kN | nG: 3800 rpm
NJ2234-E-M1 d: 170 mm | D: 310 mm | B: 86 mm | C: 1130 kN | C0: 1400 kN | nG: 3200 rpm
NJ2234-E-M1 + HJ2234-E d: 170 mm | D: 310 mm | B: 86 mm | C: 1130 kN | C0: 1400 kN | nG: 3200 rpm
NJ2236-E-M1 d: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1490 kN | nG: 3200 rpm
NJ2236-E-M1 + HJ2236-E d: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1490 kN | nG: 3200 rpm
NJ2238-E-M1 d: 190 mm | D: 340 mm | B: 92 mm | C: 1100 kN | C0: 1660 kN | nG: 3000 rpm
NJ2238-E-M1 + HJ2238-E d: 190 mm | D: 340 mm | B: 92 mm | C: 1100 kN | C0: 1660 kN | nG: 3000 rpm
NJ2240-E-M1 d: 200 mm | D: 360 mm | B: 98 mm | C: 1220 kN | C0: 1860 kN | nG: 2800 rpm
NJ2240-E-M1 + HJ2240-E d: 200 mm | D: 360 mm | B: 98 mm | C: 1220 kN | C0: 1860 kN | nG: 2800 rpm
Cylindrical Roller BearingsFAG
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NJ22 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (56)

NJ2203-E-TVP2, NJ2203-E-TVP2 + HJ2203-E, NJ2204-E-TVP2, NJ2204-E-TVP2 + HJ2204-E, NJ2205-E-TVP2, NJ2205-E-TVP2 + HJ2205-E, NJ2206-E-TVP2, NJ2206-E-TVP2 + HJ2206-E, NJ2207-E-TVP2, NJ2207-E-TVP2 + HJ2207-E + 46 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NJ2203-E-TVP2d: 17 mm | D: 40 mm | B: 16 mm | C: 28.5 kN | C0: 21.9 kN | nG: 18000 rpm
NJ2203-E-TVP2 + HJ2203-Ed: 17 mm | D: 40 mm | B: 16 mm | C: 28.5 kN | C0: 21.9 kN | nG: 18000 rpm
NJ2204-E-TVP2d: 20 mm | D: 47 mm | B: 18 mm | C: 38.5 kN | C0: 31 kN | nG: 16000 rpm
NJ2204-E-TVP2 + HJ2204-Ed: 20 mm | D: 47 mm | B: 18 mm | C: 38.5 kN | C0: 31 kN | nG: 16000 rpm
NJ2205-E-TVP2d: 25 mm | D: 52 mm | B: 18 mm | C: 41.5 kN | C0: 34.5 kN | nG: 15000 rpm
NJ2205-E-TVP2 + HJ2205-Ed: 25 mm | D: 52 mm | B: 18 mm | C: 41.5 kN | C0: 34.5 kN | nG: 15000 rpm
NJ2206-E-TVP2d: 30 mm | D: 62 mm | B: 20 mm | C: 57 kN | C0: 48.5 kN | nG: 12000 rpm
NJ2206-E-TVP2 + HJ2206-Ed: 30 mm | D: 62 mm | B: 20 mm | C: 57 kN | C0: 48.5 kN | nG: 12000 rpm
NJ2207-E-TVP2d: 35 mm | D: 72 mm | B: 23 mm | C: 72 kN | C0: 64 kN | nG: 10000 rpm
NJ2207-E-TVP2 + HJ2207-Ed: 35 mm | D: 72 mm | B: 23 mm | C: 72 kN | C0: 64 kN | nG: 10000 rpm
NJ2208-E-TVP2d: 40 mm | D: 80 mm | B: 23 mm | C: 83 kN | C0: 75 kN | nG: 9000 rpm
NJ2208-E-TVP2 + HJ2208-Ed: 40 mm | D: 80 mm | B: 23 mm | C: 83 kN | C0: 75 kN | nG: 9000 rpm
NJ2209-E-TVP2d: 45 mm | D: 85 mm | B: 23 mm | C: 87 kN | C0: 82 kN | nG: 8500 rpm
NJ2209-E-TVP2 + HJ2209-Ed: 45 mm | D: 85 mm | B: 23 mm | C: 87 kN | C0: 82 kN | nG: 8500 rpm
NJ2210-E-TVP2d: 50 mm | D: 90 mm | B: 23 mm | C: 92 kN | C0: 88 kN | nG: 8000 rpm
NJ2210-E-TVP2 + HJ210-Ed: 50 mm | D: 90 mm | B: 23 mm | C: 92 kN | C0: 88 kN | nG: 8000 rpm
NJ2211-E-TVP2d: 55 mm | D: 100 mm | B: 25 mm | C: 117 kN | C0: 118 kN | nG: 7000 rpm
NJ2211-E-TVP2 + HJ2211-Ed: 55 mm | D: 100 mm | B: 25 mm | C: 117 kN | C0: 118 kN | nG: 7000 rpm
NJ2212-E-TVP2d: 60 mm | D: 110 mm | B: 28 mm | C: 151 kN | C0: 152 kN | nG: 6300 rpm
NJ2212-E-TVP2 + HJ212-Ed: 60 mm | D: 110 mm | B: 28 mm | C: 151 kN | C0: 152 kN | nG: 6300 rpm
NJ2213-E-TVP2d: 65 mm | D: 120 mm | B: 31 mm | C: 176 kN | C0: 181 kN | nG: 5600 rpm
NJ2213-E-TVP2 + HJ2213-Ed: 65 mm | D: 120 mm | B: 31 mm | C: 176 kN | C0: 181 kN | nG: 5600 rpm
NJ2214-E-TVP2d: 70 mm | D: 125 mm | B: 31 mm | C: 184 kN | C0: 194 kN | nG: 5300 rpm
NJ2214-E-TVP2 + HJ2214-Ed: 70 mm | D: 125 mm | B: 31 mm | C: 184 kN | C0: 194 kN | nG: 5300 rpm
NJ2215-E-TVP2d: 75 mm | D: 130 mm | B: 31 mm | C: 191 kN | C0: 207 kN | nG: 5300 rpm
NJ2215-E-TVP2 + HJ2215-Ed: 75 mm | D: 130 mm | B: 31 mm | C: 191 kN | C0: 207 kN | nG: 5300 rpm
NJ2216-E-TVP2d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 243 kN | nG: 4800 rpm
NJ2216-E-TVP2 + HJ216-Ed: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 243 kN | nG: 4800 rpm
NJ2217-E-TVP2d: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 275 kN | nG: 4500 rpm
NJ2217-E-TVP2 + HJ2217-Ed: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 275 kN | nG: 4500 rpm
NJ2218-E-TVP2d: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 315 kN | nG: 4300 rpm
NJ2218-E-TVP2 + HJ2218-Ed: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 315 kN | nG: 4300 rpm
NJ2219-E-TVP2d: 95 mm | D: 170 mm | B: 43 mm | C: 340 kN | C0: 370 kN | nG: 3800 rpm
NJ2219-E-TVP2 + HJ2219-Ed: 95 mm | D: 170 mm | B: 43 mm | C: 340 kN | C0: 370 kN | nG: 3800 rpm
NJ2220-E-TVP2d: 100 mm | D: 180 mm | B: 46 mm | C: 395 kN | C0: 445 kN | nG: 3800 rpm
NJ2220-E-TVP2 + HJ2220-Ed: 100 mm | D: 180 mm | B: 46 mm | C: 395 kN | C0: 445 kN | nG: 3800 rpm
NJ2222-E-TVP2d: 110 mm | D: 200 mm | B: 53 mm | C: 455 kN | C0: 520 kN | nG: 3400 rpm
NJ2222-E-TVP2 + HJ2222-Ed: 110 mm | D: 200 mm | B: 53 mm | C: 455 kN | C0: 520 kN | nG: 3400 rpm
NJ2224-E-TVP2d: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 610 kN | nG: 3200 rpm
NJ2224-E-TVP2 + HJ2224-Ed: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 610 kN | nG: 3200 rpm
NJ2226-E-TVP2d: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 730 kN | nG: 3000 rpm
NJ2226-E-TVP2 + HJ2226-Ed: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 730 kN | nG: 3000 rpm
NJ2228-E-M1d: 140 mm | D: 250 mm | B: 68 mm | C: 670 kN | C0: 830 kN | nG: 4500 rpm
NJ2228-E-M1 + HJ2228-Ed: 140 mm | D: 250 mm | B: 68 mm | C: 670 kN | C0: 830 kN | nG: 4500 rpm
NJ2230-E-M1d: 150 mm | D: 270 mm | B: 73 mm | C: 780 kN | C0: 970 kN | nG: 4300 rpm
NJ2230-E-M1 + HJ2230-Ed: 150 mm | D: 270 mm | B: 73 mm | C: 780 kN | C0: 970 kN | nG: 4300 rpm
NJ2232-E-M1d: 160 mm | D: 290 mm | B: 80 mm | C: 940 kN | C0: 1170 kN | nG: 3800 rpm
NJ2232-E-M1 + HJ2232-Ed: 160 mm | D: 290 mm | B: 80 mm | C: 940 kN | C0: 1170 kN | nG: 3800 rpm
NJ2234-E-M1d: 170 mm | D: 310 mm | B: 86 mm | C: 1130 kN | C0: 1400 kN | nG: 3200 rpm
NJ2234-E-M1 + HJ2234-Ed: 170 mm | D: 310 mm | B: 86 mm | C: 1130 kN | C0: 1400 kN | nG: 3200 rpm
NJ2236-E-M1d: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1490 kN | nG: 3200 rpm
NJ2236-E-M1 + HJ2236-Ed: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1490 kN | nG: 3200 rpm
NJ2238-E-M1d: 190 mm | D: 340 mm | B: 92 mm | C: 1100 kN | C0: 1660 kN | nG: 3000 rpm
NJ2238-E-M1 + HJ2238-Ed: 190 mm | D: 340 mm | B: 92 mm | C: 1100 kN | C0: 1660 kN | nG: 3000 rpm
NJ2240-E-M1d: 200 mm | D: 360 mm | B: 98 mm | C: 1220 kN | C0: 1860 kN | nG: 2800 rpm
NJ2240-E-M1 + HJ2240-Ed: 200 mm | D: 360 mm | B: 98 mm | C: 1220 kN | C0: 1860 kN | nG: 2800 rpm

Need a different model, or a part not listed here? Send us your parts list →
