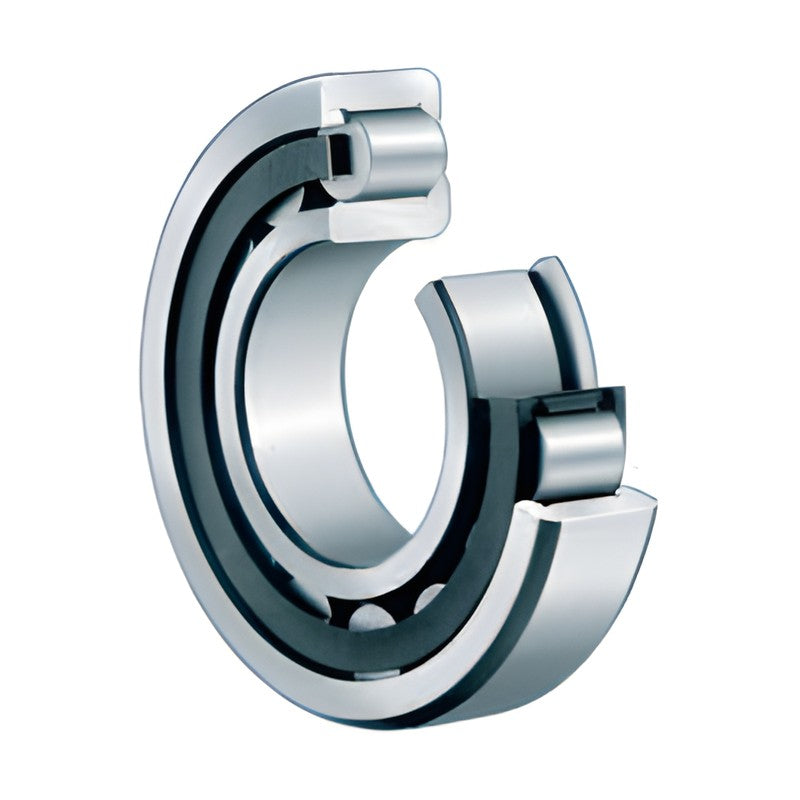

FAG NJ23 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

FAG NJ23 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

FAG single row cylindrical roller bearings with cage, NJ23 series, semi-locating; also listed with HJ angle ring as a locating unit.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • NJ: semi-locating, axial location in one direction
  • Supplied alone or with HJ angle ring (NJ + HJ) as a locating bearing
  • TVP2 polyamide or M1 machined brass cage as printed

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NJ23
Function Semi-locating (NJ), locating (NJ + HJ)
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 366-391
NJ2304-E-TVP2 d: 20 mm | D: 52 mm | B: 21 mm | C: 48.5 kN | C0: 38 kN | nG: 14000 rpm
NJ2304-E-TVP2 + HJ2304-E d: 20 mm | D: 52 mm | B: 21 mm | C: 48.5 kN | C0: 38 kN | nG: 14000 rpm
NJ2305-E-TVP2 d: 25 mm | D: 62 mm | B: 24 mm | C: 66 kN | C0: 55 kN | nG: 12000 rpm
NJ2305-E-TVP2 + HJ2305-E d: 25 mm | D: 62 mm | B: 24 mm | C: 66 kN | C0: 55 kN | nG: 12000 rpm
NJ2306-E-TVP2 d: 30 mm | D: 72 mm | B: 27 mm | C: 86 kN | C0: 75 kN | nG: 10000 rpm
NJ2306-E-TVP2 + HJ2306-E d: 30 mm | D: 72 mm | B: 27 mm | C: 86 kN | C0: 75 kN | nG: 10000 rpm
NJ2307-E-TVP2 d: 35 mm | D: 80 mm | B: 31 mm | C: 108 kN | C0: 98 kN | nG: 9000 rpm
NJ2307-E-TVP2 + HJ2307-E d: 35 mm | D: 80 mm | B: 31 mm | C: 108 kN | C0: 98 kN | nG: 9000 rpm
NJ2308-E-TVP2 d: 40 mm | D: 90 mm | B: 33 mm | C: 132 kN | C0: 119 kN | nG: 7500 rpm
NJ2308-E-TVP2 + HJ2308-E d: 40 mm | D: 90 mm | B: 33 mm | C: 132 kN | C0: 119 kN | nG: 7500 rpm
NJ2309-E-TVP2 d: 45 mm | D: 100 mm | B: 36 mm | C: 162 kN | C0: 153 kN | nG: 6700 rpm
NJ2309-E-TVP2 + HJ2309-E d: 45 mm | D: 100 mm | B: 36 mm | C: 162 kN | C0: 153 kN | nG: 6700 rpm
NJ2310-E-TVP2 d: 50 mm | D: 110 mm | B: 40 mm | C: 192 kN | C0: 187 kN | nG: 6300 rpm
NJ2310-E-TVP2 + HJ2310-E d: 50 mm | D: 110 mm | B: 40 mm | C: 192 kN | C0: 187 kN | nG: 6300 rpm
NJ2311-E-TVP2 d: 55 mm | D: 120 mm | B: 43 mm | C: 235 kN | C0: 230 kN | nG: 5600 rpm
NJ2311-E-TVP2 + HJ2311-E d: 55 mm | D: 120 mm | B: 43 mm | C: 235 kN | C0: 230 kN | nG: 5600 rpm
NJ2312-E-TVP2 d: 60 mm | D: 130 mm | B: 46 mm | C: 265 kN | C0: 260 kN | nG: 5000 rpm
NJ2312-E-TVP2 + HJ2312-E d: 60 mm | D: 130 mm | B: 46 mm | C: 265 kN | C0: 260 kN | nG: 5000 rpm
NJ2313-E-TVP2 d: 65 mm | D: 140 mm | B: 48 mm | C: 295 kN | C0: 285 kN | nG: 4800 rpm
NJ2313-E-TVP2 + HJ2313-E d: 65 mm | D: 140 mm | B: 48 mm | C: 295 kN | C0: 285 kN | nG: 4800 rpm
NJ2314-E-TVP2 d: 70 mm | D: 150 mm | B: 51 mm | C: 325 kN | C0: 325 kN | nG: 4500 rpm
NJ2314-E-TVP2 + HJ2314-E d: 70 mm | D: 150 mm | B: 51 mm | C: 325 kN | C0: 325 kN | nG: 4500 rpm
NJ2315-E-TVP2 d: 75 mm | D: 160 mm | B: 55 mm | C: 390 kN | C0: 395 kN | nG: 4000 rpm
NJ2315-E-TVP2 + HJ2315-E d: 75 mm | D: 160 mm | B: 55 mm | C: 390 kN | C0: 395 kN | nG: 4000 rpm
NJ2316-E-TVP2 d: 80 mm | D: 170 mm | B: 58 mm | C: 420 kN | C0: 425 kN | nG: 3800 rpm
NJ2316-E-TVP2 + HJ2316-E d: 80 mm | D: 170 mm | B: 58 mm | C: 420 kN | C0: 425 kN | nG: 3800 rpm
NJ2317-E-TVP2 d: 85 mm | D: 180 mm | B: 60 mm | C: 435 kN | C0: 445 kN | nG: 3600 rpm
NJ2317-E-TVP2 + HJ2317-E d: 85 mm | D: 180 mm | B: 60 mm | C: 435 kN | C0: 445 kN | nG: 3600 rpm
NJ2318-E-TVP2 d: 90 mm | D: 190 mm | B: 64 mm | C: 510 kN | C0: 530 kN | nG: 3400 rpm
NJ2318-E-TVP2 + HJ2318-E d: 90 mm | D: 190 mm | B: 64 mm | C: 510 kN | C0: 530 kN | nG: 3400 rpm
NJ2319-E-TVP2 d: 95 mm | D: 200 mm | B: 67 mm | C: 540 kN | C0: 580 kN | nG: 3400 rpm
NJ2319-E-TVP2 + HJ2319-E d: 95 mm | D: 200 mm | B: 67 mm | C: 540 kN | C0: 580 kN | nG: 3400 rpm
NJ2320-E-TVP2 d: 100 mm | D: 215 mm | B: 73 mm | C: 680 kN | C0: 720 kN | nG: 3200 rpm
NJ2320-E-TVP2 + HJ2320-E d: 100 mm | D: 215 mm | B: 73 mm | C: 680 kN | C0: 720 kN | nG: 3200 rpm
NJ2322-E-TVP2 d: 110 mm | D: 240 mm | B: 80 mm | C: 750 kN | C0: 800 kN | nG: 2800 rpm
NJ2322-E-TVP2 + HJ2322-E d: 110 mm | D: 240 mm | B: 80 mm | C: 750 kN | C0: 800 kN | nG: 2800 rpm
NJ2324-E-M1 d: 120 mm | D: 260 mm | B: 86 mm | C: 930 kN | C0: 1010 kN | nG: 4300 rpm
NJ2324-E-M1 + HJ2324-E d: 120 mm | D: 260 mm | B: 86 mm | C: 930 kN | C0: 1010 kN | nG: 4300 rpm
NJ2326-E-M1 d: 130 mm | D: 280 mm | B: 93 mm | C: 1080 kN | C0: 1220 kN | nG: 3800 rpm
NJ2326-E-M1 + HJ2326-E d: 130 mm | D: 280 mm | B: 93 mm | C: 1080 kN | C0: 1220 kN | nG: 3800 rpm
NJ2328-E-M1 d: 140 mm | D: 300 mm | B: 102 mm | C: 1210 kN | C0: 1390 kN | nG: 3600 rpm
NJ2328-E-M1 + HJ2328-E d: 140 mm | D: 300 mm | B: 102 mm | C: 1210 kN | C0: 1390 kN | nG: 3600 rpm
NJ2330-E-M1 d: 150 mm | D: 320 mm | B: 108 mm | C: 1380 kN | C0: 1600 kN | nG: 3200 rpm
NJ2330-E-M1 + HJ2330-E d: 150 mm | D: 320 mm | B: 108 mm | C: 1380 kN | C0: 1600 kN | nG: 3200 rpm
NJ2332-E-M1 d: 160 mm | D: 340 mm | B: 114 mm | C: 1320 kN | C0: 1830 kN | nG: 3000 rpm
NJ2332-E-M1 + HJ2332-E d: 160 mm | D: 340 mm | B: 114 mm | C: 1320 kN | C0: 1830 kN | nG: 3000 rpm
NJ2334-EX-M1 d: 170 mm | D: 360 mm | B: 120 mm | C: 1500 kN | C0: 2080 kN | nG: 2800 rpm
NJ2334-EX-M1 + HJ2334-EX d: 170 mm | D: 360 mm | B: 120 mm | C: 1500 kN | C0: 2080 kN | nG: 2800 rpm
NJ2336-EX-M1 d: 180 mm | D: 380 mm | B: 126 mm | C: 1660 kN | C0: 2320 kN | nG: 2800 rpm
NJ2336-EX-M1 + HJ2336-EX d: 180 mm | D: 380 mm | B: 126 mm | C: 1660 kN | C0: 2320 kN | nG: 2800 rpm
NJ2338-EX-M1 d: 190 mm | D: 400 mm | B: 132 mm | C: 1900 kN | C0: 2650 kN | nG: 2600 rpm
NJ2338-EX-M1 + HJ2338-EX d: 190 mm | D: 400 mm | B: 132 mm | C: 1900 kN | C0: 2650 kN | nG: 2600 rpm
NJ2340-EX-M1 d: 200 mm | D: 420 mm | B: 138 mm | C: 2040 kN | C0: 2900 kN | nG: 2400 rpm
NJ2340-EX-M1 + HJ2340-EX d: 200 mm | D: 420 mm | B: 138 mm | C: 2040 kN | C0: 2900 kN | nG: 2400 rpm
