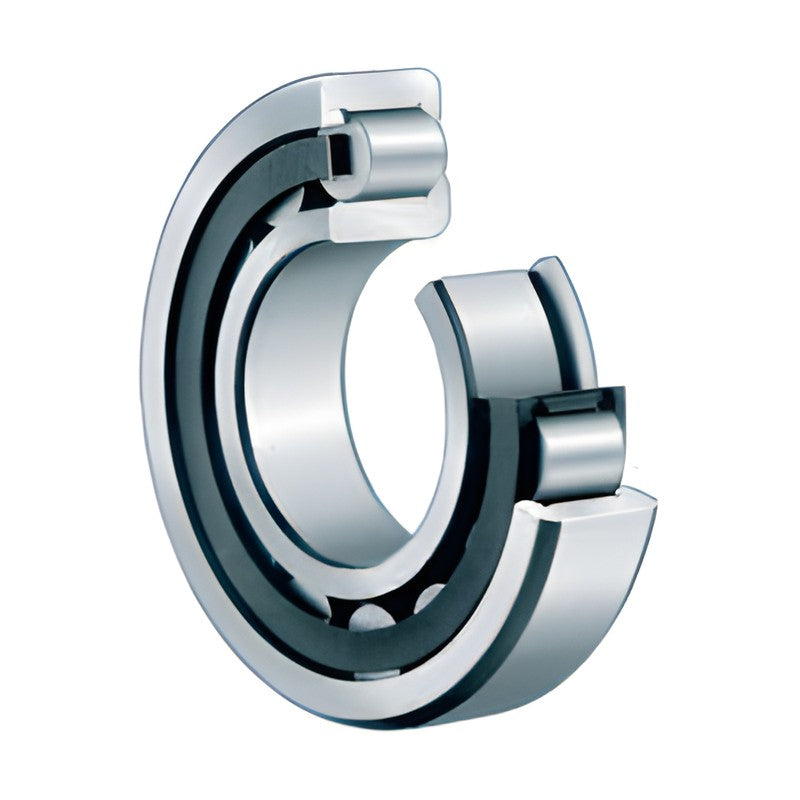

FAG NJ3 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

FAG NJ3 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

FAG single row cylindrical roller bearings with cage, NJ3 series, semi-locating; also listed with HJ angle ring as a locating unit.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • NJ: semi-locating, axial location in one direction
  • Supplied alone or with HJ angle ring (NJ + HJ) as a locating bearing
  • TVP2 polyamide or M1 machined brass cage as printed

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NJ3
Function Semi-locating (NJ), locating (NJ + HJ)
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 366-391
NJ303-E-TVP2 d: 17 mm | D: 47 mm | B: 14 mm | C: 30 kN | C0: 21.2 kN | nG: 16000 rpm
NJ303-E-TVP2 + HJ303-E d: 17 mm | D: 47 mm | B: 14 mm | C: 30 kN | C0: 21.2 kN | nG: 16000 rpm
NJ304-E-TVP2 d: 20 mm | D: 52 mm | B: 15 mm | C: 36.5 kN | C0: 26 kN | nG: 14000 rpm
NJ304-E-TVP2 + HJ304-E d: 20 mm | D: 52 mm | B: 15 mm | C: 36.5 kN | C0: 26 kN | nG: 14000 rpm
NJ305-E-TVP2 d: 25 mm | D: 62 mm | B: 17 mm | C: 48 kN | C0: 36.5 kN | nG: 12000 rpm
NJ305-E-TVP2 + HJ305-E d: 25 mm | D: 62 mm | B: 17 mm | C: 48 kN | C0: 36.5 kN | nG: 12000 rpm
NJ306-E-TVP2 d: 30 mm | D: 72 mm | B: 19 mm | C: 61 kN | C0: 48 kN | nG: 10000 rpm
NJ306-E-TVP2 + HJ306-E d: 30 mm | D: 72 mm | B: 19 mm | C: 61 kN | C0: 48 kN | nG: 10000 rpm
NJ307-E-TVP2 d: 35 mm | D: 80 mm | B: 21 mm | C: 76 kN | C0: 63 kN | nG: 9000 rpm
NJ307-E-TVP2 + HJ307-E d: 35 mm | D: 80 mm | B: 21 mm | C: 76 kN | C0: 63 kN | nG: 9000 rpm
NJ308-E-TVP2 d: 40 mm | D: 90 mm | B: 23 mm | C: 95 kN | C0: 78 kN | nG: 7500 rpm
NJ308-E-TVP2 + HJ308-E d: 40 mm | D: 90 mm | B: 23 mm | C: 95 kN | C0: 78 kN | nG: 7500 rpm
NJ309-E-TVP2 d: 45 mm | D: 100 mm | B: 25 mm | C: 115 kN | C0: 98 kN | nG: 6700 rpm
NJ309-E-TVP2 + HJ309-E d: 45 mm | D: 100 mm | B: 25 mm | C: 115 kN | C0: 98 kN | nG: 6700 rpm
NJ310-E-TVP2 d: 50 mm | D: 110 mm | B: 27 mm | C: 130 kN | C0: 113 kN | nG: 6300 rpm
NJ310-E-TVP2 + HJ310-E d: 50 mm | D: 110 mm | B: 27 mm | C: 130 kN | C0: 113 kN | nG: 6300 rpm
NJ311-E-TVP2 d: 55 mm | D: 120 mm | B: 29 mm | C: 159 kN | C0: 139 kN | nG: 5600 rpm
NJ311-E-TVP2 + HJ311-E d: 55 mm | D: 120 mm | B: 29 mm | C: 159 kN | C0: 139 kN | nG: 5600 rpm
NJ312-E-TVP2 d: 60 mm | D: 130 mm | B: 31 mm | C: 177 kN | C0: 157 kN | nG: 5000 rpm
NJ312-E-TVP2 + HJ312-E d: 60 mm | D: 130 mm | B: 31 mm | C: 177 kN | C0: 157 kN | nG: 5000 rpm
NJ313-E-TVP2 d: 65 mm | D: 140 mm | B: 33 mm | C: 214 kN | C0: 191 kN | nG: 4800 rpm
NJ313-E-TVP2 + HJ313-E d: 65 mm | D: 140 mm | B: 33 mm | C: 214 kN | C0: 191 kN | nG: 4800 rpm
NJ314-E-TVP2 d: 70 mm | D: 150 mm | B: 35 mm | C: 242 kN | C0: 222 kN | nG: 4500 rpm
NJ314-E-TVP2 + HJ314-E d: 70 mm | D: 150 mm | B: 35 mm | C: 242 kN | C0: 222 kN | nG: 4500 rpm
NJ315-E-TVP2 d: 75 mm | D: 160 mm | B: 37 mm | C: 285 kN | C0: 265 kN | nG: 4000 rpm
NJ315-E-TVP2 + HJ315-E d: 75 mm | D: 160 mm | B: 37 mm | C: 285 kN | C0: 265 kN | nG: 4000 rpm
NJ316-E-TVP2 d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 275 kN | nG: 3800 rpm
NJ316-E-TVP2 + HJ316-E d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 275 kN | nG: 3800 rpm
NJ317-E-TVP2 d: 85 mm | D: 180 mm | B: 41 mm | C: 320 kN | C0: 300 kN | nG: 3600 rpm
NJ317-E-TVP2 + HJ317-E d: 85 mm | D: 180 mm | B: 41 mm | C: 320 kN | C0: 300 kN | nG: 3600 rpm
NJ318-E-TVP2 d: 90 mm | D: 190 mm | B: 43 mm | C: 370 kN | C0: 350 kN | nG: 3400 rpm
NJ318-E-TVP2 + HJ318-E d: 90 mm | D: 190 mm | B: 43 mm | C: 370 kN | C0: 350 kN | nG: 3400 rpm
NJ319-E-TVP2 d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 380 kN | nG: 3400 rpm
NJ319-E-TVP2 + HJ319-E d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 380 kN | nG: 3400 rpm
NJ320-E-TVP2 d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 425 kN | nG: 3200 rpm
NJ320-E-TVP2 + HJ320-E d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 425 kN | nG: 3200 rpm
NJ322-E-TVP2 d: 110 mm | D: 240 mm | B: 50 mm | C: 495 kN | C0: 475 kN | nG: 3000 rpm
NJ322-E-TVP2 + HJ322-E d: 110 mm | D: 240 mm | B: 50 mm | C: 495 kN | C0: 475 kN | nG: 3000 rpm
NJ324-E-TVP2 d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 600 kN | nG: 2800 rpm
NJ324-E-TVP2 + HJ324-E d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 600 kN | nG: 2800 rpm
NJ326-E-TVP2 d: 130 mm | D: 280 mm | B: 58 mm | C: 680 kN | C0: 670 kN | nG: 2600 rpm
NJ326-E-TVP2 + HJ326-E d: 130 mm | D: 280 mm | B: 58 mm | C: 680 kN | C0: 670 kN | nG: 2600 rpm
NJ328-E-TVP2 d: 140 mm | D: 300 mm | B: 62 mm | C: 790 kN | C0: 800 kN | nG: 2400 rpm
NJ328-E-TVP2 + HJ328-E d: 140 mm | D: 300 mm | B: 62 mm | C: 790 kN | C0: 800 kN | nG: 2400 rpm
NJ330-E-M1 d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 930 kN | nG: 3600 rpm
NJ330-E-M1 + HJ330-E d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 930 kN | nG: 3600 rpm
NJ332-E-M1 d: 160 mm | D: 340 mm | B: 68 mm | C: 865 kN | C0: 1060 kN | nG: 3000 rpm
NJ332-E-M1 + HJ332-E d: 160 mm | D: 340 mm | B: 68 mm | C: 865 kN | C0: 1060 kN | nG: 3000 rpm
NJ334-E-M1 d: 170 mm | D: 360 mm | B: 72 mm | C: 965 kN | C0: 1220 kN | nG: 3000 rpm
NJ334-E-M1 + HJ334-E d: 170 mm | D: 360 mm | B: 72 mm | C: 965 kN | C0: 1220 kN | nG: 3000 rpm
NJ336-E-M1 d: 180 mm | D: 380 mm | B: 75 mm | C: 1040 kN | C0: 1320 kN | nG: 2800 rpm
NJ336-E-M1 + HJ336E d: 180 mm | D: 380 mm | B: 75 mm | C: 1040 kN | C0: 1320 kN | nG: 2800 rpm
NJ340-E-M1 d: 200 mm | D: 420 mm | B: 80 mm | C: 1180 kN | C0: 1530 kN | nG: 2600 rpm
NJ340-E-M1 + HJ340-E d: 200 mm | D: 420 mm | B: 80 mm | C: 1180 kN | C0: 1530 kN | nG: 2600 rpm
NJ348-E-M1 d: 240 mm | D: 500 mm | B: 95 mm | C: 1730 kN | C0: 2280 kN | nG: 2200 rpm
NJ348-E-M1 + HJ348-E d: 240 mm | D: 500 mm | B: 95 mm | C: 1730 kN | C0: 2280 kN | nG: 2200 rpm
NJ356-E-M1 d: 280 mm | D: 580 mm | B: 108 mm | C: 2160 kN | C0: 3050 kN | nG: 1900 rpm
NJ356-E-M1 + HJ356-E d: 280 mm | D: 580 mm | B: 108 mm | C: 2160 kN | C0: 3050 kN | nG: 1900 rpm
