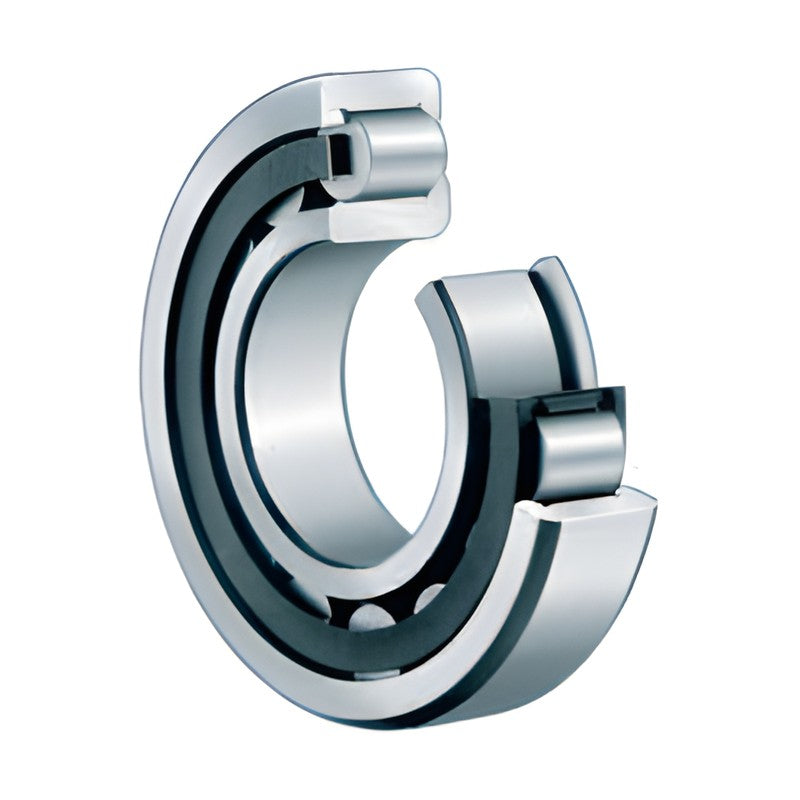

FAG NJ4 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

FAG NJ4 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

FAG single row cylindrical roller bearings with cage, NJ4 series, semi-locating; also listed with HJ angle ring as a locating unit.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • NJ: semi-locating, axial location in one direction
  • Supplied alone or with HJ angle ring (NJ + HJ) as a locating bearing
  • TVP2 polyamide or M1 machined brass cage as printed

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NJ4
Function Semi-locating (NJ), locating (NJ + HJ)
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 368-385
NJ406-M1 d: 30 mm | D: 90 mm | B: 23 mm | C: 83 kN | C0: 64 kN | nG: 14000 rpm
NJ406-M1 + HJ406 d: 30 mm | D: 90 mm | B: 23 mm | C: 83 kN | C0: 64 kN | nG: 14000 rpm
NJ407-M1 d: 35 mm | D: 100 mm | B: 25 mm | C: 102 kN | C0: 83 kN | nG: 12000 rpm
NJ407-M1 + HJ407 d: 35 mm | D: 100 mm | B: 25 mm | C: 102 kN | C0: 83 kN | nG: 12000 rpm
NJ408-M1 d: 40 mm | D: 110 mm | B: 27 mm | C: 119 kN | C0: 95 kN | nG: 11000 rpm
NJ408-M1 + HJ408 d: 40 mm | D: 110 mm | B: 27 mm | C: 119 kN | C0: 95 kN | nG: 11000 rpm
NJ409-M1 d: 45 mm | D: 120 mm | B: 29 mm | C: 143 kN | C0: 119 kN | nG: 6000 rpm
NJ409-M1 + HJ409 d: 45 mm | D: 120 mm | B: 29 mm | C: 143 kN | C0: 119 kN | nG: 6000 rpm
NJ410-M1 d: 50 mm | D: 130 mm | B: 31 mm | C: 175 kN | C0: 148 kN | nG: 8500 rpm
NJ410-M1 + HJ410 d: 50 mm | D: 130 mm | B: 31 mm | C: 175 kN | C0: 148 kN | nG: 8500 rpm
NJ411-M1 d: 55 mm | D: 140 mm | B: 33 mm | C: 187 kN | C0: 164 kN | nG: 8000 rpm
NJ411-M1 + HJ411 d: 55 mm | D: 140 mm | B: 33 mm | C: 187 kN | C0: 164 kN | nG: 8000 rpm
NJ412-M1 d: 60 mm | D: 150 mm | B: 35 mm | C: 211 kN | C0: 184 kN | nG: 7500 rpm
NJ412-M1 + HJ412 d: 60 mm | D: 150 mm | B: 35 mm | C: 211 kN | C0: 184 kN | nG: 7500 rpm
NJ413-M1 d: 65 mm | D: 160 mm | B: 37 mm | C: 230 kN | C0: 203 kN | nG: 7000 rpm
NJ413-M1 + HJ413 d: 65 mm | D: 160 mm | B: 37 mm | C: 230 kN | C0: 203 kN | nG: 7000 rpm
NJ414-M1 d: 70 mm | D: 180 mm | B: 42 mm | C: 285 kN | C0: 255 kN | nG: 6300 rpm
NJ414-M1 + HJ414 d: 70 mm | D: 180 mm | B: 42 mm | C: 285 kN | C0: 255 kN | nG: 6300 rpm
NJ415-M1 d: 75 mm | D: 190 mm | B: 45 mm | C: 325 kN | C0: 295 kN | nG: 6000 rpm
NJ415-M1 + HJ415 d: 75 mm | D: 190 mm | B: 45 mm | C: 325 kN | C0: 295 kN | nG: 6000 rpm
NJ416-M1 d: 80 mm | D: 200 mm | B: 48 mm | C: 395 kN | C0: 365 kN | nG: 5600 rpm
NJ416-M1 + HJ416 d: 80 mm | D: 200 mm | B: 48 mm | C: 395 kN | C0: 365 kN | nG: 5600 rpm
NJ417-M1 d: 85 mm | D: 210 mm | B: 52 mm | C: 420 kN | C0: 385 kN | nG: 5300 rpm
NJ417-M1 + HJ417 d: 85 mm | D: 210 mm | B: 52 mm | C: 420 kN | C0: 385 kN | nG: 5300 rpm
NJ418-M1 d: 90 mm | D: 225 mm | B: 54 mm | C: 465 kN | C0: 425 kN | nG: 5000 rpm
NJ418-M1 + HJ418 d: 90 mm | D: 225 mm | B: 54 mm | C: 465 kN | C0: 425 kN | nG: 5000 rpm
NJ419-M1 d: 95 mm | D: 240 mm | B: 55 mm | C: 495 kN | C0: 470 kN | nG: 4800 rpm
NJ419-M1 + HJ419 d: 95 mm | D: 240 mm | B: 55 mm | C: 495 kN | C0: 470 kN | nG: 4800 rpm
NJ420-M1 d: 100 mm | D: 250 mm | B: 58 mm | C: 550 kN | C0: 530 kN | nG: 4800 rpm
NJ420-M1 + HJ420 d: 100 mm | D: 250 mm | B: 58 mm | C: 550 kN | C0: 530 kN | nG: 4800 rpm
NJ421-M1 d: 105 mm | D: 260 mm | B: 60 mm | C: 610 kN | C0: 590 kN | nG: 4500 rpm
NJ421-M1 + HJ421 d: 105 mm | D: 260 mm | B: 60 mm | C: 610 kN | C0: 590 kN | nG: 4500 rpm
NJ422-M1 d: 110 mm | D: 280 mm | B: 65 mm | C: 680 kN | C0: 660 kN | nG: 4500 rpm
NJ422-M1 + HJ422 d: 110 mm | D: 280 mm | B: 65 mm | C: 680 kN | C0: 660 kN | nG: 4500 rpm
NJ424-M1 d: 120 mm | D: 310 mm | B: 72 mm | C: 850 kN | C0: 840 kN | nG: 3800 rpm
NJ424-M1 + HJ424 d: 120 mm | D: 310 mm | B: 72 mm | C: 850 kN | C0: 840 kN | nG: 3800 rpm
Cylindrical Roller BearingsFAG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NJ4 Series Cylindrical Roller Bearings (NJ, NJ + HJ)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (36)

NJ406-M1, NJ406-M1 + HJ406, NJ407-M1, NJ407-M1 + HJ407, NJ408-M1, NJ408-M1 + HJ408, NJ409-M1, NJ409-M1 + HJ409, NJ410-M1, NJ410-M1 + HJ410 + 26 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NJ406-M1d: 30 mm | D: 90 mm | B: 23 mm | C: 83 kN | C0: 64 kN | nG: 14000 rpm
NJ406-M1 + HJ406d: 30 mm | D: 90 mm | B: 23 mm | C: 83 kN | C0: 64 kN | nG: 14000 rpm
NJ407-M1d: 35 mm | D: 100 mm | B: 25 mm | C: 102 kN | C0: 83 kN | nG: 12000 rpm
NJ407-M1 + HJ407d: 35 mm | D: 100 mm | B: 25 mm | C: 102 kN | C0: 83 kN | nG: 12000 rpm
NJ408-M1d: 40 mm | D: 110 mm | B: 27 mm | C: 119 kN | C0: 95 kN | nG: 11000 rpm
NJ408-M1 + HJ408d: 40 mm | D: 110 mm | B: 27 mm | C: 119 kN | C0: 95 kN | nG: 11000 rpm
NJ409-M1d: 45 mm | D: 120 mm | B: 29 mm | C: 143 kN | C0: 119 kN | nG: 6000 rpm
NJ409-M1 + HJ409d: 45 mm | D: 120 mm | B: 29 mm | C: 143 kN | C0: 119 kN | nG: 6000 rpm
NJ410-M1d: 50 mm | D: 130 mm | B: 31 mm | C: 175 kN | C0: 148 kN | nG: 8500 rpm
NJ410-M1 + HJ410d: 50 mm | D: 130 mm | B: 31 mm | C: 175 kN | C0: 148 kN | nG: 8500 rpm
NJ411-M1d: 55 mm | D: 140 mm | B: 33 mm | C: 187 kN | C0: 164 kN | nG: 8000 rpm
NJ411-M1 + HJ411d: 55 mm | D: 140 mm | B: 33 mm | C: 187 kN | C0: 164 kN | nG: 8000 rpm
NJ412-M1d: 60 mm | D: 150 mm | B: 35 mm | C: 211 kN | C0: 184 kN | nG: 7500 rpm
NJ412-M1 + HJ412d: 60 mm | D: 150 mm | B: 35 mm | C: 211 kN | C0: 184 kN | nG: 7500 rpm
NJ413-M1d: 65 mm | D: 160 mm | B: 37 mm | C: 230 kN | C0: 203 kN | nG: 7000 rpm
NJ413-M1 + HJ413d: 65 mm | D: 160 mm | B: 37 mm | C: 230 kN | C0: 203 kN | nG: 7000 rpm
NJ414-M1d: 70 mm | D: 180 mm | B: 42 mm | C: 285 kN | C0: 255 kN | nG: 6300 rpm
NJ414-M1 + HJ414d: 70 mm | D: 180 mm | B: 42 mm | C: 285 kN | C0: 255 kN | nG: 6300 rpm
NJ415-M1d: 75 mm | D: 190 mm | B: 45 mm | C: 325 kN | C0: 295 kN | nG: 6000 rpm
NJ415-M1 + HJ415d: 75 mm | D: 190 mm | B: 45 mm | C: 325 kN | C0: 295 kN | nG: 6000 rpm
NJ416-M1d: 80 mm | D: 200 mm | B: 48 mm | C: 395 kN | C0: 365 kN | nG: 5600 rpm
NJ416-M1 + HJ416d: 80 mm | D: 200 mm | B: 48 mm | C: 395 kN | C0: 365 kN | nG: 5600 rpm
NJ417-M1d: 85 mm | D: 210 mm | B: 52 mm | C: 420 kN | C0: 385 kN | nG: 5300 rpm
NJ417-M1 + HJ417d: 85 mm | D: 210 mm | B: 52 mm | C: 420 kN | C0: 385 kN | nG: 5300 rpm
NJ418-M1d: 90 mm | D: 225 mm | B: 54 mm | C: 465 kN | C0: 425 kN | nG: 5000 rpm
NJ418-M1 + HJ418d: 90 mm | D: 225 mm | B: 54 mm | C: 465 kN | C0: 425 kN | nG: 5000 rpm
NJ419-M1d: 95 mm | D: 240 mm | B: 55 mm | C: 495 kN | C0: 470 kN | nG: 4800 rpm
NJ419-M1 + HJ419d: 95 mm | D: 240 mm | B: 55 mm | C: 495 kN | C0: 470 kN | nG: 4800 rpm
NJ420-M1d: 100 mm | D: 250 mm | B: 58 mm | C: 550 kN | C0: 530 kN | nG: 4800 rpm
NJ420-M1 + HJ420d: 100 mm | D: 250 mm | B: 58 mm | C: 550 kN | C0: 530 kN | nG: 4800 rpm
NJ421-M1d: 105 mm | D: 260 mm | B: 60 mm | C: 610 kN | C0: 590 kN | nG: 4500 rpm
NJ421-M1 + HJ421d: 105 mm | D: 260 mm | B: 60 mm | C: 610 kN | C0: 590 kN | nG: 4500 rpm
NJ422-M1d: 110 mm | D: 280 mm | B: 65 mm | C: 680 kN | C0: 660 kN | nG: 4500 rpm
NJ422-M1 + HJ422d: 110 mm | D: 280 mm | B: 65 mm | C: 680 kN | C0: 660 kN | nG: 4500 rpm
NJ424-M1d: 120 mm | D: 310 mm | B: 72 mm | C: 850 kN | C0: 840 kN | nG: 3800 rpm
NJ424-M1 + HJ424d: 120 mm | D: 310 mm | B: 72 mm | C: 850 kN | C0: 840 kN | nG: 3800 rpm
