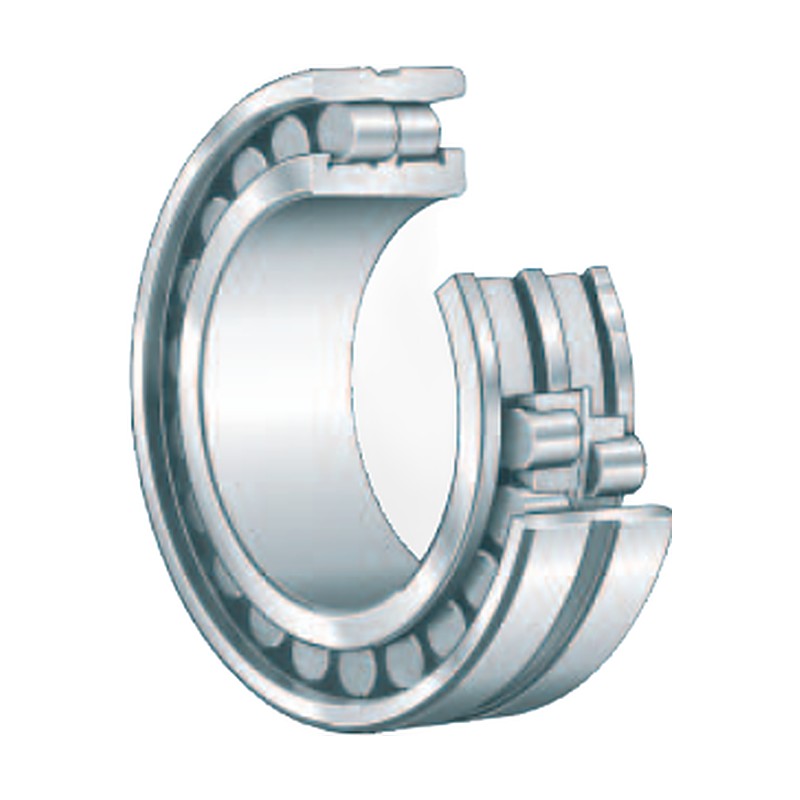

FAG NN30..-AS-K-M-SP Super Precision Cylindrical Roller Bearings

FAG NN30..-AS-K-M-SP Super Precision Cylindrical Roller Bearings

Double row super precision cylindrical roller bearings of series NN30 with tapered bore (1:12), solid brass cage and precision class SP, designed as non-locating bearings for machine tool main spindles.

Key features

  • Double row design with high radial rigidity and load capacity
  • Tapered bore 1:12 (suffix K) for precise setting of radial internal clearance
  • Lubrication groove and holes in the outer ring (suffix AS)
  • Machined brass cage (suffix M)
  • Precision class SP; UP available by agreement
  • Non-locating bearing: allows axial displacement within the bearing

Specifications

Brand FAG
Product type Cylindrical Roller Bearings
Series NN30..-AS-K-M-SP
Design Double row, non-locating
Bore Tapered 1:12
Cage Brass (M)
Precision SP
Bore d 30 - 500 mm
Outside diameter D 55 - 720 mm
Source FAG Rolling Bearings HR 1 catalogue, p. 446-459
NN3006-AS-K-M-SP d: 30 mm | D: 55 mm | B: 19 mm | Cr: 29 kN | C0r: 34 kN | m: 0.191 kg
NN3007-AS-K-M-SP d: 35 mm | D: 62 mm | B: 20 mm | Cr: 35.5 kN | C0r: 44 kN | m: 0.249 kg
NN3008-AS-K-M-SP d: 40 mm | D: 68 mm | B: 21 mm | Cr: 45 kN | C0r: 58.5 kN | m: 0.303 kg
NN3009-AS-K-M-SP d: 45 mm | D: 75 mm | B: 23 mm | Cr: 54 kN | C0r: 72 kN | m: 0.393 kg
NN3010-AS-K-M-SP d: 50 mm | D: 80 mm | B: 23 mm | Cr: 57 kN | C0r: 80 kN | m: 0.426 kg
NN3011-AS-K-M-SP d: 55 mm | D: 90 mm | B: 26 mm | Cr: 72 kN | C0r: 100 kN | m: 0.63 kg
NN3012-AS-K-M-SP d: 60 mm | D: 95 mm | B: 26 mm | Cr: 75 kN | C0r: 110 kN | m: 0.674 kg
NN3013-AS-K-M-SP d: 65 mm | D: 100 mm | B: 26 mm | Cr: 76.5 kN | C0r: 116 kN | m: 0.715 kg
NN3014-AS-K-M-SP d: 70 mm | D: 110 mm | B: 30 mm | Cr: 98 kN | C0r: 150 kN | m: 1.04 kg
NN3015-AS-K-M-SP d: 75 mm | D: 115 mm | B: 30 mm | Cr: 100 kN | C0r: 156 kN | m: 1.09 kg
NN3016-AS-K-M-SP d: 80 mm | D: 125 mm | B: 34 mm | Cr: 120 kN | C0r: 186 kN | m: 1.51 kg
NN3017-AS-K-M-SP d: 85 mm | D: 130 mm | B: 34 mm | Cr: 125 kN | C0r: 200 kN | m: 1.58 kg
NN3018-AS-K-M-SP d: 90 mm | D: 140 mm | B: 37 mm | Cr: 140 kN | C0r: 224 kN | m: 2.05 kg
NN3019-AS-K-M-SP d: 95 mm | D: 145 mm | B: 37 mm | Cr: 143 kN | C0r: 236 kN | m: 2.14 kg
NN3020-AS-K-M-SP d: 100 mm | D: 150 mm | B: 37 mm | Cr: 146 kN | C0r: 245 kN | m: 2.23 kg
NN3021-AS-K-M-SP d: 105 mm | D: 160 mm | B: 41 mm | Cr: 190 kN | C0r: 310 kN | m: 2.84 kg
NN3022-AS-K-M-SP d: 110 mm | D: 170 mm | B: 45 mm | Cr: 220 kN | C0r: 360 kN | m: 3.61 kg
NN3024-AS-K-M-SP d: 120 mm | D: 180 mm | B: 46 mm | Cr: 232 kN | C0r: 390 kN | m: 3.94 kg
NN3026-AS-K-M-SP d: 130 mm | D: 200 mm | B: 52 mm | Cr: 290 kN | C0r: 500 kN | m: 5.79 kg
NN3028-AS-K-M-SP d: 140 mm | D: 210 mm | B: 53 mm | Cr: 300 kN | C0r: 520 kN | m: 6.22 kg
NN3030-AS-K-M-SP d: 150 mm | D: 225 mm | B: 56 mm | Cr: 335 kN | C0r: 585 kN | m: 7.58 kg
NN3032-AS-K-M-SP d: 160 mm | D: 240 mm | B: 60 mm | Cr: 375 kN | C0r: 670 kN | m: 9.23 kg
NN3034-AS-K-M-SP d: 170 mm | D: 260 mm | B: 67 mm | Cr: 450 kN | C0r: 800 kN | m: 12.5 kg
NN3036-AS-K-M-SP d: 180 mm | D: 280 mm | B: 74 mm | Cr: 570 kN | C0r: 1000 kN | m: 16.4 kg
NN3038-AS-K-M-SP d: 190 mm | D: 290 mm | B: 75 mm | Cr: 585 kN | C0r: 1040 kN | m: 17.3 kg
NN3040-AS-K-M-SP d: 200 mm | D: 310 mm | B: 82 mm | Cr: 655 kN | C0r: 1200 kN | m: 22.2 kg
NN3044-AS-K-M-SP d: 220 mm | D: 340 mm | B: 90 mm | Cr: 800 kN | C0r: 1460 kN | m: 29.1 kg
NN3048-AS-K-M-SP d: 240 mm | D: 360 mm | B: 92 mm | Cr: 850 kN | C0r: 1560 kN | m: 31.6 kg
NN3052-AS-K-M-SP d: 260 mm | D: 400 mm | B: 104 mm | Cr: 1060 kN | C0r: 2000 kN | m: 46.2 kg
NN3056-AS-K-M-SP d: 280 mm | D: 420 mm | B: 106 mm | Cr: 1080 kN | C0r: 2080 kN | m: 49.7 kg
NN3060-AS-K-M-SP d: 300 mm | D: 460 mm | B: 118 mm | Cr: 1270 kN | C0r: 2400 kN | m: 68.8 kg
NN3064-AS-K-M-SP d: 320 mm | D: 480 mm | B: 121 mm | Cr: 1320 kN | C0r: 2600 kN | m: 74.2 kg
NN3068-AS-K-M-SP d: 340 mm | D: 520 mm | B: 133 mm | Cr: 1630 kN | C0r: 3250 kN | m: 99.3 kg
NN3072-AS-K-M-SP d: 360 mm | D: 540 mm | B: 134 mm | Cr: 1660 kN | C0r: 3350 kN | m: 104 kg
NN3076-AS-K-M-SP d: 380 mm | D: 560 mm | B: 135 mm | Cr: 1700 kN | C0r: 3450 kN | m: 110 kg
NN3080-AS-K-M-SP d: 400 mm | D: 600 mm | B: 148 mm | Cr: 2160 kN | C0r: 4500 kN | m: 143 kg
NN3084-AS-K-M-SP d: 420 mm | D: 620 mm | B: 150 mm | Cr: 2120 kN | C0r: 4500 kN | m: 150 kg
NN3088-AS-K-M-SP d: 440 mm | D: 650 mm | B: 157 mm | Cr: 2450 kN | C0r: 5100 kN | m: 172 kg
NN3092-AS-K-M-SP d: 460 mm | D: 680 mm | B: 163 mm | Cr: 2600 kN | C0r: 5400 kN | m: 197 kg
NN3096-AS-K-M-SP d: 480 mm | D: 700 mm | B: 165 mm | Cr: 2700 kN | C0r: 5850 kN | m: 206 kg
NN30/500-AS-K-M-SP d: 500 mm | D: 720 mm | B: 167 mm | Cr: 2650 kN | C0r: 5850 kN | m: 214 kg
Cylindrical Roller BearingsFAG
41 product codes available in this family
