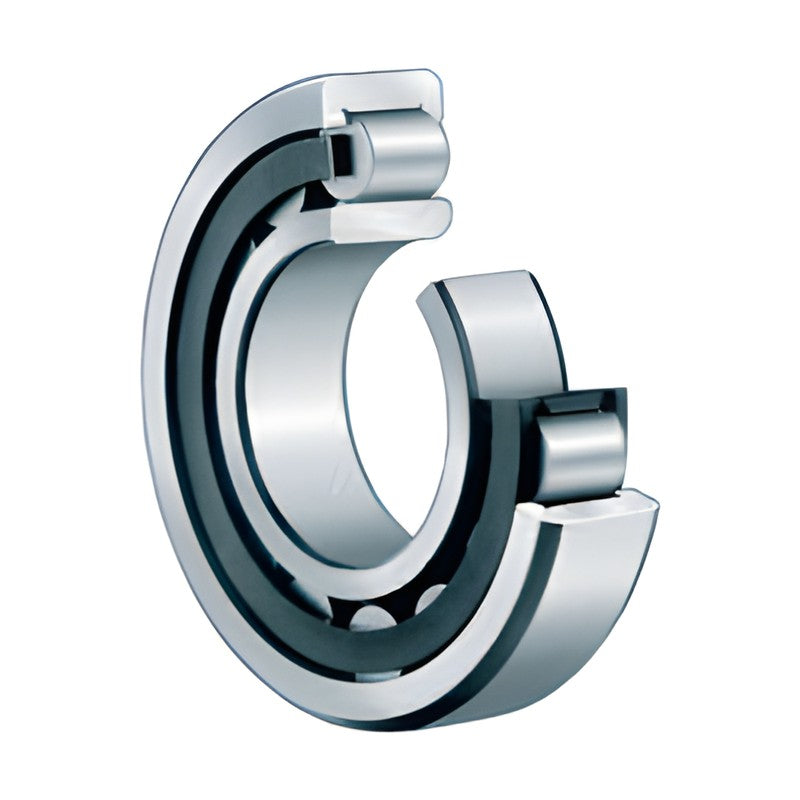

• FAG NU10 / NU19 Cylindrical Roller Bearings (Non-locating)
1 1

FAG NU10 / NU19 Cylindrical Roller Bearings (Non-locating)

FAG NU10 / NU19 Cylindrical Roller Bearings (Non-locating)

FAG single row cylindrical roller bearings with cage, NU10 and NU19 light series, inner ring without ribs, for use as non-locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • TVP2 polyamide cage or M1 machined brass cage as printed
  • Separable design for simple mounting and dismounting
  • X-life performance grade on E-TVP2 sizes
  • Axial displacement between shaft and housing within the bearing

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NU10, NU19
Function Non-locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 350-365
NU1005-M1 d: 25 mm | D: 47 mm | B: 12 mm | C: 16.7 kN | C0: 12.9 kN | nG: 28000 rpm
NU1006-M1 d: 30 mm | D: 55 mm | B: 13 mm | C: 22.9 kN | C0: 19.3 kN | nG: 24000 rpm
NU1007-M1 d: 35 mm | D: 62 mm | B: 14 mm | C: 29 kN | C0: 26 kN | nG: 20000 rpm
NU1008-M1 d: 40 mm | D: 68 mm | B: 15 mm | C: 33.5 kN | C0: 30.5 kN | nG: 19000 rpm
NU1009-M1 d: 45 mm | D: 75 mm | B: 16 mm | C: 40 kN | C0: 37.5 kN | nG: 16000 rpm
NU1010-M1 d: 50 mm | D: 80 mm | B: 16 mm | C: 42.5 kN | C0: 41.5 kN | nG: 15000 rpm
NU1011-E-M1 d: 55 mm | D: 90 mm | B: 18 mm | C: 61 kN | C0: 60 kN | nG: 13000 rpm
NU1012-M1 d: 60 mm | D: 95 mm | B: 18 mm | C: 52 kN | C0: 55 kN | nG: 13000 rpm
NU1013-M1 d: 65 mm | D: 100 mm | B: 18 mm | C: 53 kN | C0: 58 kN | nG: 12000 rpm
NU1014-M1 d: 70 mm | D: 110 mm | B: 20 mm | C: 75 kN | C0: 78 kN | nG: 11000 rpm
NU1015-M1 d: 75 mm | D: 115 mm | B: 20 mm | C: 76 kN | C0: 82 kN | nG: 10000 rpm
NU1016-M1 d: 80 mm | D: 125 mm | B: 22 mm | C: 91 kN | C0: 99 kN | nG: 9500 rpm
NU1017-M1 d: 85 mm | D: 130 mm | B: 22 mm | C: 93 kN | C0: 103 kN | nG: 9000 rpm
NU1018-M1 d: 90 mm | D: 140 mm | B: 24 mm | C: 111 kN | C0: 124 kN | nG: 8500 rpm
NU1019-M1 d: 95 mm | D: 145 mm | B: 24 mm | C: 113 kN | C0: 130 kN | nG: 8000 rpm
NU1020-M1 d: 100 mm | D: 150 mm | B: 24 mm | C: 116 kN | C0: 135 kN | nG: 7500 rpm
NU1021-M1 d: 105 mm | D: 160 mm | B: 26 mm | C: 131 kN | C0: 153 kN | nG: 7000 rpm
NU1022-M1 d: 110 mm | D: 170 mm | B: 28 mm | C: 166 kN | C0: 190 kN | nG: 7000 rpm
NU1024-M1 d: 120 mm | D: 180 mm | B: 28 mm | C: 174 kN | C0: 207 kN | nG: 6300 rpm
NU1026-M1 d: 130 mm | D: 200 mm | B: 33 mm | C: 212 kN | C0: 250 kN | nG: 5600 rpm
NU1028-M1 d: 140 mm | D: 210 mm | B: 33 mm | C: 216 kN | C0: 265 kN | nG: 5300 rpm
NU1030-M1 d: 150 mm | D: 225 mm | B: 35 mm | C: 248 kN | C0: 310 kN | nG: 5000 rpm
NU1032-M1 d: 160 mm | D: 240 mm | B: 38 mm | C: 290 kN | C0: 355 kN | nG: 4800 rpm
NU1034-M1 d: 170 mm | D: 260 mm | B: 42 mm | C: 350 kN | C0: 435 kN | nG: 4500 rpm
NU1036-M1 d: 180 mm | D: 280 mm | B: 46 mm | C: 425 kN | C0: 520 kN | nG: 4500 rpm
NU1038-M1 d: 190 mm | D: 290 mm | B: 46 mm | C: 435 kN | C0: 550 kN | nG: 4300 rpm
NU1040-M1 d: 200 mm | D: 310 mm | B: 51 mm | C: 470 kN | C0: 600 kN | nG: 3800 rpm
NU1044-M1 d: 220 mm | D: 340 mm | B: 56 mm | C: 510 kN | C0: 765 kN | nG: 3200 rpm
NU1048-M1 d: 240 mm | D: 360 mm | B: 56 mm | C: 540 kN | C0: 850 kN | nG: 3000 rpm
NU1052-M1 d: 260 mm | D: 400 mm | B: 65 mm | C: 655 kN | C0: 1020 kN | nG: 2800 rpm
NU1056-M1 d: 280 mm | D: 420 mm | B: 65 mm | C: 680 kN | C0: 1100 kN | nG: 2800 rpm
NU1060-M1 d: 300 mm | D: 460 mm | B: 74 mm | C: 900 kN | C0: 1430 kN | nG: 2400 rpm
NU1064-M1 d: 320 mm | D: 480 mm | B: 74 mm | C: 915 kN | C0: 1500 kN | nG: 2400 rpm
NU1068-M1 d: 340 mm | D: 520 mm | B: 82 mm | C: 1120 kN | C0: 1830 kN | nG: 2200 rpm
NU1072-M1 d: 360 mm | D: 540 mm | B: 82 mm | C: 1140 kN | C0: 1900 kN | nG: 2200 rpm
NU1076-M1 d: 380 mm | D: 560 mm | B: 82 mm | C: 1180 kN | C0: 2000 kN | nG: 2000 rpm
NU1080-M1 d: 400 mm | D: 600 mm | B: 90 mm | C: 1370 kN | C0: 2320 kN | nG: 1900 rpm
NU1084-M1 d: 420 mm | D: 620 mm | B: 90 mm | C: 1400 kN | C0: 2450 kN | nG: 1800 rpm
NU1088-M1 d: 440 mm | D: 650 mm | B: 94 mm | C: 1560 kN | C0: 2750 kN | nG: 1600 rpm
NU1992-M1 d: 460 mm | D: 620 mm | B: 74 mm | C: 1020 kN | C0: 1960 kN | nG: 1800 rpm
NU1092-M1 d: 460 mm | D: 680 mm | B: 100 mm | C: 1660 kN | C0: 3000 kN | nG: 1600 rpm
NU1996-M1 d: 480 mm | D: 650 mm | B: 78 mm | C: 1140 kN | C0: 2240 kN | nG: 1800 rpm
NU1096-M1 d: 480 mm | D: 700 mm | B: 100 mm | C: 1700 kN | C0: 3100 kN | nG: 1500 rpm
NU10/500-M1 d: 500 mm | D: 720 mm | B: 100 mm | C: 1760 kN | C0: 3200 kN | nG: 1500 rpm
NU19/560-M1 d: 560 mm | D: 750 mm | B: 85 mm | C: 1460 kN | C0: 3000 kN | nG: 1400 rpm
NU10/560-M1 d: 560 mm | D: 820 mm | B: 115 mm | C: 2700 kN | C0: 5100 kN | nG: 1200 rpm
NU19/600-M1 d: 600 mm | D: 800 mm | B: 90 mm | C: 1700 kN | C0: 3450 kN | nG: 1400 rpm
NU19/670-M1 d: 670 mm | D: 900 mm | B: 103 mm | C: 2040 kN | C0: 4250 kN | nG: 1200 rpm
NU19/710-M1 d: 710 mm | D: 950 mm | B: 106 mm | C: 2240 kN | C0: 4750 kN | nG: 1100 rpm
Cylindrical Roller BearingsFAG
49 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NU10 / NU19 Cylindrical Roller Bearings (Non-locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (49)

NU1005-M1, NU1006-M1, NU1007-M1, NU1008-M1, NU1009-M1, NU1010-M1, NU1011-E-M1, NU1012-M1, NU1013-M1, NU1014-M1 + 39 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU1005-M1d: 25 mm | D: 47 mm | B: 12 mm | C: 16.7 kN | C0: 12.9 kN | nG: 28000 rpm
NU1006-M1d: 30 mm | D: 55 mm | B: 13 mm | C: 22.9 kN | C0: 19.3 kN | nG: 24000 rpm
NU1007-M1d: 35 mm | D: 62 mm | B: 14 mm | C: 29 kN | C0: 26 kN | nG: 20000 rpm
NU1008-M1d: 40 mm | D: 68 mm | B: 15 mm | C: 33.5 kN | C0: 30.5 kN | nG: 19000 rpm
NU1009-M1d: 45 mm | D: 75 mm | B: 16 mm | C: 40 kN | C0: 37.5 kN | nG: 16000 rpm
NU1010-M1d: 50 mm | D: 80 mm | B: 16 mm | C: 42.5 kN | C0: 41.5 kN | nG: 15000 rpm
NU1011-E-M1d: 55 mm | D: 90 mm | B: 18 mm | C: 61 kN | C0: 60 kN | nG: 13000 rpm
NU1012-M1d: 60 mm | D: 95 mm | B: 18 mm | C: 52 kN | C0: 55 kN | nG: 13000 rpm
NU1013-M1d: 65 mm | D: 100 mm | B: 18 mm | C: 53 kN | C0: 58 kN | nG: 12000 rpm
NU1014-M1d: 70 mm | D: 110 mm | B: 20 mm | C: 75 kN | C0: 78 kN | nG: 11000 rpm
NU1015-M1d: 75 mm | D: 115 mm | B: 20 mm | C: 76 kN | C0: 82 kN | nG: 10000 rpm
NU1016-M1d: 80 mm | D: 125 mm | B: 22 mm | C: 91 kN | C0: 99 kN | nG: 9500 rpm
NU1017-M1d: 85 mm | D: 130 mm | B: 22 mm | C: 93 kN | C0: 103 kN | nG: 9000 rpm
NU1018-M1d: 90 mm | D: 140 mm | B: 24 mm | C: 111 kN | C0: 124 kN | nG: 8500 rpm
NU1019-M1d: 95 mm | D: 145 mm | B: 24 mm | C: 113 kN | C0: 130 kN | nG: 8000 rpm
NU1020-M1d: 100 mm | D: 150 mm | B: 24 mm | C: 116 kN | C0: 135 kN | nG: 7500 rpm
NU1021-M1d: 105 mm | D: 160 mm | B: 26 mm | C: 131 kN | C0: 153 kN | nG: 7000 rpm
NU1022-M1d: 110 mm | D: 170 mm | B: 28 mm | C: 166 kN | C0: 190 kN | nG: 7000 rpm
NU1024-M1d: 120 mm | D: 180 mm | B: 28 mm | C: 174 kN | C0: 207 kN | nG: 6300 rpm
NU1026-M1d: 130 mm | D: 200 mm | B: 33 mm | C: 212 kN | C0: 250 kN | nG: 5600 rpm
NU1028-M1d: 140 mm | D: 210 mm | B: 33 mm | C: 216 kN | C0: 265 kN | nG: 5300 rpm
NU1030-M1d: 150 mm | D: 225 mm | B: 35 mm | C: 248 kN | C0: 310 kN | nG: 5000 rpm
NU1032-M1d: 160 mm | D: 240 mm | B: 38 mm | C: 290 kN | C0: 355 kN | nG: 4800 rpm
NU1034-M1d: 170 mm | D: 260 mm | B: 42 mm | C: 350 kN | C0: 435 kN | nG: 4500 rpm
NU1036-M1d: 180 mm | D: 280 mm | B: 46 mm | C: 425 kN | C0: 520 kN | nG: 4500 rpm
NU1038-M1d: 190 mm | D: 290 mm | B: 46 mm | C: 435 kN | C0: 550 kN | nG: 4300 rpm
NU1040-M1d: 200 mm | D: 310 mm | B: 51 mm | C: 470 kN | C0: 600 kN | nG: 3800 rpm
NU1044-M1d: 220 mm | D: 340 mm | B: 56 mm | C: 510 kN | C0: 765 kN | nG: 3200 rpm
NU1048-M1d: 240 mm | D: 360 mm | B: 56 mm | C: 540 kN | C0: 850 kN | nG: 3000 rpm
NU1052-M1d: 260 mm | D: 400 mm | B: 65 mm | C: 655 kN | C0: 1020 kN | nG: 2800 rpm
NU1056-M1d: 280 mm | D: 420 mm | B: 65 mm | C: 680 kN | C0: 1100 kN | nG: 2800 rpm
NU1060-M1d: 300 mm | D: 460 mm | B: 74 mm | C: 900 kN | C0: 1430 kN | nG: 2400 rpm
NU1064-M1d: 320 mm | D: 480 mm | B: 74 mm | C: 915 kN | C0: 1500 kN | nG: 2400 rpm
NU1068-M1d: 340 mm | D: 520 mm | B: 82 mm | C: 1120 kN | C0: 1830 kN | nG: 2200 rpm
NU1072-M1d: 360 mm | D: 540 mm | B: 82 mm | C: 1140 kN | C0: 1900 kN | nG: 2200 rpm
NU1076-M1d: 380 mm | D: 560 mm | B: 82 mm | C: 1180 kN | C0: 2000 kN | nG: 2000 rpm
NU1080-M1d: 400 mm | D: 600 mm | B: 90 mm | C: 1370 kN | C0: 2320 kN | nG: 1900 rpm
NU1084-M1d: 420 mm | D: 620 mm | B: 90 mm | C: 1400 kN | C0: 2450 kN | nG: 1800 rpm
NU1088-M1d: 440 mm | D: 650 mm | B: 94 mm | C: 1560 kN | C0: 2750 kN | nG: 1600 rpm
NU1992-M1d: 460 mm | D: 620 mm | B: 74 mm | C: 1020 kN | C0: 1960 kN | nG: 1800 rpm
NU1092-M1d: 460 mm | D: 680 mm | B: 100 mm | C: 1660 kN | C0: 3000 kN | nG: 1600 rpm
NU1996-M1d: 480 mm | D: 650 mm | B: 78 mm | C: 1140 kN | C0: 2240 kN | nG: 1800 rpm
NU1096-M1d: 480 mm | D: 700 mm | B: 100 mm | C: 1700 kN | C0: 3100 kN | nG: 1500 rpm
NU10/500-M1d: 500 mm | D: 720 mm | B: 100 mm | C: 1760 kN | C0: 3200 kN | nG: 1500 rpm
NU19/560-M1d: 560 mm | D: 750 mm | B: 85 mm | C: 1460 kN | C0: 3000 kN | nG: 1400 rpm
NU10/560-M1d: 560 mm | D: 820 mm | B: 115 mm | C: 2700 kN | C0: 5100 kN | nG: 1200 rpm
NU19/600-M1d: 600 mm | D: 800 mm | B: 90 mm | C: 1700 kN | C0: 3450 kN | nG: 1400 rpm
NU19/670-M1d: 670 mm | D: 900 mm | B: 103 mm | C: 2040 kN | C0: 4250 kN | nG: 1200 rpm
NU19/710-M1d: 710 mm | D: 950 mm | B: 106 mm | C: 2240 kN | C0: 4750 kN | nG: 1100 rpm
