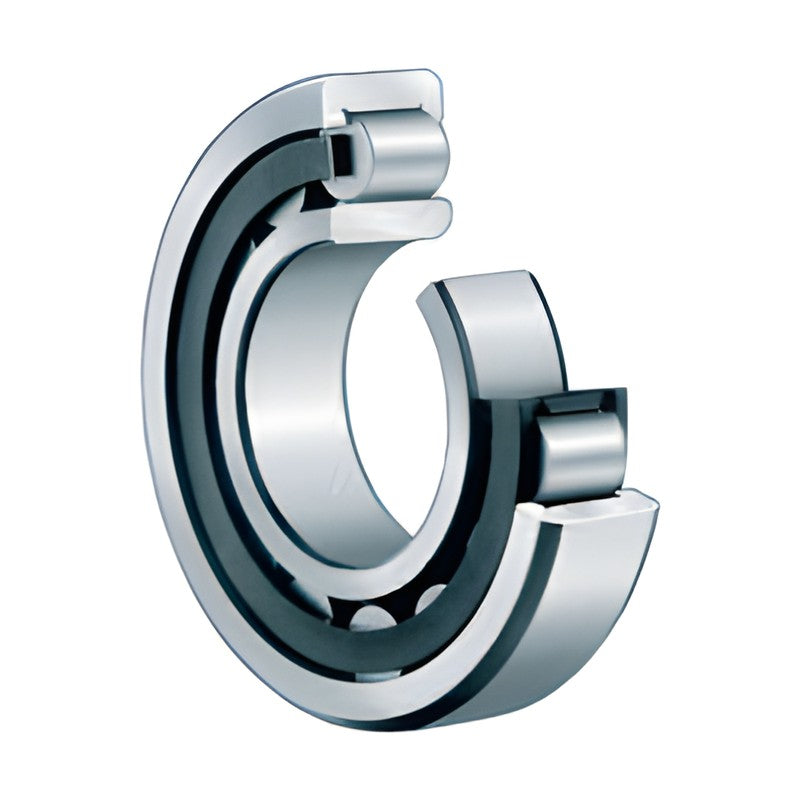

FAG NU2 Series Cylindrical Roller Bearings (Non-locating)

FAG NU2 Series Cylindrical Roller Bearings (Non-locating)

FAG single row cylindrical roller bearings with cage, NU2 series, inner ring without ribs, for use as non-locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • TVP2 polyamide cage or M1 machined brass cage as printed
  • Separable design for simple mounting and dismounting
  • X-life performance grade on E-TVP2 sizes
  • Axial displacement between shaft and housing within the bearing

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NU2
Function Non-locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 350-365
NU202-E-TVP2 d: 15 mm | D: 35 mm | B: 11 mm | C: 15.1 kN | C0: 10.4 kN | nG: 22000 rpm
NU203-E-TVP2 d: 17 mm | D: 40 mm | B: 12 mm | C: 20.8 kN | C0: 14.6 kN | nG: 18000 rpm
NU204-E-TVP2 d: 20 mm | D: 47 mm | B: 14 mm | C: 32.5 kN | C0: 24.7 kN | nG: 16000 rpm
NU205-E-TVP2 d: 25 mm | D: 52 mm | B: 15 mm | C: 34.5 kN | C0: 27.5 kN | nG: 15000 rpm
NU206-E-TVP2 d: 30 mm | D: 62 mm | B: 16 mm | C: 45 kN | C0: 36 kN | nG: 12000 rpm
NU207-E-TVP2 d: 35 mm | D: 72 mm | B: 17 mm | C: 58 kN | C0: 48.5 kN | nG: 10000 rpm
NU208-E-TVP2 d: 40 mm | D: 80 mm | B: 18 mm | C: 63 kN | C0: 53 kN | nG: 9000 rpm
NU209-E-TVP2 d: 45 mm | D: 85 mm | B: 19 mm | C: 72 kN | C0: 63 kN | nG: 8500 rpm
NU210-E-TVP2 d: 50 mm | D: 90 mm | B: 20 mm | C: 75 kN | C0: 69 kN | nG: 8000 rpm
NU211-E-TVP2 d: 55 mm | D: 100 mm | B: 21 mm | C: 99 kN | C0: 95 kN | nG: 7000 rpm
NU212-E-TVP2 d: 60 mm | D: 110 mm | B: 22 mm | C: 111 kN | C0: 102 kN | nG: 6300 rpm
NU213-E-TVP2 d: 65 mm | D: 120 mm | B: 23 mm | C: 127 kN | C0: 119 kN | nG: 6000 rpm
NU214-E-TVP2 d: 70 mm | D: 125 mm | B: 24 mm | C: 140 kN | C0: 137 kN | nG: 5300 rpm
NU215-E-TVP2 d: 75 mm | D: 130 mm | B: 25 mm | C: 154 kN | C0: 156 kN | nG: 5300 rpm
NU216-E-TVP2 d: 80 mm | D: 140 mm | B: 26 mm | C: 165 kN | C0: 167 kN | nG: 4800 rpm
NU217-E-TVP2 d: 85 mm | D: 150 mm | B: 28 mm | C: 194 kN | C0: 194 kN | nG: 4500 rpm
NU218-E-TVP2 d: 90 mm | D: 160 mm | B: 30 mm | C: 215 kN | C0: 217 kN | nG: 4300 rpm
NU219-E-TVP2 d: 95 mm | D: 170 mm | B: 32 mm | C: 260 kN | C0: 265 kN | nG: 3800 rpm
NU220-E-TVP2 d: 100 mm | D: 180 mm | B: 34 mm | C: 295 kN | C0: 305 kN | nG: 3800 rpm
NU221-E-TVP2 d: 105 mm | D: 190 mm | B: 36 mm | C: 310 kN | C0: 320 kN | nG: 3600 rpm
NU222-E-TVP2 d: 110 mm | D: 200 mm | B: 38 mm | C: 345 kN | C0: 365 kN | nG: 3400 rpm
NU224-E-TVP2 d: 120 mm | D: 215 mm | B: 40 mm | C: 390 kN | C0: 415 kN | nG: 3200 rpm
NU226-E-TVP2 d: 130 mm | D: 230 mm | B: 40 mm | C: 425 kN | C0: 445 kN | nG: 3000 rpm
NU228-E-M1 d: 140 mm | D: 250 mm | B: 42 mm | C: 460 kN | C0: 510 kN | nG: 4800 rpm
NU230-E-M1 d: 150 mm | D: 270 mm | B: 45 mm | C: 520 kN | C0: 590 kN | nG: 4500 rpm
NU232-E-M1 d: 160 mm | D: 290 mm | B: 48 mm | C: 590 kN | C0: 670 kN | nG: 4300 rpm
NU234-E-M1 d: 170 mm | D: 310 mm | B: 52 mm | C: 700 kN | C0: 780 kN | nG: 3600 rpm
NU236-E-M1 d: 180 mm | D: 320 mm | B: 52 mm | C: 730 kN | C0: 830 kN | nG: 3600 rpm
NU238-E-M1 d: 190 mm | D: 340 mm | B: 55 mm | C: 680 kN | C0: 930 kN | nG: 3200 rpm
NU240-E-M1 d: 200 mm | D: 360 mm | B: 58 mm | C: 750 kN | C0: 1040 kN | nG: 3000 rpm
NU244-E-M1 d: 220 mm | D: 400 mm | B: 65 mm | C: 950 kN | C0: 1320 kN | nG: 2800 rpm
NU248-E-M1 d: 240 mm | D: 440 mm | B: 72 mm | C: 1140 kN | C0: 1600 kN | nG: 2600 rpm
NU252-E-M1 d: 260 mm | D: 480 mm | B: 80 mm | C: 1340 kN | C0: 1900 kN | nG: 2400 rpm
NU256-E-M1 d: 280 mm | D: 500 mm | B: 80 mm | C: 1400 kN | C0: 2000 kN | nG: 2200 rpm
NU260-E-M1 d: 300 mm | D: 540 mm | B: 85 mm | C: 1600 kN | C0: 2320 kN | nG: 2000 rpm
NU264-EX-M1 d: 320 mm | D: 580 mm | B: 92 mm | C: 1800 kN | C0: 2700 kN | nG: 1900 rpm
Cylindrical Roller BearingsFAG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NU2 Series Cylindrical Roller Bearings (Non-locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (36)

NU202-E-TVP2, NU203-E-TVP2, NU204-E-TVP2, NU205-E-TVP2, NU206-E-TVP2, NU207-E-TVP2, NU208-E-TVP2, NU209-E-TVP2, NU210-E-TVP2, NU211-E-TVP2 + 26 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU202-E-TVP2d: 15 mm | D: 35 mm | B: 11 mm | C: 15.1 kN | C0: 10.4 kN | nG: 22000 rpm
NU203-E-TVP2d: 17 mm | D: 40 mm | B: 12 mm | C: 20.8 kN | C0: 14.6 kN | nG: 18000 rpm
NU204-E-TVP2d: 20 mm | D: 47 mm | B: 14 mm | C: 32.5 kN | C0: 24.7 kN | nG: 16000 rpm
NU205-E-TVP2d: 25 mm | D: 52 mm | B: 15 mm | C: 34.5 kN | C0: 27.5 kN | nG: 15000 rpm
NU206-E-TVP2d: 30 mm | D: 62 mm | B: 16 mm | C: 45 kN | C0: 36 kN | nG: 12000 rpm
NU207-E-TVP2d: 35 mm | D: 72 mm | B: 17 mm | C: 58 kN | C0: 48.5 kN | nG: 10000 rpm
NU208-E-TVP2d: 40 mm | D: 80 mm | B: 18 mm | C: 63 kN | C0: 53 kN | nG: 9000 rpm
NU209-E-TVP2d: 45 mm | D: 85 mm | B: 19 mm | C: 72 kN | C0: 63 kN | nG: 8500 rpm
NU210-E-TVP2d: 50 mm | D: 90 mm | B: 20 mm | C: 75 kN | C0: 69 kN | nG: 8000 rpm
NU211-E-TVP2d: 55 mm | D: 100 mm | B: 21 mm | C: 99 kN | C0: 95 kN | nG: 7000 rpm
NU212-E-TVP2d: 60 mm | D: 110 mm | B: 22 mm | C: 111 kN | C0: 102 kN | nG: 6300 rpm
NU213-E-TVP2d: 65 mm | D: 120 mm | B: 23 mm | C: 127 kN | C0: 119 kN | nG: 6000 rpm
NU214-E-TVP2d: 70 mm | D: 125 mm | B: 24 mm | C: 140 kN | C0: 137 kN | nG: 5300 rpm
NU215-E-TVP2d: 75 mm | D: 130 mm | B: 25 mm | C: 154 kN | C0: 156 kN | nG: 5300 rpm
NU216-E-TVP2d: 80 mm | D: 140 mm | B: 26 mm | C: 165 kN | C0: 167 kN | nG: 4800 rpm
NU217-E-TVP2d: 85 mm | D: 150 mm | B: 28 mm | C: 194 kN | C0: 194 kN | nG: 4500 rpm
NU218-E-TVP2d: 90 mm | D: 160 mm | B: 30 mm | C: 215 kN | C0: 217 kN | nG: 4300 rpm
NU219-E-TVP2d: 95 mm | D: 170 mm | B: 32 mm | C: 260 kN | C0: 265 kN | nG: 3800 rpm
NU220-E-TVP2d: 100 mm | D: 180 mm | B: 34 mm | C: 295 kN | C0: 305 kN | nG: 3800 rpm
NU221-E-TVP2d: 105 mm | D: 190 mm | B: 36 mm | C: 310 kN | C0: 320 kN | nG: 3600 rpm
NU222-E-TVP2d: 110 mm | D: 200 mm | B: 38 mm | C: 345 kN | C0: 365 kN | nG: 3400 rpm
NU224-E-TVP2d: 120 mm | D: 215 mm | B: 40 mm | C: 390 kN | C0: 415 kN | nG: 3200 rpm
NU226-E-TVP2d: 130 mm | D: 230 mm | B: 40 mm | C: 425 kN | C0: 445 kN | nG: 3000 rpm
NU228-E-M1d: 140 mm | D: 250 mm | B: 42 mm | C: 460 kN | C0: 510 kN | nG: 4800 rpm
NU230-E-M1d: 150 mm | D: 270 mm | B: 45 mm | C: 520 kN | C0: 590 kN | nG: 4500 rpm
NU232-E-M1d: 160 mm | D: 290 mm | B: 48 mm | C: 590 kN | C0: 670 kN | nG: 4300 rpm
NU234-E-M1d: 170 mm | D: 310 mm | B: 52 mm | C: 700 kN | C0: 780 kN | nG: 3600 rpm
NU236-E-M1d: 180 mm | D: 320 mm | B: 52 mm | C: 730 kN | C0: 830 kN | nG: 3600 rpm
NU238-E-M1d: 190 mm | D: 340 mm | B: 55 mm | C: 680 kN | C0: 930 kN | nG: 3200 rpm
NU240-E-M1d: 200 mm | D: 360 mm | B: 58 mm | C: 750 kN | C0: 1040 kN | nG: 3000 rpm
NU244-E-M1d: 220 mm | D: 400 mm | B: 65 mm | C: 950 kN | C0: 1320 kN | nG: 2800 rpm
NU248-E-M1d: 240 mm | D: 440 mm | B: 72 mm | C: 1140 kN | C0: 1600 kN | nG: 2600 rpm
NU252-E-M1d: 260 mm | D: 480 mm | B: 80 mm | C: 1340 kN | C0: 1900 kN | nG: 2400 rpm
NU256-E-M1d: 280 mm | D: 500 mm | B: 80 mm | C: 1400 kN | C0: 2000 kN | nG: 2200 rpm
NU260-E-M1d: 300 mm | D: 540 mm | B: 85 mm | C: 1600 kN | C0: 2320 kN | nG: 2000 rpm
NU264-EX-M1d: 320 mm | D: 580 mm | B: 92 mm | C: 1800 kN | C0: 2700 kN | nG: 1900 rpm
