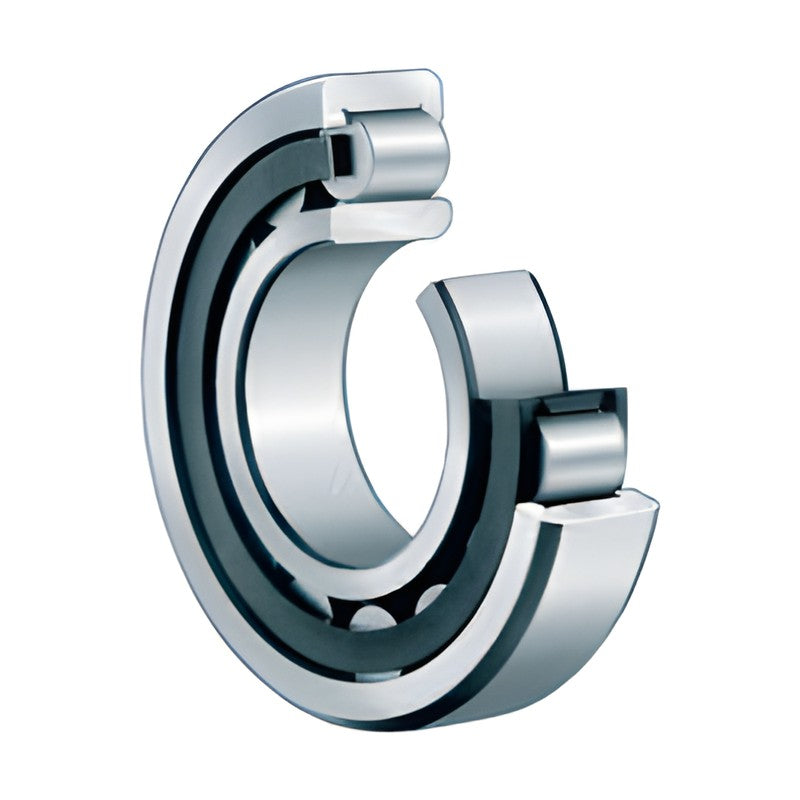

FAG NU22 Series Cylindrical Roller Bearings (Non-locating)

FAG NU22 Series Cylindrical Roller Bearings (Non-locating)

FAG single row cylindrical roller bearings with cage, NU22 series, inner ring without ribs, for use as non-locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • TVP2 polyamide cage or M1 machined brass cage as printed
  • Separable design for simple mounting and dismounting
  • X-life performance grade on E-TVP2 sizes
  • Axial displacement between shaft and housing within the bearing

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NU22
Function Non-locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 350-365
NU2203-E-TVP2 d: 17 mm | D: 40 mm | B: 16 mm | C: 28.5 kN | C0: 21.9 kN | nG: 18000 rpm
NU2204-E-TVP2 d: 20 mm | D: 47 mm | B: 18 mm | C: 38.5 kN | C0: 31 kN | nG: 16000 rpm
NU2205-E-TVP2 d: 25 mm | D: 52 mm | B: 18 mm | C: 41.5 kN | C0: 34.5 kN | nG: 15000 rpm
NU2206-E-TVP2 d: 30 mm | D: 62 mm | B: 20 mm | C: 57 kN | C0: 48.5 kN | nG: 12000 rpm
NU2207-E-TVP2 d: 35 mm | D: 72 mm | B: 23 mm | C: 72 kN | C0: 64 kN | nG: 10000 rpm
NU2208-E-TVP2 d: 40 mm | D: 80 mm | B: 23 mm | C: 83 kN | C0: 75 kN | nG: 9000 rpm
NU2209-E-TVP2 d: 45 mm | D: 85 mm | B: 23 mm | C: 87 kN | C0: 82 kN | nG: 8500 rpm
NU2210-E-TVP2 d: 50 mm | D: 90 mm | B: 23 mm | C: 92 kN | C0: 88 kN | nG: 8000 rpm
NU2211-E-TVP2 d: 55 mm | D: 100 mm | B: 25 mm | C: 117 kN | C0: 118 kN | nG: 7000 rpm
NU2212-E-TVP2 d: 60 mm | D: 110 mm | B: 28 mm | C: 151 kN | C0: 152 kN | nG: 6300 rpm
NU2213-E-TVP2 d: 65 mm | D: 120 mm | B: 31 mm | C: 176 kN | C0: 181 kN | nG: 5600 rpm
NU2214-E-TVP2 d: 70 mm | D: 125 mm | B: 31 mm | C: 184 kN | C0: 194 kN | nG: 5300 rpm
NU2215-E-TVP2 d: 75 mm | D: 130 mm | B: 31 mm | C: 191 kN | C0: 207 kN | nG: 5300 rpm
NU2216-E-TVP2 d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 243 kN | nG: 4800 rpm
NU2217-E-TVP2 d: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 275 kN | nG: 4500 rpm
NU2218-E-TVP2 d: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 315 kN | nG: 4300 rpm
NU2219-E-TVP2 d: 95 mm | D: 170 mm | B: 43 mm | C: 340 kN | C0: 370 kN | nG: 3800 rpm
NU2220-E-TVP2 d: 100 mm | D: 180 mm | B: 46 mm | C: 395 kN | C0: 445 kN | nG: 3800 rpm
NU2222-E-TVP2 d: 110 mm | D: 200 mm | B: 53 mm | C: 455 kN | C0: 520 kN | nG: 3400 rpm
NU2224-E-TVP2 d: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 610 kN | nG: 3200 rpm
NU2226-E-TVP2 d: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 730 kN | nG: 3000 rpm
NU2228-E-M1 d: 140 mm | D: 250 mm | B: 68 mm | C: 670 kN | C0: 830 kN | nG: 4500 rpm
NU2230-E-M1 d: 150 mm | D: 270 mm | B: 73 mm | C: 780 kN | C0: 970 kN | nG: 4300 rpm
NU2232-E-M1 d: 160 mm | D: 290 mm | B: 80 mm | C: 940 kN | C0: 1170 kN | nG: 3800 rpm
NU2234-E-M1 d: 170 mm | D: 310 mm | B: 86 mm | C: 1130 kN | C0: 1400 kN | nG: 3200 rpm
NU2236-E-M1 d: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1490 kN | nG: 3200 rpm
NU2238-E-M1 d: 190 mm | D: 340 mm | B: 92 mm | C: 1100 kN | C0: 1660 kN | nG: 3000 rpm
NU2240-E-M1 d: 200 mm | D: 360 mm | B: 98 mm | C: 1220 kN | C0: 1860 kN | nG: 2800 rpm
NU2244-EX-M1 d: 220 mm | D: 400 mm | B: 108 mm | C: 1630 kN | C0: 2360 kN | nG: 2600 rpm
NU2248-EX-M1 d: 240 mm | D: 440 mm | B: 120 mm | C: 1830 kN | C0: 2800 kN | nG: 2400 rpm
NU2252-E-M1 d: 260 mm | D: 480 mm | B: 130 mm | C: 2160 kN | C0: 3350 kN | nG: 2200 rpm
NU2256-E-M1 d: 280 mm | D: 500 mm | B: 130 mm | C: 2280 kN | C0: 3600 kN | nG: 2000 rpm
NU2260-EX-M1 d: 300 mm | D: 540 mm | B: 140 mm | C: 2700 kN | C0: 4150 kN | nG: 1900 rpm
NU2264-EX-M1 d: 320 mm | D: 580 mm | B: 150 mm | C: 3150 kN | C0: 4900 kN | nG: 1600 rpm
NU2272-E-M1 d: 360 mm | D: 650 mm | B: 170 mm | C: 3600 kN | C0: 5700 kN | nG: 1400 rpm
NU2276-E-M1 d: 380 mm | D: 680 mm | B: 175 mm | C: 4050 kN | C0: 6700 kN | nG: 1400 rpm
Cylindrical Roller BearingsFAG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NU22 Series Cylindrical Roller Bearings (Non-locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (36)

NU2203-E-TVP2, NU2204-E-TVP2, NU2205-E-TVP2, NU2206-E-TVP2, NU2207-E-TVP2, NU2208-E-TVP2, NU2209-E-TVP2, NU2210-E-TVP2, NU2211-E-TVP2, NU2212-E-TVP2 + 26 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU2203-E-TVP2d: 17 mm | D: 40 mm | B: 16 mm | C: 28.5 kN | C0: 21.9 kN | nG: 18000 rpm
NU2204-E-TVP2d: 20 mm | D: 47 mm | B: 18 mm | C: 38.5 kN | C0: 31 kN | nG: 16000 rpm
NU2205-E-TVP2d: 25 mm | D: 52 mm | B: 18 mm | C: 41.5 kN | C0: 34.5 kN | nG: 15000 rpm
NU2206-E-TVP2d: 30 mm | D: 62 mm | B: 20 mm | C: 57 kN | C0: 48.5 kN | nG: 12000 rpm
NU2207-E-TVP2d: 35 mm | D: 72 mm | B: 23 mm | C: 72 kN | C0: 64 kN | nG: 10000 rpm
NU2208-E-TVP2d: 40 mm | D: 80 mm | B: 23 mm | C: 83 kN | C0: 75 kN | nG: 9000 rpm
NU2209-E-TVP2d: 45 mm | D: 85 mm | B: 23 mm | C: 87 kN | C0: 82 kN | nG: 8500 rpm
NU2210-E-TVP2d: 50 mm | D: 90 mm | B: 23 mm | C: 92 kN | C0: 88 kN | nG: 8000 rpm
NU2211-E-TVP2d: 55 mm | D: 100 mm | B: 25 mm | C: 117 kN | C0: 118 kN | nG: 7000 rpm
NU2212-E-TVP2d: 60 mm | D: 110 mm | B: 28 mm | C: 151 kN | C0: 152 kN | nG: 6300 rpm
NU2213-E-TVP2d: 65 mm | D: 120 mm | B: 31 mm | C: 176 kN | C0: 181 kN | nG: 5600 rpm
NU2214-E-TVP2d: 70 mm | D: 125 mm | B: 31 mm | C: 184 kN | C0: 194 kN | nG: 5300 rpm
NU2215-E-TVP2d: 75 mm | D: 130 mm | B: 31 mm | C: 191 kN | C0: 207 kN | nG: 5300 rpm
NU2216-E-TVP2d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 243 kN | nG: 4800 rpm
NU2217-E-TVP2d: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 275 kN | nG: 4500 rpm
NU2218-E-TVP2d: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 315 kN | nG: 4300 rpm
NU2219-E-TVP2d: 95 mm | D: 170 mm | B: 43 mm | C: 340 kN | C0: 370 kN | nG: 3800 rpm
NU2220-E-TVP2d: 100 mm | D: 180 mm | B: 46 mm | C: 395 kN | C0: 445 kN | nG: 3800 rpm
NU2222-E-TVP2d: 110 mm | D: 200 mm | B: 53 mm | C: 455 kN | C0: 520 kN | nG: 3400 rpm
NU2224-E-TVP2d: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 610 kN | nG: 3200 rpm
NU2226-E-TVP2d: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 730 kN | nG: 3000 rpm
NU2228-E-M1d: 140 mm | D: 250 mm | B: 68 mm | C: 670 kN | C0: 830 kN | nG: 4500 rpm
NU2230-E-M1d: 150 mm | D: 270 mm | B: 73 mm | C: 780 kN | C0: 970 kN | nG: 4300 rpm
NU2232-E-M1d: 160 mm | D: 290 mm | B: 80 mm | C: 940 kN | C0: 1170 kN | nG: 3800 rpm
NU2234-E-M1d: 170 mm | D: 310 mm | B: 86 mm | C: 1130 kN | C0: 1400 kN | nG: 3200 rpm
NU2236-E-M1d: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1490 kN | nG: 3200 rpm
NU2238-E-M1d: 190 mm | D: 340 mm | B: 92 mm | C: 1100 kN | C0: 1660 kN | nG: 3000 rpm
NU2240-E-M1d: 200 mm | D: 360 mm | B: 98 mm | C: 1220 kN | C0: 1860 kN | nG: 2800 rpm
NU2244-EX-M1d: 220 mm | D: 400 mm | B: 108 mm | C: 1630 kN | C0: 2360 kN | nG: 2600 rpm
NU2248-EX-M1d: 240 mm | D: 440 mm | B: 120 mm | C: 1830 kN | C0: 2800 kN | nG: 2400 rpm
NU2252-E-M1d: 260 mm | D: 480 mm | B: 130 mm | C: 2160 kN | C0: 3350 kN | nG: 2200 rpm
NU2256-E-M1d: 280 mm | D: 500 mm | B: 130 mm | C: 2280 kN | C0: 3600 kN | nG: 2000 rpm
NU2260-EX-M1d: 300 mm | D: 540 mm | B: 140 mm | C: 2700 kN | C0: 4150 kN | nG: 1900 rpm
NU2264-EX-M1d: 320 mm | D: 580 mm | B: 150 mm | C: 3150 kN | C0: 4900 kN | nG: 1600 rpm
NU2272-E-M1d: 360 mm | D: 650 mm | B: 170 mm | C: 3600 kN | C0: 5700 kN | nG: 1400 rpm
NU2276-E-M1d: 380 mm | D: 680 mm | B: 175 mm | C: 4050 kN | C0: 6700 kN | nG: 1400 rpm
