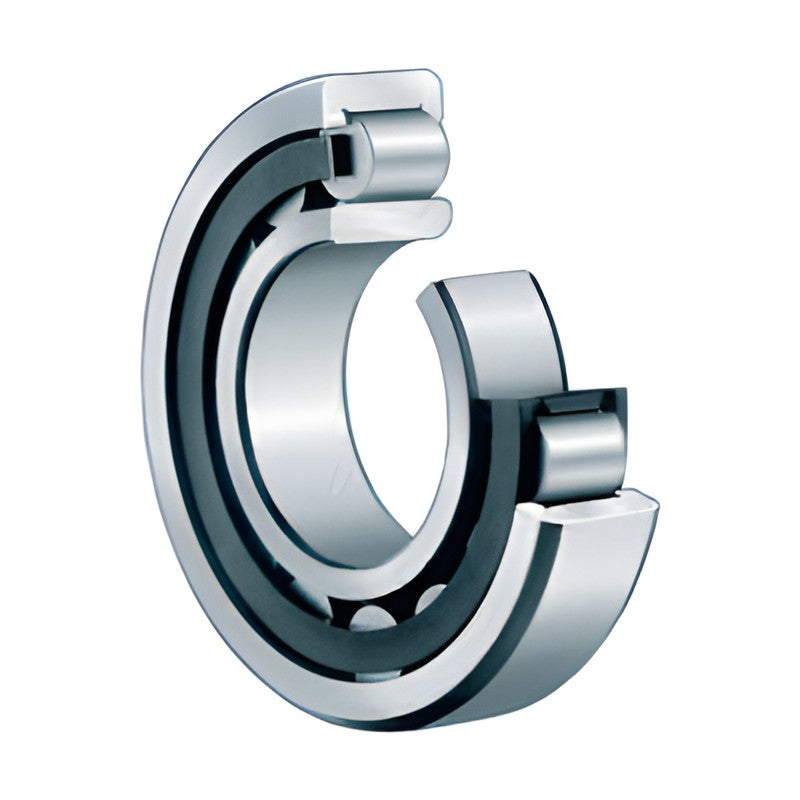

FAG NU23 Series Cylindrical Roller Bearings (Non-locating)

FAG NU23 Series Cylindrical Roller Bearings (Non-locating)

FAG single row cylindrical roller bearings with cage, NU23 series, inner ring without ribs, for use as non-locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • TVP2 polyamide cage or M1 machined brass cage as printed
  • Separable design for simple mounting and dismounting
  • X-life performance grade on E-TVP2 sizes
  • Axial displacement between shaft and housing within the bearing

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NU23
Function Non-locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 350-363
NU2304-E-TVP2 d: 20 mm | D: 52 mm | B: 21 mm | C: 48.5 kN | C0: 38 kN | nG: 14000 rpm
NU2305-E-TVP2 d: 25 mm | D: 62 mm | B: 24 mm | C: 66 kN | C0: 55 kN | nG: 12000 rpm
NU2306-E-TVP2 d: 30 mm | D: 72 mm | B: 27 mm | C: 86 kN | C0: 75 kN | nG: 10000 rpm
NU2307-E-TVP2 d: 35 mm | D: 80 mm | B: 31 mm | C: 108 kN | C0: 98 kN | nG: 9000 rpm
NU2308-E-TVP2 d: 40 mm | D: 90 mm | B: 33 mm | C: 132 kN | C0: 119 kN | nG: 7500 rpm
NU2309-E-TVP2 d: 45 mm | D: 100 mm | B: 36 mm | C: 162 kN | C0: 153 kN | nG: 6700 rpm
NU2310-E-TVP2 d: 50 mm | D: 110 mm | B: 40 mm | C: 192 kN | C0: 187 kN | nG: 6300 rpm
NU2311-E-TVP2 d: 55 mm | D: 120 mm | B: 43 mm | C: 235 kN | C0: 230 kN | nG: 5600 rpm
NU2312-E-TVP2 d: 60 mm | D: 130 mm | B: 46 mm | C: 265 kN | C0: 260 kN | nG: 5000 rpm
NU2313-E-TVP2 d: 65 mm | D: 140 mm | B: 48 mm | C: 295 kN | C0: 285 kN | nG: 4800 rpm
NU2314-E-TVP2 d: 70 mm | D: 150 mm | B: 51 mm | C: 325 kN | C0: 325 kN | nG: 4500 rpm
NU2315-E-TVP2 d: 75 mm | D: 160 mm | B: 55 mm | C: 390 kN | C0: 395 kN | nG: 4000 rpm
NU2316-E-TVP2 d: 80 mm | D: 170 mm | B: 58 mm | C: 420 kN | C0: 425 kN | nG: 3800 rpm
NU2317-E-TVP2 d: 85 mm | D: 180 mm | B: 60 mm | C: 435 kN | C0: 445 kN | nG: 3600 rpm
NU2318-E-TVP2 d: 90 mm | D: 190 mm | B: 64 mm | C: 510 kN | C0: 530 kN | nG: 3400 rpm
NU2319-E-TVP2 d: 95 mm | D: 200 mm | B: 67 mm | C: 540 kN | C0: 580 kN | nG: 3400 rpm
NU2320-E-TVP2 d: 100 mm | D: 215 mm | B: 73 mm | C: 680 kN | C0: 720 kN | nG: 3200 rpm
NU2322-E-TVP2 d: 110 mm | D: 240 mm | B: 80 mm | C: 750 kN | C0: 800 kN | nG: 2800 rpm
NU2324-E-M1 d: 120 mm | D: 260 mm | B: 86 mm | C: 930 kN | C0: 1010 kN | nG: 4300 rpm
NU2326-E-M1 d: 130 mm | D: 280 mm | B: 93 mm | C: 1080 kN | C0: 1220 kN | nG: 3800 rpm
NU2328-E-M1 d: 140 mm | D: 300 mm | B: 102 mm | C: 1210 kN | C0: 1390 kN | nG: 3600 rpm
NU2330-E-M1 d: 150 mm | D: 320 mm | B: 108 mm | C: 1380 kN | C0: 1600 kN | nG: 3200 rpm
NU2332-E-M1 d: 160 mm | D: 340 mm | B: 114 mm | C: 1320 kN | C0: 1830 kN | nG: 3000 rpm
NU2334-EX-M1 d: 170 mm | D: 360 mm | B: 120 mm | C: 1500 kN | C0: 2080 kN | nG: 2800 rpm
NU2336-EX-M1 d: 180 mm | D: 380 mm | B: 126 mm | C: 1660 kN | C0: 2320 kN | nG: 2800 rpm
NU2338-EX-M1 d: 190 mm | D: 400 mm | B: 132 mm | C: 1900 kN | C0: 2650 kN | nG: 2600 rpm
NU2340-EX-M1 d: 200 mm | D: 420 mm | B: 138 mm | C: 2040 kN | C0: 2900 kN | nG: 2400 rpm
NU2344-EX-M1 d: 220 mm | D: 460 mm | B: 145 mm | C: 2360 kN | C0: 3350 kN | nG: 2200 rpm
NU2348-EX-M1 d: 240 mm | D: 500 mm | B: 155 mm | C: 2600 kN | C0: 3750 kN | nG: 2000 rpm
NU2352-EX-M1 d: 260 mm | D: 540 mm | B: 165 mm | C: 3100 kN | C0: 4500 kN | nG: 1800 rpm
NU2356-EX-M1 d: 280 mm | D: 580 mm | B: 175 mm | C: 3550 kN | C0: 5200 kN | nG: 1600 rpm
Cylindrical Roller BearingsFAG
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NU23 Series Cylindrical Roller Bearings (Non-locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (31)

NU2304-E-TVP2, NU2305-E-TVP2, NU2306-E-TVP2, NU2307-E-TVP2, NU2308-E-TVP2, NU2309-E-TVP2, NU2310-E-TVP2, NU2311-E-TVP2, NU2312-E-TVP2, NU2313-E-TVP2 + 21 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU2304-E-TVP2d: 20 mm | D: 52 mm | B: 21 mm | C: 48.5 kN | C0: 38 kN | nG: 14000 rpm
NU2305-E-TVP2d: 25 mm | D: 62 mm | B: 24 mm | C: 66 kN | C0: 55 kN | nG: 12000 rpm
NU2306-E-TVP2d: 30 mm | D: 72 mm | B: 27 mm | C: 86 kN | C0: 75 kN | nG: 10000 rpm
NU2307-E-TVP2d: 35 mm | D: 80 mm | B: 31 mm | C: 108 kN | C0: 98 kN | nG: 9000 rpm
NU2308-E-TVP2d: 40 mm | D: 90 mm | B: 33 mm | C: 132 kN | C0: 119 kN | nG: 7500 rpm
NU2309-E-TVP2d: 45 mm | D: 100 mm | B: 36 mm | C: 162 kN | C0: 153 kN | nG: 6700 rpm
NU2310-E-TVP2d: 50 mm | D: 110 mm | B: 40 mm | C: 192 kN | C0: 187 kN | nG: 6300 rpm
NU2311-E-TVP2d: 55 mm | D: 120 mm | B: 43 mm | C: 235 kN | C0: 230 kN | nG: 5600 rpm
NU2312-E-TVP2d: 60 mm | D: 130 mm | B: 46 mm | C: 265 kN | C0: 260 kN | nG: 5000 rpm
NU2313-E-TVP2d: 65 mm | D: 140 mm | B: 48 mm | C: 295 kN | C0: 285 kN | nG: 4800 rpm
NU2314-E-TVP2d: 70 mm | D: 150 mm | B: 51 mm | C: 325 kN | C0: 325 kN | nG: 4500 rpm
NU2315-E-TVP2d: 75 mm | D: 160 mm | B: 55 mm | C: 390 kN | C0: 395 kN | nG: 4000 rpm
NU2316-E-TVP2d: 80 mm | D: 170 mm | B: 58 mm | C: 420 kN | C0: 425 kN | nG: 3800 rpm
NU2317-E-TVP2d: 85 mm | D: 180 mm | B: 60 mm | C: 435 kN | C0: 445 kN | nG: 3600 rpm
NU2318-E-TVP2d: 90 mm | D: 190 mm | B: 64 mm | C: 510 kN | C0: 530 kN | nG: 3400 rpm
NU2319-E-TVP2d: 95 mm | D: 200 mm | B: 67 mm | C: 540 kN | C0: 580 kN | nG: 3400 rpm
NU2320-E-TVP2d: 100 mm | D: 215 mm | B: 73 mm | C: 680 kN | C0: 720 kN | nG: 3200 rpm
NU2322-E-TVP2d: 110 mm | D: 240 mm | B: 80 mm | C: 750 kN | C0: 800 kN | nG: 2800 rpm
NU2324-E-M1d: 120 mm | D: 260 mm | B: 86 mm | C: 930 kN | C0: 1010 kN | nG: 4300 rpm
NU2326-E-M1d: 130 mm | D: 280 mm | B: 93 mm | C: 1080 kN | C0: 1220 kN | nG: 3800 rpm
NU2328-E-M1d: 140 mm | D: 300 mm | B: 102 mm | C: 1210 kN | C0: 1390 kN | nG: 3600 rpm
NU2330-E-M1d: 150 mm | D: 320 mm | B: 108 mm | C: 1380 kN | C0: 1600 kN | nG: 3200 rpm
NU2332-E-M1d: 160 mm | D: 340 mm | B: 114 mm | C: 1320 kN | C0: 1830 kN | nG: 3000 rpm
NU2334-EX-M1d: 170 mm | D: 360 mm | B: 120 mm | C: 1500 kN | C0: 2080 kN | nG: 2800 rpm
NU2336-EX-M1d: 180 mm | D: 380 mm | B: 126 mm | C: 1660 kN | C0: 2320 kN | nG: 2800 rpm
NU2338-EX-M1d: 190 mm | D: 400 mm | B: 132 mm | C: 1900 kN | C0: 2650 kN | nG: 2600 rpm
NU2340-EX-M1d: 200 mm | D: 420 mm | B: 138 mm | C: 2040 kN | C0: 2900 kN | nG: 2400 rpm
NU2344-EX-M1d: 220 mm | D: 460 mm | B: 145 mm | C: 2360 kN | C0: 3350 kN | nG: 2200 rpm
NU2348-EX-M1d: 240 mm | D: 500 mm | B: 155 mm | C: 2600 kN | C0: 3750 kN | nG: 2000 rpm
NU2352-EX-M1d: 260 mm | D: 540 mm | B: 165 mm | C: 3100 kN | C0: 4500 kN | nG: 1800 rpm
NU2356-EX-M1d: 280 mm | D: 580 mm | B: 175 mm | C: 3550 kN | C0: 5200 kN | nG: 1600 rpm
