FAG NU3 Series Cylindrical Roller Bearings (Non-locating)

FAG NU3 Series Cylindrical Roller Bearings (Non-locating)

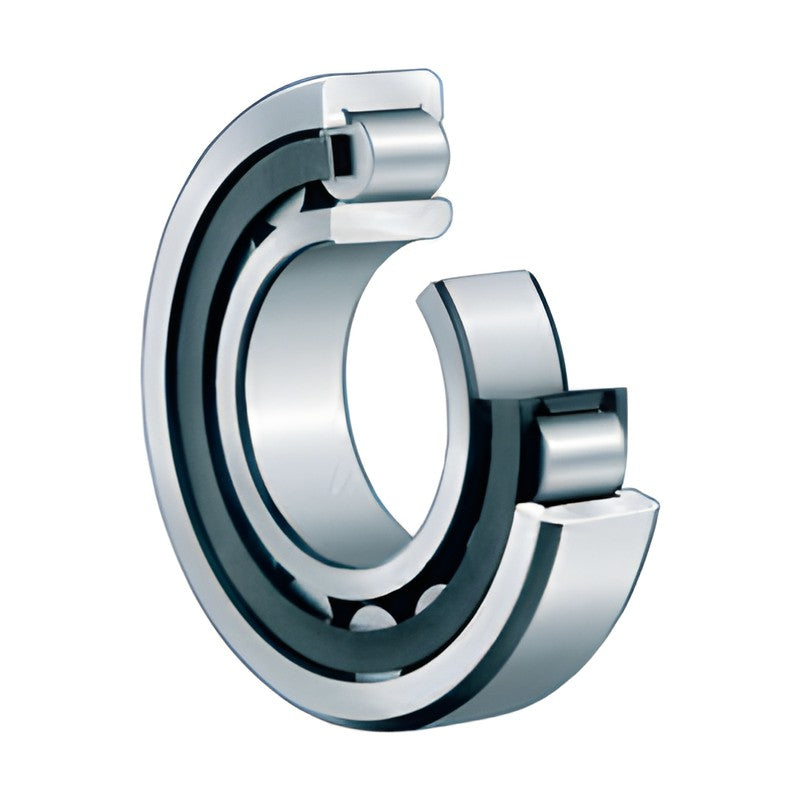

FAG single row cylindrical roller bearings with cage, NU3 series, inner ring without ribs, for use as non-locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • TVP2 polyamide cage or M1 machined brass cage as printed
  • Separable design for simple mounting and dismounting
  • X-life performance grade on E-TVP2 sizes
  • Axial displacement between shaft and housing within the bearing

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NU3
Function Non-locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 350-363
NU303-E-TVP2 d: 17 mm | D: 47 mm | B: 14 mm | C: 30 kN | C0: 21.2 kN | nG: 16000 rpm
NU304-E-TVP2 d: 20 mm | D: 52 mm | B: 15 mm | C: 36.5 kN | C0: 26 kN | nG: 14000 rpm
NU305-E-TVP2 d: 25 mm | D: 62 mm | B: 17 mm | C: 48 kN | C0: 36.5 kN | nG: 12000 rpm
NU306-E-TVP2 d: 30 mm | D: 72 mm | B: 19 mm | C: 61 kN | C0: 48 kN | nG: 10000 rpm
NU307-E-TVP2 d: 35 mm | D: 80 mm | B: 21 mm | C: 76 kN | C0: 63 kN | nG: 9000 rpm
NU308-E-TVP2 d: 40 mm | D: 90 mm | B: 23 mm | C: 95 kN | C0: 78 kN | nG: 7500 rpm
NU309-E-TVP2 d: 45 mm | D: 100 mm | B: 25 mm | C: 115 kN | C0: 98 kN | nG: 6700 rpm
NU310-E-TVP2 d: 50 mm | D: 110 mm | B: 27 mm | C: 130 kN | C0: 113 kN | nG: 6300 rpm
NU311-E-TVP2 d: 55 mm | D: 120 mm | B: 29 mm | C: 159 kN | C0: 139 kN | nG: 5600 rpm
NU312-E-TVP2 d: 60 mm | D: 130 mm | B: 31 mm | C: 177 kN | C0: 157 kN | nG: 5000 rpm
NU313-E-TVP2 d: 65 mm | D: 140 mm | B: 33 mm | C: 214 kN | C0: 191 kN | nG: 4800 rpm
NU314-E-TVP2 d: 70 mm | D: 150 mm | B: 35 mm | C: 242 kN | C0: 222 kN | nG: 4500 rpm
NU315-E-TVP2 d: 75 mm | D: 160 mm | B: 37 mm | C: 285 kN | C0: 265 kN | nG: 4000 rpm
NU316-E-TVP2 d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 275 kN | nG: 3800 rpm
NU317-E-TVP2 d: 85 mm | D: 180 mm | B: 41 mm | C: 320 kN | C0: 300 kN | nG: 3600 rpm
NU318-E-TVP2 d: 90 mm | D: 190 mm | B: 43 mm | C: 370 kN | C0: 350 kN | nG: 3400 rpm
NU319-E-TVP2 d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 380 kN | nG: 3400 rpm
NU320-E-TVP2 d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 425 kN | nG: 3200 rpm
NU322-E-TVP2 d: 110 mm | D: 240 mm | B: 50 mm | C: 495 kN | C0: 475 kN | nG: 3000 rpm
NU324-E-TVP2 d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 600 kN | nG: 2800 rpm
NU326-E-TVP2 d: 130 mm | D: 280 mm | B: 58 mm | C: 680 kN | C0: 670 kN | nG: 2600 rpm
NU328-E-TVP2 d: 140 mm | D: 300 mm | B: 62 mm | C: 790 kN | C0: 800 kN | nG: 2400 rpm
NU330-E-M1 d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 930 kN | nG: 3600 rpm
NU332-E-M1 d: 160 mm | D: 340 mm | B: 68 mm | C: 865 kN | C0: 1060 kN | nG: 3000 rpm
NU334-E-M1 d: 170 mm | D: 360 mm | B: 72 mm | C: 965 kN | C0: 1220 kN | nG: 3000 rpm
NU336-E-M1 d: 180 mm | D: 380 mm | B: 75 mm | C: 1040 kN | C0: 1320 kN | nG: 2800 rpm
NU338-E-M1 d: 190 mm | D: 400 mm | B: 78 mm | C: 1120 kN | C0: 1430 kN | nG: 2800 rpm
NU340-E-M1 d: 200 mm | D: 420 mm | B: 80 mm | C: 1180 kN | C0: 1530 kN | nG: 2600 rpm
NU344-E-M1 d: 220 mm | D: 460 mm | B: 88 mm | C: 1430 kN | C0: 1900 kN | nG: 2400 rpm
NU348-E-M1 d: 240 mm | D: 500 mm | B: 95 mm | C: 1730 kN | C0: 2280 kN | nG: 2200 rpm
NU352-E-M1 d: 260 mm | D: 540 mm | B: 102 mm | C: 1900 kN | C0: 2600 kN | nG: 2000 rpm
NU356-E-M1 d: 280 mm | D: 580 mm | B: 108 mm | C: 2160 kN | C0: 3050 kN | nG: 1900 rpm
Cylindrical Roller BearingsFAG
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NU3 Series Cylindrical Roller Bearings (Non-locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (32)

NU303-E-TVP2, NU304-E-TVP2, NU305-E-TVP2, NU306-E-TVP2, NU307-E-TVP2, NU308-E-TVP2, NU309-E-TVP2, NU310-E-TVP2, NU311-E-TVP2, NU312-E-TVP2 + 22 more — see full table ↓
