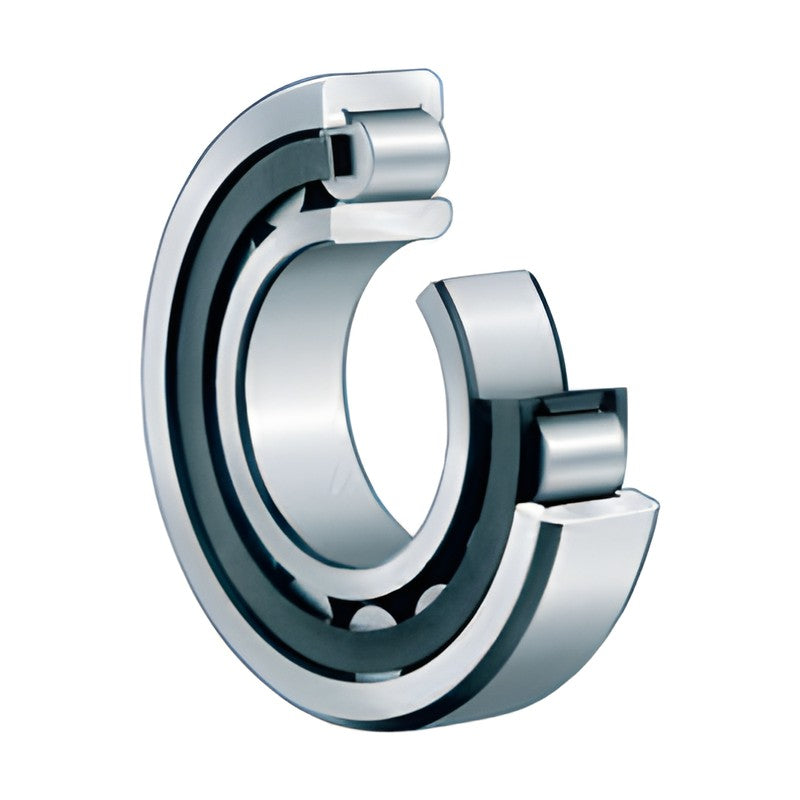

FAG NU4 Series Cylindrical Roller Bearings (Non-locating)

FAG NU4 Series Cylindrical Roller Bearings (Non-locating)

FAG single row cylindrical roller bearings with cage, NU4 heavy series, inner ring without ribs, for use as non-locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • TVP2 polyamide cage or M1 machined brass cage as printed
  • Separable design for simple mounting and dismounting
  • X-life performance grade on E-TVP2 sizes
  • Axial displacement between shaft and housing within the bearing

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NU4
Function Non-locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 350-359
NU406-M1 d: 30 mm | D: 90 mm | B: 23 mm | C: 83 kN | C0: 64 kN | nG: 14000 rpm
NU407-M1 d: 35 mm | D: 100 mm | B: 25 mm | C: 102 kN | C0: 83 kN | nG: 12000 rpm
NU408-M1 d: 40 mm | D: 110 mm | B: 27 mm | C: 119 kN | C0: 95 kN | nG: 11000 rpm
NU409-M1 d: 45 mm | D: 120 mm | B: 29 mm | C: 143 kN | C0: 119 kN | nG: 9500 rpm
NU410-M1 d: 50 mm | D: 130 mm | B: 31 mm | C: 175 kN | C0: 148 kN | nG: 8500 rpm
NU411-M1 d: 55 mm | D: 140 mm | B: 33 mm | C: 187 kN | C0: 164 kN | nG: 8000 rpm
NU412-M1 d: 60 mm | D: 150 mm | B: 35 mm | C: 211 kN | C0: 184 kN | nG: 7500 rpm
NU413-M1 d: 65 mm | D: 160 mm | B: 37 mm | C: 230 kN | C0: 203 kN | nG: 7000 rpm
NU414-M1 d: 70 mm | D: 180 mm | B: 42 mm | C: 285 kN | C0: 255 kN | nG: 6300 rpm
NU415-M1 d: 75 mm | D: 190 mm | B: 45 mm | C: 325 kN | C0: 295 kN | nG: 6000 rpm
NU416-M1 d: 80 mm | D: 200 mm | B: 48 mm | C: 395 kN | C0: 365 kN | nG: 5600 rpm
NU417-M1 d: 85 mm | D: 210 mm | B: 52 mm | C: 420 kN | C0: 385 kN | nG: 5300 rpm
NU418-M1 d: 90 mm | D: 225 mm | B: 54 mm | C: 465 kN | C0: 425 kN | nG: 5000 rpm
NU419-M1 d: 95 mm | D: 240 mm | B: 55 mm | C: 495 kN | C0: 470 kN | nG: 4800 rpm
NU420-M1 d: 100 mm | D: 250 mm | B: 58 mm | C: 550 kN | C0: 530 kN | nG: 4800 rpm
NU421-M1 d: 105 mm | D: 260 mm | B: 60 mm | C: 610 kN | C0: 590 kN | nG: 4500 rpm
NU422-M1 d: 110 mm | D: 280 mm | B: 65 mm | C: 680 kN | C0: 660 kN | nG: 4500 rpm
NU424-M1 d: 120 mm | D: 310 mm | B: 72 mm | C: 850 kN | C0: 840 kN | nG: 3800 rpm
Cylindrical Roller BearingsFAG
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NU4 Series Cylindrical Roller Bearings (Non-locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (18)

NU406-M1, NU407-M1, NU408-M1, NU409-M1, NU410-M1, NU411-M1, NU412-M1, NU413-M1, NU414-M1, NU415-M1 + 8 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU406-M1d: 30 mm | D: 90 mm | B: 23 mm | C: 83 kN | C0: 64 kN | nG: 14000 rpm
NU407-M1d: 35 mm | D: 100 mm | B: 25 mm | C: 102 kN | C0: 83 kN | nG: 12000 rpm
NU408-M1d: 40 mm | D: 110 mm | B: 27 mm | C: 119 kN | C0: 95 kN | nG: 11000 rpm
NU409-M1d: 45 mm | D: 120 mm | B: 29 mm | C: 143 kN | C0: 119 kN | nG: 9500 rpm
NU410-M1d: 50 mm | D: 130 mm | B: 31 mm | C: 175 kN | C0: 148 kN | nG: 8500 rpm
NU411-M1d: 55 mm | D: 140 mm | B: 33 mm | C: 187 kN | C0: 164 kN | nG: 8000 rpm
NU412-M1d: 60 mm | D: 150 mm | B: 35 mm | C: 211 kN | C0: 184 kN | nG: 7500 rpm
NU413-M1d: 65 mm | D: 160 mm | B: 37 mm | C: 230 kN | C0: 203 kN | nG: 7000 rpm
NU414-M1d: 70 mm | D: 180 mm | B: 42 mm | C: 285 kN | C0: 255 kN | nG: 6300 rpm
NU415-M1d: 75 mm | D: 190 mm | B: 45 mm | C: 325 kN | C0: 295 kN | nG: 6000 rpm
NU416-M1d: 80 mm | D: 200 mm | B: 48 mm | C: 395 kN | C0: 365 kN | nG: 5600 rpm
NU417-M1d: 85 mm | D: 210 mm | B: 52 mm | C: 420 kN | C0: 385 kN | nG: 5300 rpm
NU418-M1d: 90 mm | D: 225 mm | B: 54 mm | C: 465 kN | C0: 425 kN | nG: 5000 rpm
NU419-M1d: 95 mm | D: 240 mm | B: 55 mm | C: 495 kN | C0: 470 kN | nG: 4800 rpm
NU420-M1d: 100 mm | D: 250 mm | B: 58 mm | C: 550 kN | C0: 530 kN | nG: 4800 rpm
NU421-M1d: 105 mm | D: 260 mm | B: 60 mm | C: 610 kN | C0: 590 kN | nG: 4500 rpm
NU422-M1d: 110 mm | D: 280 mm | B: 65 mm | C: 680 kN | C0: 660 kN | nG: 4500 rpm
NU424-M1d: 120 mm | D: 310 mm | B: 72 mm | C: 850 kN | C0: 840 kN | nG: 3800 rpm
