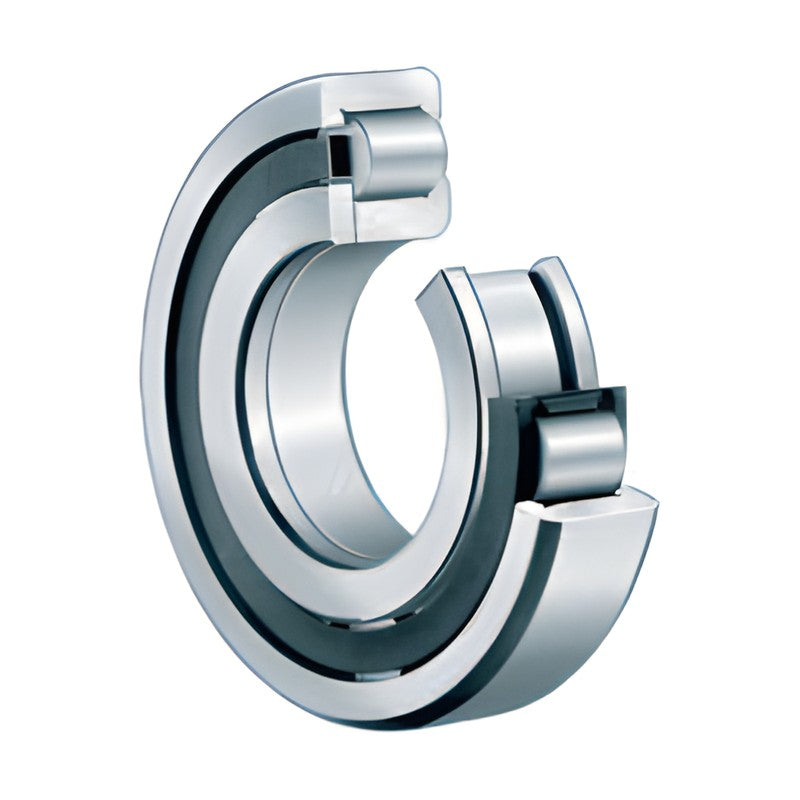

FAG NUP2 Series Cylindrical Roller Bearings (Locating)

FAG NUP2 Series Cylindrical Roller Bearings (Locating)

FAG single row cylindrical roller bearings with cage, NUP2 series, for use as locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • NUP: locating bearing, axial guidance in both directions
  • Loose flange ring on the inner ring
  • TVP2 polyamide or M1 machined brass cage as printed

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NUP2
Function Locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 366-391
NUP203-E-TVP2 d: 17 mm | D: 40 mm | B: 12 mm | C: 20.8 kN | C0: 14.6 kN | nG: 18000 rpm
NUP204-E-TVP2 d: 20 mm | D: 47 mm | B: 14 mm | C: 32.5 kN | C0: 24.7 kN | nG: 16000 rpm
NUP205-E-TVP2 d: 25 mm | D: 52 mm | B: 15 mm | C: 34.5 kN | C0: 27.5 kN | nG: 15000 rpm
NUP206-E-TVP2 d: 30 mm | D: 62 mm | B: 16 mm | C: 45 kN | C0: 36 kN | nG: 12000 rpm
NUP207-E-TVP2 d: 35 mm | D: 72 mm | B: 17 mm | C: 58 kN | C0: 48.5 kN | nG: 10000 rpm
NUP208-E-TVP2 d: 40 mm | D: 80 mm | B: 18 mm | C: 63 kN | C0: 53 kN | nG: 9000 rpm
NUP209-E-TVP2 d: 45 mm | D: 85 mm | B: 19 mm | C: 72 kN | C0: 63 kN | nG: 8500 rpm
NUP210-E-TVP2 d: 50 mm | D: 90 mm | B: 20 mm | C: 75 kN | C0: 69 kN | nG: 8000 rpm
NUP211-E-TVP2 d: 55 mm | D: 100 mm | B: 21 mm | C: 99 kN | C0: 95 kN | nG: 7000 rpm
NUP212-E-TVP2 d: 60 mm | D: 110 mm | B: 22 mm | C: 111 kN | C0: 102 kN | nG: 6300 rpm
NUP213-E-TVP2 d: 65 mm | D: 120 mm | B: 23 mm | C: 127 kN | C0: 119 kN | nG: 6000 rpm
NUP214-E-TVP2 d: 70 mm | D: 125 mm | B: 24 mm | C: 140 kN | C0: 137 kN | nG: 5300 rpm
NUP215-E-TVP2 d: 75 mm | D: 130 mm | B: 25 mm | C: 154 kN | C0: 156 kN | nG: 5300 rpm
NUP216-E-TVP2 d: 80 mm | D: 140 mm | B: 26 mm | C: 165 kN | C0: 167 kN | nG: 4800 rpm
NUP217-E-TVP2 d: 85 mm | D: 150 mm | B: 28 mm | C: 194 kN | C0: 194 kN | nG: 4500 rpm
NUP218-E-TVP2 d: 90 mm | D: 160 mm | B: 30 mm | C: 215 kN | C0: 217 kN | nG: 4300 rpm
NUP219-E-TVP2 d: 95 mm | D: 170 mm | B: 32 mm | C: 260 kN | C0: 265 kN | nG: 3800 rpm
NUP220-E-TVP2 d: 100 mm | D: 180 mm | B: 34 mm | C: 295 kN | C0: 305 kN | nG: 3800 rpm
NUP221-E-TVP2 d: 105 mm | D: 190 mm | B: 36 mm | C: 310 kN | C0: 320 kN | nG: 3600 rpm
NUP222-E-TVP2 d: 110 mm | D: 200 mm | B: 38 mm | C: 345 kN | C0: 365 kN | nG: 3400 rpm
NUP224-E-TVP2 d: 120 mm | D: 215 mm | B: 40 mm | C: 390 kN | C0: 415 kN | nG: 3200 rpm
NUP226-E-TVP2 d: 130 mm | D: 230 mm | B: 40 mm | C: 425 kN | C0: 445 kN | nG: 3000 rpm
NUP228-E-M1 d: 140 mm | D: 250 mm | B: 42 mm | C: 460 kN | C0: 510 kN | nG: 4800 rpm
NUP230-E-M1 d: 150 mm | D: 270 mm | B: 45 mm | C: 520 kN | C0: 590 kN | nG: 4500 rpm
NUP232-E-M1 d: 160 mm | D: 290 mm | B: 48 mm | C: 590 kN | C0: 670 kN | nG: 4300 rpm
NUP234-E-M1 d: 170 mm | D: 310 mm | B: 52 mm | C: 700 kN | C0: 780 kN | nG: 3600 rpm
NUP236-E-M1 d: 180 mm | D: 320 mm | B: 52 mm | C: 730 kN | C0: 830 kN | nG: 3600 rpm
NUP238-E-M1 d: 190 mm | D: 340 mm | B: 55 mm | C: 680 kN | C0: 930 kN | nG: 3200 rpm
NUP240-E-M1 d: 200 mm | D: 360 mm | B: 58 mm | C: 750 kN | C0: 1040 kN | nG: 3000 rpm
NUP244-E-M1 d: 220 mm | D: 400 mm | B: 65 mm | C: 950 kN | C0: 1320 kN | nG: 2800 rpm
Cylindrical Roller BearingsFAG
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NUP2 Series Cylindrical Roller Bearings (Locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (30)

NUP203-E-TVP2, NUP204-E-TVP2, NUP205-E-TVP2, NUP206-E-TVP2, NUP207-E-TVP2, NUP208-E-TVP2, NUP209-E-TVP2, NUP210-E-TVP2, NUP211-E-TVP2, NUP212-E-TVP2 + 20 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NUP203-E-TVP2d: 17 mm | D: 40 mm | B: 12 mm | C: 20.8 kN | C0: 14.6 kN | nG: 18000 rpm
NUP204-E-TVP2d: 20 mm | D: 47 mm | B: 14 mm | C: 32.5 kN | C0: 24.7 kN | nG: 16000 rpm
NUP205-E-TVP2d: 25 mm | D: 52 mm | B: 15 mm | C: 34.5 kN | C0: 27.5 kN | nG: 15000 rpm
NUP206-E-TVP2d: 30 mm | D: 62 mm | B: 16 mm | C: 45 kN | C0: 36 kN | nG: 12000 rpm
NUP207-E-TVP2d: 35 mm | D: 72 mm | B: 17 mm | C: 58 kN | C0: 48.5 kN | nG: 10000 rpm
NUP208-E-TVP2d: 40 mm | D: 80 mm | B: 18 mm | C: 63 kN | C0: 53 kN | nG: 9000 rpm
NUP209-E-TVP2d: 45 mm | D: 85 mm | B: 19 mm | C: 72 kN | C0: 63 kN | nG: 8500 rpm
NUP210-E-TVP2d: 50 mm | D: 90 mm | B: 20 mm | C: 75 kN | C0: 69 kN | nG: 8000 rpm
NUP211-E-TVP2d: 55 mm | D: 100 mm | B: 21 mm | C: 99 kN | C0: 95 kN | nG: 7000 rpm
NUP212-E-TVP2d: 60 mm | D: 110 mm | B: 22 mm | C: 111 kN | C0: 102 kN | nG: 6300 rpm
NUP213-E-TVP2d: 65 mm | D: 120 mm | B: 23 mm | C: 127 kN | C0: 119 kN | nG: 6000 rpm
NUP214-E-TVP2d: 70 mm | D: 125 mm | B: 24 mm | C: 140 kN | C0: 137 kN | nG: 5300 rpm
NUP215-E-TVP2d: 75 mm | D: 130 mm | B: 25 mm | C: 154 kN | C0: 156 kN | nG: 5300 rpm
NUP216-E-TVP2d: 80 mm | D: 140 mm | B: 26 mm | C: 165 kN | C0: 167 kN | nG: 4800 rpm
NUP217-E-TVP2d: 85 mm | D: 150 mm | B: 28 mm | C: 194 kN | C0: 194 kN | nG: 4500 rpm
NUP218-E-TVP2d: 90 mm | D: 160 mm | B: 30 mm | C: 215 kN | C0: 217 kN | nG: 4300 rpm
NUP219-E-TVP2d: 95 mm | D: 170 mm | B: 32 mm | C: 260 kN | C0: 265 kN | nG: 3800 rpm
NUP220-E-TVP2d: 100 mm | D: 180 mm | B: 34 mm | C: 295 kN | C0: 305 kN | nG: 3800 rpm
NUP221-E-TVP2d: 105 mm | D: 190 mm | B: 36 mm | C: 310 kN | C0: 320 kN | nG: 3600 rpm
NUP222-E-TVP2d: 110 mm | D: 200 mm | B: 38 mm | C: 345 kN | C0: 365 kN | nG: 3400 rpm
NUP224-E-TVP2d: 120 mm | D: 215 mm | B: 40 mm | C: 390 kN | C0: 415 kN | nG: 3200 rpm
NUP226-E-TVP2d: 130 mm | D: 230 mm | B: 40 mm | C: 425 kN | C0: 445 kN | nG: 3000 rpm
NUP228-E-M1d: 140 mm | D: 250 mm | B: 42 mm | C: 460 kN | C0: 510 kN | nG: 4800 rpm
NUP230-E-M1d: 150 mm | D: 270 mm | B: 45 mm | C: 520 kN | C0: 590 kN | nG: 4500 rpm
NUP232-E-M1d: 160 mm | D: 290 mm | B: 48 mm | C: 590 kN | C0: 670 kN | nG: 4300 rpm
NUP234-E-M1d: 170 mm | D: 310 mm | B: 52 mm | C: 700 kN | C0: 780 kN | nG: 3600 rpm
NUP236-E-M1d: 180 mm | D: 320 mm | B: 52 mm | C: 730 kN | C0: 830 kN | nG: 3600 rpm
NUP238-E-M1d: 190 mm | D: 340 mm | B: 55 mm | C: 680 kN | C0: 930 kN | nG: 3200 rpm
NUP240-E-M1d: 200 mm | D: 360 mm | B: 58 mm | C: 750 kN | C0: 1040 kN | nG: 3000 rpm
NUP244-E-M1d: 220 mm | D: 400 mm | B: 65 mm | C: 950 kN | C0: 1320 kN | nG: 2800 rpm
