FAG NUP22 Series Cylindrical Roller Bearings (Locating)

FAG NUP22 Series Cylindrical Roller Bearings (Locating)

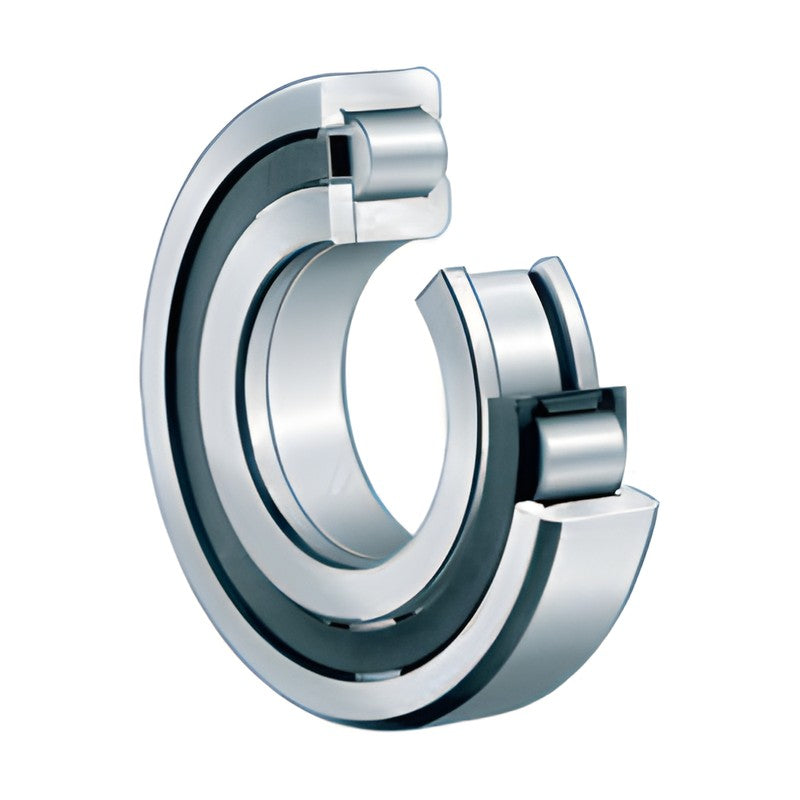

FAG single row cylindrical roller bearings with cage, NUP22 series, for use as locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • NUP: locating bearing, axial guidance in both directions
  • Loose flange ring on the inner ring
  • TVP2 polyamide or M1 machined brass cage as printed

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NUP22
Function Locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 366-391
NUP2203-E-TVP2 d: 17 mm | D: 40 mm | B: 16 mm | C: 28.5 kN | C0: 21.9 kN | nG: 18000 rpm
NUP2204-E-TVP2 d: 20 mm | D: 47 mm | B: 18 mm | C: 38.5 kN | C0: 31 kN | nG: 16000 rpm
NUP2205-E-TVP2 d: 25 mm | D: 52 mm | B: 18 mm | C: 41.5 kN | C0: 34.5 kN | nG: 15000 rpm
NUP2206-E-TVP2 d: 30 mm | D: 62 mm | B: 20 mm | C: 57 kN | C0: 48.5 kN | nG: 12000 rpm
NUP2207-E-TVP2 d: 35 mm | D: 72 mm | B: 23 mm | C: 72 kN | C0: 64 kN | nG: 10000 rpm
NUP2208-E-TVP2 d: 40 mm | D: 80 mm | B: 23 mm | C: 83 kN | C0: 75 kN | nG: 9000 rpm
NUP2209-E-TVP2 d: 45 mm | D: 85 mm | B: 23 mm | C: 87 kN | C0: 82 kN | nG: 8500 rpm
NUP2210-E-TVP2 d: 50 mm | D: 90 mm | B: 23 mm | C: 92 kN | C0: 88 kN | nG: 8000 rpm
NUP2211-E-TVP2 d: 55 mm | D: 100 mm | B: 25 mm | C: 117 kN | C0: 118 kN | nG: 7000 rpm
NUP2212-E-TVP2 d: 60 mm | D: 110 mm | B: 28 mm | C: 151 kN | C0: 152 kN | nG: 6300 rpm
NUP2213-E-TVP2 d: 65 mm | D: 120 mm | B: 31 mm | C: 176 kN | C0: 181 kN | nG: 5600 rpm
NUP2214-E-TVP2 d: 70 mm | D: 125 mm | B: 31 mm | C: 184 kN | C0: 194 kN | nG: 5300 rpm
NUP2215-E-TVP2 d: 75 mm | D: 130 mm | B: 31 mm | C: 191 kN | C0: 207 kN | nG: 5300 rpm
NUP2216-E-TVP2 d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 243 kN | nG: 4800 rpm
NUP2217-E-TVP2 d: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 275 kN | nG: 4500 rpm
NUP2218-E-TVP2 d: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 315 kN | nG: 4300 rpm
NUP2219-E-TVP2 d: 95 mm | D: 170 mm | B: 43 mm | C: 340 kN | C0: 370 kN | nG: 3800 rpm
NUP2220-E-TVP2 d: 100 mm | D: 180 mm | B: 46 mm | C: 395 kN | C0: 445 kN | nG: 3800 rpm
NUP2222-E-TVP2 d: 110 mm | D: 200 mm | B: 53 mm | C: 455 kN | C0: 520 kN | nG: 3400 rpm
NUP2224-E-TVP2 d: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 610 kN | nG: 3200 rpm
NUP2226-E-TVP2 d: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 730 kN | nG: 3000 rpm
NUP2228-E-M1 d: 140 mm | D: 250 mm | B: 68 mm | C: 670 kN | C0: 830 kN | nG: 4500 rpm
NUP2230-E-M1 d: 150 mm | D: 270 mm | B: 73 mm | C: 780 kN | C0: 970 kN | nG: 4300 rpm
NUP2232-E-M1 d: 160 mm | D: 290 mm | B: 80 mm | C: 940 kN | C0: 1170 kN | nG: 3800 rpm
NUP2234-E-M1 d: 170 mm | D: 310 mm | B: 86 mm | C: 1130 kN | C0: 1400 kN | nG: 3200 rpm
NUP2236-E-M1 d: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1490 kN | nG: 3200 rpm
NUP2244-EX-M1 d: 220 mm | D: 400 mm | B: 108 mm | C: 1630 kN | C0: 2360 kN | nG: 2600 rpm
