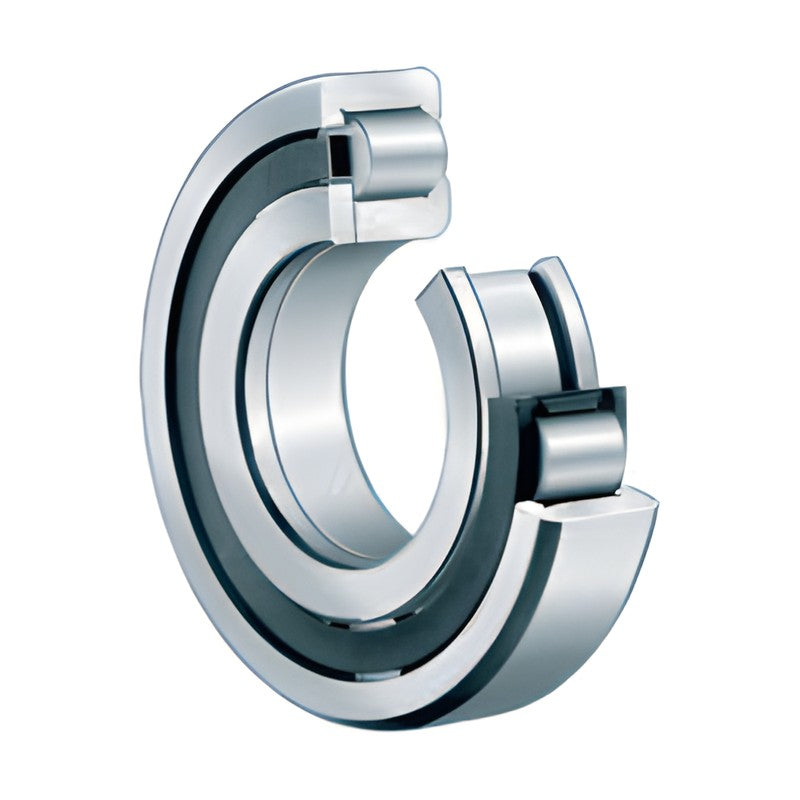

FAG NUP23 Series Cylindrical Roller Bearings (Locating)

FAG NUP23 Series Cylindrical Roller Bearings (Locating)

FAG single row cylindrical roller bearings with cage, NUP23 series, for use as locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • NUP: locating bearing, axial guidance in both directions
  • Loose flange ring on the inner ring
  • TVP2 polyamide or M1 machined brass cage as printed

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NUP23
Function Locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 366-391
NUP2304-E-TVP2 d: 20 mm | D: 52 mm | B: 21 mm | C: 48.5 kN | C0: 38 kN | nG: 14000 rpm
NUP2305-E-TVP2 d: 25 mm | D: 62 mm | B: 24 mm | C: 66 kN | C0: 55 kN | nG: 12000 rpm
NUP2306-E-TVP2 d: 30 mm | D: 72 mm | B: 27 mm | C: 86 kN | C0: 75 kN | nG: 10000 rpm
NUP2307-E-TVP2 d: 35 mm | D: 80 mm | B: 31 mm | C: 108 kN | C0: 98 kN | nG: 9000 rpm
NUP2308-E-TVP2 d: 40 mm | D: 90 mm | B: 33 mm | C: 132 kN | C0: 119 kN | nG: 7500 rpm
NUP2309-E-TVP2 d: 45 mm | D: 100 mm | B: 36 mm | C: 162 kN | C0: 153 kN | nG: 6700 rpm
NUP2310-E-TVP2 d: 50 mm | D: 110 mm | B: 40 mm | C: 192 kN | C0: 187 kN | nG: 6300 rpm
NUP2311-E-TVP2 d: 55 mm | D: 120 mm | B: 43 mm | C: 235 kN | C0: 230 kN | nG: 5600 rpm
NUP2312-E-TVP2 d: 60 mm | D: 130 mm | B: 46 mm | C: 265 kN | C0: 260 kN | nG: 5000 rpm
NUP2313-E-TVP2 d: 65 mm | D: 140 mm | B: 48 mm | C: 295 kN | C0: 285 kN | nG: 4800 rpm
NUP2314-E-TVP2 d: 70 mm | D: 150 mm | B: 51 mm | C: 325 kN | C0: 325 kN | nG: 4500 rpm
NUP2315-E-TVP2 d: 75 mm | D: 160 mm | B: 55 mm | C: 390 kN | C0: 395 kN | nG: 4000 rpm
NUP2316-E-TVP2 d: 80 mm | D: 170 mm | B: 58 mm | C: 420 kN | C0: 425 kN | nG: 3800 rpm
NUP2317-E-TVP2 d: 85 mm | D: 180 mm | B: 60 mm | C: 435 kN | C0: 445 kN | nG: 3600 rpm
NUP2318-E-TVP2 d: 90 mm | D: 190 mm | B: 64 mm | C: 510 kN | C0: 530 kN | nG: 3400 rpm
NUP2319-E-TVP2 d: 95 mm | D: 200 mm | B: 67 mm | C: 540 kN | C0: 580 kN | nG: 3400 rpm
NUP2320-E-TVP2 d: 100 mm | D: 215 mm | B: 73 mm | C: 680 kN | C0: 720 kN | nG: 3200 rpm
NUP2322-E-TVP2 d: 110 mm | D: 240 mm | B: 80 mm | C: 750 kN | C0: 800 kN | nG: 2800 rpm
NUP2324-E-M1 d: 120 mm | D: 260 mm | B: 86 mm | C: 930 kN | C0: 1010 kN | nG: 4300 rpm
NUP2326-E-M1 d: 130 mm | D: 280 mm | B: 93 mm | C: 1080 kN | C0: 1220 kN | nG: 3800 rpm
NUP2328-E-M1 d: 140 mm | D: 300 mm | B: 102 mm | C: 1210 kN | C0: 1390 kN | nG: 3600 rpm
NUP2330-E-M1 d: 150 mm | D: 320 mm | B: 108 mm | C: 1380 kN | C0: 1600 kN | nG: 3200 rpm
NUP2344-EX-M1 d: 220 mm | D: 460 mm | B: 145 mm | C: 2360 kN | C0: 3350 kN | nG: 2200 rpm
Cylindrical Roller BearingsFAG
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NUP23 Series Cylindrical Roller Bearings (Locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (23)

NUP2304-E-TVP2, NUP2305-E-TVP2, NUP2306-E-TVP2, NUP2307-E-TVP2, NUP2308-E-TVP2, NUP2309-E-TVP2, NUP2310-E-TVP2, NUP2311-E-TVP2, NUP2312-E-TVP2, NUP2313-E-TVP2 + 13 more — see full table ↓
