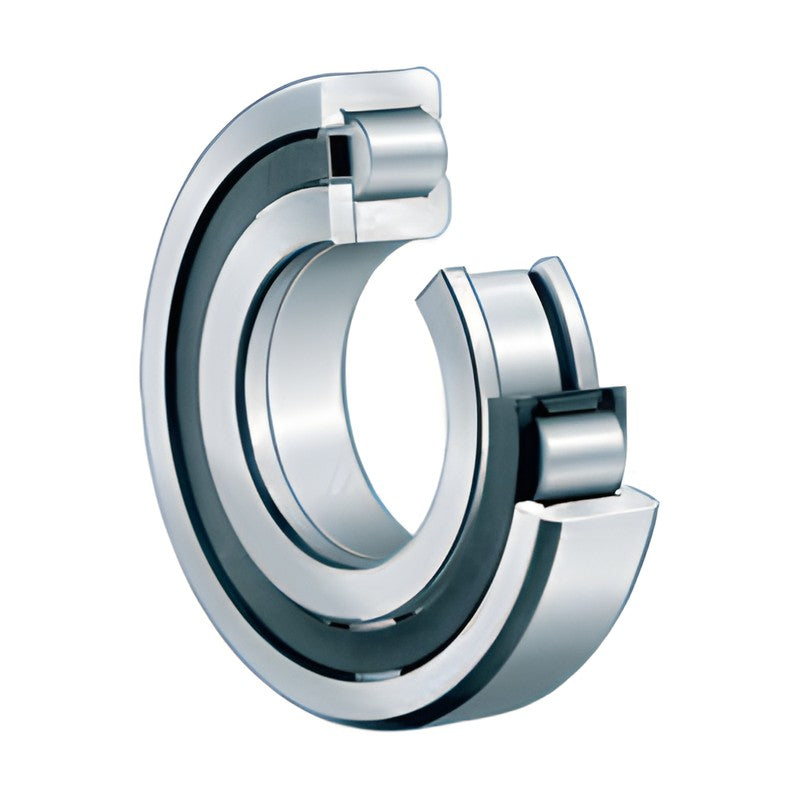

FAG NUP3 Series Cylindrical Roller Bearings (Locating)

FAG NUP3 Series Cylindrical Roller Bearings (Locating)

FAG single row cylindrical roller bearings with cage, NUP3 series, for use as locating bearings.

Key features

  • Single row cylindrical roller bearings with cage
  • Very high radial load capacity; E design with increased capacity
  • NUP: locating bearing, axial guidance in both directions
  • Loose flange ring on the inner ring
  • TVP2 polyamide or M1 machined brass cage as printed

Specifications

Bearing type Cylindrical roller bearing, single row, cage
Series NUP3
Function Locating bearing
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 366-387
NUP303-E-TVP2 d: 17 mm | D: 47 mm | B: 14 mm | C: 30 kN | C0: 21.2 kN | nG: 16000 rpm
NUP304-E-TVP2 d: 20 mm | D: 52 mm | B: 15 mm | C: 36.5 kN | C0: 26 kN | nG: 14000 rpm
NUP305-E-TVP2 d: 25 mm | D: 62 mm | B: 17 mm | C: 48 kN | C0: 36.5 kN | nG: 12000 rpm
NUP306-E-TVP2 d: 30 mm | D: 72 mm | B: 19 mm | C: 61 kN | C0: 48 kN | nG: 10000 rpm
NUP307-E-TVP2 d: 35 mm | D: 80 mm | B: 21 mm | C: 76 kN | C0: 63 kN | nG: 9000 rpm
NUP308-E-TVP2 d: 40 mm | D: 90 mm | B: 23 mm | C: 95 kN | C0: 78 kN | nG: 7500 rpm
NUP309-E-TVP2 d: 45 mm | D: 100 mm | B: 25 mm | C: 115 kN | C0: 98 kN | nG: 6700 rpm
NUP310-E-TVP2 d: 50 mm | D: 110 mm | B: 27 mm | C: 130 kN | C0: 113 kN | nG: 6300 rpm
NUP311-E-TVP2 d: 55 mm | D: 120 mm | B: 29 mm | C: 159 kN | C0: 139 kN | nG: 5600 rpm
NUP312-E-TVP2 d: 60 mm | D: 130 mm | B: 31 mm | C: 177 kN | C0: 157 kN | nG: 5000 rpm
NUP313-E-TVP2 d: 65 mm | D: 140 mm | B: 33 mm | C: 214 kN | C0: 191 kN | nG: 4800 rpm
NUP314-E-TVP2 d: 70 mm | D: 150 mm | B: 35 mm | C: 242 kN | C0: 222 kN | nG: 4500 rpm
NUP315-E-TVP2 d: 75 mm | D: 160 mm | B: 37 mm | C: 285 kN | C0: 265 kN | nG: 4000 rpm
NUP316-E-TVP2 d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 275 kN | nG: 3800 rpm
NUP317-E-TVP2 d: 85 mm | D: 180 mm | B: 41 mm | C: 320 kN | C0: 300 kN | nG: 3600 rpm
NUP318-E-TVP2 d: 90 mm | D: 190 mm | B: 43 mm | C: 370 kN | C0: 350 kN | nG: 3400 rpm
NUP319-E-TVP2 d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 380 kN | nG: 3400 rpm
NUP320-E-TVP2 d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 425 kN | nG: 3200 rpm
NUP322-E-TVP2 d: 110 mm | D: 240 mm | B: 50 mm | C: 495 kN | C0: 475 kN | nG: 3000 rpm
NUP324-E-TVP2 d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 600 kN | nG: 2800 rpm
NUP326-E-TVP2 d: 130 mm | D: 280 mm | B: 58 mm | C: 680 kN | C0: 670 kN | nG: 2600 rpm
NUP328-E-TVP2 d: 140 mm | D: 300 mm | B: 62 mm | C: 790 kN | C0: 800 kN | nG: 2400 rpm
NUP330-E-M1 d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 930 kN | nG: 3600 rpm
Cylindrical Roller BearingsFAG
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG NUP3 Series Cylindrical Roller Bearings (Locating)

Brand FAG·Cylindrical Roller Bearings

Available part numbers (23)

NUP303-E-TVP2, NUP304-E-TVP2, NUP305-E-TVP2, NUP306-E-TVP2, NUP307-E-TVP2, NUP308-E-TVP2, NUP309-E-TVP2, NUP310-E-TVP2, NUP311-E-TVP2, NUP312-E-TVP2 + 13 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NUP303-E-TVP2d: 17 mm | D: 47 mm | B: 14 mm | C: 30 kN | C0: 21.2 kN | nG: 16000 rpm
NUP304-E-TVP2d: 20 mm | D: 52 mm | B: 15 mm | C: 36.5 kN | C0: 26 kN | nG: 14000 rpm
NUP305-E-TVP2d: 25 mm | D: 62 mm | B: 17 mm | C: 48 kN | C0: 36.5 kN | nG: 12000 rpm
NUP306-E-TVP2d: 30 mm | D: 72 mm | B: 19 mm | C: 61 kN | C0: 48 kN | nG: 10000 rpm
NUP307-E-TVP2d: 35 mm | D: 80 mm | B: 21 mm | C: 76 kN | C0: 63 kN | nG: 9000 rpm
NUP308-E-TVP2d: 40 mm | D: 90 mm | B: 23 mm | C: 95 kN | C0: 78 kN | nG: 7500 rpm
NUP309-E-TVP2d: 45 mm | D: 100 mm | B: 25 mm | C: 115 kN | C0: 98 kN | nG: 6700 rpm
NUP310-E-TVP2d: 50 mm | D: 110 mm | B: 27 mm | C: 130 kN | C0: 113 kN | nG: 6300 rpm
NUP311-E-TVP2d: 55 mm | D: 120 mm | B: 29 mm | C: 159 kN | C0: 139 kN | nG: 5600 rpm
NUP312-E-TVP2d: 60 mm | D: 130 mm | B: 31 mm | C: 177 kN | C0: 157 kN | nG: 5000 rpm
NUP313-E-TVP2d: 65 mm | D: 140 mm | B: 33 mm | C: 214 kN | C0: 191 kN | nG: 4800 rpm
NUP314-E-TVP2d: 70 mm | D: 150 mm | B: 35 mm | C: 242 kN | C0: 222 kN | nG: 4500 rpm
NUP315-E-TVP2d: 75 mm | D: 160 mm | B: 37 mm | C: 285 kN | C0: 265 kN | nG: 4000 rpm
NUP316-E-TVP2d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 275 kN | nG: 3800 rpm
NUP317-E-TVP2d: 85 mm | D: 180 mm | B: 41 mm | C: 320 kN | C0: 300 kN | nG: 3600 rpm
NUP318-E-TVP2d: 90 mm | D: 190 mm | B: 43 mm | C: 370 kN | C0: 350 kN | nG: 3400 rpm
NUP319-E-TVP2d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 380 kN | nG: 3400 rpm
NUP320-E-TVP2d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 425 kN | nG: 3200 rpm
NUP322-E-TVP2d: 110 mm | D: 240 mm | B: 50 mm | C: 495 kN | C0: 475 kN | nG: 3000 rpm
NUP324-E-TVP2d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 600 kN | nG: 2800 rpm
NUP326-E-TVP2d: 130 mm | D: 280 mm | B: 58 mm | C: 680 kN | C0: 670 kN | nG: 2600 rpm
NUP328-E-TVP2d: 140 mm | D: 300 mm | B: 62 mm | C: 790 kN | C0: 800 kN | nG: 2400 rpm
NUP330-E-M1d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 930 kN | nG: 3600 rpm
