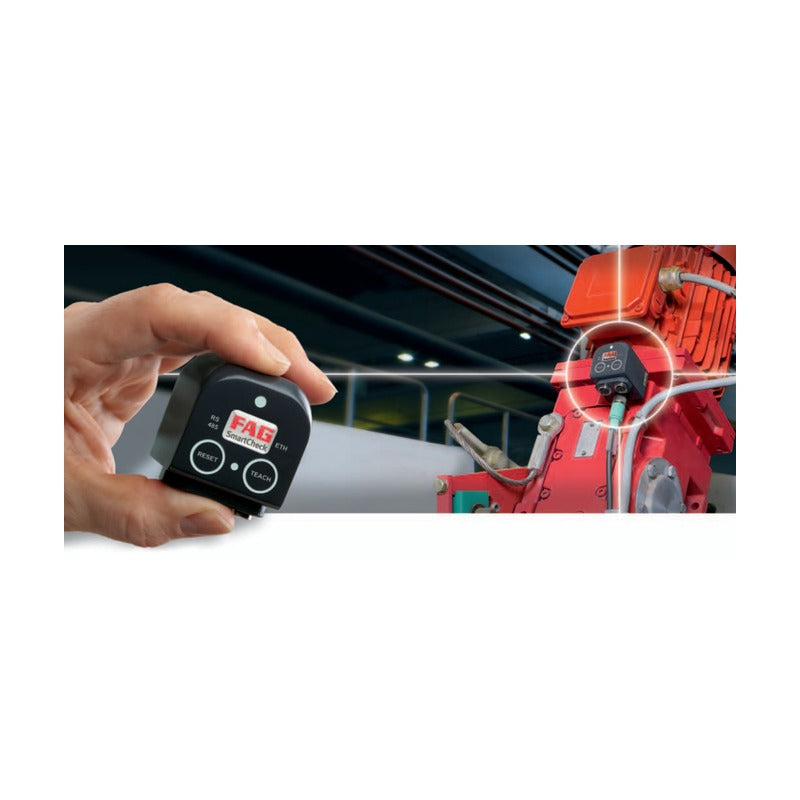

FAG SmartCheck Online Vibration Monitoring System and Kits

FAG SmartCheck Online Vibration Monitoring System and Kits

FAG SmartCheck is a compact online measuring system that monitors vibration and process parameters of machines, with integrated SmartWeb software and learning mode.

Key features

  • Piezoelectric accelerometer 0.8 Hz-10 kHz, 50 g
  • Integrated FAG SmartWeb software, teach mode alarm thresholds
  • Inputs for speed, load, pressure; switching and analogue outputs
  • Power over Ethernet or DC 16-32 V
  • Glass fibre reinforced housing, IP 67, M6 mounting

Specifications

Size 44 x 57 x 55 mm
Mass 210 g
Protection class IP 67
Temperature -20 to +70 C
Source FAG SmartCheck TPI 214, p. 19-21
SMART-CHECK Content: Device, SmartWeb, SmartUtility light
SMART-CHECK-STARTER-KIT Content: Device, starter config, cable, manual
SMART-CHECK-KIT-010 Content: Device, mounting set, PSU, case
Condition MonitoringFAG
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG SmartCheck Online Vibration Monitoring System and Kits

Brand FAG·Condition Monitoring

Available part numbers (3)

SMART-CHECK, SMART-CHECK-STARTER-KIT, SMART-CHECK-KIT-010

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMART-CHECKContent: Device, SmartWeb, SmartUtility light
SMART-CHECK-STARTER-KITContent: Device, starter config, cable, manual
SMART-CHECK-KIT-010Content: Device, mounting set, PSU, case
