• Schaeffler LASER-EQUILIGN2 Laser Shaft Alignment System
1 1

Schaeffler LASER-EQUILIGN2 Laser Shaft Alignment System

Schaeffler LASER-EQUILIGN2 Laser Shaft Alignment System

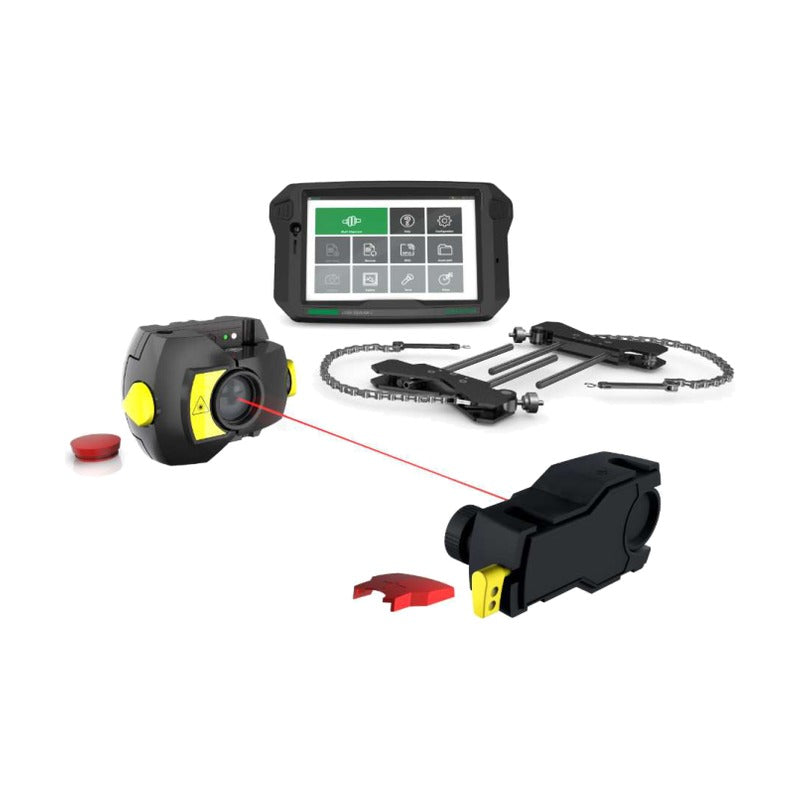

The Schaeffler LASER-EQUILIGN2 is a single-laser shaft alignment system with a rugged 8 in. tablet, laser/sensor unit and reflector prism for precise horizontal machine alignment.

Key features

  • Single-laser reflection technology, 1 um resolution
  • Active clock mode with 3-4 measuring points in 8 positions
  • Live Move monitors corrections in real time
  • IP68 tablet with camera, RFID/NFC and PDF reporting
  • Bluetooth connection, up to 30 m transmission

Specifications

Case approx. 500 x 410 x 140 mm
Total weight approx. 7.8 kg
Source Schaeffler LASER-EQUILIGN2 Shaft Alignment System, p. 26-30
LASER-EQUILIGN2 Order no.: 096035269-0000-10 | Type: Complete system | Approvals: EU, US, UK and others
LASER-EQUILIGN2-CA Order no.: 096866314-0000-10 | Type: Complete system | Approvals: Canada
LASER-EQUILIGN2-TABLET Type: Tablet, 8 in. TFT, IP68 | Battery: Up to 11 h
LASER-EQUILIGN2.TRANS Type: Laser/sensor unit, IP65 | Battery: 10 h
LASER-EQUILIGN2.REFLECT Type: Reflector (90 deg roof prism), IP67
LASER-EQUILIGN2.CHARGER Type: Charger with 5 adapters
LASER-EQUILIGN2.CABLE-USB-STICK Type: USB-A to USB-C adapter cable
LASER-EQUILIGN2.CABLE-TRANS Type: Micro USB charging cable for sensor
LASER-EQUILIGN2.CABLE-TABLET Type: USB-C data cable for tablet
LASER.BRACKET Type: Shaft bracket
LASER.CHAIN600 Type: Chain, 600 mm
LASER.POST150 Type: Post, 150 mm
LASER-EQUILIGN2.CASE Type: Case
