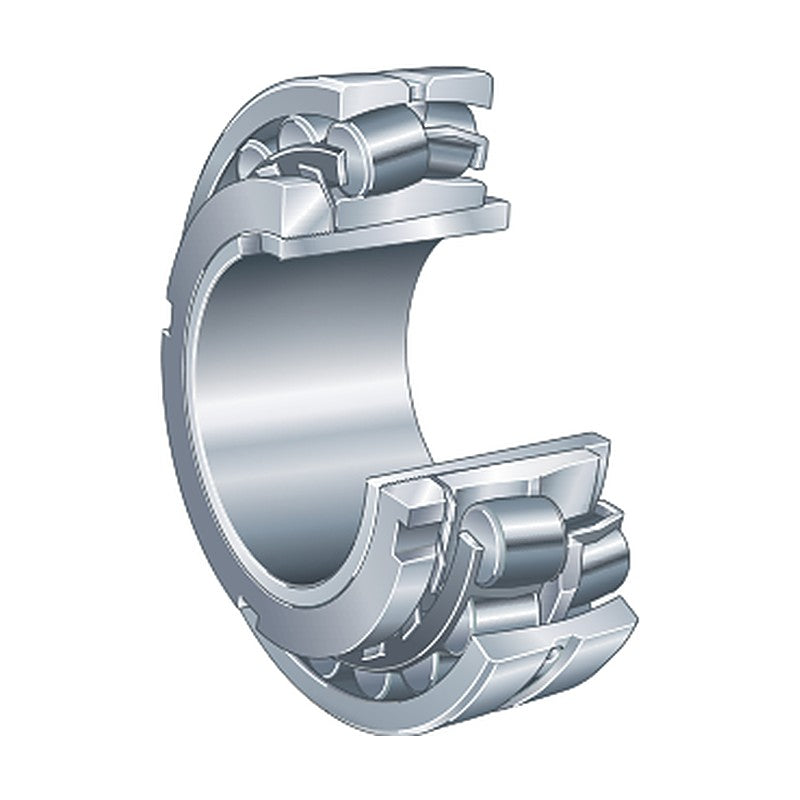

FAG Spherical Roller Bearings with H Adapter Sleeve

FAG Spherical Roller Bearings with H Adapter Sleeve

FAG spherical roller bearings with tapered bore supplied together with matching H adapter sleeve, lock nut and locking device for mounting on plain or stepped shafts.

Key features

  • Designation = bearing + adapter sleeve (e.g. 22205-E1-K + H305)
  • Adapter sleeve with nut and locking washer or locking clip
  • Simple mounting on cylindrical shaft seats without shaft shoulder
  • E1 (X-life) and fixed centre rib (MB) bearing designs
  • Shaft diameter d1 = adapter sleeve bore

Specifications

Brand FAG
Product type Spherical Roller Bearings
Mounting Adapter sleeve H
Bearing bore Tapered 1:12
Shaft diameter d1 20 - 850 mm
Outside diameter D 52 - 1180 mm
Source FAG Rolling Bearings HR 1 catalogue, p. 562-575
22205-E1-K + H305 d1: 20 mm | D: 52 mm | B: 18 mm | Cr: 48 kN | C0r: 42.5 kN | m: 0.175 kg
22206-E1-K + H306 d1: 25 mm | D: 62 mm | B: 20 mm | Cr: 64 kN | C0r: 57 kN | m: 0.269 kg
22207-E1-K + H307 d1: 30 mm | D: 72 mm | B: 23 mm | Cr: 88 kN | C0r: 81.5 kN | m: 0.425 kg
21307-E1-K-TVPB + H307 d1: 30 mm | D: 80 mm | B: 21 mm | Cr: 83 kN | C0r: 74 kN | m: 0.496 kg
22208-E1-K + H308 d1: 35 mm | D: 80 mm | B: 23 mm | Cr: 101 kN | C0r: 91 kN | m: 0.517 kg
21308-E1-K + H308 d1: 35 mm | D: 90 mm | B: 23 mm | Cr: 109 kN | C0r: 107 kN | m: 0.702 kg
22308-E1-K + H2308 d1: 35 mm | D: 90 mm | B: 33 mm | Cr: 156 kN | C0r: 149 kN | m: 1.03 kg
22209-E1-K + H309 d1: 40 mm | D: 85 mm | B: 23 mm | Cr: 104 kN | C0r: 99 kN | m: 0.577 kg
21309-E1-K + H309 d1: 40 mm | D: 100 mm | B: 25 mm | Cr: 129 kN | C0r: 130 kN | m: 0.845 kg
22309-E1-K + H2309 d1: 40 mm | D: 100 mm | B: 36 mm | Cr: 187 kN | C0r: 183 kN | m: 1.36 kg
22210-E1-K + H310 d1: 45 mm | D: 90 mm | B: 23 mm | Cr: 109 kN | C0r: 107 kN | m: 0.608 kg
21310-E1-K + H310 d1: 45 mm | D: 110 mm | B: 27 mm | Cr: 129 kN | C0r: 130 kN | m: 1.28 kg
22310-E1-K + H2310 d1: 45 mm | D: 110 mm | B: 40 mm | Cr: 229 kN | C0r: 223 kN | m: 1.86 kg
22211-E1-K + H311 d1: 50 mm | D: 100 mm | B: 25 mm | Cr: 129 kN | C0r: 130 kN | m: 0.825 kg
21311-E1-K + H311 d1: 50 mm | D: 120 mm | B: 29 mm | Cr: 160 kN | C0r: 155 kN | m: 1.19 kg
22311-E1-K + H2311 d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 265 kN | C0r: 260 kN | m: 2.22 kg
22311-E1-K-T41A + H2311 d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 265 kN | C0r: 260 kN | m: 2.22 kg
22212-E1-K + H312 d1: 55 mm | D: 110 mm | B: 28 mm | Cr: 160 kN | C0r: 155 kN | m: 1.09 kg
21312-E1-K + H312 d1: 55 mm | D: 130 mm | B: 31 mm | Cr: 211 kN | C0r: 226 kN | m: 1.78 kg
22312-E1-K + H2312 d1: 55 mm | D: 130 mm | B: 46 mm | Cr: 310 kN | C0r: 310 kN | m: 2.83 kg
22312-E1-K-T41A + H2312 d1: 55 mm | D: 130 mm | B: 46 mm | Cr: 310 kN | C0r: 310 kN | m: 2.83 kg
22213-E1-K + H313 d1: 60 mm | D: 120 mm | B: 31 mm | Cr: 202 kN | C0r: 210 kN | m: 1.52 kg
21313-E1-K + H313 d1: 60 mm | D: 140 mm | B: 33 mm | Cr: 249 kN | C0r: 270 kN | m: 2.42 kg
22313-E1-K + H2313 d1: 60 mm | D: 140 mm | B: 48 mm | Cr: 350 kN | C0r: 365 kN | m: 3.49 kg
22313-E1-K-T41A + H2313 d1: 60 mm | D: 140 mm | B: 48 mm | Cr: 350 kN | C0r: 365 kN | m: 3.49 kg
22214-E1-K + H314 d1: 60 mm | D: 125 mm | B: 31 mm | Cr: 211 kN | C0r: 226 kN | m: 1.61 kg
21314-E1-K + H314 d1: 60 mm | D: 150 mm | B: 35 mm | Cr: 249 kN | C0r: 270 kN | m: 3 kg
22314-E1-K + H2314 d1: 60 mm | D: 150 mm | B: 51 mm | Cr: 390 kN | C0r: 390 kN | m: 4.12 kg
22314-E1-K-T41A + H2314 d1: 60 mm | D: 150 mm | B: 51 mm | Cr: 390 kN | C0r: 390 kN | m: 4.12 kg
22215-E1-K + H315 d1: 65 mm | D: 130 mm | B: 31 mm | Cr: 216 kN | C0r: 236 kN | m: 1.68 kg
21315-E1-K + H315 d1: 65 mm | D: 160 mm | B: 37 mm | Cr: 305 kN | C0r: 325 kN | m: 2.86 kg
22315-E1-K + H2315 d1: 65 mm | D: 160 mm | B: 55 mm | Cr: 445 kN | C0r: 450 kN | m: 5.06 kg
22315-E1-K-T41A + H2315 d1: 65 mm | D: 160 mm | B: 55 mm | Cr: 445 kN | C0r: 450 kN | m: 5.06 kg
22216-E1-K + H316 d1: 70 mm | D: 140 mm | B: 33 mm | Cr: 249 kN | C0r: 270 kN | m: 2.08 kg
21316-E1-K + H316 d1: 70 mm | D: 170 mm | B: 39 mm | Cr: 305 kN | C0r: 325 kN | m: 2.65 kg
22316-E1-K + H2316 d1: 70 mm | D: 170 mm | B: 58 mm | Cr: 495 kN | C0r: 510 kN | m: 6.05 kg
22316-E1-K-T41A + H2316 d1: 70 mm | D: 170 mm | B: 58 mm | Cr: 495 kN | C0r: 510 kN | m: 6.05 kg
22217-E1-K + H317 d1: 75 mm | D: 150 mm | B: 36 mm | Cr: 305 kN | C0r: 325 kN | m: 2.59 kg
21317-E1-K + H317 d1: 75 mm | D: 180 mm | B: 41 mm | Cr: 345 kN | C0r: 375 kN | m: 5.37 kg
22317-E1-K + H2317 d1: 75 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 560 kN | m: 7.06 kg
22317-E1-K-T41A + H2317 d1: 75 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 560 kN | m: 7.06 kg
22218-E1-K + H318 d1: 80 mm | D: 160 mm | B: 40 mm | Cr: 345 kN | C0r: 375 kN | m: 3.35 kg
23218-E1A-K-M + H2318 d1: 80 mm | D: 160 mm | B: 52.4 mm | Cr: 445 kN | C0r: 520 kN | m: 4.34 kg
23218-E1-K-TVPB + H2318 d1: 80 mm | D: 160 mm | B: 52.4 mm | Cr: 445 kN | C0r: 520 kN | m: 4.08 kg
21318-E1-K + H318 d1: 80 mm | D: 190 mm | B: 43 mm | Cr: 380 kN | C0r: 415 kN | m: 6.26 kg
22318-E1-K + H2318 d1: 80 mm | D: 190 mm | B: 64 mm | Cr: 610 kN | C0r: 630 kN | m: 8.33 kg
22318-E1-K-T41A + H2318 d1: 80 mm | D: 190 mm | B: 64 mm | Cr: 610 kN | C0r: 630 kN | m: 8.33 kg
22219-E1-K + H319 d1: 85 mm | D: 170 mm | B: 43 mm | Cr: 380 kN | C0r: 415 kN | m: 4.04 kg
21319-E1-K-TVPB + H319 d1: 85 mm | D: 200 mm | B: 45 mm | Cr: 430 kN | C0r: 460 kN | m: 6.53 kg
22319-E1-K + H2319 d1: 85 mm | D: 200 mm | B: 67 mm | Cr: 670 kN | C0r: 700 kN | m: 9.46 kg
22319-E1-K-T41A + H2319 d1: 85 mm | D: 200 mm | B: 67 mm | Cr: 670 kN | C0r: 700 kN | m: 9.46 kg
23120-E1A-K-M + H3120 d1: 90 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 570 kN | m: 4.23 kg
23120-E1-K-TVPB + H3120 d1: 90 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 570 kN | m: 4.06 kg
22220-E1-K + H320 d1: 90 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 475 kN | m: 4.91 kg
23220-E1A-K-M + H2320 d1: 90 mm | D: 180 mm | B: 60.3 mm | Cr: 550 kN | C0r: 660 kN | m: 6.33 kg
23220-E1-K-TVPB + H2320 d1: 90 mm | D: 180 mm | B: 60.3 mm | Cr: 550 kN | C0r: 660 kN | m: 6.13 kg
21320-E1-K-TVPB + H320 d1: 90 mm | D: 215 mm | B: 47 mm | Cr: 495 kN | C0r: 530 kN | m: 8.08 kg
22320-E1-K + H2320 d1: 90 mm | D: 215 mm | B: 73 mm | Cr: 810 kN | C0r: 920 kN | m: 13.1 kg
22320-E1-K-T41A + H2320 d1: 90 mm | D: 215 mm | B: 73 mm | Cr: 810 kN | C0r: 920 kN | m: 13.1 kg
23122-E1A-K-M + H3122 d1: 100 mm | D: 180 mm | B: 56 mm | Cr: 530 kN | C0r: 680 kN | m: 5.1 kg
23122-E1-K-TVPB + H3122 d1: 100 mm | D: 180 mm | B: 56 mm | Cr: 530 kN | C0r: 680 kN | m: 4.95 kg
22222-E1-K + H322 d1: 100 mm | D: 200 mm | B: 53 mm | Cr: 550 kN | C0r: 600 kN | m: 6.82 kg
23222-E1A-K-M + H2322 d1: 100 mm | D: 200 mm | B: 69.8 mm | Cr: 710 kN | C0r: 870 kN | m: 9.32 kg
23222-E1-K-TVPB + H2322 d1: 100 mm | D: 200 mm | B: 69.8 mm | Cr: 710 kN | C0r: 870 kN | m: 8.82 kg
21322-E1-K-TVPB + H322 d1: 100 mm | D: 240 mm | B: 50 mm | Cr: 600 kN | C0r: 640 kN | m: 10.9 kg
22322-E1-K + H2322 d1: 100 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1070 kN | m: 17.4 kg
22322-E1-K-T41A + H2322 d1: 100 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1070 kN | m: 17.4 kg
23024-E1A-K-M + H3024 d1: 110 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 580 kN | m: 4.09 kg
23024-E1-K-TVPB + H3024 d1: 110 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 580 kN | m: 3.67 kg
23124-E1A-K-M + H3124 d1: 110 mm | D: 200 mm | B: 62 mm | Cr: 630 kN | C0r: 800 kN | m: 7.57 kg
23124-E1-K-TVPB + H3124 d1: 110 mm | D: 200 mm | B: 62 mm | Cr: 630 kN | C0r: 800 kN | m: 7.06 kg
22224-E1-K + H3124 d1: 110 mm | D: 215 mm | B: 58 mm | Cr: 640 kN | C0r: 740 kN | m: 8.84 kg
23224-E1A-K-M + H2324 d1: 110 mm | D: 215 mm | B: 76 mm | Cr: 820 kN | C0r: 1020 kN | m: 11.4 kg
23224-E1-K-TVPB + H2324 d1: 110 mm | D: 215 mm | B: 76 mm | Cr: 820 kN | C0r: 1020 kN | m: 11.1 kg
22324-E1-K + H2324 d1: 110 mm | D: 260 mm | B: 86 mm | Cr: 1080 kN | C0r: 1170 kN | m: 22.1 kg
22324-E1-K-T41A + H2324 d1: 110 mm | D: 260 mm | B: 86 mm | Cr: 1080 kN | C0r: 1170 kN | m: 22.1 kg
23026-E1A-K-M + H3026 d1: 115 mm | D: 200 mm | B: 52 mm | Cr: 540 kN | C0r: 730 kN | m: 5.7 kg
23026-E1-K-TVPB + H3026 d1: 115 mm | D: 200 mm | B: 52 mm | Cr: 540 kN | C0r: 730 kN | m: 5.42 kg
23126-E1A-K-M + H3126 d1: 115 mm | D: 210 mm | B: 64 mm | Cr: 680 kN | C0r: 890 kN | m: 8.1 kg
23126-E1-K-TVPB + H3126 d1: 115 mm | D: 210 mm | B: 64 mm | Cr: 680 kN | C0r: 890 kN | m: 7.82 kg
22226-E1-K + H3126 d1: 115 mm | D: 230 mm | B: 64 mm | Cr: 760 kN | C0r: 890 kN | m: 10.9 kg
23226-E1A-K-M + H2326 d1: 115 mm | D: 230 mm | B: 80 mm | Cr: 910 kN | C0r: 1150 kN | m: 13.6 kg
23226-E1-K-TVPB + H2326 d1: 115 mm | D: 230 mm | B: 80 mm | Cr: 910 kN | C0r: 1150 kN | m: 12.6 kg
22326-E1-K + H2326 d1: 115 mm | D: 280 mm | B: 93 mm | Cr: 1250 kN | C0r: 1370 kN | m: 27.4 kg
22326-E1-K-T41A + H2326 d1: 115 mm | D: 280 mm | B: 93 mm | Cr: 1250 kN | C0r: 1370 kN | m: 27.4 kg
23028-E1A-K-M + H3028 d1: 125 mm | D: 210 mm | B: 53 mm | Cr: 570 kN | C0r: 800 kN | m: 6 kg
23028-E1-K-TVPB + H3028 d1: 125 mm | D: 210 mm | B: 53 mm | Cr: 570 kN | C0r: 800 kN | m: 5.81 kg
23128-E1A-K-M + H3128 d1: 125 mm | D: 225 mm | B: 68 mm | Cr: 760 kN | C0r: 1010 kN | m: 7.78 kg
23128-E1-K-TVPB + H3128 d1: 125 mm | D: 225 mm | B: 68 mm | Cr: 760 kN | C0r: 1010 kN | m: 9.46 kg
22228-E1-K + H3128 d1: 125 mm | D: 250 mm | B: 68 mm | Cr: 870 kN | C0r: 1040 kN | m: 13.7 kg
23228-E1A-K-M + H2328 d1: 125 mm | D: 250 mm | B: 88 mm | Cr: 1090 kN | C0r: 1400 kN | m: 17.6 kg
23228-E1-K-TVPB + H2328 d1: 125 mm | D: 250 mm | B: 88 mm | Cr: 1090 kN | C0r: 1400 kN | m: 17.1 kg
22328-E1-K + H2328 d1: 125 mm | D: 300 mm | B: 102 mm | Cr: 1460 kN | C0r: 1630 kN | m: 34.4 kg
22328-E1-K-T41A + H2328 d1: 125 mm | D: 300 mm | B: 102 mm | Cr: 1460 kN | C0r: 1630 kN | m: 34.4 kg
23030-E1A-K-M + H3030 d1: 135 mm | D: 225 mm | B: 56 mm | Cr: 630 kN | C0r: 880 kN | m: 7.33 kg
23030-E1-K-TVPB + H3030 d1: 135 mm | D: 225 mm | B: 56 mm | Cr: 630 kN | C0r: 880 kN | m: 7.29 kg
23130-E1A-K-M + H3130 d1: 135 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1330 kN | m: 15.8 kg
23130-E1-K-TVPB + H3130 d1: 135 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1330 kN | m: 14.5 kg
22230-E1-K + H3130 d1: 135 mm | D: 270 mm | B: 73 mm | Cr: 1010 kN | C0r: 1210 kN | m: 17.8 kg
23230-E1A-K-M + H2330 d1: 135 mm | D: 270 mm | B: 96 mm | Cr: 1280 kN | C0r: 1660 kN | m: 22.9 kg
23230-E1-K-TVPB + H2330 d1: 135 mm | D: 270 mm | B: 96 mm | Cr: 1280 kN | C0r: 1660 kN | m: 22.3 kg
22330-E1-K + H2330 d1: 135 mm | D: 320 mm | B: 108 mm | Cr: 1640 kN | C0r: 1850 kN | m: 41.2 kg
22330-E1-K-T41A + H2330 d1: 135 mm | D: 320 mm | B: 108 mm | Cr: 1640 kN | C0r: 1850 kN | m: 41.2 kg
23032-E1A-K-M + H3032 d1: 140 mm | D: 240 mm | B: 60 mm | Cr: 720 kN | C0r: 1010 kN | m: 9.42 kg
23032-E1-K-TVPB + H3032 d1: 140 mm | D: 240 mm | B: 60 mm | Cr: 720 kN | C0r: 1010 kN | m: 8.67 kg
23132-E1A-K-M + H3132 d1: 140 mm | D: 270 mm | B: 86 mm | Cr: 1160 kN | C0r: 1550 kN | m: 18.6 kg
23132-E1-K-TVPB + H3132 d1: 140 mm | D: 270 mm | B: 86 mm | Cr: 1160 kN | C0r: 1550 kN | m: 18.4 kg
22232-E1-K + H3132 d1: 140 mm | D: 290 mm | B: 80 mm | Cr: 1150 kN | C0r: 1400 kN | m: 22.4 kg
23232-E1A-K-M + H2332 d1: 140 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1910 kN | m: 28.5 kg
23232-E1-K-TVPB + H2332 d1: 140 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1910 kN | m: 27.7 kg
22332-K-MB + H2332 d1: 140 mm | D: 340 mm | B: 114 mm | Cr: 1430 kN | C0r: 1900 kN | m: 50.1 kg
23034-E1A-K-M + H3034 d1: 150 mm | D: 260 mm | B: 67 mm | Cr: 880 kN | C0r: 1230 kN | m: 12 kg
23034-E1-K-TVPB + H3034 d1: 150 mm | D: 260 mm | B: 67 mm | Cr: 870 kN | C0r: 1230 kN | m: 11.9 kg
23134-E1A-K-M + H3134 d1: 150 mm | D: 280 mm | B: 88 mm | Cr: 1220 kN | C0r: 1690 kN | m: 19.5 kg
23134-E1-K-TVPB + H3134 d1: 150 mm | D: 280 mm | B: 88 mm | Cr: 1220 kN | C0r: 1690 kN | m: 19.9 kg
22234-E1-K + H3134 d1: 150 mm | D: 310 mm | B: 86 mm | Cr: 1320 kN | C0r: 1570 kN | m: 27.1 kg
23234-E1A-K-M + H2334 d1: 150 mm | D: 310 mm | B: 110 mm | Cr: 1640 kN | C0r: 2170 kN | m: 34.6 kg
23234-E1-K-TVPB + H2334 d1: 150 mm | D: 310 mm | B: 110 mm | Cr: 1640 kN | C0r: 2170 kN | m: 33.1 kg
22334-K-MB + H2334 d1: 150 mm | D: 360 mm | B: 120 mm | Cr: 1600 kN | C0r: 2120 kN | m: 56.9 kg
23936-S-K-MB + H3936 d1: 160 mm | D: 250 mm | B: 52 mm | Cr: 440 kN | C0r: 850 kN | m: 7.76 kg
23036-E1A-K-M + H3036 d1: 160 mm | D: 280 mm | B: 74 mm | Cr: 1040 kN | C0r: 1450 kN | m: 16 kg
23036-E1-K-TVPB + H3036 d1: 160 mm | D: 280 mm | B: 74 mm | Cr: 1040 kN | C0r: 1450 kN | m: 15.6 kg
23136-E1A-K-M + H3136 d1: 160 mm | D: 300 mm | B: 96 mm | Cr: 1420 kN | C0r: 1950 kN | m: 25.5 kg
23136-E1-K-TVPB + H3136 d1: 160 mm | D: 300 mm | B: 96 mm | Cr: 1420 kN | C0r: 1950 kN | m: 25.9 kg
22236-E1-K + H3136 d1: 160 mm | D: 320 mm | B: 86 mm | Cr: 1360 kN | C0r: 1680 kN | m: 28.5 kg
23236-E1A-K-M + H2336 d1: 160 mm | D: 320 mm | B: 112 mm | Cr: 1710 kN | C0r: 2340 kN | m: 37 kg
23236-E1-K-TVPB + H2336 d1: 160 mm | D: 320 mm | B: 112 mm | Cr: 1710 kN | C0r: 2340 kN | m: 36 kg
22336-K-MB + H2336 d1: 160 mm | D: 380 mm | B: 126 mm | Cr: 1760 kN | C0r: 2360 kN | m: 66.7 kg
23038-E1A-K-M + H3038 d1: 170 mm | D: 290 mm | B: 75 mm | Cr: 1080 kN | C0r: 1550 kN | m: 17.7 kg
23038-E1-K-TVPB + H3038 d1: 170 mm | D: 290 mm | B: 75 mm | Cr: 1080 kN | C0r: 1550 kN | m: 16.3 kg
23138-E1A-K-M + H3138 d1: 170 mm | D: 320 mm | B: 104 mm | Cr: 1610 kN | C0r: 2220 kN | m: 32.4 kg
23138-E1-K-TVPB + H3138 d1: 170 mm | D: 320 mm | B: 104 mm | Cr: 1610 kN | C0r: 2220 kN | m: 30.3 kg
22238-K-MB + H3138 d1: 170 mm | D: 340 mm | B: 92 mm | Cr: 1200 kN | C0r: 1830 kN | m: 36.2 kg
23238-B-K-MB + H2338 d1: 170 mm | D: 340 mm | B: 120 mm | Cr: 1560 kN | C0r: 2600 kN | m: 46 kg
22338-K-MB + H2338 d1: 170 mm | D: 400 mm | B: 132 mm | Cr: 1860 kN | C0r: 2500 kN | m: 77.3 kg
23940-S-K-MB + H3940 d1: 180 mm | D: 280 mm | B: 60 mm | Cr: 550 kN | C0r: 1080 kN | m: 11.5 kg
23040-E1A-K-M + H3040 d1: 180 mm | D: 310 mm | B: 82 mm | Cr: 1270 kN | C0r: 1800 kN | m: 21.4 kg
23040-E1-K-TVPB + H3040 d1: 180 mm | D: 310 mm | B: 82 mm | Cr: 1270 kN | C0r: 1800 kN | m: 20.8 kg
23140-B-K-MB + H3140 d1: 180 mm | D: 340 mm | B: 112 mm | Cr: 1320 kN | C0r: 2280 kN | m: 41.7 kg
22240-B-K-MB + H3140 d1: 180 mm | D: 360 mm | B: 98 mm | Cr: 1320 kN | C0r: 2000 kN | m: 42.3 kg
23240-B-K-MB + H2340 d1: 180 mm | D: 360 mm | B: 128 mm | Cr: 1660 kN | C0r: 2750 kN | m: 55.8 kg
22340-K-MB + H2340 d1: 180 mm | D: 420 mm | B: 138 mm | Cr: 2080 kN | C0r: 2800 kN | m: 89.5 kg
23944-S-K-MB + H3944 d1: 200 mm | D: 300 mm | B: 60 mm | Cr: 600 kN | C0r: 1250 kN | m: 12.3 kg
23044-K-MB + H3044X d1: 200 mm | D: 340 mm | B: 90 mm | Cr: 1100 kN | C0r: 2000 kN | m: 29.9 kg
23144-B-K-MB + H3144X d1: 200 mm | D: 370 mm | B: 120 mm | Cr: 1630 kN | C0r: 2900 kN | m: 52 kg
22244-B-K-MB + H3144X d1: 200 mm | D: 400 mm | B: 108 mm | Cr: 1630 kN | C0r: 2450 kN | m: 59.6 kg
23244-K-MB + H2344X d1: 200 mm | D: 400 mm | B: 144 mm | Cr: 2040 kN | C0r: 3450 kN | m: 79 kg
22344-K-MB + H2344X d1: 200 mm | D: 460 mm | B: 145 mm | Cr: 2320 kN | C0r: 3350 kN | m: 114 kg
23948-K-MB + H3948 d1: 220 mm | D: 320 mm | B: 60 mm | Cr: 640 kN | C0r: 1370 kN | m: 13.4 kg
23048-K-MB + H3048 d1: 220 mm | D: 360 mm | B: 92 mm | Cr: 1160 kN | C0r: 2200 kN | m: 31.9 kg
23148-B-K-MB + H3148X d1: 220 mm | D: 400 mm | B: 128 mm | Cr: 1860 kN | C0r: 3250 kN | m: 65.3 kg
22248-B-K-MB + H3148X d1: 220 mm | D: 440 mm | B: 120 mm | Cr: 1960 kN | C0r: 3050 kN | m: 81.2 kg
23248-B-K-MB + H2348X d1: 220 mm | D: 440 mm | B: 160 mm | Cr: 2450 kN | C0r: 4250 kN | m: 105 kg
22348-K-MB + H2348X d1: 220 mm | D: 500 mm | B: 155 mm | Cr: 2650 kN | C0r: 3900 kN | m: 145 kg
23952-K-MB + H3952 d1: 240 mm | D: 360 mm | B: 75 mm | Cr: 930 kN | C0r: 1930 kN | m: 22.4 kg
23052-K-MB + H3052X d1: 240 mm | D: 400 mm | B: 104 mm | Cr: 1500 kN | C0r: 2800 kN | m: 46.2 kg
23152-K-MB + H3152X d1: 240 mm | D: 440 mm | B: 144 mm | Cr: 2200 kN | C0r: 4000 kN | m: 89.6 kg
22252-B-K-MB + H3152X d1: 240 mm | D: 480 mm | B: 130 mm | Cr: 2240 kN | C0r: 3450 kN | m: 106 kg
23252-B-K-MB + H2352X d1: 240 mm | D: 480 mm | B: 174 mm | Cr: 2900 kN | C0r: 4900 kN | m: 136 kg
22352-K-MB + H2352X d1: 240 mm | D: 540 mm | B: 165 mm | Cr: 3000 kN | C0r: 4400 kN | m: 177 kg
23956-K-MB + H3956 d1: 260 mm | D: 380 mm | B: 75 mm | Cr: 970 kN | C0r: 2040 kN | m: 24.7 kg
23056-B-K-MB + H3056 d1: 260 mm | D: 420 mm | B: 106 mm | Cr: 1560 kN | C0r: 3000 kN | m: 50.3 kg
23156-B-K-MB + H3156X d1: 260 mm | D: 460 mm | B: 146 mm | Cr: 2360 kN | C0r: 4400 kN | m: 96.4 kg
22256-B-K-MB + H3156X d1: 260 mm | D: 500 mm | B: 130 mm | Cr: 2360 kN | C0r: 3650 kN | m: 110 kg
23256-K-MB + H2356X d1: 260 mm | D: 500 mm | B: 176 mm | Cr: 3000 kN | C0r: 5300 kN | m: 153 kg
22356-K-MB + H2356X d1: 260 mm | D: 580 mm | B: 175 mm | Cr: 3550 kN | C0r: 5400 kN | m: 224 kg
23960-B-K-MB + H3960 d1: 280 mm | D: 420 mm | B: 90 mm | Cr: 1270 kN | C0r: 2650 kN | m: 39.1 kg
23060-K-MB + H3060 d1: 280 mm | D: 460 mm | B: 118 mm | Cr: 1960 kN | C0r: 3650 kN | m: 72.2 kg
23160-B-K-MB + H3160 d1: 280 mm | D: 500 mm | B: 160 mm | Cr: 2650 kN | C0r: 4900 kN | m: 123 kg
22260-K-MB + H3160 d1: 280 mm | D: 540 mm | B: 140 mm | Cr: 2750 kN | C0r: 4400 kN | m: 136 kg
23260-K-MB + H3260 d1: 280 mm | D: 540 mm | B: 192 mm | Cr: 3450 kN | C0r: 6200 kN | m: 192 kg
23964-K-MB + H3964 d1: 300 mm | D: 440 mm | B: 90 mm | Cr: 1310 kN | C0r: 2750 kN | m: 41 kg
23064-K-MB + H3064 d1: 300 mm | D: 480 mm | B: 121 mm | Cr: 2040 kN | C0r: 4000 kN | m: 77.1 kg
23164-K-MB + H3164 d1: 300 mm | D: 540 mm | B: 176 mm | Cr: 3200 kN | C0r: 6000 kN | m: 159 kg
22264-K-MB + H3164 d1: 300 mm | D: 580 mm | B: 150 mm | Cr: 3050 kN | C0r: 4900 kN | m: 166 kg
23264-K-MB + H3264 d1: 300 mm | D: 580 mm | B: 208 mm | Cr: 3900 kN | C0r: 6950 kN | m: 229 kg
23068-K-MB + H3068 d1: 320 mm | D: 520 mm | B: 133 mm | Cr: 2360 kN | C0r: 4550 kN | m: 101 kg
23168-B-K-MB + H3168 d1: 320 mm | D: 580 mm | B: 190 mm | Cr: 3650 kN | C0r: 6950 kN | m: 203 kg
23268-B-K-MB + H3268 d1: 320 mm | D: 620 mm | B: 224 mm | Cr: 4500 kN | C0r: 8150 kN | m: 291 kg
23972-K-MB + H3972 d1: 340 mm | D: 480 mm | B: 90 mm | Cr: 1430 kN | C0r: 3200 kN | m: 45 kg
23072-K-MB + H3072 d1: 340 mm | D: 540 mm | B: 134 mm | Cr: 2450 kN | C0r: 4800 kN | m: 107 kg
23172-K-MB + H3172 d1: 340 mm | D: 600 mm | B: 192 mm | Cr: 3800 kN | C0r: 7350 kN | m: 217 kg
23272-B-K-MB + H3272 d1: 340 mm | D: 650 mm | B: 232 mm | Cr: 4900 kN | C0r: 9150 kN | m: 328 kg
23976-K-MB + H3976 d1: 360 mm | D: 520 mm | B: 106 mm | Cr: 1760 kN | C0r: 4000 kN | m: 66.3 kg
23076-B-K-MB + H3076 d1: 360 mm | D: 560 mm | B: 135 mm | Cr: 2550 kN | C0r: 5300 kN | m: 113 kg
23176-K-MB + H3176 d1: 360 mm | D: 620 mm | B: 194 mm | Cr: 4050 kN | C0r: 8150 kN | m: 226 kg
23276-B-K-MB + H3276 d1: 360 mm | D: 680 mm | B: 240 mm | Cr: 5300 kN | C0r: 9800 kN | m: 367 kg
23980-B-K-MB + H3980 d1: 380 mm | D: 540 mm | B: 106 mm | Cr: 1830 kN | C0r: 4150 kN | m: 68.2 kg
23080-K-MB + H3080 d1: 380 mm | D: 600 mm | B: 148 mm | Cr: 3050 kN | C0r: 6200 kN | m: 143 kg
23180-B-K-MB + H3180 d1: 380 mm | D: 650 mm | B: 200 mm | Cr: 4250 kN | C0r: 8500 kN | m: 261 kg
23280-B-K-MB + H3280 d1: 380 mm | D: 720 mm | B: 256 mm | Cr: 5700 kN | C0r: 10800 kN | m: 442 kg
23984-K-MB + H3984 d1: 400 mm | D: 560 mm | B: 106 mm | Cr: 1900 kN | C0r: 4500 kN | m: 78 kg
23084-B-K-MB + H3084X d1: 400 mm | D: 620 mm | B: 150 mm | Cr: 3150 kN | C0r: 6550 kN | m: 155 kg
23184-K-MB + H3184 d1: 400 mm | D: 700 mm | B: 224 mm | Cr: 5000 kN | C0r: 9650 kN | m: 339 kg
23284-B-K-MB + H3284 d1: 400 mm | D: 760 mm | B: 272 mm | Cr: 6550 kN | C0r: 12200 kN | m: 537 kg
23988-K-MB + H3988 d1: 410 mm | D: 600 mm | B: 118 mm | Cr: 2240 kN | C0r: 5200 kN | m: 98.3 kg
23088-K-MB + H3088 d1: 410 mm | D: 650 mm | B: 157 mm | Cr: 3400 kN | C0r: 7100 kN | m: 177 kg
23188-K-MB + H3188 d1: 410 mm | D: 720 mm | B: 226 mm | Cr: 5200 kN | C0r: 10400 kN | m: 378 kg
23288-B-K-MB + H3288 d1: 410 mm | D: 790 mm | B: 280 mm | Cr: 7100 kN | C0r: 13400 kN | m: 586 kg
23992-B-K-MB + H3992 d1: 430 mm | D: 620 mm | B: 118 mm | Cr: 2280 kN | C0r: 5400 kN | m: 103 kg
23092-B-K-MB + H3092 d1: 430 mm | D: 680 mm | B: 163 mm | Cr: 3650 kN | C0r: 7650 kN | m: 204 kg
23192-K-MB + H3192 d1: 430 mm | D: 760 mm | B: 240 mm | Cr: 5850 kN | C0r: 11600 kN | m: 420 kg
23292-K-MB + H3292 d1: 430 mm | D: 830 mm | B: 296 mm | Cr: 7800 kN | C0r: 15000 kN | m: 699 kg
23996-B-K-MB + H3996 d1: 450 mm | D: 650 mm | B: 128 mm | Cr: 2550 kN | C0r: 6000 kN | m: 121 kg
23096-K-MB + H3096 d1: 450 mm | D: 700 mm | B: 165 mm | Cr: 3800 kN | C0r: 8150 kN | m: 208 kg
23196-K-MB + H3196 d1: 450 mm | D: 790 mm | B: 248 mm | Cr: 6300 kN | C0r: 12700 kN | m: 470 kg
23296-K-MB + H3296 d1: 450 mm | D: 870 mm | B: 310 mm | Cr: 8800 kN | C0r: 17000 kN | m: 806 kg
239/500-K-MB + H39/500 d1: 470 mm | D: 670 mm | B: 128 mm | Cr: 2600 kN | C0r: 6300 kN | m: 124 kg
230/500-B-K-MB + H30/500 d1: 470 mm | D: 720 mm | B: 167 mm | Cr: 3900 kN | C0r: 8500 kN | m: 219 kg
231/500-B-K-MB + H31/500 d1: 470 mm | D: 830 mm | B: 264 mm | Cr: 7100 kN | C0r: 14300 kN | m: 556 kg
239/530-K-MB + H39/530 d1: 500 mm | D: 710 mm | B: 136 mm | Cr: 2850 kN | C0r: 6800 kN | m: 146 kg
230/530-B-K-MB + H30/530 d1: 500 mm | D: 780 mm | B: 185 mm | Cr: 4400 kN | C0r: 9500 kN | m: 291 kg
231/530-K-MB + H31/530 d1: 500 mm | D: 870 mm | B: 272 mm | Cr: 7350 kN | C0r: 15300 kN | m: 643 kg
239/560-B-K-MB + H39/560 d1: 530 mm | D: 750 mm | B: 140 mm | Cr: 3100 kN | C0r: 7650 kN | m: 169 kg
230/560-B-K-MB + H30/560 d1: 530 mm | D: 820 mm | B: 195 mm | Cr: 5100 kN | C0r: 11000 kN | m: 339 kg
231/560-K-MB + H31/560 d1: 530 mm | D: 920 mm | B: 280 mm | Cr: 8150 kN | C0r: 16600 kN | m: 737 kg
239/600-B-K-MB + H39/600 d1: 560 mm | D: 800 mm | B: 150 mm | Cr: 3450 kN | C0r: 8650 kN | m: 210 kg
230/600-B-K-MB + H30/600 d1: 560 mm | D: 870 mm | B: 200 mm | Cr: 5700 kN | C0r: 12500 kN | m: 388 kg
231/600-K-MB + H31/600 d1: 560 mm | D: 980 mm | B: 300 mm | Cr: 9000 kN | C0r: 19300 kN | m: 901 kg
239/630-B-K-MB + H39/630 d1: 600 mm | D: 850 mm | B: 165 mm | Cr: 4050 kN | C0r: 9800 kN | m: 283 kg
230/630-B-K-MB + H30/630 d1: 600 mm | D: 920 mm | B: 212 mm | Cr: 6300 kN | C0r: 13700 kN | m: 502 kg
239/670-B-K-MB + H39/670 d1: 630 mm | D: 900 mm | B: 170 mm | Cr: 4300 kN | C0r: 10600 kN | m: 310 kg
230/670-B-K-MB + H30/670 d1: 630 mm | D: 980 mm | B: 230 mm | Cr: 7200 kN | C0r: 16000 kN | m: 590 kg
239/710-K-MB + H39/710 d1: 670 mm | D: 950 mm | B: 180 mm | Cr: 4800 kN | C0r: 12000 kN | m: 336 kg
230/710-B-K-MB + H30/710 d1: 670 mm | D: 1030 mm | B: 236 mm | Cr: 7650 kN | C0r: 17000 kN | m: 650 kg
239/750-K-MB + H39/750 d1: 710 mm | D: 1000 mm | B: 185 mm | Cr: 5200 kN | C0r: 12900 kN | m: 394 kg
230/750-K-MB + H30/750 d1: 710 mm | D: 1090 mm | B: 250 mm | Cr: 8500 kN | C0r: 19000 kN | m: 792 kg
239/800-B-K-MB + H39/800 d1: 750 mm | D: 1060 mm | B: 195 mm | Cr: 5850 kN | C0r: 15000 kN | m: 490 kg
230/800-K-MB + H30/800 d1: 750 mm | D: 1150 mm | B: 258 mm | Cr: 9300 kN | C0r: 21200 kN | m: 861 kg
239/850-K-MB + H39/850 d1: 800 mm | D: 1120 mm | B: 200 mm | Cr: 6300 kN | C0r: 16300 kN | m: 554 kg
239/900-K-MB + H39/900 d1: 850 mm | D: 1180 mm | B: 206 mm | Cr: 6550 kN | C0r: 17300 kN | m: 641 kg
Spherical Roller BearingsFAG
231 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG Spherical Roller Bearings with H Adapter Sleeve

Brand FAG·Spherical Roller Bearings

Available part numbers (231)

22205-E1-K + H305, 22206-E1-K + H306, 22207-E1-K + H307, 21307-E1-K-TVPB + H307, 22208-E1-K + H308, 21308-E1-K + H308, 22308-E1-K + H2308, 22209-E1-K + H309, 21309-E1-K + H309, 22309-E1-K + H2309 + 221 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
22205-E1-K + H305d1: 20 mm | D: 52 mm | B: 18 mm | Cr: 48 kN | C0r: 42.5 kN | m: 0.175 kg
22206-E1-K + H306d1: 25 mm | D: 62 mm | B: 20 mm | Cr: 64 kN | C0r: 57 kN | m: 0.269 kg
22207-E1-K + H307d1: 30 mm | D: 72 mm | B: 23 mm | Cr: 88 kN | C0r: 81.5 kN | m: 0.425 kg
21307-E1-K-TVPB + H307d1: 30 mm | D: 80 mm | B: 21 mm | Cr: 83 kN | C0r: 74 kN | m: 0.496 kg
22208-E1-K + H308d1: 35 mm | D: 80 mm | B: 23 mm | Cr: 101 kN | C0r: 91 kN | m: 0.517 kg
21308-E1-K + H308d1: 35 mm | D: 90 mm | B: 23 mm | Cr: 109 kN | C0r: 107 kN | m: 0.702 kg
22308-E1-K + H2308d1: 35 mm | D: 90 mm | B: 33 mm | Cr: 156 kN | C0r: 149 kN | m: 1.03 kg
22209-E1-K + H309d1: 40 mm | D: 85 mm | B: 23 mm | Cr: 104 kN | C0r: 99 kN | m: 0.577 kg
21309-E1-K + H309d1: 40 mm | D: 100 mm | B: 25 mm | Cr: 129 kN | C0r: 130 kN | m: 0.845 kg
22309-E1-K + H2309d1: 40 mm | D: 100 mm | B: 36 mm | Cr: 187 kN | C0r: 183 kN | m: 1.36 kg
22210-E1-K + H310d1: 45 mm | D: 90 mm | B: 23 mm | Cr: 109 kN | C0r: 107 kN | m: 0.608 kg
21310-E1-K + H310d1: 45 mm | D: 110 mm | B: 27 mm | Cr: 129 kN | C0r: 130 kN | m: 1.28 kg
22310-E1-K + H2310d1: 45 mm | D: 110 mm | B: 40 mm | Cr: 229 kN | C0r: 223 kN | m: 1.86 kg
22211-E1-K + H311d1: 50 mm | D: 100 mm | B: 25 mm | Cr: 129 kN | C0r: 130 kN | m: 0.825 kg
21311-E1-K + H311d1: 50 mm | D: 120 mm | B: 29 mm | Cr: 160 kN | C0r: 155 kN | m: 1.19 kg
22311-E1-K + H2311d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 265 kN | C0r: 260 kN | m: 2.22 kg
22311-E1-K-T41A + H2311d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 265 kN | C0r: 260 kN | m: 2.22 kg
22212-E1-K + H312d1: 55 mm | D: 110 mm | B: 28 mm | Cr: 160 kN | C0r: 155 kN | m: 1.09 kg
21312-E1-K + H312d1: 55 mm | D: 130 mm | B: 31 mm | Cr: 211 kN | C0r: 226 kN | m: 1.78 kg
22312-E1-K + H2312d1: 55 mm | D: 130 mm | B: 46 mm | Cr: 310 kN | C0r: 310 kN | m: 2.83 kg
22312-E1-K-T41A + H2312d1: 55 mm | D: 130 mm | B: 46 mm | Cr: 310 kN | C0r: 310 kN | m: 2.83 kg
22213-E1-K + H313d1: 60 mm | D: 120 mm | B: 31 mm | Cr: 202 kN | C0r: 210 kN | m: 1.52 kg
21313-E1-K + H313d1: 60 mm | D: 140 mm | B: 33 mm | Cr: 249 kN | C0r: 270 kN | m: 2.42 kg
22313-E1-K + H2313d1: 60 mm | D: 140 mm | B: 48 mm | Cr: 350 kN | C0r: 365 kN | m: 3.49 kg
22313-E1-K-T41A + H2313d1: 60 mm | D: 140 mm | B: 48 mm | Cr: 350 kN | C0r: 365 kN | m: 3.49 kg
22214-E1-K + H314d1: 60 mm | D: 125 mm | B: 31 mm | Cr: 211 kN | C0r: 226 kN | m: 1.61 kg
21314-E1-K + H314d1: 60 mm | D: 150 mm | B: 35 mm | Cr: 249 kN | C0r: 270 kN | m: 3 kg
22314-E1-K + H2314d1: 60 mm | D: 150 mm | B: 51 mm | Cr: 390 kN | C0r: 390 kN | m: 4.12 kg
22314-E1-K-T41A + H2314d1: 60 mm | D: 150 mm | B: 51 mm | Cr: 390 kN | C0r: 390 kN | m: 4.12 kg
22215-E1-K + H315d1: 65 mm | D: 130 mm | B: 31 mm | Cr: 216 kN | C0r: 236 kN | m: 1.68 kg
21315-E1-K + H315d1: 65 mm | D: 160 mm | B: 37 mm | Cr: 305 kN | C0r: 325 kN | m: 2.86 kg
22315-E1-K + H2315d1: 65 mm | D: 160 mm | B: 55 mm | Cr: 445 kN | C0r: 450 kN | m: 5.06 kg
22315-E1-K-T41A + H2315d1: 65 mm | D: 160 mm | B: 55 mm | Cr: 445 kN | C0r: 450 kN | m: 5.06 kg
22216-E1-K + H316d1: 70 mm | D: 140 mm | B: 33 mm | Cr: 249 kN | C0r: 270 kN | m: 2.08 kg
21316-E1-K + H316d1: 70 mm | D: 170 mm | B: 39 mm | Cr: 305 kN | C0r: 325 kN | m: 2.65 kg
22316-E1-K + H2316d1: 70 mm | D: 170 mm | B: 58 mm | Cr: 495 kN | C0r: 510 kN | m: 6.05 kg
22316-E1-K-T41A + H2316d1: 70 mm | D: 170 mm | B: 58 mm | Cr: 495 kN | C0r: 510 kN | m: 6.05 kg
22217-E1-K + H317d1: 75 mm | D: 150 mm | B: 36 mm | Cr: 305 kN | C0r: 325 kN | m: 2.59 kg
21317-E1-K + H317d1: 75 mm | D: 180 mm | B: 41 mm | Cr: 345 kN | C0r: 375 kN | m: 5.37 kg
22317-E1-K + H2317d1: 75 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 560 kN | m: 7.06 kg
22317-E1-K-T41A + H2317d1: 75 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 560 kN | m: 7.06 kg
22218-E1-K + H318d1: 80 mm | D: 160 mm | B: 40 mm | Cr: 345 kN | C0r: 375 kN | m: 3.35 kg
23218-E1A-K-M + H2318d1: 80 mm | D: 160 mm | B: 52.4 mm | Cr: 445 kN | C0r: 520 kN | m: 4.34 kg
23218-E1-K-TVPB + H2318d1: 80 mm | D: 160 mm | B: 52.4 mm | Cr: 445 kN | C0r: 520 kN | m: 4.08 kg
21318-E1-K + H318d1: 80 mm | D: 190 mm | B: 43 mm | Cr: 380 kN | C0r: 415 kN | m: 6.26 kg
22318-E1-K + H2318d1: 80 mm | D: 190 mm | B: 64 mm | Cr: 610 kN | C0r: 630 kN | m: 8.33 kg
22318-E1-K-T41A + H2318d1: 80 mm | D: 190 mm | B: 64 mm | Cr: 610 kN | C0r: 630 kN | m: 8.33 kg
22219-E1-K + H319d1: 85 mm | D: 170 mm | B: 43 mm | Cr: 380 kN | C0r: 415 kN | m: 4.04 kg
21319-E1-K-TVPB + H319d1: 85 mm | D: 200 mm | B: 45 mm | Cr: 430 kN | C0r: 460 kN | m: 6.53 kg
22319-E1-K + H2319d1: 85 mm | D: 200 mm | B: 67 mm | Cr: 670 kN | C0r: 700 kN | m: 9.46 kg
22319-E1-K-T41A + H2319d1: 85 mm | D: 200 mm | B: 67 mm | Cr: 670 kN | C0r: 700 kN | m: 9.46 kg
23120-E1A-K-M + H3120d1: 90 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 570 kN | m: 4.23 kg
23120-E1-K-TVPB + H3120d1: 90 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 570 kN | m: 4.06 kg
22220-E1-K + H320d1: 90 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 475 kN | m: 4.91 kg
23220-E1A-K-M + H2320d1: 90 mm | D: 180 mm | B: 60.3 mm | Cr: 550 kN | C0r: 660 kN | m: 6.33 kg
23220-E1-K-TVPB + H2320d1: 90 mm | D: 180 mm | B: 60.3 mm | Cr: 550 kN | C0r: 660 kN | m: 6.13 kg
21320-E1-K-TVPB + H320d1: 90 mm | D: 215 mm | B: 47 mm | Cr: 495 kN | C0r: 530 kN | m: 8.08 kg
22320-E1-K + H2320d1: 90 mm | D: 215 mm | B: 73 mm | Cr: 810 kN | C0r: 920 kN | m: 13.1 kg
22320-E1-K-T41A + H2320d1: 90 mm | D: 215 mm | B: 73 mm | Cr: 810 kN | C0r: 920 kN | m: 13.1 kg
23122-E1A-K-M + H3122d1: 100 mm | D: 180 mm | B: 56 mm | Cr: 530 kN | C0r: 680 kN | m: 5.1 kg
23122-E1-K-TVPB + H3122d1: 100 mm | D: 180 mm | B: 56 mm | Cr: 530 kN | C0r: 680 kN | m: 4.95 kg
22222-E1-K + H322d1: 100 mm | D: 200 mm | B: 53 mm | Cr: 550 kN | C0r: 600 kN | m: 6.82 kg
23222-E1A-K-M + H2322d1: 100 mm | D: 200 mm | B: 69.8 mm | Cr: 710 kN | C0r: 870 kN | m: 9.32 kg
23222-E1-K-TVPB + H2322d1: 100 mm | D: 200 mm | B: 69.8 mm | Cr: 710 kN | C0r: 870 kN | m: 8.82 kg
21322-E1-K-TVPB + H322d1: 100 mm | D: 240 mm | B: 50 mm | Cr: 600 kN | C0r: 640 kN | m: 10.9 kg
22322-E1-K + H2322d1: 100 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1070 kN | m: 17.4 kg
22322-E1-K-T41A + H2322d1: 100 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1070 kN | m: 17.4 kg
23024-E1A-K-M + H3024d1: 110 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 580 kN | m: 4.09 kg
23024-E1-K-TVPB + H3024d1: 110 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 580 kN | m: 3.67 kg
23124-E1A-K-M + H3124d1: 110 mm | D: 200 mm | B: 62 mm | Cr: 630 kN | C0r: 800 kN | m: 7.57 kg
23124-E1-K-TVPB + H3124d1: 110 mm | D: 200 mm | B: 62 mm | Cr: 630 kN | C0r: 800 kN | m: 7.06 kg
22224-E1-K + H3124d1: 110 mm | D: 215 mm | B: 58 mm | Cr: 640 kN | C0r: 740 kN | m: 8.84 kg
23224-E1A-K-M + H2324d1: 110 mm | D: 215 mm | B: 76 mm | Cr: 820 kN | C0r: 1020 kN | m: 11.4 kg
23224-E1-K-TVPB + H2324d1: 110 mm | D: 215 mm | B: 76 mm | Cr: 820 kN | C0r: 1020 kN | m: 11.1 kg
22324-E1-K + H2324d1: 110 mm | D: 260 mm | B: 86 mm | Cr: 1080 kN | C0r: 1170 kN | m: 22.1 kg
22324-E1-K-T41A + H2324d1: 110 mm | D: 260 mm | B: 86 mm | Cr: 1080 kN | C0r: 1170 kN | m: 22.1 kg
23026-E1A-K-M + H3026d1: 115 mm | D: 200 mm | B: 52 mm | Cr: 540 kN | C0r: 730 kN | m: 5.7 kg
23026-E1-K-TVPB + H3026d1: 115 mm | D: 200 mm | B: 52 mm | Cr: 540 kN | C0r: 730 kN | m: 5.42 kg
23126-E1A-K-M + H3126d1: 115 mm | D: 210 mm | B: 64 mm | Cr: 680 kN | C0r: 890 kN | m: 8.1 kg
23126-E1-K-TVPB + H3126d1: 115 mm | D: 210 mm | B: 64 mm | Cr: 680 kN | C0r: 890 kN | m: 7.82 kg
22226-E1-K + H3126d1: 115 mm | D: 230 mm | B: 64 mm | Cr: 760 kN | C0r: 890 kN | m: 10.9 kg
23226-E1A-K-M + H2326d1: 115 mm | D: 230 mm | B: 80 mm | Cr: 910 kN | C0r: 1150 kN | m: 13.6 kg
23226-E1-K-TVPB + H2326d1: 115 mm | D: 230 mm | B: 80 mm | Cr: 910 kN | C0r: 1150 kN | m: 12.6 kg
22326-E1-K + H2326d1: 115 mm | D: 280 mm | B: 93 mm | Cr: 1250 kN | C0r: 1370 kN | m: 27.4 kg
22326-E1-K-T41A + H2326d1: 115 mm | D: 280 mm | B: 93 mm | Cr: 1250 kN | C0r: 1370 kN | m: 27.4 kg
23028-E1A-K-M + H3028d1: 125 mm | D: 210 mm | B: 53 mm | Cr: 570 kN | C0r: 800 kN | m: 6 kg
23028-E1-K-TVPB + H3028d1: 125 mm | D: 210 mm | B: 53 mm | Cr: 570 kN | C0r: 800 kN | m: 5.81 kg
23128-E1A-K-M + H3128d1: 125 mm | D: 225 mm | B: 68 mm | Cr: 760 kN | C0r: 1010 kN | m: 7.78 kg
23128-E1-K-TVPB + H3128d1: 125 mm | D: 225 mm | B: 68 mm | Cr: 760 kN | C0r: 1010 kN | m: 9.46 kg
22228-E1-K + H3128d1: 125 mm | D: 250 mm | B: 68 mm | Cr: 870 kN | C0r: 1040 kN | m: 13.7 kg
23228-E1A-K-M + H2328d1: 125 mm | D: 250 mm | B: 88 mm | Cr: 1090 kN | C0r: 1400 kN | m: 17.6 kg
23228-E1-K-TVPB + H2328d1: 125 mm | D: 250 mm | B: 88 mm | Cr: 1090 kN | C0r: 1400 kN | m: 17.1 kg
22328-E1-K + H2328d1: 125 mm | D: 300 mm | B: 102 mm | Cr: 1460 kN | C0r: 1630 kN | m: 34.4 kg
22328-E1-K-T41A + H2328d1: 125 mm | D: 300 mm | B: 102 mm | Cr: 1460 kN | C0r: 1630 kN | m: 34.4 kg
23030-E1A-K-M + H3030d1: 135 mm | D: 225 mm | B: 56 mm | Cr: 630 kN | C0r: 880 kN | m: 7.33 kg
23030-E1-K-TVPB + H3030d1: 135 mm | D: 225 mm | B: 56 mm | Cr: 630 kN | C0r: 880 kN | m: 7.29 kg
23130-E1A-K-M + H3130d1: 135 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1330 kN | m: 15.8 kg
23130-E1-K-TVPB + H3130d1: 135 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1330 kN | m: 14.5 kg
22230-E1-K + H3130d1: 135 mm | D: 270 mm | B: 73 mm | Cr: 1010 kN | C0r: 1210 kN | m: 17.8 kg
23230-E1A-K-M + H2330d1: 135 mm | D: 270 mm | B: 96 mm | Cr: 1280 kN | C0r: 1660 kN | m: 22.9 kg
23230-E1-K-TVPB + H2330d1: 135 mm | D: 270 mm | B: 96 mm | Cr: 1280 kN | C0r: 1660 kN | m: 22.3 kg
22330-E1-K + H2330d1: 135 mm | D: 320 mm | B: 108 mm | Cr: 1640 kN | C0r: 1850 kN | m: 41.2 kg
22330-E1-K-T41A + H2330d1: 135 mm | D: 320 mm | B: 108 mm | Cr: 1640 kN | C0r: 1850 kN | m: 41.2 kg
23032-E1A-K-M + H3032d1: 140 mm | D: 240 mm | B: 60 mm | Cr: 720 kN | C0r: 1010 kN | m: 9.42 kg
23032-E1-K-TVPB + H3032d1: 140 mm | D: 240 mm | B: 60 mm | Cr: 720 kN | C0r: 1010 kN | m: 8.67 kg
23132-E1A-K-M + H3132d1: 140 mm | D: 270 mm | B: 86 mm | Cr: 1160 kN | C0r: 1550 kN | m: 18.6 kg
23132-E1-K-TVPB + H3132d1: 140 mm | D: 270 mm | B: 86 mm | Cr: 1160 kN | C0r: 1550 kN | m: 18.4 kg
22232-E1-K + H3132d1: 140 mm | D: 290 mm | B: 80 mm | Cr: 1150 kN | C0r: 1400 kN | m: 22.4 kg
23232-E1A-K-M + H2332d1: 140 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1910 kN | m: 28.5 kg
23232-E1-K-TVPB + H2332d1: 140 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1910 kN | m: 27.7 kg
22332-K-MB + H2332d1: 140 mm | D: 340 mm | B: 114 mm | Cr: 1430 kN | C0r: 1900 kN | m: 50.1 kg
23034-E1A-K-M + H3034d1: 150 mm | D: 260 mm | B: 67 mm | Cr: 880 kN | C0r: 1230 kN | m: 12 kg
23034-E1-K-TVPB + H3034d1: 150 mm | D: 260 mm | B: 67 mm | Cr: 870 kN | C0r: 1230 kN | m: 11.9 kg
23134-E1A-K-M + H3134d1: 150 mm | D: 280 mm | B: 88 mm | Cr: 1220 kN | C0r: 1690 kN | m: 19.5 kg
23134-E1-K-TVPB + H3134d1: 150 mm | D: 280 mm | B: 88 mm | Cr: 1220 kN | C0r: 1690 kN | m: 19.9 kg
22234-E1-K + H3134d1: 150 mm | D: 310 mm | B: 86 mm | Cr: 1320 kN | C0r: 1570 kN | m: 27.1 kg
23234-E1A-K-M + H2334d1: 150 mm | D: 310 mm | B: 110 mm | Cr: 1640 kN | C0r: 2170 kN | m: 34.6 kg
23234-E1-K-TVPB + H2334d1: 150 mm | D: 310 mm | B: 110 mm | Cr: 1640 kN | C0r: 2170 kN | m: 33.1 kg
22334-K-MB + H2334d1: 150 mm | D: 360 mm | B: 120 mm | Cr: 1600 kN | C0r: 2120 kN | m: 56.9 kg
23936-S-K-MB + H3936d1: 160 mm | D: 250 mm | B: 52 mm | Cr: 440 kN | C0r: 850 kN | m: 7.76 kg
23036-E1A-K-M + H3036d1: 160 mm | D: 280 mm | B: 74 mm | Cr: 1040 kN | C0r: 1450 kN | m: 16 kg
23036-E1-K-TVPB + H3036d1: 160 mm | D: 280 mm | B: 74 mm | Cr: 1040 kN | C0r: 1450 kN | m: 15.6 kg
23136-E1A-K-M + H3136d1: 160 mm | D: 300 mm | B: 96 mm | Cr: 1420 kN | C0r: 1950 kN | m: 25.5 kg
23136-E1-K-TVPB + H3136d1: 160 mm | D: 300 mm | B: 96 mm | Cr: 1420 kN | C0r: 1950 kN | m: 25.9 kg
22236-E1-K + H3136d1: 160 mm | D: 320 mm | B: 86 mm | Cr: 1360 kN | C0r: 1680 kN | m: 28.5 kg
23236-E1A-K-M + H2336d1: 160 mm | D: 320 mm | B: 112 mm | Cr: 1710 kN | C0r: 2340 kN | m: 37 kg
23236-E1-K-TVPB + H2336d1: 160 mm | D: 320 mm | B: 112 mm | Cr: 1710 kN | C0r: 2340 kN | m: 36 kg
22336-K-MB + H2336d1: 160 mm | D: 380 mm | B: 126 mm | Cr: 1760 kN | C0r: 2360 kN | m: 66.7 kg
23038-E1A-K-M + H3038d1: 170 mm | D: 290 mm | B: 75 mm | Cr: 1080 kN | C0r: 1550 kN | m: 17.7 kg
23038-E1-K-TVPB + H3038d1: 170 mm | D: 290 mm | B: 75 mm | Cr: 1080 kN | C0r: 1550 kN | m: 16.3 kg
23138-E1A-K-M + H3138d1: 170 mm | D: 320 mm | B: 104 mm | Cr: 1610 kN | C0r: 2220 kN | m: 32.4 kg
23138-E1-K-TVPB + H3138d1: 170 mm | D: 320 mm | B: 104 mm | Cr: 1610 kN | C0r: 2220 kN | m: 30.3 kg
22238-K-MB + H3138d1: 170 mm | D: 340 mm | B: 92 mm | Cr: 1200 kN | C0r: 1830 kN | m: 36.2 kg
23238-B-K-MB + H2338d1: 170 mm | D: 340 mm | B: 120 mm | Cr: 1560 kN | C0r: 2600 kN | m: 46 kg
22338-K-MB + H2338d1: 170 mm | D: 400 mm | B: 132 mm | Cr: 1860 kN | C0r: 2500 kN | m: 77.3 kg
23940-S-K-MB + H3940d1: 180 mm | D: 280 mm | B: 60 mm | Cr: 550 kN | C0r: 1080 kN | m: 11.5 kg
23040-E1A-K-M + H3040d1: 180 mm | D: 310 mm | B: 82 mm | Cr: 1270 kN | C0r: 1800 kN | m: 21.4 kg
23040-E1-K-TVPB + H3040d1: 180 mm | D: 310 mm | B: 82 mm | Cr: 1270 kN | C0r: 1800 kN | m: 20.8 kg
23140-B-K-MB + H3140d1: 180 mm | D: 340 mm | B: 112 mm | Cr: 1320 kN | C0r: 2280 kN | m: 41.7 kg
22240-B-K-MB + H3140d1: 180 mm | D: 360 mm | B: 98 mm | Cr: 1320 kN | C0r: 2000 kN | m: 42.3 kg
23240-B-K-MB + H2340d1: 180 mm | D: 360 mm | B: 128 mm | Cr: 1660 kN | C0r: 2750 kN | m: 55.8 kg
22340-K-MB + H2340d1: 180 mm | D: 420 mm | B: 138 mm | Cr: 2080 kN | C0r: 2800 kN | m: 89.5 kg
23944-S-K-MB + H3944d1: 200 mm | D: 300 mm | B: 60 mm | Cr: 600 kN | C0r: 1250 kN | m: 12.3 kg
23044-K-MB + H3044Xd1: 200 mm | D: 340 mm | B: 90 mm | Cr: 1100 kN | C0r: 2000 kN | m: 29.9 kg
23144-B-K-MB + H3144Xd1: 200 mm | D: 370 mm | B: 120 mm | Cr: 1630 kN | C0r: 2900 kN | m: 52 kg
22244-B-K-MB + H3144Xd1: 200 mm | D: 400 mm | B: 108 mm | Cr: 1630 kN | C0r: 2450 kN | m: 59.6 kg
23244-K-MB + H2344Xd1: 200 mm | D: 400 mm | B: 144 mm | Cr: 2040 kN | C0r: 3450 kN | m: 79 kg
22344-K-MB + H2344Xd1: 200 mm | D: 460 mm | B: 145 mm | Cr: 2320 kN | C0r: 3350 kN | m: 114 kg
23948-K-MB + H3948d1: 220 mm | D: 320 mm | B: 60 mm | Cr: 640 kN | C0r: 1370 kN | m: 13.4 kg
23048-K-MB + H3048d1: 220 mm | D: 360 mm | B: 92 mm | Cr: 1160 kN | C0r: 2200 kN | m: 31.9 kg
23148-B-K-MB + H3148Xd1: 220 mm | D: 400 mm | B: 128 mm | Cr: 1860 kN | C0r: 3250 kN | m: 65.3 kg
22248-B-K-MB + H3148Xd1: 220 mm | D: 440 mm | B: 120 mm | Cr: 1960 kN | C0r: 3050 kN | m: 81.2 kg
23248-B-K-MB + H2348Xd1: 220 mm | D: 440 mm | B: 160 mm | Cr: 2450 kN | C0r: 4250 kN | m: 105 kg
22348-K-MB + H2348Xd1: 220 mm | D: 500 mm | B: 155 mm | Cr: 2650 kN | C0r: 3900 kN | m: 145 kg
23952-K-MB + H3952d1: 240 mm | D: 360 mm | B: 75 mm | Cr: 930 kN | C0r: 1930 kN | m: 22.4 kg
23052-K-MB + H3052Xd1: 240 mm | D: 400 mm | B: 104 mm | Cr: 1500 kN | C0r: 2800 kN | m: 46.2 kg
23152-K-MB + H3152Xd1: 240 mm | D: 440 mm | B: 144 mm | Cr: 2200 kN | C0r: 4000 kN | m: 89.6 kg
22252-B-K-MB + H3152Xd1: 240 mm | D: 480 mm | B: 130 mm | Cr: 2240 kN | C0r: 3450 kN | m: 106 kg
23252-B-K-MB + H2352Xd1: 240 mm | D: 480 mm | B: 174 mm | Cr: 2900 kN | C0r: 4900 kN | m: 136 kg
22352-K-MB + H2352Xd1: 240 mm | D: 540 mm | B: 165 mm | Cr: 3000 kN | C0r: 4400 kN | m: 177 kg
23956-K-MB + H3956d1: 260 mm | D: 380 mm | B: 75 mm | Cr: 970 kN | C0r: 2040 kN | m: 24.7 kg
23056-B-K-MB + H3056d1: 260 mm | D: 420 mm | B: 106 mm | Cr: 1560 kN | C0r: 3000 kN | m: 50.3 kg
23156-B-K-MB + H3156Xd1: 260 mm | D: 460 mm | B: 146 mm | Cr: 2360 kN | C0r: 4400 kN | m: 96.4 kg
22256-B-K-MB + H3156Xd1: 260 mm | D: 500 mm | B: 130 mm | Cr: 2360 kN | C0r: 3650 kN | m: 110 kg
23256-K-MB + H2356Xd1: 260 mm | D: 500 mm | B: 176 mm | Cr: 3000 kN | C0r: 5300 kN | m: 153 kg
22356-K-MB + H2356Xd1: 260 mm | D: 580 mm | B: 175 mm | Cr: 3550 kN | C0r: 5400 kN | m: 224 kg
23960-B-K-MB + H3960d1: 280 mm | D: 420 mm | B: 90 mm | Cr: 1270 kN | C0r: 2650 kN | m: 39.1 kg
23060-K-MB + H3060d1: 280 mm | D: 460 mm | B: 118 mm | Cr: 1960 kN | C0r: 3650 kN | m: 72.2 kg
23160-B-K-MB + H3160d1: 280 mm | D: 500 mm | B: 160 mm | Cr: 2650 kN | C0r: 4900 kN | m: 123 kg
22260-K-MB + H3160d1: 280 mm | D: 540 mm | B: 140 mm | Cr: 2750 kN | C0r: 4400 kN | m: 136 kg
23260-K-MB + H3260d1: 280 mm | D: 540 mm | B: 192 mm | Cr: 3450 kN | C0r: 6200 kN | m: 192 kg
23964-K-MB + H3964d1: 300 mm | D: 440 mm | B: 90 mm | Cr: 1310 kN | C0r: 2750 kN | m: 41 kg
23064-K-MB + H3064d1: 300 mm | D: 480 mm | B: 121 mm | Cr: 2040 kN | C0r: 4000 kN | m: 77.1 kg
23164-K-MB + H3164d1: 300 mm | D: 540 mm | B: 176 mm | Cr: 3200 kN | C0r: 6000 kN | m: 159 kg
22264-K-MB + H3164d1: 300 mm | D: 580 mm | B: 150 mm | Cr: 3050 kN | C0r: 4900 kN | m: 166 kg
23264-K-MB + H3264d1: 300 mm | D: 580 mm | B: 208 mm | Cr: 3900 kN | C0r: 6950 kN | m: 229 kg
23068-K-MB + H3068d1: 320 mm | D: 520 mm | B: 133 mm | Cr: 2360 kN | C0r: 4550 kN | m: 101 kg
23168-B-K-MB + H3168d1: 320 mm | D: 580 mm | B: 190 mm | Cr: 3650 kN | C0r: 6950 kN | m: 203 kg
23268-B-K-MB + H3268d1: 320 mm | D: 620 mm | B: 224 mm | Cr: 4500 kN | C0r: 8150 kN | m: 291 kg
23972-K-MB + H3972d1: 340 mm | D: 480 mm | B: 90 mm | Cr: 1430 kN | C0r: 3200 kN | m: 45 kg
23072-K-MB + H3072d1: 340 mm | D: 540 mm | B: 134 mm | Cr: 2450 kN | C0r: 4800 kN | m: 107 kg
23172-K-MB + H3172d1: 340 mm | D: 600 mm | B: 192 mm | Cr: 3800 kN | C0r: 7350 kN | m: 217 kg
23272-B-K-MB + H3272d1: 340 mm | D: 650 mm | B: 232 mm | Cr: 4900 kN | C0r: 9150 kN | m: 328 kg
23976-K-MB + H3976d1: 360 mm | D: 520 mm | B: 106 mm | Cr: 1760 kN | C0r: 4000 kN | m: 66.3 kg
23076-B-K-MB + H3076d1: 360 mm | D: 560 mm | B: 135 mm | Cr: 2550 kN | C0r: 5300 kN | m: 113 kg
23176-K-MB + H3176d1: 360 mm | D: 620 mm | B: 194 mm | Cr: 4050 kN | C0r: 8150 kN | m: 226 kg
23276-B-K-MB + H3276d1: 360 mm | D: 680 mm | B: 240 mm | Cr: 5300 kN | C0r: 9800 kN | m: 367 kg
23980-B-K-MB + H3980d1: 380 mm | D: 540 mm | B: 106 mm | Cr: 1830 kN | C0r: 4150 kN | m: 68.2 kg
23080-K-MB + H3080d1: 380 mm | D: 600 mm | B: 148 mm | Cr: 3050 kN | C0r: 6200 kN | m: 143 kg
23180-B-K-MB + H3180d1: 380 mm | D: 650 mm | B: 200 mm | Cr: 4250 kN | C0r: 8500 kN | m: 261 kg
23280-B-K-MB + H3280d1: 380 mm | D: 720 mm | B: 256 mm | Cr: 5700 kN | C0r: 10800 kN | m: 442 kg
23984-K-MB + H3984d1: 400 mm | D: 560 mm | B: 106 mm | Cr: 1900 kN | C0r: 4500 kN | m: 78 kg
23084-B-K-MB + H3084Xd1: 400 mm | D: 620 mm | B: 150 mm | Cr: 3150 kN | C0r: 6550 kN | m: 155 kg
23184-K-MB + H3184d1: 400 mm | D: 700 mm | B: 224 mm | Cr: 5000 kN | C0r: 9650 kN | m: 339 kg
23284-B-K-MB + H3284d1: 400 mm | D: 760 mm | B: 272 mm | Cr: 6550 kN | C0r: 12200 kN | m: 537 kg
23988-K-MB + H3988d1: 410 mm | D: 600 mm | B: 118 mm | Cr: 2240 kN | C0r: 5200 kN | m: 98.3 kg
23088-K-MB + H3088d1: 410 mm | D: 650 mm | B: 157 mm | Cr: 3400 kN | C0r: 7100 kN | m: 177 kg
23188-K-MB + H3188d1: 410 mm | D: 720 mm | B: 226 mm | Cr: 5200 kN | C0r: 10400 kN | m: 378 kg
23288-B-K-MB + H3288d1: 410 mm | D: 790 mm | B: 280 mm | Cr: 7100 kN | C0r: 13400 kN | m: 586 kg
23992-B-K-MB + H3992d1: 430 mm | D: 620 mm | B: 118 mm | Cr: 2280 kN | C0r: 5400 kN | m: 103 kg
23092-B-K-MB + H3092d1: 430 mm | D: 680 mm | B: 163 mm | Cr: 3650 kN | C0r: 7650 kN | m: 204 kg
23192-K-MB + H3192d1: 430 mm | D: 760 mm | B: 240 mm | Cr: 5850 kN | C0r: 11600 kN | m: 420 kg
23292-K-MB + H3292d1: 430 mm | D: 830 mm | B: 296 mm | Cr: 7800 kN | C0r: 15000 kN | m: 699 kg
23996-B-K-MB + H3996d1: 450 mm | D: 650 mm | B: 128 mm | Cr: 2550 kN | C0r: 6000 kN | m: 121 kg
23096-K-MB + H3096d1: 450 mm | D: 700 mm | B: 165 mm | Cr: 3800 kN | C0r: 8150 kN | m: 208 kg
23196-K-MB + H3196d1: 450 mm | D: 790 mm | B: 248 mm | Cr: 6300 kN | C0r: 12700 kN | m: 470 kg
23296-K-MB + H3296d1: 450 mm | D: 870 mm | B: 310 mm | Cr: 8800 kN | C0r: 17000 kN | m: 806 kg
239/500-K-MB + H39/500d1: 470 mm | D: 670 mm | B: 128 mm | Cr: 2600 kN | C0r: 6300 kN | m: 124 kg
230/500-B-K-MB + H30/500d1: 470 mm | D: 720 mm | B: 167 mm | Cr: 3900 kN | C0r: 8500 kN | m: 219 kg
231/500-B-K-MB + H31/500d1: 470 mm | D: 830 mm | B: 264 mm | Cr: 7100 kN | C0r: 14300 kN | m: 556 kg
239/530-K-MB + H39/530d1: 500 mm | D: 710 mm | B: 136 mm | Cr: 2850 kN | C0r: 6800 kN | m: 146 kg
230/530-B-K-MB + H30/530d1: 500 mm | D: 780 mm | B: 185 mm | Cr: 4400 kN | C0r: 9500 kN | m: 291 kg
231/530-K-MB + H31/530d1: 500 mm | D: 870 mm | B: 272 mm | Cr: 7350 kN | C0r: 15300 kN | m: 643 kg
239/560-B-K-MB + H39/560d1: 530 mm | D: 750 mm | B: 140 mm | Cr: 3100 kN | C0r: 7650 kN | m: 169 kg
230/560-B-K-MB + H30/560d1: 530 mm | D: 820 mm | B: 195 mm | Cr: 5100 kN | C0r: 11000 kN | m: 339 kg
231/560-K-MB + H31/560d1: 530 mm | D: 920 mm | B: 280 mm | Cr: 8150 kN | C0r: 16600 kN | m: 737 kg
239/600-B-K-MB + H39/600d1: 560 mm | D: 800 mm | B: 150 mm | Cr: 3450 kN | C0r: 8650 kN | m: 210 kg
230/600-B-K-MB + H30/600d1: 560 mm | D: 870 mm | B: 200 mm | Cr: 5700 kN | C0r: 12500 kN | m: 388 kg
231/600-K-MB + H31/600d1: 560 mm | D: 980 mm | B: 300 mm | Cr: 9000 kN | C0r: 19300 kN | m: 901 kg
239/630-B-K-MB + H39/630d1: 600 mm | D: 850 mm | B: 165 mm | Cr: 4050 kN | C0r: 9800 kN | m: 283 kg
230/630-B-K-MB + H30/630d1: 600 mm | D: 920 mm | B: 212 mm | Cr: 6300 kN | C0r: 13700 kN | m: 502 kg
239/670-B-K-MB + H39/670d1: 630 mm | D: 900 mm | B: 170 mm | Cr: 4300 kN | C0r: 10600 kN | m: 310 kg
230/670-B-K-MB + H30/670d1: 630 mm | D: 980 mm | B: 230 mm | Cr: 7200 kN | C0r: 16000 kN | m: 590 kg
239/710-K-MB + H39/710d1: 670 mm | D: 950 mm | B: 180 mm | Cr: 4800 kN | C0r: 12000 kN | m: 336 kg
230/710-B-K-MB + H30/710d1: 670 mm | D: 1030 mm | B: 236 mm | Cr: 7650 kN | C0r: 17000 kN | m: 650 kg
239/750-K-MB + H39/750d1: 710 mm | D: 1000 mm | B: 185 mm | Cr: 5200 kN | C0r: 12900 kN | m: 394 kg
230/750-K-MB + H30/750d1: 710 mm | D: 1090 mm | B: 250 mm | Cr: 8500 kN | C0r: 19000 kN | m: 792 kg
239/800-B-K-MB + H39/800d1: 750 mm | D: 1060 mm | B: 195 mm | Cr: 5850 kN | C0r: 15000 kN | m: 490 kg
230/800-K-MB + H30/800d1: 750 mm | D: 1150 mm | B: 258 mm | Cr: 9300 kN | C0r: 21200 kN | m: 861 kg
239/850-K-MB + H39/850d1: 800 mm | D: 1120 mm | B: 200 mm | Cr: 6300 kN | C0r: 16300 kN | m: 554 kg
239/900-K-MB + H39/900d1: 850 mm | D: 1180 mm | B: 206 mm | Cr: 6550 kN | C0r: 17300 kN | m: 641 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
