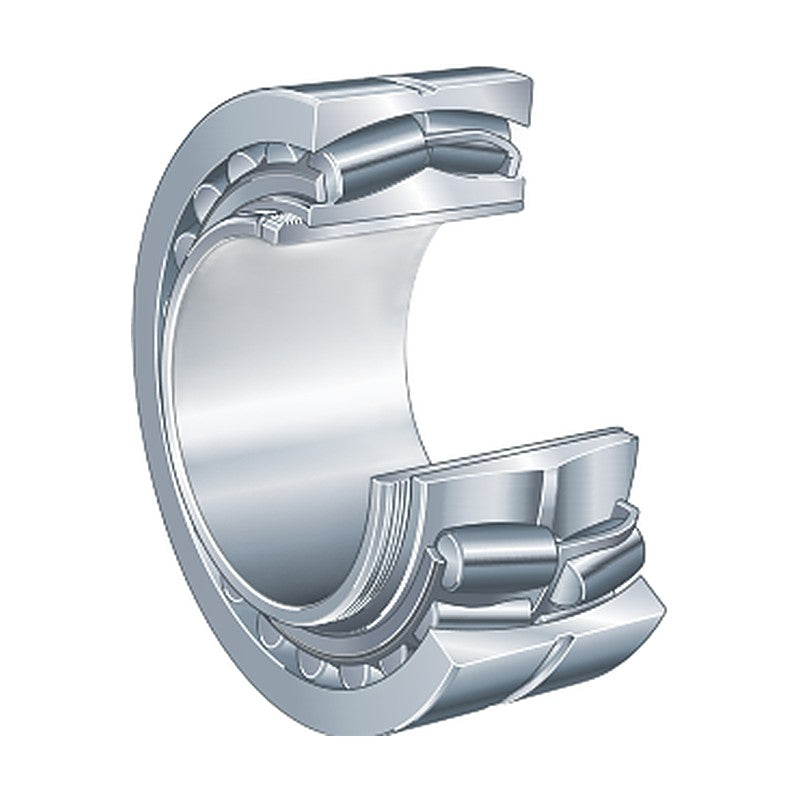

FAG Spherical Roller Bearings with AH Withdrawal Sleeve

FAG Spherical Roller Bearings with AH Withdrawal Sleeve

FAG spherical roller bearings with tapered bore supplied together with matching AH withdrawal sleeve for mounting against a shaft shoulder and easy dismounting.

Key features

  • Designation = bearing + withdrawal sleeve (e.g. 22208-E1-K + AH308)
  • Withdrawal sleeve pressed into the bearing bore against a shaft shoulder
  • Dismounting by withdrawal nut; hydraulic versions for large sizes
  • E1 (X-life) and fixed centre rib (MB) bearing designs
  • Shaft diameter d1 = withdrawal sleeve bore

Specifications

Brand FAG
Product type Spherical Roller Bearings
Mounting Withdrawal sleeve AH
Bearing bore Tapered 1:12 / 1:30
Shaft diameter d1 35 - 850 mm
Outside diameter D 80 - 1220 mm
Source FAG Rolling Bearings HR 1 catalogue, p. 576-593
22208-E1-K + AH308 d1: 35 mm | D: 80 mm | B: 23 mm | Cr: 101 kN | C0r: 91 kN | m: 0.517 kg
21308-E1-K + AH308 d1: 35 mm | D: 90 mm | B: 23 mm | Cr: 109 kN | C0r: 107 kN | m: 0.702 kg
22308-E1-K + AH2308 d1: 35 mm | D: 90 mm | B: 33 mm | Cr: 156 kN | C0r: 149 kN | m: 1.03 kg
22209-E1-K + AH309 d1: 40 mm | D: 85 mm | B: 23 mm | Cr: 104 kN | C0r: 99 kN | m: 0.577 kg
21309-E1-K + AH309 d1: 40 mm | D: 100 mm | B: 25 mm | Cr: 129 kN | C0r: 130 kN | m: 0.845 kg
22309-E1-K + AH2309 d1: 40 mm | D: 100 mm | B: 36 mm | Cr: 187 kN | C0r: 183 kN | m: 1.36 kg
22210-E1-K + AHX310 d1: 45 mm | D: 90 mm | B: 23 mm | Cr: 109 kN | C0r: 107 kN | m: 0.608 kg
21310-E1-K + AHX310 d1: 45 mm | D: 110 mm | B: 27 mm | Cr: 129 kN | C0r: 130 kN | m: 1.28 kg
22310-E1-K + AHX2310 d1: 45 mm | D: 110 mm | B: 40 mm | Cr: 229 kN | C0r: 223 kN | m: 1.86 kg
22211-E1-K + AHX311 d1: 50 mm | D: 100 mm | B: 25 mm | Cr: 129 kN | C0r: 130 kN | m: 0.825 kg
21311-E1-K + AHX311 d1: 50 mm | D: 120 mm | B: 29 mm | Cr: 160 kN | C0r: 155 kN | m: 1.19 kg
22311-E1-K + AHX2311 d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 265 kN | C0r: 260 kN | m: 2.22 kg
22311-E1-K-T41A + AHX2311 d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 265 kN | C0r: 260 kN | m: 2.22 kg
22212-E1-K + AHX312 d1: 55 mm | D: 110 mm | B: 28 mm | Cr: 160 kN | C0r: 155 kN | m: 1.09 kg
21312-E1-K + AHX312 d1: 55 mm | D: 130 mm | B: 31 mm | Cr: 211 kN | C0r: 226 kN | m: 1.78 kg
22312-E1-K + AHX2312 d1: 55 mm | D: 130 mm | B: 46 mm | Cr: 310 kN | C0r: 310 kN | m: 2.83 kg
22312-E1-K-T41A + AHX2312 d1: 55 mm | D: 130 mm | B: 46 mm | Cr: 310 kN | C0r: 310 kN | m: 2.83 kg
22213-E1-K + AH313G d1: 60 mm | D: 120 mm | B: 31 mm | Cr: 202 kN | C0r: 210 kN | m: 1.52 kg
21313-E1-K + AH313G d1: 60 mm | D: 140 mm | B: 33 mm | Cr: 249 kN | C0r: 270 kN | m: 2.42 kg
22313-E1-K + AH2313G d1: 60 mm | D: 140 mm | B: 48 mm | Cr: 350 kN | C0r: 365 kN | m: 3.49 kg
22313-E1-K-T41A + AH2313G d1: 60 mm | D: 140 mm | B: 48 mm | Cr: 350 kN | C0r: 365 kN | m: 3.49 kg
22214-E1-K + AH314G d1: 65 mm | D: 125 mm | B: 31 mm | Cr: 211 kN | C0r: 226 kN | m: 1.61 kg
21314-E1-K + AH314G d1: 65 mm | D: 150 mm | B: 35 mm | Cr: 249 kN | C0r: 270 kN | m: 3 kg
22314-E1-K + AHX2314G d1: 65 mm | D: 150 mm | B: 51 mm | Cr: 390 kN | C0r: 390 kN | m: 4.12 kg
22314-E1-K-T41A + AHX2314G d1: 65 mm | D: 150 mm | B: 51 mm | Cr: 390 kN | C0r: 390 kN | m: 4.12 kg
22215-E1-K + AH315G d1: 70 mm | D: 130 mm | B: 31 mm | Cr: 216 kN | C0r: 236 kN | m: 1.68 kg
21315-E1-K + AH315G d1: 70 mm | D: 160 mm | B: 37 mm | Cr: 305 kN | C0r: 325 kN | m: 2.86 kg
22315-E1-K + AHX2315G d1: 70 mm | D: 160 mm | B: 55 mm | Cr: 445 kN | C0r: 450 kN | m: 5.06 kg
22315-E1-K-T41A + AHX2315G d1: 70 mm | D: 160 mm | B: 55 mm | Cr: 445 kN | C0r: 450 kN | m: 5.06 kg
22216-E1-K + AH316 d1: 75 mm | D: 140 mm | B: 33 mm | Cr: 249 kN | C0r: 270 kN | m: 2.08 kg
21316-E1-K + AH316 d1: 75 mm | D: 170 mm | B: 39 mm | Cr: 305 kN | C0r: 325 kN | m: 2.65 kg
22316-E1-K + AHX2316 d1: 75 mm | D: 170 mm | B: 58 mm | Cr: 495 kN | C0r: 510 kN | m: 6.05 kg
22316-E1-K-T41A + AHX2316 d1: 75 mm | D: 170 mm | B: 58 mm | Cr: 495 kN | C0r: 510 kN | m: 6.05 kg
22217-E1-K + AHX317 d1: 80 mm | D: 150 mm | B: 36 mm | Cr: 305 kN | C0r: 325 kN | m: 2.59 kg
21317-E1-K + AHX317 d1: 80 mm | D: 180 mm | B: 41 mm | Cr: 345 kN | C0r: 375 kN | m: 5.37 kg
22317-E1-K + AHX2317 d1: 80 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 560 kN | m: 7.06 kg
22317-E1-K-T41A + AHX2317 d1: 80 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 560 kN | m: 7.06 kg
22218-E1-K + AHX318 d1: 85 mm | D: 160 mm | B: 40 mm | Cr: 345 kN | C0r: 375 kN | m: 3.35 kg
23218-E1A-K-M + AHX3218 d1: 85 mm | D: 160 mm | B: 52.4 mm | Cr: 445 kN | C0r: 520 kN | m: 4.34 kg
23218-E1-K-TVPB + AHX3218 d1: 85 mm | D: 160 mm | B: 52.4 mm | Cr: 445 kN | C0r: 520 kN | m: 4.08 kg
21318-E1-K + AHX318 d1: 85 mm | D: 190 mm | B: 43 mm | Cr: 380 kN | C0r: 415 kN | m: 6.26 kg
22318-E1-K + AHX2318 d1: 85 mm | D: 190 mm | B: 64 mm | Cr: 610 kN | C0r: 630 kN | m: 8.33 kg
22318-E1-K-T41A + AHX2318 d1: 85 mm | D: 190 mm | B: 64 mm | Cr: 610 kN | C0r: 630 kN | m: 8.33 kg
22219-E1-K + AHX319 d1: 90 mm | D: 170 mm | B: 43 mm | Cr: 380 kN | C0r: 415 kN | m: 4.04 kg
21319-E1-K-TVPB + AHX319 d1: 90 mm | D: 200 mm | B: 45 mm | Cr: 430 kN | C0r: 460 kN | m: 6.53 kg
22319-E1-K + AHX2319 d1: 90 mm | D: 200 mm | B: 67 mm | Cr: 670 kN | C0r: 700 kN | m: 9.46 kg
22319-E1-K-T41A + AHX2319 d1: 90 mm | D: 200 mm | B: 67 mm | Cr: 670 kN | C0r: 700 kN | m: 9.46 kg
23120-E1A-K-M + AHX3120 d1: 95 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 570 kN | m: 4.23 kg
23120-E1-K-TVPB + AHX3120 d1: 95 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 570 kN | m: 4.06 kg
22220-E1-K + AHX320 d1: 95 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 475 kN | m: 4.91 kg
23220-E1A-K-M + AHX3220 d1: 95 mm | D: 180 mm | B: 60.3 mm | Cr: 550 kN | C0r: 660 kN | m: 6.33 kg
23220-E1-K-TVPB + AHX3220 d1: 95 mm | D: 180 mm | B: 60.3 mm | Cr: 550 kN | C0r: 660 kN | m: 6.13 kg
21320-E1-K-TVPB + AHX320 d1: 95 mm | D: 215 mm | B: 47 mm | Cr: 495 kN | C0r: 530 kN | m: 8.08 kg
22320-E1-K + AHX2320 d1: 95 mm | D: 215 mm | B: 73 mm | Cr: 810 kN | C0r: 920 kN | m: 13.1 kg
22320-E1-K-T41A + AHX2320 d1: 95 mm | D: 215 mm | B: 73 mm | Cr: 810 kN | C0r: 920 kN | m: 13.1 kg
23122-E1A-K-M + AHX3122 d1: 105 mm | D: 180 mm | B: 56 mm | Cr: 530 kN | C0r: 680 kN | m: 5.1 kg
23122-E1-K-TVPB + AHX3122 d1: 105 mm | D: 180 mm | B: 56 mm | Cr: 530 kN | C0r: 680 kN | m: 4.95 kg
24122-E1-K30 + AH24122 d1: 105 mm | D: 180 mm | B: 69 mm | Cr: 530 kN | C0r: 750 kN | m: 6.76 kg
22222-E1-K + AHX3122 d1: 105 mm | D: 200 mm | B: 53 mm | Cr: 550 kN | C0r: 600 kN | m: 6.82 kg
23222-E1A-K-M + AHX3222A d1: 105 mm | D: 200 mm | B: 69.8 mm | Cr: 710 kN | C0r: 870 kN | m: 9.32 kg
23222-E1-K-TVPB + AHX3222A d1: 105 mm | D: 200 mm | B: 69.8 mm | Cr: 710 kN | C0r: 870 kN | m: 8.82 kg
21322-E1-K-TVPB + AHX322 d1: 105 mm | D: 240 mm | B: 50 mm | Cr: 600 kN | C0r: 640 kN | m: 10.9 kg
22322-E1-K + AHX2322G d1: 105 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1070 kN | m: 17.4 kg
22322-E1-K-T41A + AHX2322G d1: 105 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1070 kN | m: 17.4 kg
23024-E1A-K-M + AHX3024 d1: 115 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 580 kN | m: 4.09 kg
23024-E1-K-TVPB + AHX3024 d1: 115 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 580 kN | m: 3.67 kg
23124-E1A-K-M + AHX3124 d1: 115 mm | D: 200 mm | B: 62 mm | Cr: 630 kN | C0r: 800 kN | m: 7.57 kg
23124-E1-K-TVPB + AHX3124 d1: 115 mm | D: 200 mm | B: 62 mm | Cr: 630 kN | C0r: 800 kN | m: 7.06 kg
22224-E1-K + AHX3124 d1: 115 mm | D: 215 mm | B: 58 mm | Cr: 640 kN | C0r: 740 kN | m: 8.84 kg
23224-E1A-K-M + AHX3224A d1: 115 mm | D: 215 mm | B: 76 mm | Cr: 820 kN | C0r: 1020 kN | m: 11.4 kg
23224-E1-K-TVPB + AHX3224A d1: 115 mm | D: 215 mm | B: 76 mm | Cr: 820 kN | C0r: 1020 kN | m: 11.1 kg
22324-E1-K + AHX2324G d1: 115 mm | D: 260 mm | B: 86 mm | Cr: 1080 kN | C0r: 1170 kN | m: 22.1 kg
22324-E1-K-T41A + AHX2324G d1: 115 mm | D: 260 mm | B: 86 mm | Cr: 1080 kN | C0r: 1170 kN | m: 22.1 kg
23026-E1A-K-M + AHX3026 d1: 125 mm | D: 200 mm | B: 52 mm | Cr: 540 kN | C0r: 730 kN | m: 5.7 kg
23026-E1-K-TVPB + AHX3026 d1: 125 mm | D: 200 mm | B: 52 mm | Cr: 540 kN | C0r: 730 kN | m: 5.42 kg
23126-E1A-K-M + AHX3126 d1: 125 mm | D: 210 mm | B: 64 mm | Cr: 680 kN | C0r: 890 kN | m: 8.1 kg
23126-E1-K-TVPB + AHX3126 d1: 125 mm | D: 210 mm | B: 64 mm | Cr: 680 kN | C0r: 890 kN | m: 7.82 kg
22226-E1-K + AHX3126 d1: 125 mm | D: 230 mm | B: 64 mm | Cr: 760 kN | C0r: 890 kN | m: 10.9 kg
23226-E1A-K-M + AHX3226G d1: 125 mm | D: 230 mm | B: 80 mm | Cr: 910 kN | C0r: 1150 kN | m: 13.6 kg
23226-E1-K-TVPB + AHX3226G d1: 125 mm | D: 230 mm | B: 80 mm | Cr: 910 kN | C0r: 1150 kN | m: 12.6 kg
22326-E1-K + AHX2326G d1: 125 mm | D: 280 mm | B: 93 mm | Cr: 1250 kN | C0r: 1370 kN | m: 27.4 kg
22326-E1-K-T41A + AHX2326G d1: 125 mm | D: 280 mm | B: 93 mm | Cr: 1250 kN | C0r: 1370 kN | m: 27.4 kg
23028-E1A-K-M + AHX3028 d1: 135 mm | D: 210 mm | B: 53 mm | Cr: 570 kN | C0r: 800 kN | m: 6 kg
23028-E1-K-TVPB + AHX3028G d1: 135 mm | D: 210 mm | B: 53 mm | Cr: 570 kN | C0r: 800 kN | m: 5.81 kg
23128-E1A-K-M + AHX3128 d1: 135 mm | D: 225 mm | B: 68 mm | Cr: 760 kN | C0r: 1010 kN | m: 7.78 kg
23128-E1-K-TVPB + AHX3128 d1: 135 mm | D: 225 mm | B: 68 mm | Cr: 760 kN | C0r: 1010 kN | m: 9.46 kg
22228-E1-K + AHX3128 d1: 135 mm | D: 250 mm | B: 68 mm | Cr: 870 kN | C0r: 1040 kN | m: 13.7 kg
23228-E1A-K-M + AHX3228G d1: 135 mm | D: 250 mm | B: 88 mm | Cr: 1090 kN | C0r: 1400 kN | m: 17.6 kg
23228-E1-K-TVPB + AHX3228G d1: 135 mm | D: 250 mm | B: 88 mm | Cr: 1090 kN | C0r: 1400 kN | m: 17.1 kg
22328-E1-K + AHX2328G d1: 135 mm | D: 300 mm | B: 102 mm | Cr: 1460 kN | C0r: 1630 kN | m: 34.4 kg
22328-E1-K-T41A + AHX2328G d1: 135 mm | D: 300 mm | B: 102 mm | Cr: 1460 kN | C0r: 1630 kN | m: 34.4 kg
23030-E1A-K-M + AHX3030 d1: 145 mm | D: 225 mm | B: 56 mm | Cr: 630 kN | C0r: 880 kN | m: 7.33 kg
23030-E1-K-TVPB + AHX3030 d1: 145 mm | D: 225 mm | B: 56 mm | Cr: 630 kN | C0r: 880 kN | m: 7.29 kg
24030-E1-K30 + AH24030 d1: 145 mm | D: 225 mm | B: 75 mm | Cr: 680 kN | C0r: 1090 kN | m: 10.4 kg
23130-E1A-K-M + AHX3130G d1: 145 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1330 kN | m: 15.8 kg
23130-E1-K-TVPB + AHX3130G d1: 145 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1330 kN | m: 14.5 kg
24130-E1-K30 + AH24130 d1: 145 mm | D: 250 mm | B: 100 mm | Cr: 1050 kN | C0r: 1520 kN | m: 18.8 kg
22230-E1-K + AHX3130G d1: 145 mm | D: 270 mm | B: 73 mm | Cr: 1010 kN | C0r: 1210 kN | m: 17.8 kg
23230-E1A-K-M + AHX3230G d1: 145 mm | D: 270 mm | B: 96 mm | Cr: 1280 kN | C0r: 1660 kN | m: 22.9 kg
23230-E1-K-TVPB + AHX3230G d1: 145 mm | D: 270 mm | B: 96 mm | Cr: 1280 kN | C0r: 1660 kN | m: 22.3 kg
22330-E1-K + AHX2330G d1: 145 mm | D: 320 mm | B: 108 mm | Cr: 1640 kN | C0r: 1850 kN | m: 41.2 kg
22330-E1-K-T41A + AHX2330G d1: 145 mm | D: 320 mm | B: 108 mm | Cr: 1640 kN | C0r: 1850 kN | m: 41.2 kg
23032-E1A-K-M + AH3032 d1: 150 mm | D: 240 mm | B: 60 mm | Cr: 720 kN | C0r: 1010 kN | m: 9.42 kg
23032-E1-K-TVPB + AH3032 d1: 150 mm | D: 240 mm | B: 60 mm | Cr: 720 kN | C0r: 1010 kN | m: 8.67 kg
24032-E1-K30 + AH24032 d1: 150 mm | D: 240 mm | B: 80 mm | Cr: 770 kN | C0r: 1240 kN | m: 12.4 kg
23132-E1A-K-M + AH3132A d1: 150 mm | D: 270 mm | B: 86 mm | Cr: 1160 kN | C0r: 1550 kN | m: 18.6 kg
23132-E1-K-TVPB + AH3132A d1: 150 mm | D: 270 mm | B: 86 mm | Cr: 1160 kN | C0r: 1550 kN | m: 18.4 kg
24132-E1-K30 + AH24132 d1: 150 mm | D: 270 mm | B: 109 mm | Cr: 1220 kN | C0r: 1800 kN | m: 23.6 kg
22232-E1-K + AH3132A d1: 150 mm | D: 290 mm | B: 80 mm | Cr: 1150 kN | C0r: 1400 kN | m: 22.4 kg
23232-E1A-K-M + AH3232G d1: 150 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1910 kN | m: 28.5 kg
23232-E1-K-TVPB + AH3232G d1: 150 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1910 kN | m: 27.7 kg
22332-K-MB + AH2332G d1: 150 mm | D: 340 mm | B: 114 mm | Cr: 1430 kN | C0r: 1900 kN | m: 50.1 kg
23034-E1A-K-M + AH3034 d1: 160 mm | D: 260 mm | B: 67 mm | Cr: 880 kN | C0r: 1230 kN | m: 12 kg
23034-E1-K-TVPB + AH3034 d1: 160 mm | D: 260 mm | B: 67 mm | Cr: 870 kN | C0r: 1230 kN | m: 11.9 kg
24034-E1-K30 + AH24034 d1: 160 mm | D: 260 mm | B: 90 mm | Cr: 940 kN | C0r: 1480 kN | m: 16.7 kg
23134-E1A-K-M + AH3134A d1: 160 mm | D: 280 mm | B: 88 mm | Cr: 1220 kN | C0r: 1690 kN | m: 19.5 kg
23134-E1-K-TVPB + AH3134A d1: 160 mm | D: 280 mm | B: 88 mm | Cr: 1220 kN | C0r: 1690 kN | m: 19.9 kg
24134-E1-K30 + AH24134 d1: 160 mm | D: 280 mm | B: 109 mm | Cr: 1260 kN | C0r: 1900 kN | m: 26 kg
22234-E1-K + AH3134A d1: 160 mm | D: 310 mm | B: 86 mm | Cr: 1320 kN | C0r: 1570 kN | m: 27.1 kg
23234-E1A-K-M + AH3234G d1: 160 mm | D: 310 mm | B: 110 mm | Cr: 1640 kN | C0r: 2170 kN | m: 34.6 kg
23234-E1-K-TVPB + AH3234G d1: 160 mm | D: 310 mm | B: 110 mm | Cr: 1640 kN | C0r: 2170 kN | m: 33.1 kg
22334-K-MB + AH2334G d1: 160 mm | D: 360 mm | B: 120 mm | Cr: 1600 kN | C0r: 2120 kN | m: 56.9 kg
23936-S-K-MB + AH3936 d1: 170 mm | D: 250 mm | B: 52 mm | Cr: 440 kN | C0r: 850 kN | m: 7.76 kg
23036-E1A-K-M + AH3036 d1: 170 mm | D: 280 mm | B: 74 mm | Cr: 1040 kN | C0r: 1450 kN | m: 16 kg
23036-E1-K-TVPB + AH3036 d1: 170 mm | D: 280 mm | B: 74 mm | Cr: 1040 kN | C0r: 1450 kN | m: 15.6 kg
24036-E1-K30 + AH24036 d1: 170 mm | D: 280 mm | B: 100 mm | Cr: 1130 kN | C0r: 1770 kN | m: 22.7 kg
23136-E1A-K-M + AH3136A d1: 170 mm | D: 300 mm | B: 96 mm | Cr: 1420 kN | C0r: 1950 kN | m: 25.5 kg
23136-E1-K-TVPB + AH3136A d1: 170 mm | D: 300 mm | B: 96 mm | Cr: 1420 kN | C0r: 1950 kN | m: 25.9 kg
24136-E1-K30 + AH24136 d1: 170 mm | D: 300 mm | B: 118 mm | Cr: 1460 kN | C0r: 2170 kN | m: 33.2 kg
22236-E1-K + AH2236G d1: 170 mm | D: 320 mm | B: 86 mm | Cr: 1360 kN | C0r: 1680 kN | m: 28.5 kg
23236-E1A-K-M + AH3236G d1: 170 mm | D: 320 mm | B: 112 mm | Cr: 1710 kN | C0r: 2340 kN | m: 37 kg
23236-E1-K-TVPB + AH3236G d1: 170 mm | D: 320 mm | B: 112 mm | Cr: 1710 kN | C0r: 2340 kN | m: 36 kg
22336-K-MB + AH2336G d1: 170 mm | D: 380 mm | B: 126 mm | Cr: 1760 kN | C0r: 2360 kN | m: 66.7 kg
23038-E1A-K-M + AH3038G d1: 180 mm | D: 290 mm | B: 75 mm | Cr: 1080 kN | C0r: 1550 kN | m: 17.7 kg
23038-E1-K-TVPB + AH3038G d1: 180 mm | D: 290 mm | B: 75 mm | Cr: 1080 kN | C0r: 1550 kN | m: 16.3 kg
24038-E1-K30 + AH24038 d1: 180 mm | D: 290 mm | B: 100 mm | Cr: 1160 kN | C0r: 1860 kN | m: 23.8 kg
23138-E1A-K-M + AH3138G d1: 180 mm | D: 320 mm | B: 104 mm | Cr: 1610 kN | C0r: 2220 kN | m: 32.4 kg
23138-E1-K-TVPB + AH3138G d1: 180 mm | D: 320 mm | B: 104 mm | Cr: 1610 kN | C0r: 2220 kN | m: 30.3 kg
24138-E1-K30 + AH24138 d1: 180 mm | D: 320 mm | B: 128 mm | Cr: 1680 kN | C0r: 2550 kN | m: 41.4 kg
22238-K-MB + AH2238G d1: 180 mm | D: 340 mm | B: 92 mm | Cr: 1200 kN | C0r: 1830 kN | m: 36.2 kg
23238-B-K-MB + AH3238G d1: 180 mm | D: 340 mm | B: 120 mm | Cr: 1560 kN | C0r: 2600 kN | m: 46 kg
22338-K-MB + AH2338G d1: 180 mm | D: 400 mm | B: 132 mm | Cr: 1860 kN | C0r: 2500 kN | m: 77.3 kg
23940-S-K-MB + AH3940 d1: 190 mm | D: 280 mm | B: 60 mm | Cr: 550 kN | C0r: 1080 kN | m: 11.5 kg
23040-E1A-K-M + AH3040G d1: 190 mm | D: 310 mm | B: 82 mm | Cr: 1270 kN | C0r: 1800 kN | m: 21.4 kg
23040-E1-K-TVPB + AH3040G d1: 190 mm | D: 310 mm | B: 82 mm | Cr: 1270 kN | C0r: 1800 kN | m: 20.8 kg
24040-E1-K30 + AH24040 d1: 190 mm | D: 310 mm | B: 109 mm | Cr: 1350 kN | C0r: 2150 kN | m: 30.3 kg
23140-B-K-MB + AH3140 d1: 190 mm | D: 340 mm | B: 112 mm | Cr: 1320 kN | C0r: 2280 kN | m: 41.7 kg
24140-B-K30 + AH24140 d1: 190 mm | D: 340 mm | B: 140 mm | Cr: 1700 kN | C0r: 3000 kN | m: 51.6 kg
22240-B-K-MB + AH2240 d1: 190 mm | D: 360 mm | B: 98 mm | Cr: 1320 kN | C0r: 2000 kN | m: 42.3 kg
23240-B-K-MB + AH3240 d1: 190 mm | D: 360 mm | B: 128 mm | Cr: 1660 kN | C0r: 2750 kN | m: 55.8 kg
22340-K-MB + AH2340 d1: 190 mm | D: 420 mm | B: 138 mm | Cr: 2080 kN | C0r: 2800 kN | m: 89.5 kg
23944-S-K-MB + AH3944 d1: 200 mm | D: 300 mm | B: 60 mm | Cr: 600 kN | C0r: 1250 kN | m: 12.3 kg
23044-K-MB + AH3044G d1: 200 mm | D: 340 mm | B: 90 mm | Cr: 1100 kN | C0r: 2000 kN | m: 29.9 kg
24044-B-K30-MB + AH24044 d1: 200 mm | D: 340 mm | B: 118 mm | Cr: 1400 kN | C0r: 2700 kN | m: 38.9 kg
23144-B-K-MB + AH3144 d1: 200 mm | D: 370 mm | B: 120 mm | Cr: 1630 kN | C0r: 2900 kN | m: 52 kg
24144-B-K30 + AH24144 d1: 200 mm | D: 370 mm | B: 150 mm | Cr: 1900 kN | C0r: 3450 kN | m: 64.4 kg
22244-B-K-MB + AH2244 d1: 200 mm | D: 400 mm | B: 108 mm | Cr: 1630 kN | C0r: 2450 kN | m: 59.6 kg
23244-K-MB + AH2344 d1: 200 mm | D: 400 mm | B: 144 mm | Cr: 2040 kN | C0r: 3450 kN | m: 79 kg
22344-K-MB + AH2344 d1: 200 mm | D: 460 mm | B: 145 mm | Cr: 2320 kN | C0r: 3350 kN | m: 114 kg
23948-K-MB + AH3948 d1: 220 mm | D: 320 mm | B: 60 mm | Cr: 640 kN | C0r: 1370 kN | m: 13.4 kg
23048-K-MB + AH3048 d1: 220 mm | D: 360 mm | B: 92 mm | Cr: 1160 kN | C0r: 2200 kN | m: 31.9 kg
24048-B-K30-MB + AH24048 d1: 220 mm | D: 360 mm | B: 118 mm | Cr: 1500 kN | C0r: 2900 kN | m: 43.2 kg
23148-B-K-MB + AH3148 d1: 220 mm | D: 400 mm | B: 128 mm | Cr: 1860 kN | C0r: 3250 kN | m: 65.3 kg
24148-B-K30 + AH24148 d1: 220 mm | D: 400 mm | B: 160 mm | Cr: 2120 kN | C0r: 3900 kN | m: 78.7 kg
22248-B-K-MB + AH2248 d1: 220 mm | D: 440 mm | B: 120 mm | Cr: 1960 kN | C0r: 3050 kN | m: 81.2 kg
23248-B-K-MB + AH2348 d1: 220 mm | D: 440 mm | B: 160 mm | Cr: 2450 kN | C0r: 4250 kN | m: 105 kg
22348-K-MB + AH2348 d1: 220 mm | D: 500 mm | B: 155 mm | Cr: 2650 kN | C0r: 3900 kN | m: 145 kg
23952-K-MB + AH3952G d1: 240 mm | D: 360 mm | B: 75 mm | Cr: 930 kN | C0r: 1930 kN | m: 22.4 kg
23052-K-MB + AH3052 d1: 240 mm | D: 400 mm | B: 104 mm | Cr: 1500 kN | C0r: 2800 kN | m: 46.2 kg
24052-B-K30-MB + AH24052 d1: 240 mm | D: 400 mm | B: 140 mm | Cr: 1900 kN | C0r: 3800 kN | m: 64.5 kg
23152-K-MB + AH3152G d1: 240 mm | D: 440 mm | B: 144 mm | Cr: 2200 kN | C0r: 4000 kN | m: 89.6 kg
24152-B-K30 + AH24152 d1: 240 mm | D: 440 mm | B: 180 mm | Cr: 2700 kN | C0r: 5100 kN | m: 112 kg
22252-B-K-MB + AH2252G d1: 240 mm | D: 480 mm | B: 130 mm | Cr: 2240 kN | C0r: 3450 kN | m: 106 kg
23252-B-K-MB + AH2352G d1: 240 mm | D: 480 mm | B: 174 mm | Cr: 2900 kN | C0r: 4900 kN | m: 136 kg
22352-K-MB + AH2352G d1: 240 mm | D: 540 mm | B: 165 mm | Cr: 3000 kN | C0r: 4400 kN | m: 177 kg
23956-K-MB + AH3956G d1: 260 mm | D: 380 mm | B: 75 mm | Cr: 970 kN | C0r: 2040 kN | m: 24.7 kg
23056-B-K-MB + AH3056 d1: 260 mm | D: 420 mm | B: 106 mm | Cr: 1560 kN | C0r: 3000 kN | m: 50.3 kg
24056-B-K30-MB + AH24056 d1: 260 mm | D: 420 mm | B: 140 mm | Cr: 2000 kN | C0r: 4000 kN | m: 69.7 kg
23156-B-K-MB + AH3156G d1: 260 mm | D: 460 mm | B: 146 mm | Cr: 2360 kN | C0r: 4400 kN | m: 96.4 kg
24156-B-K30 + AH24156 d1: 260 mm | D: 460 mm | B: 180 mm | Cr: 2700 kN | C0r: 5200 kN | m: 118 kg
22256-B-K-MB + AH2256G d1: 260 mm | D: 500 mm | B: 130 mm | Cr: 2360 kN | C0r: 3650 kN | m: 110 kg
23256-K-MB + AH2356G d1: 260 mm | D: 500 mm | B: 176 mm | Cr: 3000 kN | C0r: 5300 kN | m: 153 kg
22356-K-MB + AH2356G d1: 260 mm | D: 580 mm | B: 175 mm | Cr: 3550 kN | C0r: 5400 kN | m: 224 kg
23960-B-K-MB + AH3960G d1: 280 mm | D: 420 mm | B: 90 mm | Cr: 1270 kN | C0r: 2650 kN | m: 39.1 kg
23060-K-MB + AH3060 d1: 280 mm | D: 460 mm | B: 118 mm | Cr: 1960 kN | C0r: 3650 kN | m: 72.2 kg
24060-B-K30-MB + AH24060 d1: 280 mm | D: 460 mm | B: 160 mm | Cr: 2500 kN | C0r: 5200 kN | m: 97.7 kg
23160-B-K-MB + AH3160G d1: 280 mm | D: 500 mm | B: 160 mm | Cr: 2650 kN | C0r: 4900 kN | m: 123 kg
24160-B-K30 + AH24160 d1: 280 mm | D: 500 mm | B: 200 mm | Cr: 3250 kN | C0r: 6300 kN | m: 158 kg
22260-K-MB + AH2260G d1: 280 mm | D: 540 mm | B: 140 mm | Cr: 2750 kN | C0r: 4400 kN | m: 136 kg
23260-K-MB + AH3260G d1: 280 mm | D: 540 mm | B: 192 mm | Cr: 3450 kN | C0r: 6200 kN | m: 192 kg
23964-K-MB + AH3964G d1: 300 mm | D: 440 mm | B: 90 mm | Cr: 1310 kN | C0r: 2750 kN | m: 41 kg
23064-K-MB + AH3064G d1: 300 mm | D: 480 mm | B: 121 mm | Cr: 2040 kN | C0r: 4000 kN | m: 77.1 kg
24064-B-K30-MB + AH24064 d1: 300 mm | D: 480 mm | B: 160 mm | Cr: 2600 kN | C0r: 5400 kN | m: 103 kg
23164-K-MB + AH3164G d1: 300 mm | D: 540 mm | B: 176 mm | Cr: 3200 kN | C0r: 6000 kN | m: 159 kg
24164-B-K30 + AH24164 d1: 300 mm | D: 540 mm | B: 218 mm | Cr: 3800 kN | C0r: 7350 kN | m: 197 kg
22264-K-MB + AH2264G d1: 300 mm | D: 580 mm | B: 150 mm | Cr: 3050 kN | C0r: 4900 kN | m: 166 kg
23264-K-MB + AH3264G d1: 300 mm | D: 580 mm | B: 208 mm | Cr: 3900 kN | C0r: 6950 kN | m: 229 kg
23068-K-MB + AH3068G d1: 320 mm | D: 520 mm | B: 133 mm | Cr: 2360 kN | C0r: 4550 kN | m: 101 kg
24068-B-K30-MB + AH24068 d1: 320 mm | D: 520 mm | B: 180 mm | Cr: 3100 kN | C0r: 6550 kN | m: 143 kg
23168-B-K-MB + AH3168G d1: 320 mm | D: 580 mm | B: 190 mm | Cr: 3650 kN | C0r: 6950 kN | m: 203 kg
24168-B-K30 + AH24168 d1: 320 mm | D: 580 mm | B: 243 mm | Cr: 4400 kN | C0r: 8500 kN | m: 260 kg
23268-B-K-MB + AH3268G d1: 320 mm | D: 620 mm | B: 224 mm | Cr: 4500 kN | C0r: 8150 kN | m: 291 kg
23972-K-MB + AH3972G d1: 340 mm | D: 480 mm | B: 90 mm | Cr: 1430 kN | C0r: 3200 kN | m: 45 kg
23072-K-MB + AH3072G d1: 340 mm | D: 540 mm | B: 134 mm | Cr: 2450 kN | C0r: 4800 kN | m: 107 kg
23172-K-MB + AH3172G d1: 340 mm | D: 600 mm | B: 192 mm | Cr: 3800 kN | C0r: 7350 kN | m: 217 kg
24172-B-K30 + AH24172 d1: 340 mm | D: 600 mm | B: 243 mm | Cr: 4500 kN | C0r: 9000 kN | m: 275 kg
23272-B-K-MB + AH3272G d1: 340 mm | D: 650 mm | B: 232 mm | Cr: 4900 kN | C0r: 9150 kN | m: 328 kg
23976-K-MB + AH3976G d1: 360 mm | D: 520 mm | B: 106 mm | Cr: 1760 kN | C0r: 4000 kN | m: 66.3 kg
23076-B-K-MB + AH3076G d1: 360 mm | D: 560 mm | B: 135 mm | Cr: 2550 kN | C0r: 5300 kN | m: 113 kg
24076-B-K30-MB + AH24076 d1: 360 mm | D: 560 mm | B: 180 mm | Cr: 3350 kN | C0r: 7200 kN | m: 155 kg
23176-K-MB + AH3176G d1: 360 mm | D: 620 mm | B: 194 mm | Cr: 4050 kN | C0r: 8150 kN | m: 226 kg
24176-B-K30 + AH24176 d1: 360 mm | D: 620 mm | B: 243 mm | Cr: 4650 kN | C0r: 9500 kN | m: 277 kg
23276-B-K-MB + AH3276G d1: 360 mm | D: 680 mm | B: 240 mm | Cr: 5300 kN | C0r: 9800 kN | m: 367 kg
23980-B-K-MB + AH3980G d1: 380 mm | D: 540 mm | B: 106 mm | Cr: 1830 kN | C0r: 4150 kN | m: 68.2 kg
23080-K-MB + AH3080G d1: 380 mm | D: 600 mm | B: 148 mm | Cr: 3050 kN | C0r: 6200 kN | m: 143 kg
24080-B-K30-MB + AH24080 d1: 380 mm | D: 600 mm | B: 200 mm | Cr: 3900 kN | C0r: 8500 kN | m: 196 kg
23180-B-K-MB + AH3180G d1: 380 mm | D: 650 mm | B: 200 mm | Cr: 4250 kN | C0r: 8500 kN | m: 261 kg
24180-B-K30 + AH24180 d1: 380 mm | D: 650 mm | B: 250 mm | Cr: 5100 kN | C0r: 10400 kN | m: 312 kg
23280-B-K-MB + AH3280G d1: 380 mm | D: 720 mm | B: 256 mm | Cr: 5700 kN | C0r: 10800 kN | m: 442 kg
23984-K-MB + AH3984G d1: 400 mm | D: 560 mm | B: 106 mm | Cr: 1900 kN | C0r: 4500 kN | m: 78 kg
23084-B-K-MB + AH3084G d1: 400 mm | D: 620 mm | B: 150 mm | Cr: 3150 kN | C0r: 6550 kN | m: 155 kg
24084-B-K30-MB + AH24084 d1: 400 mm | D: 620 mm | B: 200 mm | Cr: 4000 kN | C0r: 8800 kN | m: 214 kg
23184-K-MB + AH3184G d1: 400 mm | D: 700 mm | B: 224 mm | Cr: 5000 kN | C0r: 9650 kN | m: 339 kg
24184-B-K30 + AH24184 d1: 400 mm | D: 700 mm | B: 280 mm | Cr: 6200 kN | C0r: 12700 kN | m: 407 kg
23284-B-K-MB + AH3284G d1: 400 mm | D: 760 mm | B: 272 mm | Cr: 6550 kN | C0r: 12200 kN | m: 537 kg
23988-K-MB + AH3988 d1: 420 mm | D: 600 mm | B: 118 mm | Cr: 2240 kN | C0r: 5200 kN | m: 98.3 kg
23088-K-MB + AHX3088G d1: 420 mm | D: 650 mm | B: 157 mm | Cr: 3400 kN | C0r: 7100 kN | m: 177 kg
24088-B-K30-MB + AH24088 d1: 420 mm | D: 650 mm | B: 212 mm | Cr: 4300 kN | C0r: 9650 kN | m: 247 kg
23188-K-MB + AHX3188G d1: 420 mm | D: 720 mm | B: 226 mm | Cr: 5200 kN | C0r: 10400 kN | m: 378 kg
24188-B-K30 + AH24188 d1: 420 mm | D: 720 mm | B: 280 mm | Cr: 6400 kN | C0r: 13200 kN | m: 451 kg
23288-B-K-MB + AHX3288G d1: 420 mm | D: 790 mm | B: 280 mm | Cr: 7100 kN | C0r: 13400 kN | m: 586 kg
23992-B-K-MB + AH3992 d1: 440 mm | D: 620 mm | B: 118 mm | Cr: 2280 kN | C0r: 5400 kN | m: 103 kg
23092-B-K-MB + AHX3092G d1: 440 mm | D: 680 mm | B: 163 mm | Cr: 3650 kN | C0r: 7650 kN | m: 204 kg
23192-K-MB + AHX3192G d1: 440 mm | D: 760 mm | B: 240 mm | Cr: 5850 kN | C0r: 11600 kN | m: 420 kg
24192-B-K30-MB + AH24192 d1: 440 mm | D: 760 mm | B: 300 mm | Cr: 7500 kN | C0r: 15600 kN | m: 578 kg
23292-K-MB + AHX3292G d1: 440 mm | D: 830 mm | B: 296 mm | Cr: 7800 kN | C0r: 15000 kN | m: 699 kg
23996-B-K-MB + AH3996 d1: 460 mm | D: 650 mm | B: 128 mm | Cr: 2550 kN | C0r: 6000 kN | m: 121 kg
23096-K-MB + AHX3096G d1: 460 mm | D: 700 mm | B: 165 mm | Cr: 3800 kN | C0r: 8150 kN | m: 208 kg
24096-B-K30-MB + AH24096 d1: 460 mm | D: 700 mm | B: 218 mm | Cr: 4900 kN | C0r: 11200 kN | m: 289 kg
23196-K-MB + AHX3196G d1: 460 mm | D: 790 mm | B: 248 mm | Cr: 6300 kN | C0r: 12700 kN | m: 470 kg
24196-B-K30-MB + AH24196 d1: 460 mm | D: 790 mm | B: 308 mm | Cr: 8000 kN | C0r: 16600 kN | m: 700 kg
23296-K-MB + AHX3296G d1: 460 mm | D: 870 mm | B: 310 mm | Cr: 8800 kN | C0r: 17000 kN | m: 806 kg
239/500-K-MB + AH39/500 d1: 480 mm | D: 670 mm | B: 128 mm | Cr: 2600 kN | C0r: 6300 kN | m: 124 kg
230/500-B-K-MB + AHX30/500 d1: 480 mm | D: 720 mm | B: 167 mm | Cr: 3900 kN | C0r: 8500 kN | m: 219 kg
231/500-B-K-MB + AHX31/500 d1: 480 mm | D: 830 mm | B: 264 mm | Cr: 7100 kN | C0r: 14300 kN | m: 556 kg
241/500-B-K30-MB + AH241/500 d1: 480 mm | D: 830 mm | B: 325 mm | Cr: 8650 kN | C0r: 18300 kN | m: 717 kg
239/530-K-MB + AH39/530 d1: 500 mm | D: 710 mm | B: 136 mm | Cr: 2850 kN | C0r: 6800 kN | m: 146 kg
230/530-B-K-MB + AH30/530A d1: 500 mm | D: 780 mm | B: 185 mm | Cr: 4400 kN | C0r: 9500 kN | m: 291 kg
231/530-K-MB + AH31/530A d1: 500 mm | D: 870 mm | B: 272 mm | Cr: 7350 kN | C0r: 15300 kN | m: 643 kg
241/530-B-K30-MB + AH241/530 d1: 500 mm | D: 870 mm | B: 335 mm | Cr: 9500 kN | C0r: 20000 kN | m: 845 kg
239/560-B-K-MB + AH39/560 d1: 530 mm | D: 750 mm | B: 140 mm | Cr: 3100 kN | C0r: 7650 kN | m: 169 kg
230/560-B-K-MB + AH30/560A d1: 530 mm | D: 820 mm | B: 195 mm | Cr: 5100 kN | C0r: 11000 kN | m: 339 kg
231/560-K-MB + AH31/560A d1: 530 mm | D: 920 mm | B: 280 mm | Cr: 8150 kN | C0r: 16600 kN | m: 737 kg
241/560-B-K30-MB + AH241/560 d1: 530 mm | D: 920 mm | B: 355 mm | Cr: 10600 kN | C0r: 22400 kN | m: 974 kg
239/600-B-K-MB + AH39/600 d1: 570 mm | D: 800 mm | B: 150 mm | Cr: 3450 kN | C0r: 8650 kN | m: 210 kg
230/600-B-K-MB + AH30/600A d1: 570 mm | D: 870 mm | B: 200 mm | Cr: 5700 kN | C0r: 12500 kN | m: 388 kg
231/600-K-MB + AH31/600A d1: 570 mm | D: 980 mm | B: 300 mm | Cr: 9000 kN | C0r: 19300 kN | m: 901 kg
241/600-B-K30-MB + AH241/600 d1: 570 mm | D: 980 mm | B: 375 mm | Cr: 11600 kN | C0r: 26000 kN | m: 1170 kg
239/630-B-K-MB + AH39/630 d1: 600 mm | D: 850 mm | B: 165 mm | Cr: 4050 kN | C0r: 9800 kN | m: 283 kg
230/630-B-K-MB + AH30/630A d1: 600 mm | D: 920 mm | B: 212 mm | Cr: 6300 kN | C0r: 13700 kN | m: 502 kg
240/630-B-K30-MB + AH240/630 d1: 600 mm | D: 920 mm | B: 290 mm | Cr: 8000 kN | C0r: 19000 kN | m: 649 kg
241/630-B-K30-MB + AH241/630 d1: 600 mm | D: 1030 mm | B: 400 mm | Cr: 12900 kN | C0r: 29000 kN | m: 1360 kg
239/670-B-K-MB + AH39/670 d1: 630 mm | D: 900 mm | B: 170 mm | Cr: 4300 kN | C0r: 10600 kN | m: 310 kg
230/670-B-K-MB + AH30/670A d1: 630 mm | D: 980 mm | B: 230 mm | Cr: 7200 kN | C0r: 16000 kN | m: 590 kg
241/670-B-K30-MB + AH241/670 d1: 630 mm | D: 1090 mm | B: 412 mm | Cr: 14000 kN | C0r: 31500 kN | m: 1540 kg
239/710-K-MB + AH39/710 d1: 670 mm | D: 950 mm | B: 180 mm | Cr: 4800 kN | C0r: 12000 kN | m: 336 kg
230/710-B-K-MB + AH30/710A d1: 670 mm | D: 1030 mm | B: 236 mm | Cr: 7650 kN | C0r: 17000 kN | m: 650 kg
240/710-B-K30-MB + AH240/710 d1: 670 mm | D: 1030 mm | B: 315 mm | Cr: 9500 kN | C0r: 22800 kN | m: 873 kg
241/710-B-K30-MB + AH241/710 d1: 670 mm | D: 1150 mm | B: 438 mm | Cr: 15600 kN | C0r: 35500 kN | m: 1820 kg
239/750-K-MB + AH39/750 d1: 710 mm | D: 1000 mm | B: 185 mm | Cr: 5200 kN | C0r: 12900 kN | m: 394 kg
230/750-K-MB + AH30/750A d1: 710 mm | D: 1090 mm | B: 250 mm | Cr: 8500 kN | C0r: 19000 kN | m: 792 kg
240/750-B-K30-MB + AH240/750 d1: 710 mm | D: 1090 mm | B: 335 mm | Cr: 10800 kN | C0r: 26000 kN | m: 1070 kg
239/800-B-K-MB + AH39/800 d1: 750 mm | D: 1060 mm | B: 195 mm | Cr: 5850 kN | C0r: 15000 kN | m: 490 kg
230/800-K-MB + AH30/800A d1: 750 mm | D: 1150 mm | B: 258 mm | Cr: 9300 kN | C0r: 21200 kN | m: 861 kg
239/850-K-MB + AH39/850 d1: 800 mm | D: 1120 mm | B: 200 mm | Cr: 6300 kN | C0r: 16300 kN | m: 554 kg
240/850-B-K30-MB + AH240/850 d1: 800 mm | D: 1220 mm | B: 365 mm | Cr: 12900 kN | C0r: 32000 kN | m: 1420 kg
239/900-K-MB + AH39/900 d1: 850 mm | D: 1180 mm | B: 206 mm | Cr: 6550 kN | C0r: 17300 kN | m: 641 kg
Spherical Roller BearingsFAG
277 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG Spherical Roller Bearings with AH Withdrawal Sleeve

Brand FAG·Spherical Roller Bearings

Available part numbers (277)

22208-E1-K + AH308, 21308-E1-K + AH308, 22308-E1-K + AH2308, 22209-E1-K + AH309, 21309-E1-K + AH309, 22309-E1-K + AH2309, 22210-E1-K + AHX310, 21310-E1-K + AHX310, 22310-E1-K + AHX2310, 22211-E1-K + AHX311 + 267 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
22208-E1-K + AH308d1: 35 mm | D: 80 mm | B: 23 mm | Cr: 101 kN | C0r: 91 kN | m: 0.517 kg
21308-E1-K + AH308d1: 35 mm | D: 90 mm | B: 23 mm | Cr: 109 kN | C0r: 107 kN | m: 0.702 kg
22308-E1-K + AH2308d1: 35 mm | D: 90 mm | B: 33 mm | Cr: 156 kN | C0r: 149 kN | m: 1.03 kg
22209-E1-K + AH309d1: 40 mm | D: 85 mm | B: 23 mm | Cr: 104 kN | C0r: 99 kN | m: 0.577 kg
21309-E1-K + AH309d1: 40 mm | D: 100 mm | B: 25 mm | Cr: 129 kN | C0r: 130 kN | m: 0.845 kg
22309-E1-K + AH2309d1: 40 mm | D: 100 mm | B: 36 mm | Cr: 187 kN | C0r: 183 kN | m: 1.36 kg
22210-E1-K + AHX310d1: 45 mm | D: 90 mm | B: 23 mm | Cr: 109 kN | C0r: 107 kN | m: 0.608 kg
21310-E1-K + AHX310d1: 45 mm | D: 110 mm | B: 27 mm | Cr: 129 kN | C0r: 130 kN | m: 1.28 kg
22310-E1-K + AHX2310d1: 45 mm | D: 110 mm | B: 40 mm | Cr: 229 kN | C0r: 223 kN | m: 1.86 kg
22211-E1-K + AHX311d1: 50 mm | D: 100 mm | B: 25 mm | Cr: 129 kN | C0r: 130 kN | m: 0.825 kg
21311-E1-K + AHX311d1: 50 mm | D: 120 mm | B: 29 mm | Cr: 160 kN | C0r: 155 kN | m: 1.19 kg
22311-E1-K + AHX2311d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 265 kN | C0r: 260 kN | m: 2.22 kg
22311-E1-K-T41A + AHX2311d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 265 kN | C0r: 260 kN | m: 2.22 kg
22212-E1-K + AHX312d1: 55 mm | D: 110 mm | B: 28 mm | Cr: 160 kN | C0r: 155 kN | m: 1.09 kg
21312-E1-K + AHX312d1: 55 mm | D: 130 mm | B: 31 mm | Cr: 211 kN | C0r: 226 kN | m: 1.78 kg
22312-E1-K + AHX2312d1: 55 mm | D: 130 mm | B: 46 mm | Cr: 310 kN | C0r: 310 kN | m: 2.83 kg
22312-E1-K-T41A + AHX2312d1: 55 mm | D: 130 mm | B: 46 mm | Cr: 310 kN | C0r: 310 kN | m: 2.83 kg
22213-E1-K + AH313Gd1: 60 mm | D: 120 mm | B: 31 mm | Cr: 202 kN | C0r: 210 kN | m: 1.52 kg
21313-E1-K + AH313Gd1: 60 mm | D: 140 mm | B: 33 mm | Cr: 249 kN | C0r: 270 kN | m: 2.42 kg
22313-E1-K + AH2313Gd1: 60 mm | D: 140 mm | B: 48 mm | Cr: 350 kN | C0r: 365 kN | m: 3.49 kg
22313-E1-K-T41A + AH2313Gd1: 60 mm | D: 140 mm | B: 48 mm | Cr: 350 kN | C0r: 365 kN | m: 3.49 kg
22214-E1-K + AH314Gd1: 65 mm | D: 125 mm | B: 31 mm | Cr: 211 kN | C0r: 226 kN | m: 1.61 kg
21314-E1-K + AH314Gd1: 65 mm | D: 150 mm | B: 35 mm | Cr: 249 kN | C0r: 270 kN | m: 3 kg
22314-E1-K + AHX2314Gd1: 65 mm | D: 150 mm | B: 51 mm | Cr: 390 kN | C0r: 390 kN | m: 4.12 kg
22314-E1-K-T41A + AHX2314Gd1: 65 mm | D: 150 mm | B: 51 mm | Cr: 390 kN | C0r: 390 kN | m: 4.12 kg
22215-E1-K + AH315Gd1: 70 mm | D: 130 mm | B: 31 mm | Cr: 216 kN | C0r: 236 kN | m: 1.68 kg
21315-E1-K + AH315Gd1: 70 mm | D: 160 mm | B: 37 mm | Cr: 305 kN | C0r: 325 kN | m: 2.86 kg
22315-E1-K + AHX2315Gd1: 70 mm | D: 160 mm | B: 55 mm | Cr: 445 kN | C0r: 450 kN | m: 5.06 kg
22315-E1-K-T41A + AHX2315Gd1: 70 mm | D: 160 mm | B: 55 mm | Cr: 445 kN | C0r: 450 kN | m: 5.06 kg
22216-E1-K + AH316d1: 75 mm | D: 140 mm | B: 33 mm | Cr: 249 kN | C0r: 270 kN | m: 2.08 kg
21316-E1-K + AH316d1: 75 mm | D: 170 mm | B: 39 mm | Cr: 305 kN | C0r: 325 kN | m: 2.65 kg
22316-E1-K + AHX2316d1: 75 mm | D: 170 mm | B: 58 mm | Cr: 495 kN | C0r: 510 kN | m: 6.05 kg
22316-E1-K-T41A + AHX2316d1: 75 mm | D: 170 mm | B: 58 mm | Cr: 495 kN | C0r: 510 kN | m: 6.05 kg
22217-E1-K + AHX317d1: 80 mm | D: 150 mm | B: 36 mm | Cr: 305 kN | C0r: 325 kN | m: 2.59 kg
21317-E1-K + AHX317d1: 80 mm | D: 180 mm | B: 41 mm | Cr: 345 kN | C0r: 375 kN | m: 5.37 kg
22317-E1-K + AHX2317d1: 80 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 560 kN | m: 7.06 kg
22317-E1-K-T41A + AHX2317d1: 80 mm | D: 180 mm | B: 60 mm | Cr: 540 kN | C0r: 560 kN | m: 7.06 kg
22218-E1-K + AHX318d1: 85 mm | D: 160 mm | B: 40 mm | Cr: 345 kN | C0r: 375 kN | m: 3.35 kg
23218-E1A-K-M + AHX3218d1: 85 mm | D: 160 mm | B: 52.4 mm | Cr: 445 kN | C0r: 520 kN | m: 4.34 kg
23218-E1-K-TVPB + AHX3218d1: 85 mm | D: 160 mm | B: 52.4 mm | Cr: 445 kN | C0r: 520 kN | m: 4.08 kg
21318-E1-K + AHX318d1: 85 mm | D: 190 mm | B: 43 mm | Cr: 380 kN | C0r: 415 kN | m: 6.26 kg
22318-E1-K + AHX2318d1: 85 mm | D: 190 mm | B: 64 mm | Cr: 610 kN | C0r: 630 kN | m: 8.33 kg
22318-E1-K-T41A + AHX2318d1: 85 mm | D: 190 mm | B: 64 mm | Cr: 610 kN | C0r: 630 kN | m: 8.33 kg
22219-E1-K + AHX319d1: 90 mm | D: 170 mm | B: 43 mm | Cr: 380 kN | C0r: 415 kN | m: 4.04 kg
21319-E1-K-TVPB + AHX319d1: 90 mm | D: 200 mm | B: 45 mm | Cr: 430 kN | C0r: 460 kN | m: 6.53 kg
22319-E1-K + AHX2319d1: 90 mm | D: 200 mm | B: 67 mm | Cr: 670 kN | C0r: 700 kN | m: 9.46 kg
22319-E1-K-T41A + AHX2319d1: 90 mm | D: 200 mm | B: 67 mm | Cr: 670 kN | C0r: 700 kN | m: 9.46 kg
23120-E1A-K-M + AHX3120d1: 95 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 570 kN | m: 4.23 kg
23120-E1-K-TVPB + AHX3120d1: 95 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 570 kN | m: 4.06 kg
22220-E1-K + AHX320d1: 95 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 475 kN | m: 4.91 kg
23220-E1A-K-M + AHX3220d1: 95 mm | D: 180 mm | B: 60.3 mm | Cr: 550 kN | C0r: 660 kN | m: 6.33 kg
23220-E1-K-TVPB + AHX3220d1: 95 mm | D: 180 mm | B: 60.3 mm | Cr: 550 kN | C0r: 660 kN | m: 6.13 kg
21320-E1-K-TVPB + AHX320d1: 95 mm | D: 215 mm | B: 47 mm | Cr: 495 kN | C0r: 530 kN | m: 8.08 kg
22320-E1-K + AHX2320d1: 95 mm | D: 215 mm | B: 73 mm | Cr: 810 kN | C0r: 920 kN | m: 13.1 kg
22320-E1-K-T41A + AHX2320d1: 95 mm | D: 215 mm | B: 73 mm | Cr: 810 kN | C0r: 920 kN | m: 13.1 kg
23122-E1A-K-M + AHX3122d1: 105 mm | D: 180 mm | B: 56 mm | Cr: 530 kN | C0r: 680 kN | m: 5.1 kg
23122-E1-K-TVPB + AHX3122d1: 105 mm | D: 180 mm | B: 56 mm | Cr: 530 kN | C0r: 680 kN | m: 4.95 kg
24122-E1-K30 + AH24122d1: 105 mm | D: 180 mm | B: 69 mm | Cr: 530 kN | C0r: 750 kN | m: 6.76 kg
22222-E1-K + AHX3122d1: 105 mm | D: 200 mm | B: 53 mm | Cr: 550 kN | C0r: 600 kN | m: 6.82 kg
23222-E1A-K-M + AHX3222Ad1: 105 mm | D: 200 mm | B: 69.8 mm | Cr: 710 kN | C0r: 870 kN | m: 9.32 kg
23222-E1-K-TVPB + AHX3222Ad1: 105 mm | D: 200 mm | B: 69.8 mm | Cr: 710 kN | C0r: 870 kN | m: 8.82 kg
21322-E1-K-TVPB + AHX322d1: 105 mm | D: 240 mm | B: 50 mm | Cr: 600 kN | C0r: 640 kN | m: 10.9 kg
22322-E1-K + AHX2322Gd1: 105 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1070 kN | m: 17.4 kg
22322-E1-K-T41A + AHX2322Gd1: 105 mm | D: 240 mm | B: 80 mm | Cr: 950 kN | C0r: 1070 kN | m: 17.4 kg
23024-E1A-K-M + AHX3024d1: 115 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 580 kN | m: 4.09 kg
23024-E1-K-TVPB + AHX3024d1: 115 mm | D: 180 mm | B: 46 mm | Cr: 430 kN | C0r: 580 kN | m: 3.67 kg
23124-E1A-K-M + AHX3124d1: 115 mm | D: 200 mm | B: 62 mm | Cr: 630 kN | C0r: 800 kN | m: 7.57 kg
23124-E1-K-TVPB + AHX3124d1: 115 mm | D: 200 mm | B: 62 mm | Cr: 630 kN | C0r: 800 kN | m: 7.06 kg
22224-E1-K + AHX3124d1: 115 mm | D: 215 mm | B: 58 mm | Cr: 640 kN | C0r: 740 kN | m: 8.84 kg
23224-E1A-K-M + AHX3224Ad1: 115 mm | D: 215 mm | B: 76 mm | Cr: 820 kN | C0r: 1020 kN | m: 11.4 kg
23224-E1-K-TVPB + AHX3224Ad1: 115 mm | D: 215 mm | B: 76 mm | Cr: 820 kN | C0r: 1020 kN | m: 11.1 kg
22324-E1-K + AHX2324Gd1: 115 mm | D: 260 mm | B: 86 mm | Cr: 1080 kN | C0r: 1170 kN | m: 22.1 kg
22324-E1-K-T41A + AHX2324Gd1: 115 mm | D: 260 mm | B: 86 mm | Cr: 1080 kN | C0r: 1170 kN | m: 22.1 kg
23026-E1A-K-M + AHX3026d1: 125 mm | D: 200 mm | B: 52 mm | Cr: 540 kN | C0r: 730 kN | m: 5.7 kg
23026-E1-K-TVPB + AHX3026d1: 125 mm | D: 200 mm | B: 52 mm | Cr: 540 kN | C0r: 730 kN | m: 5.42 kg
23126-E1A-K-M + AHX3126d1: 125 mm | D: 210 mm | B: 64 mm | Cr: 680 kN | C0r: 890 kN | m: 8.1 kg
23126-E1-K-TVPB + AHX3126d1: 125 mm | D: 210 mm | B: 64 mm | Cr: 680 kN | C0r: 890 kN | m: 7.82 kg
22226-E1-K + AHX3126d1: 125 mm | D: 230 mm | B: 64 mm | Cr: 760 kN | C0r: 890 kN | m: 10.9 kg
23226-E1A-K-M + AHX3226Gd1: 125 mm | D: 230 mm | B: 80 mm | Cr: 910 kN | C0r: 1150 kN | m: 13.6 kg
23226-E1-K-TVPB + AHX3226Gd1: 125 mm | D: 230 mm | B: 80 mm | Cr: 910 kN | C0r: 1150 kN | m: 12.6 kg
22326-E1-K + AHX2326Gd1: 125 mm | D: 280 mm | B: 93 mm | Cr: 1250 kN | C0r: 1370 kN | m: 27.4 kg
22326-E1-K-T41A + AHX2326Gd1: 125 mm | D: 280 mm | B: 93 mm | Cr: 1250 kN | C0r: 1370 kN | m: 27.4 kg
23028-E1A-K-M + AHX3028d1: 135 mm | D: 210 mm | B: 53 mm | Cr: 570 kN | C0r: 800 kN | m: 6 kg
23028-E1-K-TVPB + AHX3028Gd1: 135 mm | D: 210 mm | B: 53 mm | Cr: 570 kN | C0r: 800 kN | m: 5.81 kg
23128-E1A-K-M + AHX3128d1: 135 mm | D: 225 mm | B: 68 mm | Cr: 760 kN | C0r: 1010 kN | m: 7.78 kg
23128-E1-K-TVPB + AHX3128d1: 135 mm | D: 225 mm | B: 68 mm | Cr: 760 kN | C0r: 1010 kN | m: 9.46 kg
22228-E1-K + AHX3128d1: 135 mm | D: 250 mm | B: 68 mm | Cr: 870 kN | C0r: 1040 kN | m: 13.7 kg
23228-E1A-K-M + AHX3228Gd1: 135 mm | D: 250 mm | B: 88 mm | Cr: 1090 kN | C0r: 1400 kN | m: 17.6 kg
23228-E1-K-TVPB + AHX3228Gd1: 135 mm | D: 250 mm | B: 88 mm | Cr: 1090 kN | C0r: 1400 kN | m: 17.1 kg
22328-E1-K + AHX2328Gd1: 135 mm | D: 300 mm | B: 102 mm | Cr: 1460 kN | C0r: 1630 kN | m: 34.4 kg
22328-E1-K-T41A + AHX2328Gd1: 135 mm | D: 300 mm | B: 102 mm | Cr: 1460 kN | C0r: 1630 kN | m: 34.4 kg
23030-E1A-K-M + AHX3030d1: 145 mm | D: 225 mm | B: 56 mm | Cr: 630 kN | C0r: 880 kN | m: 7.33 kg
23030-E1-K-TVPB + AHX3030d1: 145 mm | D: 225 mm | B: 56 mm | Cr: 630 kN | C0r: 880 kN | m: 7.29 kg
24030-E1-K30 + AH24030d1: 145 mm | D: 225 mm | B: 75 mm | Cr: 680 kN | C0r: 1090 kN | m: 10.4 kg
23130-E1A-K-M + AHX3130Gd1: 145 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1330 kN | m: 15.8 kg
23130-E1-K-TVPB + AHX3130Gd1: 145 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1330 kN | m: 14.5 kg
24130-E1-K30 + AH24130d1: 145 mm | D: 250 mm | B: 100 mm | Cr: 1050 kN | C0r: 1520 kN | m: 18.8 kg
22230-E1-K + AHX3130Gd1: 145 mm | D: 270 mm | B: 73 mm | Cr: 1010 kN | C0r: 1210 kN | m: 17.8 kg
23230-E1A-K-M + AHX3230Gd1: 145 mm | D: 270 mm | B: 96 mm | Cr: 1280 kN | C0r: 1660 kN | m: 22.9 kg
23230-E1-K-TVPB + AHX3230Gd1: 145 mm | D: 270 mm | B: 96 mm | Cr: 1280 kN | C0r: 1660 kN | m: 22.3 kg
22330-E1-K + AHX2330Gd1: 145 mm | D: 320 mm | B: 108 mm | Cr: 1640 kN | C0r: 1850 kN | m: 41.2 kg
22330-E1-K-T41A + AHX2330Gd1: 145 mm | D: 320 mm | B: 108 mm | Cr: 1640 kN | C0r: 1850 kN | m: 41.2 kg
23032-E1A-K-M + AH3032d1: 150 mm | D: 240 mm | B: 60 mm | Cr: 720 kN | C0r: 1010 kN | m: 9.42 kg
23032-E1-K-TVPB + AH3032d1: 150 mm | D: 240 mm | B: 60 mm | Cr: 720 kN | C0r: 1010 kN | m: 8.67 kg
24032-E1-K30 + AH24032d1: 150 mm | D: 240 mm | B: 80 mm | Cr: 770 kN | C0r: 1240 kN | m: 12.4 kg
23132-E1A-K-M + AH3132Ad1: 150 mm | D: 270 mm | B: 86 mm | Cr: 1160 kN | C0r: 1550 kN | m: 18.6 kg
23132-E1-K-TVPB + AH3132Ad1: 150 mm | D: 270 mm | B: 86 mm | Cr: 1160 kN | C0r: 1550 kN | m: 18.4 kg
24132-E1-K30 + AH24132d1: 150 mm | D: 270 mm | B: 109 mm | Cr: 1220 kN | C0r: 1800 kN | m: 23.6 kg
22232-E1-K + AH3132Ad1: 150 mm | D: 290 mm | B: 80 mm | Cr: 1150 kN | C0r: 1400 kN | m: 22.4 kg
23232-E1A-K-M + AH3232Gd1: 150 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1910 kN | m: 28.5 kg
23232-E1-K-TVPB + AH3232Gd1: 150 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1910 kN | m: 27.7 kg
22332-K-MB + AH2332Gd1: 150 mm | D: 340 mm | B: 114 mm | Cr: 1430 kN | C0r: 1900 kN | m: 50.1 kg
23034-E1A-K-M + AH3034d1: 160 mm | D: 260 mm | B: 67 mm | Cr: 880 kN | C0r: 1230 kN | m: 12 kg
23034-E1-K-TVPB + AH3034d1: 160 mm | D: 260 mm | B: 67 mm | Cr: 870 kN | C0r: 1230 kN | m: 11.9 kg
24034-E1-K30 + AH24034d1: 160 mm | D: 260 mm | B: 90 mm | Cr: 940 kN | C0r: 1480 kN | m: 16.7 kg
23134-E1A-K-M + AH3134Ad1: 160 mm | D: 280 mm | B: 88 mm | Cr: 1220 kN | C0r: 1690 kN | m: 19.5 kg
23134-E1-K-TVPB + AH3134Ad1: 160 mm | D: 280 mm | B: 88 mm | Cr: 1220 kN | C0r: 1690 kN | m: 19.9 kg
24134-E1-K30 + AH24134d1: 160 mm | D: 280 mm | B: 109 mm | Cr: 1260 kN | C0r: 1900 kN | m: 26 kg
22234-E1-K + AH3134Ad1: 160 mm | D: 310 mm | B: 86 mm | Cr: 1320 kN | C0r: 1570 kN | m: 27.1 kg
23234-E1A-K-M + AH3234Gd1: 160 mm | D: 310 mm | B: 110 mm | Cr: 1640 kN | C0r: 2170 kN | m: 34.6 kg
23234-E1-K-TVPB + AH3234Gd1: 160 mm | D: 310 mm | B: 110 mm | Cr: 1640 kN | C0r: 2170 kN | m: 33.1 kg
22334-K-MB + AH2334Gd1: 160 mm | D: 360 mm | B: 120 mm | Cr: 1600 kN | C0r: 2120 kN | m: 56.9 kg
23936-S-K-MB + AH3936d1: 170 mm | D: 250 mm | B: 52 mm | Cr: 440 kN | C0r: 850 kN | m: 7.76 kg
23036-E1A-K-M + AH3036d1: 170 mm | D: 280 mm | B: 74 mm | Cr: 1040 kN | C0r: 1450 kN | m: 16 kg
23036-E1-K-TVPB + AH3036d1: 170 mm | D: 280 mm | B: 74 mm | Cr: 1040 kN | C0r: 1450 kN | m: 15.6 kg
24036-E1-K30 + AH24036d1: 170 mm | D: 280 mm | B: 100 mm | Cr: 1130 kN | C0r: 1770 kN | m: 22.7 kg
23136-E1A-K-M + AH3136Ad1: 170 mm | D: 300 mm | B: 96 mm | Cr: 1420 kN | C0r: 1950 kN | m: 25.5 kg
23136-E1-K-TVPB + AH3136Ad1: 170 mm | D: 300 mm | B: 96 mm | Cr: 1420 kN | C0r: 1950 kN | m: 25.9 kg
24136-E1-K30 + AH24136d1: 170 mm | D: 300 mm | B: 118 mm | Cr: 1460 kN | C0r: 2170 kN | m: 33.2 kg
22236-E1-K + AH2236Gd1: 170 mm | D: 320 mm | B: 86 mm | Cr: 1360 kN | C0r: 1680 kN | m: 28.5 kg
23236-E1A-K-M + AH3236Gd1: 170 mm | D: 320 mm | B: 112 mm | Cr: 1710 kN | C0r: 2340 kN | m: 37 kg
23236-E1-K-TVPB + AH3236Gd1: 170 mm | D: 320 mm | B: 112 mm | Cr: 1710 kN | C0r: 2340 kN | m: 36 kg
22336-K-MB + AH2336Gd1: 170 mm | D: 380 mm | B: 126 mm | Cr: 1760 kN | C0r: 2360 kN | m: 66.7 kg
23038-E1A-K-M + AH3038Gd1: 180 mm | D: 290 mm | B: 75 mm | Cr: 1080 kN | C0r: 1550 kN | m: 17.7 kg
23038-E1-K-TVPB + AH3038Gd1: 180 mm | D: 290 mm | B: 75 mm | Cr: 1080 kN | C0r: 1550 kN | m: 16.3 kg
24038-E1-K30 + AH24038d1: 180 mm | D: 290 mm | B: 100 mm | Cr: 1160 kN | C0r: 1860 kN | m: 23.8 kg
23138-E1A-K-M + AH3138Gd1: 180 mm | D: 320 mm | B: 104 mm | Cr: 1610 kN | C0r: 2220 kN | m: 32.4 kg
23138-E1-K-TVPB + AH3138Gd1: 180 mm | D: 320 mm | B: 104 mm | Cr: 1610 kN | C0r: 2220 kN | m: 30.3 kg
24138-E1-K30 + AH24138d1: 180 mm | D: 320 mm | B: 128 mm | Cr: 1680 kN | C0r: 2550 kN | m: 41.4 kg
22238-K-MB + AH2238Gd1: 180 mm | D: 340 mm | B: 92 mm | Cr: 1200 kN | C0r: 1830 kN | m: 36.2 kg
23238-B-K-MB + AH3238Gd1: 180 mm | D: 340 mm | B: 120 mm | Cr: 1560 kN | C0r: 2600 kN | m: 46 kg
22338-K-MB + AH2338Gd1: 180 mm | D: 400 mm | B: 132 mm | Cr: 1860 kN | C0r: 2500 kN | m: 77.3 kg
23940-S-K-MB + AH3940d1: 190 mm | D: 280 mm | B: 60 mm | Cr: 550 kN | C0r: 1080 kN | m: 11.5 kg
23040-E1A-K-M + AH3040Gd1: 190 mm | D: 310 mm | B: 82 mm | Cr: 1270 kN | C0r: 1800 kN | m: 21.4 kg
23040-E1-K-TVPB + AH3040Gd1: 190 mm | D: 310 mm | B: 82 mm | Cr: 1270 kN | C0r: 1800 kN | m: 20.8 kg
24040-E1-K30 + AH24040d1: 190 mm | D: 310 mm | B: 109 mm | Cr: 1350 kN | C0r: 2150 kN | m: 30.3 kg
23140-B-K-MB + AH3140d1: 190 mm | D: 340 mm | B: 112 mm | Cr: 1320 kN | C0r: 2280 kN | m: 41.7 kg
24140-B-K30 + AH24140d1: 190 mm | D: 340 mm | B: 140 mm | Cr: 1700 kN | C0r: 3000 kN | m: 51.6 kg
22240-B-K-MB + AH2240d1: 190 mm | D: 360 mm | B: 98 mm | Cr: 1320 kN | C0r: 2000 kN | m: 42.3 kg
23240-B-K-MB + AH3240d1: 190 mm | D: 360 mm | B: 128 mm | Cr: 1660 kN | C0r: 2750 kN | m: 55.8 kg
22340-K-MB + AH2340d1: 190 mm | D: 420 mm | B: 138 mm | Cr: 2080 kN | C0r: 2800 kN | m: 89.5 kg
23944-S-K-MB + AH3944d1: 200 mm | D: 300 mm | B: 60 mm | Cr: 600 kN | C0r: 1250 kN | m: 12.3 kg
23044-K-MB + AH3044Gd1: 200 mm | D: 340 mm | B: 90 mm | Cr: 1100 kN | C0r: 2000 kN | m: 29.9 kg
24044-B-K30-MB + AH24044d1: 200 mm | D: 340 mm | B: 118 mm | Cr: 1400 kN | C0r: 2700 kN | m: 38.9 kg
23144-B-K-MB + AH3144d1: 200 mm | D: 370 mm | B: 120 mm | Cr: 1630 kN | C0r: 2900 kN | m: 52 kg
24144-B-K30 + AH24144d1: 200 mm | D: 370 mm | B: 150 mm | Cr: 1900 kN | C0r: 3450 kN | m: 64.4 kg
22244-B-K-MB + AH2244d1: 200 mm | D: 400 mm | B: 108 mm | Cr: 1630 kN | C0r: 2450 kN | m: 59.6 kg
23244-K-MB + AH2344d1: 200 mm | D: 400 mm | B: 144 mm | Cr: 2040 kN | C0r: 3450 kN | m: 79 kg
22344-K-MB + AH2344d1: 200 mm | D: 460 mm | B: 145 mm | Cr: 2320 kN | C0r: 3350 kN | m: 114 kg
23948-K-MB + AH3948d1: 220 mm | D: 320 mm | B: 60 mm | Cr: 640 kN | C0r: 1370 kN | m: 13.4 kg
23048-K-MB + AH3048d1: 220 mm | D: 360 mm | B: 92 mm | Cr: 1160 kN | C0r: 2200 kN | m: 31.9 kg
24048-B-K30-MB + AH24048d1: 220 mm | D: 360 mm | B: 118 mm | Cr: 1500 kN | C0r: 2900 kN | m: 43.2 kg
23148-B-K-MB + AH3148d1: 220 mm | D: 400 mm | B: 128 mm | Cr: 1860 kN | C0r: 3250 kN | m: 65.3 kg
24148-B-K30 + AH24148d1: 220 mm | D: 400 mm | B: 160 mm | Cr: 2120 kN | C0r: 3900 kN | m: 78.7 kg
22248-B-K-MB + AH2248d1: 220 mm | D: 440 mm | B: 120 mm | Cr: 1960 kN | C0r: 3050 kN | m: 81.2 kg
23248-B-K-MB + AH2348d1: 220 mm | D: 440 mm | B: 160 mm | Cr: 2450 kN | C0r: 4250 kN | m: 105 kg
22348-K-MB + AH2348d1: 220 mm | D: 500 mm | B: 155 mm | Cr: 2650 kN | C0r: 3900 kN | m: 145 kg
23952-K-MB + AH3952Gd1: 240 mm | D: 360 mm | B: 75 mm | Cr: 930 kN | C0r: 1930 kN | m: 22.4 kg
23052-K-MB + AH3052d1: 240 mm | D: 400 mm | B: 104 mm | Cr: 1500 kN | C0r: 2800 kN | m: 46.2 kg
24052-B-K30-MB + AH24052d1: 240 mm | D: 400 mm | B: 140 mm | Cr: 1900 kN | C0r: 3800 kN | m: 64.5 kg
23152-K-MB + AH3152Gd1: 240 mm | D: 440 mm | B: 144 mm | Cr: 2200 kN | C0r: 4000 kN | m: 89.6 kg
24152-B-K30 + AH24152d1: 240 mm | D: 440 mm | B: 180 mm | Cr: 2700 kN | C0r: 5100 kN | m: 112 kg
22252-B-K-MB + AH2252Gd1: 240 mm | D: 480 mm | B: 130 mm | Cr: 2240 kN | C0r: 3450 kN | m: 106 kg
23252-B-K-MB + AH2352Gd1: 240 mm | D: 480 mm | B: 174 mm | Cr: 2900 kN | C0r: 4900 kN | m: 136 kg
22352-K-MB + AH2352Gd1: 240 mm | D: 540 mm | B: 165 mm | Cr: 3000 kN | C0r: 4400 kN | m: 177 kg
23956-K-MB + AH3956Gd1: 260 mm | D: 380 mm | B: 75 mm | Cr: 970 kN | C0r: 2040 kN | m: 24.7 kg
23056-B-K-MB + AH3056d1: 260 mm | D: 420 mm | B: 106 mm | Cr: 1560 kN | C0r: 3000 kN | m: 50.3 kg
24056-B-K30-MB + AH24056d1: 260 mm | D: 420 mm | B: 140 mm | Cr: 2000 kN | C0r: 4000 kN | m: 69.7 kg
23156-B-K-MB + AH3156Gd1: 260 mm | D: 460 mm | B: 146 mm | Cr: 2360 kN | C0r: 4400 kN | m: 96.4 kg
24156-B-K30 + AH24156d1: 260 mm | D: 460 mm | B: 180 mm | Cr: 2700 kN | C0r: 5200 kN | m: 118 kg
22256-B-K-MB + AH2256Gd1: 260 mm | D: 500 mm | B: 130 mm | Cr: 2360 kN | C0r: 3650 kN | m: 110 kg
23256-K-MB + AH2356Gd1: 260 mm | D: 500 mm | B: 176 mm | Cr: 3000 kN | C0r: 5300 kN | m: 153 kg
22356-K-MB + AH2356Gd1: 260 mm | D: 580 mm | B: 175 mm | Cr: 3550 kN | C0r: 5400 kN | m: 224 kg
23960-B-K-MB + AH3960Gd1: 280 mm | D: 420 mm | B: 90 mm | Cr: 1270 kN | C0r: 2650 kN | m: 39.1 kg
23060-K-MB + AH3060d1: 280 mm | D: 460 mm | B: 118 mm | Cr: 1960 kN | C0r: 3650 kN | m: 72.2 kg
24060-B-K30-MB + AH24060d1: 280 mm | D: 460 mm | B: 160 mm | Cr: 2500 kN | C0r: 5200 kN | m: 97.7 kg
23160-B-K-MB + AH3160Gd1: 280 mm | D: 500 mm | B: 160 mm | Cr: 2650 kN | C0r: 4900 kN | m: 123 kg
24160-B-K30 + AH24160d1: 280 mm | D: 500 mm | B: 200 mm | Cr: 3250 kN | C0r: 6300 kN | m: 158 kg
22260-K-MB + AH2260Gd1: 280 mm | D: 540 mm | B: 140 mm | Cr: 2750 kN | C0r: 4400 kN | m: 136 kg
23260-K-MB + AH3260Gd1: 280 mm | D: 540 mm | B: 192 mm | Cr: 3450 kN | C0r: 6200 kN | m: 192 kg
23964-K-MB + AH3964Gd1: 300 mm | D: 440 mm | B: 90 mm | Cr: 1310 kN | C0r: 2750 kN | m: 41 kg
23064-K-MB + AH3064Gd1: 300 mm | D: 480 mm | B: 121 mm | Cr: 2040 kN | C0r: 4000 kN | m: 77.1 kg
24064-B-K30-MB + AH24064d1: 300 mm | D: 480 mm | B: 160 mm | Cr: 2600 kN | C0r: 5400 kN | m: 103 kg
23164-K-MB + AH3164Gd1: 300 mm | D: 540 mm | B: 176 mm | Cr: 3200 kN | C0r: 6000 kN | m: 159 kg
24164-B-K30 + AH24164d1: 300 mm | D: 540 mm | B: 218 mm | Cr: 3800 kN | C0r: 7350 kN | m: 197 kg
22264-K-MB + AH2264Gd1: 300 mm | D: 580 mm | B: 150 mm | Cr: 3050 kN | C0r: 4900 kN | m: 166 kg
23264-K-MB + AH3264Gd1: 300 mm | D: 580 mm | B: 208 mm | Cr: 3900 kN | C0r: 6950 kN | m: 229 kg
23068-K-MB + AH3068Gd1: 320 mm | D: 520 mm | B: 133 mm | Cr: 2360 kN | C0r: 4550 kN | m: 101 kg
24068-B-K30-MB + AH24068d1: 320 mm | D: 520 mm | B: 180 mm | Cr: 3100 kN | C0r: 6550 kN | m: 143 kg
23168-B-K-MB + AH3168Gd1: 320 mm | D: 580 mm | B: 190 mm | Cr: 3650 kN | C0r: 6950 kN | m: 203 kg
24168-B-K30 + AH24168d1: 320 mm | D: 580 mm | B: 243 mm | Cr: 4400 kN | C0r: 8500 kN | m: 260 kg
23268-B-K-MB + AH3268Gd1: 320 mm | D: 620 mm | B: 224 mm | Cr: 4500 kN | C0r: 8150 kN | m: 291 kg
23972-K-MB + AH3972Gd1: 340 mm | D: 480 mm | B: 90 mm | Cr: 1430 kN | C0r: 3200 kN | m: 45 kg
23072-K-MB + AH3072Gd1: 340 mm | D: 540 mm | B: 134 mm | Cr: 2450 kN | C0r: 4800 kN | m: 107 kg
23172-K-MB + AH3172Gd1: 340 mm | D: 600 mm | B: 192 mm | Cr: 3800 kN | C0r: 7350 kN | m: 217 kg
24172-B-K30 + AH24172d1: 340 mm | D: 600 mm | B: 243 mm | Cr: 4500 kN | C0r: 9000 kN | m: 275 kg
23272-B-K-MB + AH3272Gd1: 340 mm | D: 650 mm | B: 232 mm | Cr: 4900 kN | C0r: 9150 kN | m: 328 kg
23976-K-MB + AH3976Gd1: 360 mm | D: 520 mm | B: 106 mm | Cr: 1760 kN | C0r: 4000 kN | m: 66.3 kg
23076-B-K-MB + AH3076Gd1: 360 mm | D: 560 mm | B: 135 mm | Cr: 2550 kN | C0r: 5300 kN | m: 113 kg
24076-B-K30-MB + AH24076d1: 360 mm | D: 560 mm | B: 180 mm | Cr: 3350 kN | C0r: 7200 kN | m: 155 kg
23176-K-MB + AH3176Gd1: 360 mm | D: 620 mm | B: 194 mm | Cr: 4050 kN | C0r: 8150 kN | m: 226 kg
24176-B-K30 + AH24176d1: 360 mm | D: 620 mm | B: 243 mm | Cr: 4650 kN | C0r: 9500 kN | m: 277 kg
23276-B-K-MB + AH3276Gd1: 360 mm | D: 680 mm | B: 240 mm | Cr: 5300 kN | C0r: 9800 kN | m: 367 kg
23980-B-K-MB + AH3980Gd1: 380 mm | D: 540 mm | B: 106 mm | Cr: 1830 kN | C0r: 4150 kN | m: 68.2 kg
23080-K-MB + AH3080Gd1: 380 mm | D: 600 mm | B: 148 mm | Cr: 3050 kN | C0r: 6200 kN | m: 143 kg
24080-B-K30-MB + AH24080d1: 380 mm | D: 600 mm | B: 200 mm | Cr: 3900 kN | C0r: 8500 kN | m: 196 kg
23180-B-K-MB + AH3180Gd1: 380 mm | D: 650 mm | B: 200 mm | Cr: 4250 kN | C0r: 8500 kN | m: 261 kg
24180-B-K30 + AH24180d1: 380 mm | D: 650 mm | B: 250 mm | Cr: 5100 kN | C0r: 10400 kN | m: 312 kg
23280-B-K-MB + AH3280Gd1: 380 mm | D: 720 mm | B: 256 mm | Cr: 5700 kN | C0r: 10800 kN | m: 442 kg
23984-K-MB + AH3984Gd1: 400 mm | D: 560 mm | B: 106 mm | Cr: 1900 kN | C0r: 4500 kN | m: 78 kg
23084-B-K-MB + AH3084Gd1: 400 mm | D: 620 mm | B: 150 mm | Cr: 3150 kN | C0r: 6550 kN | m: 155 kg
24084-B-K30-MB + AH24084d1: 400 mm | D: 620 mm | B: 200 mm | Cr: 4000 kN | C0r: 8800 kN | m: 214 kg
23184-K-MB + AH3184Gd1: 400 mm | D: 700 mm | B: 224 mm | Cr: 5000 kN | C0r: 9650 kN | m: 339 kg
24184-B-K30 + AH24184d1: 400 mm | D: 700 mm | B: 280 mm | Cr: 6200 kN | C0r: 12700 kN | m: 407 kg
23284-B-K-MB + AH3284Gd1: 400 mm | D: 760 mm | B: 272 mm | Cr: 6550 kN | C0r: 12200 kN | m: 537 kg
23988-K-MB + AH3988d1: 420 mm | D: 600 mm | B: 118 mm | Cr: 2240 kN | C0r: 5200 kN | m: 98.3 kg
23088-K-MB + AHX3088Gd1: 420 mm | D: 650 mm | B: 157 mm | Cr: 3400 kN | C0r: 7100 kN | m: 177 kg
24088-B-K30-MB + AH24088d1: 420 mm | D: 650 mm | B: 212 mm | Cr: 4300 kN | C0r: 9650 kN | m: 247 kg
23188-K-MB + AHX3188Gd1: 420 mm | D: 720 mm | B: 226 mm | Cr: 5200 kN | C0r: 10400 kN | m: 378 kg
24188-B-K30 + AH24188d1: 420 mm | D: 720 mm | B: 280 mm | Cr: 6400 kN | C0r: 13200 kN | m: 451 kg
23288-B-K-MB + AHX3288Gd1: 420 mm | D: 790 mm | B: 280 mm | Cr: 7100 kN | C0r: 13400 kN | m: 586 kg
23992-B-K-MB + AH3992d1: 440 mm | D: 620 mm | B: 118 mm | Cr: 2280 kN | C0r: 5400 kN | m: 103 kg
23092-B-K-MB + AHX3092Gd1: 440 mm | D: 680 mm | B: 163 mm | Cr: 3650 kN | C0r: 7650 kN | m: 204 kg
23192-K-MB + AHX3192Gd1: 440 mm | D: 760 mm | B: 240 mm | Cr: 5850 kN | C0r: 11600 kN | m: 420 kg
24192-B-K30-MB + AH24192d1: 440 mm | D: 760 mm | B: 300 mm | Cr: 7500 kN | C0r: 15600 kN | m: 578 kg
23292-K-MB + AHX3292Gd1: 440 mm | D: 830 mm | B: 296 mm | Cr: 7800 kN | C0r: 15000 kN | m: 699 kg
23996-B-K-MB + AH3996d1: 460 mm | D: 650 mm | B: 128 mm | Cr: 2550 kN | C0r: 6000 kN | m: 121 kg
23096-K-MB + AHX3096Gd1: 460 mm | D: 700 mm | B: 165 mm | Cr: 3800 kN | C0r: 8150 kN | m: 208 kg
24096-B-K30-MB + AH24096d1: 460 mm | D: 700 mm | B: 218 mm | Cr: 4900 kN | C0r: 11200 kN | m: 289 kg
23196-K-MB + AHX3196Gd1: 460 mm | D: 790 mm | B: 248 mm | Cr: 6300 kN | C0r: 12700 kN | m: 470 kg
24196-B-K30-MB + AH24196d1: 460 mm | D: 790 mm | B: 308 mm | Cr: 8000 kN | C0r: 16600 kN | m: 700 kg
23296-K-MB + AHX3296Gd1: 460 mm | D: 870 mm | B: 310 mm | Cr: 8800 kN | C0r: 17000 kN | m: 806 kg
239/500-K-MB + AH39/500d1: 480 mm | D: 670 mm | B: 128 mm | Cr: 2600 kN | C0r: 6300 kN | m: 124 kg
230/500-B-K-MB + AHX30/500d1: 480 mm | D: 720 mm | B: 167 mm | Cr: 3900 kN | C0r: 8500 kN | m: 219 kg
231/500-B-K-MB + AHX31/500d1: 480 mm | D: 830 mm | B: 264 mm | Cr: 7100 kN | C0r: 14300 kN | m: 556 kg
241/500-B-K30-MB + AH241/500d1: 480 mm | D: 830 mm | B: 325 mm | Cr: 8650 kN | C0r: 18300 kN | m: 717 kg
239/530-K-MB + AH39/530d1: 500 mm | D: 710 mm | B: 136 mm | Cr: 2850 kN | C0r: 6800 kN | m: 146 kg
230/530-B-K-MB + AH30/530Ad1: 500 mm | D: 780 mm | B: 185 mm | Cr: 4400 kN | C0r: 9500 kN | m: 291 kg
231/530-K-MB + AH31/530Ad1: 500 mm | D: 870 mm | B: 272 mm | Cr: 7350 kN | C0r: 15300 kN | m: 643 kg
241/530-B-K30-MB + AH241/530d1: 500 mm | D: 870 mm | B: 335 mm | Cr: 9500 kN | C0r: 20000 kN | m: 845 kg
239/560-B-K-MB + AH39/560d1: 530 mm | D: 750 mm | B: 140 mm | Cr: 3100 kN | C0r: 7650 kN | m: 169 kg
230/560-B-K-MB + AH30/560Ad1: 530 mm | D: 820 mm | B: 195 mm | Cr: 5100 kN | C0r: 11000 kN | m: 339 kg
231/560-K-MB + AH31/560Ad1: 530 mm | D: 920 mm | B: 280 mm | Cr: 8150 kN | C0r: 16600 kN | m: 737 kg
241/560-B-K30-MB + AH241/560d1: 530 mm | D: 920 mm | B: 355 mm | Cr: 10600 kN | C0r: 22400 kN | m: 974 kg
239/600-B-K-MB + AH39/600d1: 570 mm | D: 800 mm | B: 150 mm | Cr: 3450 kN | C0r: 8650 kN | m: 210 kg
230/600-B-K-MB + AH30/600Ad1: 570 mm | D: 870 mm | B: 200 mm | Cr: 5700 kN | C0r: 12500 kN | m: 388 kg
231/600-K-MB + AH31/600Ad1: 570 mm | D: 980 mm | B: 300 mm | Cr: 9000 kN | C0r: 19300 kN | m: 901 kg
241/600-B-K30-MB + AH241/600d1: 570 mm | D: 980 mm | B: 375 mm | Cr: 11600 kN | C0r: 26000 kN | m: 1170 kg
239/630-B-K-MB + AH39/630d1: 600 mm | D: 850 mm | B: 165 mm | Cr: 4050 kN | C0r: 9800 kN | m: 283 kg
230/630-B-K-MB + AH30/630Ad1: 600 mm | D: 920 mm | B: 212 mm | Cr: 6300 kN | C0r: 13700 kN | m: 502 kg
240/630-B-K30-MB + AH240/630d1: 600 mm | D: 920 mm | B: 290 mm | Cr: 8000 kN | C0r: 19000 kN | m: 649 kg
241/630-B-K30-MB + AH241/630d1: 600 mm | D: 1030 mm | B: 400 mm | Cr: 12900 kN | C0r: 29000 kN | m: 1360 kg
239/670-B-K-MB + AH39/670d1: 630 mm | D: 900 mm | B: 170 mm | Cr: 4300 kN | C0r: 10600 kN | m: 310 kg
230/670-B-K-MB + AH30/670Ad1: 630 mm | D: 980 mm | B: 230 mm | Cr: 7200 kN | C0r: 16000 kN | m: 590 kg
241/670-B-K30-MB + AH241/670d1: 630 mm | D: 1090 mm | B: 412 mm | Cr: 14000 kN | C0r: 31500 kN | m: 1540 kg
239/710-K-MB + AH39/710d1: 670 mm | D: 950 mm | B: 180 mm | Cr: 4800 kN | C0r: 12000 kN | m: 336 kg
230/710-B-K-MB + AH30/710Ad1: 670 mm | D: 1030 mm | B: 236 mm | Cr: 7650 kN | C0r: 17000 kN | m: 650 kg
240/710-B-K30-MB + AH240/710d1: 670 mm | D: 1030 mm | B: 315 mm | Cr: 9500 kN | C0r: 22800 kN | m: 873 kg
241/710-B-K30-MB + AH241/710d1: 670 mm | D: 1150 mm | B: 438 mm | Cr: 15600 kN | C0r: 35500 kN | m: 1820 kg
239/750-K-MB + AH39/750d1: 710 mm | D: 1000 mm | B: 185 mm | Cr: 5200 kN | C0r: 12900 kN | m: 394 kg
230/750-K-MB + AH30/750Ad1: 710 mm | D: 1090 mm | B: 250 mm | Cr: 8500 kN | C0r: 19000 kN | m: 792 kg
240/750-B-K30-MB + AH240/750d1: 710 mm | D: 1090 mm | B: 335 mm | Cr: 10800 kN | C0r: 26000 kN | m: 1070 kg
239/800-B-K-MB + AH39/800d1: 750 mm | D: 1060 mm | B: 195 mm | Cr: 5850 kN | C0r: 15000 kN | m: 490 kg
230/800-K-MB + AH30/800Ad1: 750 mm | D: 1150 mm | B: 258 mm | Cr: 9300 kN | C0r: 21200 kN | m: 861 kg
239/850-K-MB + AH39/850d1: 800 mm | D: 1120 mm | B: 200 mm | Cr: 6300 kN | C0r: 16300 kN | m: 554 kg
240/850-B-K30-MB + AH240/850d1: 800 mm | D: 1220 mm | B: 365 mm | Cr: 12900 kN | C0r: 32000 kN | m: 1420 kg
239/900-K-MB + AH39/900d1: 850 mm | D: 1180 mm | B: 206 mm | Cr: 6550 kN | C0r: 17300 kN | m: 641 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
