FAG Split Cylindrical Roller Bearings for Rolling Mill Drive Shafts

FAG Split Cylindrical Roller Bearings for Rolling Mill Drive Shafts

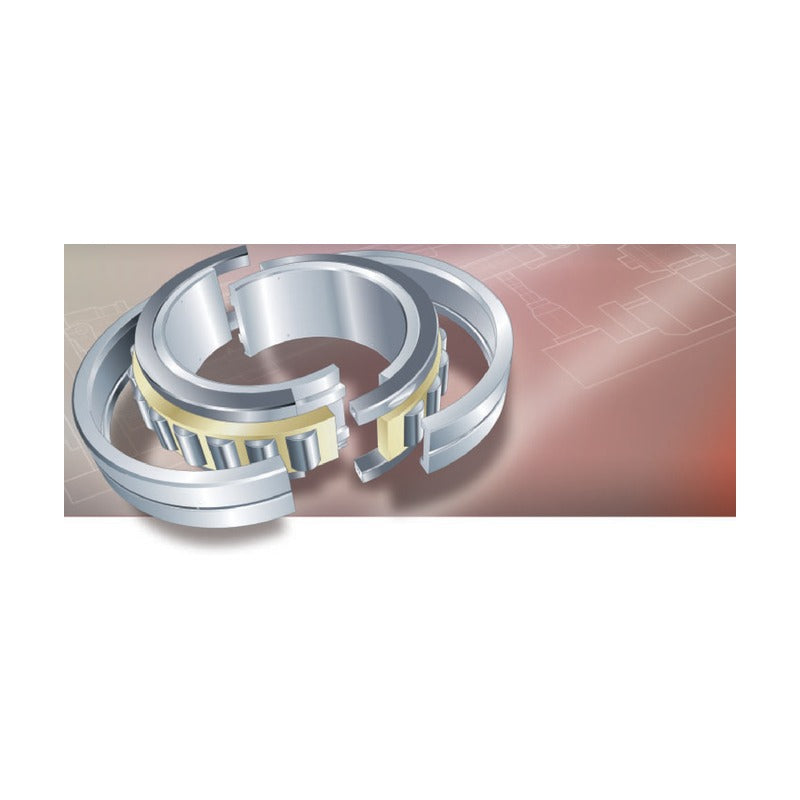

FAG split cylindrical roller bearings, single and double row, for supporting universal joint drive shafts of rolling mill work rolls. Split rings allow mounting without removing the drive shaft; bore 279.4 to 820 mm.

Key features

  • Split inner and outer rings for radial mounting on the drive shaft
  • Single row (designs 1, 1L) and double row (designs 2, 2L) versions for locating and floating positions
  • Rings and rollers of case-hardening steel, insensitive to vibration and axial shock loads
  • Inner ring clamped by locking rings; recommended shaft tolerance g6 or h6, housing H6 or H7
  • Offer drawing provided on request; design may vary per designation

Specifications

Rows Single and double row
Designs 1, 1L, 2, 2L
Bore range 279.4-820 mm
Material Case-hardening steel
Shaft tolerance g6 or h6
Housing tolerance H6 or H7
Source FAG Split Cylindrical Roller Bearings for Rolling Mill Drive Shafts (TPI 157), p. 4-5
Z-533705.ZL d: 279.4 mm | D: 430 mm | B: 203.4 mm | Cr: 1460 kN | C0r: 2600 kN | Design: 1
Z-541234.ZL d: 350 mm | D: 470 mm | B: 240 mm | Cr: 1900 kN | C0r: 4750 kN | Design: 2
Z-577892.ZL d: 360 mm | D: 460 mm | B: 225 mm | Cr: 1160 kN | C0r: 2900 kN | Design: 2
Z-572885.ZL d: 400 mm | D: 615.95 mm | B: 200 mm | Cr: 2080 kN | C0r: 3750 kN | Design: 1L
Z-572886.ZL d: 400 mm | D: 615.95 mm | B: 200 mm | Cr: 2080 kN | C0r: 3750 kN | Design: 1L
Z-581006.ZL d: 440 mm | D: 600 mm | B: 420 mm | Cr: 3100 kN | C0r: 7800 kN | Design: 2
Z-579574.ZL d: 440 mm | D: 666.75 mm | B: 200 mm | Cr: 2200 kN | C0r: 4150 kN | Design: 1
Z-538563.ZL d: 450 mm | D: 600 mm | B: 275 mm | Cr: 2850 kN | C0r: 7650 kN | Design: 2
Z-527397.01.ZL d: 460 mm | D: 650 mm | B: 260 mm | Cr: 2360 kN | C0r: 4800 kN | Design: 1
F-807475.ZL d: 480 mm | D: 600 mm | B: 160 mm | Cr: 1060 kN | C0r: 2500 kN | Design: 1
F-804678.ZL d: 500 mm | D: 635 mm | B: 155 mm | Cr: 1290 kN | C0r: 2900 kN | Design: 1
Z-577893.ZL d: 500 mm | D: 635 mm | B: 310 mm | Cr: 2240 kN | C0r: 5850 kN | Design: 2
Z-545148.ZL d: 500 mm | D: 680 mm | B: 332 mm | Cr: 3200 kN | C0r: 8150 kN | Design: 2
Z-548795.ZL d: 553 mm | D: 700 mm | B: 260 mm | Cr: 2750 kN | C0r: 8150 kN | Design: 2
Z-563458.ZL d: 553 mm | D: 710 mm | B: 260 mm | Cr: 2750 kN | C0r: 8150 kN | Design: 2
Z-580869.ZL d: 560 mm | D: 680 mm | B: 142 mm | Cr: 1250 kN | C0r: 3200 kN | Design: 1
F-807125.ZL d: 560 mm | D: 730 mm | B: 460 mm | Cr: 3750 kN | C0r: 10000 kN | Design: 2
F-801807.ZL d: 580 mm | D: 750 mm | B: 515 mm | Cr: 3000 kN | C0r: 7800 kN | Design: 2
F-804627.ZL d: 580 mm | D: 750 mm | B: 257.5 mm | Cr: 1730 kN | C0r: 3900 kN | Design: 1
Z-577936.ZL d: 600 mm | D: 775 mm | B: 380 mm | Cr: 3250 kN | C0r: 9000 kN | Design: 2
F-804300.ZL d: 600 mm | D: 735 mm | B: 380 mm | Cr: 3000 kN | C0r: 8800 kN | Design: 2
Z-567618.ZL d: 610 mm | D: 775 mm | B: 190 mm | Cr: 1900 kN | C0r: 4500 kN | Design: 1
Z-572298.ZL d: 610 mm | D: 775 mm | B: 190 mm | Cr: 1900 kN | C0r: 4500 kN | Design: 1L
Z-581300.ZL d: 610 mm | D: 780 mm | B: 380 mm | Cr: 3250 kN | C0r: 9000 kN | Design: 2
Z-526783.02.ZL d: 630 mm | D: 794 mm | B: 190 mm | Cr: 1900 kN | C0r: 4650 kN | Design: 1L
Z-549642.ZL d: 630 mm | D: 794 mm | B: 190 mm | Cr: 1900 kN | C0r: 4650 kN | Design: 1
Z-568614.ZL d: 640 mm | D: 805 mm | B: 190 mm | Cr: 1960 kN | C0r: 4650 kN | Design: 1
Z-574879.ZL d: 640 mm | D: 805 mm | B: 380 mm | Cr: 3750 kN | C0r: 11000 kN | Design: 2
F-568018.ZL d: 650 mm | D: 840 mm | B: 390 mm | Cr: 4400 kN | C0r: 11800 kN | Design: 2L
Z-573047.ZL d: 650 mm | D: 940 mm | B: 320 mm | Cr: 5600 kN | C0r: 11800 kN | Design: 1
Z-573048.ZL d: 650 mm | D: 940 mm | B: 320 mm | Cr: 5600 kN | C0r: 11800 kN | Design: 1L
F-809831.ZL d: 650 mm | D: 980 mm | B: 320 mm | Cr: 5600 kN | C0r: 10400 kN | Design: 1
F-809832.ZL d: 650 mm | D: 980 mm | B: 320 mm | Cr: 5600 kN | C0r: 10400 kN | Design: 1L
F-585320.ZL d: 670 mm | D: 864 mm | B: 390 mm | Cr: 4450 kN | C0r: 11900 kN | Design: 2
Z-526784.01.ZL d: 690 mm | D: 864 mm | B: 196 mm | Cr: 2240 kN | C0r: 5400 kN | Design: 1L
Z-577902.ZL d: 690 mm | D: 864 mm | B: 390 mm | Cr: 3550 kN | C0r: 10200 kN | Design: 2
F-809613.ZL d: 710 mm | D: 880 mm | B: 380 mm | Cr: 3900 kN | C0r: 11400 kN | Design: 2
F-576544.ZL d: 710 mm | D: 890 mm | B: 370 mm | Cr: 4150 kN | C0r: 11600 kN | Design: 2
Z-578276.ZL d: 750 mm | D: 920 mm | B: 400 mm | Cr: 3900 kN | C0r: 12000 kN | Design: 2
F-580174.ZL d: 750 mm | D: 960 mm | B: 380 mm | Cr: 4500 kN | C0r: 11800 kN | Design: 2
F-801623.01.ZL d: 775 mm | D: 945 mm | B: 165 mm | Cr: 1830 kN | C0r: 4550 kN | Design: 1
F-809722.ZL d: 775 mm | D: 945 mm | B: 330 mm | Cr: 3150 kN | C0r: 9200 kN | Design: 2
F-801572.ZL d: 820 mm | D: 990 mm | B: 380 mm | Cr: 4300 kN | C0r: 14000 kN | Design: 2
