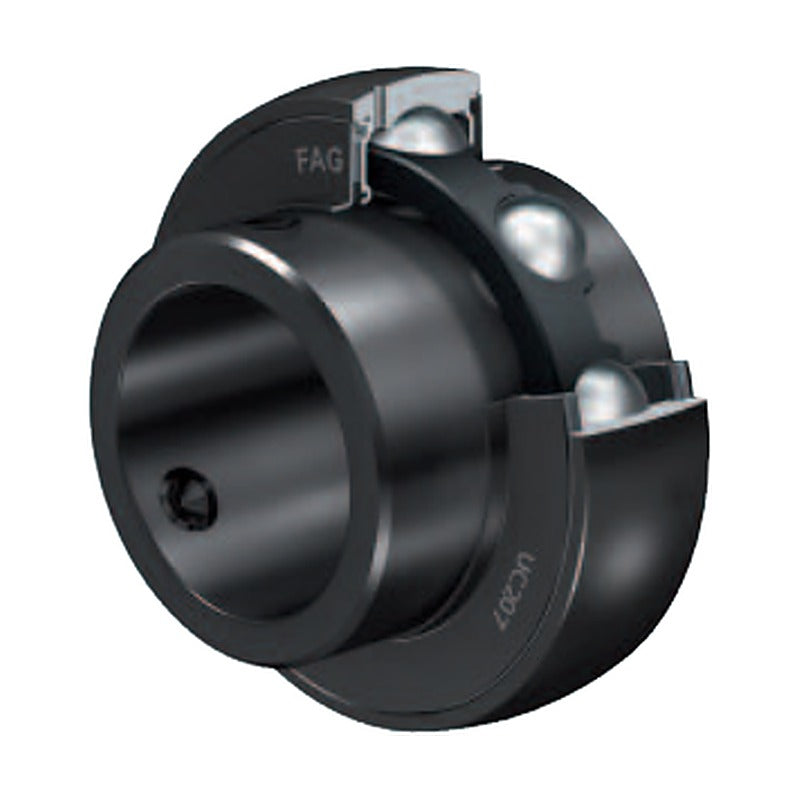

FAG UC2 Black Series Radial Insert Ball Bearings (Grub Screws)

FAG UC2 Black Series Radial Insert Ball Bearings (Grub Screws)

FAG Black Series radial insert ball bearings UC with spherical outer ring, located on the shaft by two grub screws in the extended inner ring. Available in metric and inch bore sizes for JIS housings.

Key features

  • Based on single row deep groove ball bearings 62 with solid outer ring
  • Durotect BS black coating for corrosion protection
  • RSR seals with additional flinger shields on both sides
  • Inner ring extended on both sides, located by two grub screws
  • Greased, with relubrication facility; operating range -20 to +120 C
  • Radial internal clearance C3 to JIS B 1520

Specifications

Series UC2 (sizes 201-218)
Bore Cylindrical, metric and inch
Location Two grub screws in inner ring
Outer ring Spherical
Seal RSR seal + flinger shield
Cage Polyamide PA66
Coating Durotect BS
Internal clearance C3
Source FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 16-17
UC201 d: 12 mm | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.2 kg
UC201-08 d: 12.7 mm (1/2 in) | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.2 kg
UC202-09 d: 14.29 mm (9/16 in) | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.19 kg
UC202 d: 15 mm | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.18 kg
UC202-10 d: 15.88 mm (5/8 in) | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.18 kg
UC203 d: 17 mm | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.17 kg
UC203-11 d: 17.46 mm (11/16 in) | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.17 kg
UC204-12 d: 19.05 mm (3/4 in) | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.16 kg
UC204 d: 20 mm | D: 47 mm | B: 31 mm | Cr: 13.6 kN | C0r: 6.6 kN | Mass: 0.15 kg
UC205-13 d: 20.64 mm (13/16 in) | D: 52 mm | B: 34.1 mm | Cr: 14.9 kN | C0r: 7.8 kN | Mass: 0.24 kg
UC205-14 d: 22.23 mm (7/8 in) | D: 52 mm | B: 34.1 mm | Cr: 14.9 kN | C0r: 7.8 kN | Mass: 0.22 kg
UC205-15 d: 23.81 mm (15/16 in) | D: 52 mm | B: 34.1 mm | Cr: 14.9 kN | C0r: 7.8 kN | Mass: 0.21 kg
UC205 d: 25 mm | D: 52 mm | B: 34.1 mm | Cr: 14.9 kN | C0r: 7.8 kN | Mass: 0.2 kg
UC205-16 d: 25.4 mm (1 in) | D: 52 mm | B: 34.1 mm | Cr: 14.9 kN | C0r: 7.8 kN | Mass: 0.19 kg
UC206-17 d: 26.99 mm (1-1/16 in) | D: 62 mm | B: 38.1 mm | Cr: 20.7 kN | C0r: 11.3 kN | Mass: 0.35 kg
UC206-18 d: 28.58 mm (1-1/8 in) | D: 62 mm | B: 38.1 mm | Cr: 20.7 kN | C0r: 11.3 kN | Mass: 0.33 kg
UC206 d: 30 mm | D: 62 mm | B: 38.1 mm | Cr: 20.7 kN | C0r: 11.3 kN | Mass: 0.31 kg
UC206-19 d: 30.16 mm (1-3/16 in) | D: 62 mm | B: 38.1 mm | Cr: 20.7 kN | C0r: 11.3 kN | Mass: 0.31 kg
UC206-20 d: 31.75 mm (1-1/4 in) | D: 62 mm | B: 38.1 mm | Cr: 20.7 kN | C0r: 11.3 kN | Mass: 0.29 kg
UC207-20 d: 31.75 mm (1-1/4 in) | D: 72 mm | B: 42.9 mm | Cr: 27.5 kN | C0r: 15.3 kN | Mass: 0.52 kg
UC207-21 d: 33.34 mm (1-5/16 in) | D: 72 mm | B: 42.9 mm | Cr: 27.5 kN | C0r: 15.3 kN | Mass: 0.5 kg
UC207-22 d: 34.93 mm (1-3/8 in) | D: 72 mm | B: 42.9 mm | Cr: 27.5 kN | C0r: 15.3 kN | Mass: 0.47 kg
UC207 d: 35 mm | D: 72 mm | B: 42.9 mm | Cr: 27.5 kN | C0r: 15.3 kN | Mass: 0.47 kg
UC207-23 d: 36.51 mm (1-7/16 in) | D: 72 mm | B: 42.9 mm | Cr: 27.5 kN | C0r: 15.3 kN | Mass: 0.44 kg
UC208-24 d: 38.1 mm (1-1/2 in) | D: 80 mm | B: 49.2 mm | Cr: 34.5 kN | C0r: 19.8 kN | Mass: 0.66 kg
UC208-25 d: 39.69 mm (1-9/16 in) | D: 80 mm | B: 49.2 mm | Cr: 34.5 kN | C0r: 19.8 kN | Mass: 0.63 kg
UC208 d: 40 mm | D: 80 mm | B: 49.2 mm | Cr: 34.5 kN | C0r: 19.8 kN | Mass: 0.62 kg
UC209-26 d: 41.28 mm (1-5/8 in) | D: 85 mm | B: 49.2 mm | Cr: 34.5 kN | C0r: 20.4 kN | Mass: 0.79 kg
UC209-27 d: 42.86 mm (1-11/16 in) | D: 85 mm | B: 49.2 mm | Cr: 34.5 kN | C0r: 20.4 kN | Mass: 0.75 kg
UC209-28 d: 44.45 mm (1-3/4 in) | D: 85 mm | B: 49.2 mm | Cr: 34.5 kN | C0r: 20.4 kN | Mass: 0.71 kg
UC209 d: 45 mm | D: 85 mm | B: 49.2 mm | Cr: 34.5 kN | C0r: 20.4 kN | Mass: 0.69 kg
UC210-29 d: 46.04 mm (1-13/16 in) | D: 90 mm | B: 51.6 mm | Cr: 37.5 kN | C0r: 23.2 kN | Mass: 0.92 kg
UC210-30 d: 47.63 mm (1-7/8 in) | D: 90 mm | B: 51.6 mm | Cr: 37.5 kN | C0r: 23.2 kN | Mass: 0.87 kg
UC210-31 d: 49.21 mm (1-15/16 in) | D: 90 mm | B: 51.6 mm | Cr: 37.5 kN | C0r: 23.2 kN | Mass: 0.82 kg
UC210 d: 50 mm | D: 90 mm | B: 51.6 mm | Cr: 37.5 kN | C0r: 23.2 kN | Mass: 0.8 kg
UC210-32 d: 50.8 mm (2 in) | D: 90 mm | B: 51.6 mm | Cr: 37.5 kN | C0r: 23.2 kN | Mass: 0.77 kg
UC211-32 d: 50.8 mm (2 in) | D: 100 mm | B: 55.6 mm | Cr: 46 kN | C0r: 29 kN | Mass: 1.22 kg
UC211-33 d: 52.39 mm (2-1/16 in) | D: 100 mm | B: 55.6 mm | Cr: 46 kN | C0r: 29 kN | Mass: 1.17 kg
UC211-34 d: 53.98 mm (2-1/8 in) | D: 100 mm | B: 55.6 mm | Cr: 46 kN | C0r: 29 kN | Mass: 1.11 kg
UC211 d: 55 mm | D: 100 mm | B: 55.6 mm | Cr: 46 kN | C0r: 29 kN | Mass: 1.07 kg
UC211-35 d: 55.56 mm (2-3/16 in) | D: 100 mm | B: 55.6 mm | Cr: 46 kN | C0r: 29 kN | Mass: 1.05 kg
UC212-36 d: 57.15 mm (2-1/4 in) | D: 110 mm | B: 65.1 mm | Cr: 56 kN | C0r: 36 kN | Mass: 1.62 kg
UC212-37 d: 58.74 mm (2-5/16 in) | D: 110 mm | B: 65.1 mm | Cr: 56 kN | C0r: 36 kN | Mass: 1.55 kg
UC212 d: 60 mm | D: 110 mm | B: 65.1 mm | Cr: 56 kN | C0r: 36 kN | Mass: 1.49 kg
UC212-38 d: 60.33 mm (2-3/8 in) | D: 110 mm | B: 65.1 mm | Cr: 56 kN | C0r: 36 kN | Mass: 1.48 kg
UC212-39 d: 61.91 mm (2-7/16 in) | D: 110 mm | B: 65.1 mm | Cr: 56 kN | C0r: 36 kN | Mass: 1.4 kg
UC213-40 d: 63.5 mm (2-1/2 in) | D: 120 mm | B: 65.1 mm | Cr: 61 kN | C0r: 40 kN | Mass: 1.79 kg
UC213 d: 65 mm | D: 120 mm | B: 65.1 mm | Cr: 61 kN | C0r: 40 kN | Mass: 1.72 kg
UC213-41 d: 65.09 mm (2-9/16 in) | D: 120 mm | B: 65.1 mm | Cr: 61 kN | C0r: 40 kN | Mass: 1.71 kg
UC214-42 d: 66.68 mm (2-5/8 in) | D: 125 mm | B: 74.6 mm | Cr: 66 kN | C0r: 44 kN | Mass: 2.17 kg
UC214-43 d: 68.26 mm (2-11/16 in) | D: 125 mm | B: 74.6 mm | Cr: 66 kN | C0r: 44 kN | Mass: 2.07 kg
UC214-44 d: 69.85 mm (2-3/4 in) | D: 125 mm | B: 74.6 mm | Cr: 66 kN | C0r: 44 kN | Mass: 1.97 kg
UC214 d: 70 mm | D: 125 mm | B: 74.6 mm | Cr: 66 kN | C0r: 44 kN | Mass: 1.96 kg
UC215-45 d: 71.44 mm (2-13/16 in) | D: 130 mm | B: 77.8 mm | Cr: 66 kN | C0r: 44.5 kN | Mass: 2.39 kg
UC215-46 d: 73.03 mm (2-7/8 in) | D: 130 mm | B: 77.8 mm | Cr: 66 kN | C0r: 44.5 kN | Mass: 2.28 kg
UC215-47 d: 74.61 mm (2-15/16 in) | D: 130 mm | B: 77.8 mm | Cr: 66 kN | C0r: 44.5 kN | Mass: 2.17 kg
UC215 d: 75 mm | D: 130 mm | B: 77.8 mm | Cr: 66 kN | C0r: 44.5 kN | Mass: 2.14 kg
UC215-48 d: 76.2 mm (3 in) | D: 130 mm | B: 77.8 mm | Cr: 66 kN | C0r: 44.5 kN | Mass: 2.06 kg
UC216-49 d: 77.79 mm (3-1/16 in) | D: 140 mm | B: 82.6 mm | Cr: 76 kN | C0r: 54 kN | Mass: 2.88 kg
UC216-50 d: 79.38 mm (3-1/8 in) | D: 140 mm | B: 82.6 mm | Cr: 76 kN | C0r: 54 kN | Mass: 2.76 kg
UC216 d: 80 mm | D: 140 mm | B: 82.6 mm | Cr: 76 kN | C0r: 54 kN | Mass: 2.71 kg
UC216-51 d: 80.96 mm (3-3/16 in) | D: 140 mm | B: 82.6 mm | Cr: 76 kN | C0r: 54 kN | Mass: 2.63 kg
UC217-52 d: 82.55 mm (3-1/4 in) | D: 150 mm | B: 85.7 mm | Cr: 88 kN | C0r: 64 kN | Mass: 3.62 kg
UC217-53 d: 84.14 mm (3-5/16 in) | D: 150 mm | B: 85.7 mm | Cr: 88 kN | C0r: 64 kN | Mass: 3.48 kg
UC217 d: 85 mm | D: 150 mm | B: 85.7 mm | Cr: 88 kN | C0r: 64 kN | Mass: 3.41 kg
UC217-55 d: 87.31 mm (3-7/16 in) | D: 150 mm | B: 85.7 mm | Cr: 88 kN | C0r: 64 kN | Mass: 3.2 kg
UC218-56 d: 88.9 mm (3-1/2 in) | D: 160 mm | B: 96 mm | Cr: 102 kN | C0r: 72 kN | Mass: 4.2 kg
UC218 d: 90 mm | D: 160 mm | B: 96 mm | Cr: 102 kN | C0r: 72 kN | Mass: 4.08 kg
Insert BearingsFAG
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG UC2 Black Series Radial Insert Ball Bearings (Grub Screws)

Brand FAG·Insert Bearings

Available part numbers (68)

UC201, UC201-08, UC202-09, UC202, UC202-10, UC203, UC203-11, UC204-12, UC204, UC205-13 + 58 more — see full table ↓
