FAG UCFA Black Series Swivel Take-Up Units (Grub Screw)

FAG UCFA Black Series Swivel Take-Up Units (Grub Screw)

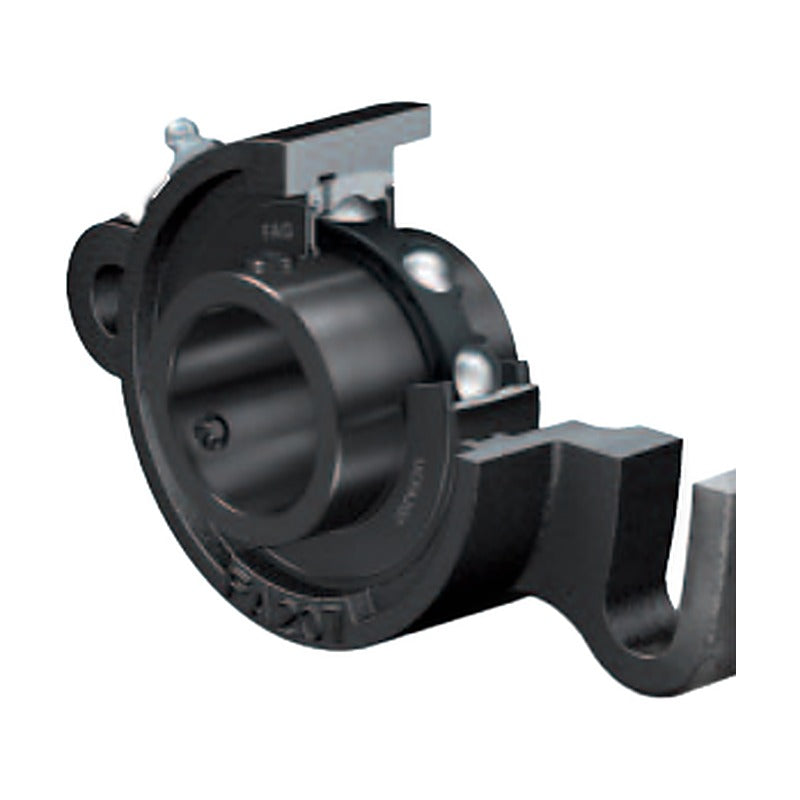

FAG Black Series take-up housing units for swivel motion, cast iron housing FA2.. and grub screw insert bearing UC. Ready-to-fit units with black-coated components, shaft 12-55.562 mm.

Key features

  • Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
  • Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
  • Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
  • Inner ring located by two grub screws; metric and inch bores
  • Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series UCFA
Housing material Flake graphite cast iron (JIS B 1559)
Housing range FA204-FA211
Insert bearing UC2.. (grub screws)
Shaft range 12-55.562 mm
Finish Two-coat black paint, Durotect BS insert
Applications Agriculture, conveying, pumps, food, textile
Source FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 60-63
UCFA201 d: 12 mm | Housing: FA204 | Insert: UC201 | Mass: 0.45 kg
UCFA201-08 d: 12.7 mm (1/2 in) | Housing: FA204 | Insert: UC201-08 | Mass: 0.44 kg
UCFA202-09 d: 14.288 mm (9/16 in) | Housing: FA204 | Insert: UC202-09 | Mass: 0.43 kg
UCFA202 d: 15 mm | Housing: FA204 | Insert: UC202 | Mass: 0.43 kg
UCFA202-10 d: 15.875 mm (5/8 in) | Housing: FA204 | Insert: UC202-10 | Mass: 0.43 kg
UCFA203 d: 17 mm | Housing: FA204 | Insert: UC203 | Mass: 0.42 kg
UCFA203-11 d: 17.462 mm (11/16 in) | Housing: FA204 | Insert: UC203-11 | Mass: 0.42 kg
UCFA204-12 d: 19.05 mm (3/4 in) | Housing: FA204 | Insert: UC204-12 | Mass: 0.41 kg
UCFA204 d: 20 mm | Housing: FA204 | Insert: UC204 | Mass: 0.41 kg
UCFA205-13 d: 20.638 mm (13/16 in) | Housing: FA205 | Insert: UC205-13 | Mass: 0.67 kg
UCFA205-14 d: 22.225 mm (7/8 in) | Housing: FA205 | Insert: UC205-14 | Mass: 0.66 kg
UCFA205-15 d: 23.812 mm (15/16 in) | Housing: FA205 | Insert: UC205-15 | Mass: 0.64 kg
UCFA205 d: 25 mm | Housing: FA205 | Insert: UC205 | Mass: 0.63 kg
UCFA205-16 d: 25.4 mm (1 in) | Housing: FA205 | Insert: UC205-16 | Mass: 0.62 kg
UCFA206-17 d: 26.988 mm (1-1/16 in) | Housing: FA206 | Insert: UC206-17 | Mass: 0.94 kg
UCFA206-18 d: 28.575 mm (1-1/8 in) | Housing: FA206 | Insert: UC206-18 | Mass: 0.92 kg
UCFA206 d: 30 mm | Housing: FA206 | Insert: UC206 | Mass: 0.9 kg
UCFA206-19 d: 30.162 mm (1-3/16 in) | Housing: FA206 | Insert: UC206-19 | Mass: 0.9 kg
UCFA206-20 d: 31.75 mm (1-1/4 in) | Housing: FA206 | Insert: UC206-20 | Mass: 0.88 kg
UCFA207-20 d: 31.75 mm (1-1/4 in) | Housing: FA207 | Insert: UC207-20 | Mass: 1.29 kg
UCFA207-21 d: 33.338 mm (1-5/16 in) | Housing: FA207 | Insert: UC207-21 | Mass: 1.26 kg
UCFA207-22 d: 34.925 mm (1-3/8 in) | Housing: FA207 | Insert: UC207-22 | Mass: 1.24 kg
UCFA207 d: 35 mm | Housing: FA207 | Insert: UC207 | Mass: 1.23 kg
UCFA207-23 d: 36.512 mm (1-7/16 in) | Housing: FA207 | Insert: UC207-23 | Mass: 1.21 kg
UCFA208-24 d: 38.1 mm (1-1/2 in) | Housing: FA208 | Insert: UC208-24 | Mass: 1.58 kg
UCFA208-25 d: 39.688 mm (1-9/16 in) | Housing: FA208 | Insert: UC208-25 | Mass: 1.54 kg
UCFA208 d: 40 mm | Housing: FA208 | Insert: UC208 | Mass: 1.53 kg
UCFA209-26 d: 41.275 mm (1-5/8 in) | Housing: FA209 | Insert: UC209-26 | Mass: 1.99 kg
UCFA209-27 d: 42.862 mm (1-11/16 in) | Housing: FA209 | Insert: UC209-27 | Mass: 1.95 kg
UCFA209-28 d: 44.45 mm (1-3/4 in) | Housing: FA209 | Insert: UC209-28 | Mass: 1.91 kg
UCFA209 d: 45 mm | Housing: FA209 | Insert: UC209 | Mass: 1.9 kg
UCFA210-29 d: 46.038 mm (1-13/16 in) | Housing: FA210 | Insert: UC210-29 | Mass: 2.2 kg
UCFA210-30 d: 47.625 mm (1-7/8 in) | Housing: FA210 | Insert: UC210-30 | Mass: 2.16 kg
UCFA210-31 d: 49.212 mm (1-15/16 in) | Housing: FA210 | Insert: UC210-31 | Mass: 2.11 kg
UCFA210 d: 50 mm | Housing: FA210 | Insert: UC210 | Mass: 2.08 kg
UCFA210-32 d: 50.8 mm (2 in) | Housing: FA210 | Insert: UC210-32 | Mass: 2.06 kg
UCFA211-32 d: 50.8 mm (2 in) | Housing: FA211 | Insert: UC211-32 | Mass: 3.1 kg
UCFA211-33 d: 52.388 mm (2-1/16 in) | Housing: FA211 | Insert: UC211-33 | Mass: 3.05 kg
UCFA211-34 d: 53.975 mm (2-1/8 in) | Housing: FA211 | Insert: UC211-34 | Mass: 2.99 kg
UCFA211 d: 55 mm | Housing: FA211 | Insert: UC211 | Mass: 2.95 kg
UCFA211-35 d: 55.562 mm (2-3/16 in) | Housing: FA211 | Insert: UC211-35 | Mass: 2.93 kg
