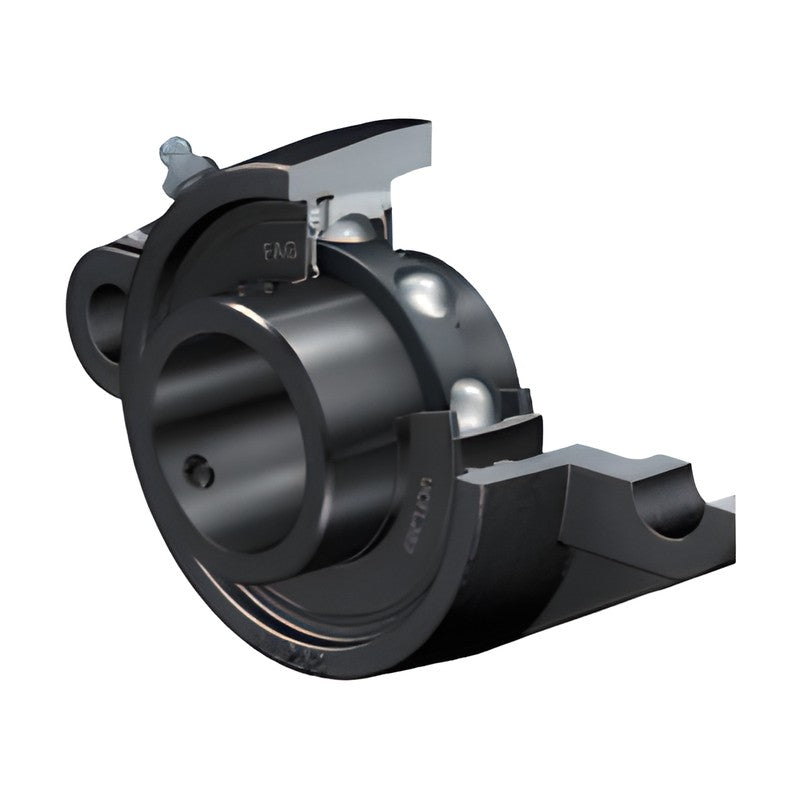

FAG UCFL Black Series Two-Bolt Oval Flanged Units (Grub Screw)

FAG UCFL Black Series Two-Bolt Oval Flanged Units (Grub Screw)

FAG Black Series two-bolt flanged housing units, oval version, cast iron housing FL2.. and grub screw insert bearing UC. Ready-to-fit units with black-coated components, shaft 12-90 mm.

Key features

  • Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
  • Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
  • Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
  • Inner ring located by two grub screws; metric and inch bores
  • Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series UCFL
Housing material Flake graphite cast iron (JIS B 1559)
Housing range FL204-FL218
Insert bearing UC2.. (grub screws)
Shaft range 12-90 mm
Finish Two-coat black paint, Durotect BS insert
Applications Agriculture, conveying, pumps, food, textile
Source FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 42-43
UCFL201 d: 12 mm | Housing: FL204 | Insert: UC201 | Mass: 0.47 kg
UCFL201-08 d: 12.7 mm (1/2 in) | Housing: FL204 | Insert: UC201-08 | Mass: 0.47 kg
UCFL202-09 d: 14.288 mm (9/16 in) | Housing: FL204 | Insert: UC202-09 | Mass: 0.47 kg
UCFL202 d: 15 mm | Housing: FL204 | Insert: UC202 | Mass: 0.46 kg
UCFL202-10 d: 15.875 mm (5/8 in) | Housing: FL204 | Insert: UC202-10 | Mass: 0.46 kg
UCFL203 d: 17 mm | Housing: FL204 | Insert: UC203 | Mass: 0.45 kg
UCFL203-11 d: 17.462 mm (11/16 in) | Housing: FL204 | Insert: UC203-11 | Mass: 0.45 kg
UCFL204-12 d: 19.05 mm (3/4 in) | Housing: FL204 | Insert: UC204-12 | Mass: 0.43 kg
UCFL204 d: 20 mm | Housing: FL204 | Insert: UC204 | Mass: 0.42 kg
UCFL205-13 d: 20.638 mm (13/16 in) | Housing: FL205 | Insert: UC205-13 | Mass: 0.68 kg
UCFL205-14 d: 22.225 mm (7/8 in) | Housing: FL205 | Insert: UC205-14 | Mass: 0.67 kg
UCFL205-15 d: 23.812 mm (15/16 in) | Housing: FL205 | Insert: UC205-15 | Mass: 0.65 kg
UCFL205 d: 25 mm | Housing: FL205 | Insert: UC205 | Mass: 0.64 kg
UCFL205-16 d: 25.4 mm (1 in) | Housing: FL205 | Insert: UC205-16 | Mass: 0.64 kg
UCFL206-17 d: 26.988 mm (1-1/16 in) | Housing: FL206 | Insert: UC206-17 | Mass: 0.92 kg
UCFL206-18 d: 28.575 mm (1-1/8 in) | Housing: FL206 | Insert: UC206-18 | Mass: 0.9 kg
UCFL206 d: 30 mm | Housing: FL206 | Insert: UC206 | Mass: 0.88 kg
UCFL206-19 d: 30.162 mm (1-3/16 in) | Housing: FL206 | Insert: UC206-19 | Mass: 0.88 kg
UCFL206-20 d: 31.75 mm (1-1/4 in) | Housing: FL206 | Insert: UC206-20 | Mass: 0.85 kg
UCFL207-20 d: 31.75 mm (1-1/4 in) | Housing: FL207 | Insert: UC207-20 | Mass: 1.27 kg
UCFL207-21 d: 33.338 mm (1-5/16 in) | Housing: FL207 | Insert: UC207-21 | Mass: 1.24 kg
UCFL207-22 d: 34.925 mm (1-3/8 in) | Housing: FL207 | Insert: UC207-22 | Mass: 1.21 kg
UCFL207 d: 35 mm | Housing: FL207 | Insert: UC207 | Mass: 1.21 kg
UCFL207-23 d: 36.512 mm (1-7/16 in) | Housing: FL207 | Insert: UC207-23 | Mass: 1.18 kg
UCFL208-24 d: 38.1 mm (1-1/2 in) | Housing: FL208 | Insert: UC208-24 | Mass: 1.53 kg
UCFL208-25 d: 39.688 mm (1-9/16 in) | Housing: FL208 | Insert: UC208-25 | Mass: 1.49 kg
UCFL208 d: 40 mm | Housing: FL208 | Insert: UC208 | Mass: 1.48 kg
UCFL209-26 d: 41.275 mm (1-5/8 in) | Housing: FL209 | Insert: UC209-26 | Mass: 2.05 kg
UCFL209-27 d: 42.862 mm (1-11/16 in) | Housing: FL209 | Insert: UC209-27 | Mass: 2.01 kg
UCFL209-28 d: 44.45 mm (1-3/4 in) | Housing: FL209 | Insert: UC209-28 | Mass: 1.97 kg
UCFL209 d: 45 mm | Housing: FL209 | Insert: UC209 | Mass: 1.95 kg
UCFL210-29 d: 46.038 mm (1-13/16 in) | Housing: FL210 | Insert: UC210-29 | Mass: 2.34 kg
UCFL210-30 d: 47.625 mm (1-7/8 in) | Housing: FL210 | Insert: UC210-30 | Mass: 2.3 kg
UCFL210-31 d: 49.212 mm (1-15/16 in) | Housing: FL210 | Insert: UC210-31 | Mass: 2.25 kg
UCFL210 d: 50 mm | Housing: FL210 | Insert: UC210 | Mass: 2.23 kg
UCFL210-32 d: 50.8 mm (2 in) | Housing: FL210 | Insert: UC210-32 | Mass: 2.2 kg
UCFL211-32 d: 50.8 mm (2 in) | Housing: FL211 | Insert: UC211-32 | Mass: 3.02 kg
UCFL211-33 d: 52.388 mm (2-1/16 in) | Housing: FL211 | Insert: UC211-33 | Mass: 2.96 kg
UCFL211-34 d: 53.975 mm (2-1/8 in) | Housing: FL211 | Insert: UC211-34 | Mass: 2.91 kg
UCFL211 d: 55 mm | Housing: FL211 | Insert: UC211 | Mass: 2.87 kg
UCFL211-35 d: 55.562 mm (2-3/16 in) | Housing: FL211 | Insert: UC211-35 | Mass: 2.85 kg
UCFL212-36 d: 57.15 mm (2-1/4 in) | Housing: FL212 | Insert: UC212-36 | Mass: 4.1 kg
UCFL212-37 d: 58.738 mm (2-5/16 in) | Housing: FL212 | Insert: UC212-37 | Mass: 4.02 kg
UCFL212 d: 60 mm | Housing: FL212 | Insert: UC212 | Mass: 3.96 kg
UCFL212-38 d: 60.325 mm (2-3/8 in) | Housing: FL212 | Insert: UC212-38 | Mass: 3.95 kg
UCFL212-39 d: 61.912 mm (2-7/16 in) | Housing: FL212 | Insert: UC212-39 | Mass: 3.87 kg
UCFL213-40 d: 63.5 mm (2-1/2 in) | Housing: FL213 | Insert: UC213-40 | Mass: 4.76 kg
UCFL213 d: 65 mm | Housing: FL213 | Insert: UC213 | Mass: 4.69 kg
UCFL213-41 d: 65.087 mm (2-9/16 in) | Housing: FL213 | Insert: UC213-41 | Mass: 4.68 kg
UCFL214-42 d: 66.675 mm (2-5/8 in) | Housing: FL214 | Insert: UC214-42 | Mass: 5.44 kg
UCFL214-43 d: 68.262 mm (2-11/16 in) | Housing: FL214 | Insert: UC214-43 | Mass: 5.34 kg
UCFL214-44 d: 69.85 mm (2-3/4 in) | Housing: FL214 | Insert: UC214-44 | Mass: 5.24 kg
UCFL214 d: 70 mm | Housing: FL214 | Insert: UC214 | Mass: 5.23 kg
UCFL215-45 d: 71.438 mm (2-13/16 in) | Housing: FL215 | Insert: UC215-45 | Mass: 5.94 kg
UCFL215-46 d: 73.025 mm (2-7/8 in) | Housing: FL215 | Insert: UC215-46 | Mass: 5.83 kg
UCFL215-47 d: 74.612 mm (2-15/16 in) | Housing: FL215 | Insert: UC215-47 | Mass: 5.72 kg
UCFL215 d: 75 mm | Housing: FL215 | Insert: UC215 | Mass: 5.69 kg
UCFL215-48 d: 76.2 mm (3 in) | Housing: FL215 | Insert: UC215-48 | Mass: 5.61 kg
UCFL216-49 d: 77.787 mm (3-1/16 in) | Housing: FL216 | Insert: UC216-49 | Mass: 7.4 kg
UCFL216-50 d: 79.375 mm (3-1/8 in) | Housing: FL216 | Insert: UC216-50 | Mass: 7.28 kg
UCFL216 d: 80 mm | Housing: FL216 | Insert: UC216 | Mass: 7.23 kg
UCFL216-51 d: 80.962 mm (3-3/16 in) | Housing: FL216 | Insert: UC216-51 | Mass: 7.15 kg
UCFL217-52 d: 82.55 mm (3-1/4 in) | Housing: FL217 | Insert: UC217-52 | Mass: 8.74 kg
UCFL217-53 d: 84.137 mm (3-5/16 in) | Housing: FL217 | Insert: UC217-53 | Mass: 8.61 kg
UCFL217 d: 85 mm | Housing: FL217 | Insert: UC217 | Mass: 8.6 kg
UCFL217-55 d: 87.312 mm (3-7/16 in) | Housing: FL217 | Insert: UC217-55 | Mass: 8.32 kg
UCFL218-56 d: 88.9 mm (3-1/2 in) | Housing: FL218 | Insert: UC218-56 | Mass: 10.5 kg
UCFL218 d: 90 mm | Housing: FL218 | Insert: UC218 | Mass: 10.39 kg
Mounted Bearing UnitsFAG
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG UCFL Black Series Two-Bolt Oval Flanged Units (Grub Screw)

Brand FAG·Mounted Bearing Units

Available part numbers (68)

UCFL201, UCFL201-08, UCFL202-09, UCFL202, UCFL202-10, UCFL203, UCFL203-11, UCFL204-12, UCFL204, UCFL205-13 + 58 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
