FAG UCPA Black Series Plummer Block Units, Short Base (Grub Screw)

FAG UCPA Black Series Plummer Block Units, Short Base (Grub Screw)

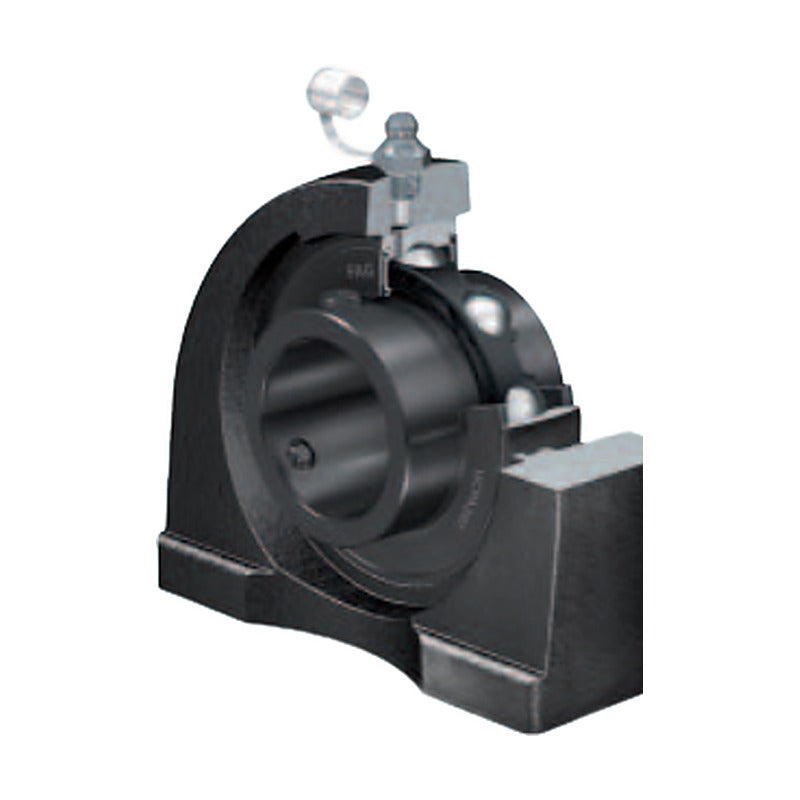

FAG Black Series plummer block housing units with short base (tapped holes), cast iron housing PA2.. and grub screw insert bearing UC. Ready-to-fit units with black-coated components, shaft 12-50.8 mm.

Key features

  • Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
  • Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
  • Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
  • Inner ring located by two grub screws; metric and inch bores
  • Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series UCPA
Housing material Flake graphite cast iron (JIS B 1559)
Housing range PA204-PA210
Insert bearing UC2.. (grub screws)
Shaft range 12-50.8 mm
Finish Two-coat black paint, Durotect BS insert
Applications Agriculture, conveying, pumps, food, textile
Source FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 40-41
UCPA201 d: 12 mm | Housing: PA204 | Insert: UC201 | Mass: 0.65 kg
UCPA201-08 d: 12.7 mm (1/2 in) | Housing: PA204 | Insert: UC201-08 | Mass: 0.65 kg
UCPA202-09 d: 14.288 mm (9/16 in) | Housing: PA204 | Insert: UC202-09 | Mass: 0.64 kg
UCPA202 d: 15 mm | Housing: PA204 | Insert: UC202 | Mass: 0.64 kg
UCPA202-10 d: 15.875 mm (5/8 in) | Housing: PA204 | Insert: UC202-10 | Mass: 0.63 kg
UCPA203 d: 17 mm | Housing: PA204 | Insert: UC203 | Mass: 0.63 kg
UCPA203-11 d: 17.462 mm (11/16 in) | Housing: PA204 | Insert: UC203-11 | Mass: 0.63 kg
UCPA204-12 d: 19.05 mm (3/4 in) | Housing: PA204 | Insert: UC204-12 | Mass: 0.62 kg
UCPA204 d: 20 mm | Housing: PA204 | Insert: UC204 | Mass: 0.61 kg
UCPA205-13 d: 20.638 mm (13/16 in) | Housing: PA205 | Insert: UC205-13 | Mass: 0.87 kg
UCPA205-14 d: 22.225 mm (7/8 in) | Housing: PA205 | Insert: UC205-14 | Mass: 0.86 kg
UCPA205-15 d: 23.812 mm (15/16 in) | Housing: PA205 | Insert: UC205-15 | Mass: 0.84 kg
UCPA205 d: 25 mm | Housing: PA205 | Insert: UC205 | Mass: 0.83 kg
UCPA205-16 d: 25.4 mm (1 in) | Housing: PA205 | Insert: UC205-16 | Mass: 0.83 kg
UCPA206-17 d: 26.988 mm (1-1/16 in) | Housing: PA206 | Insert: UC206-17 | Mass: 1.26 kg
UCPA206-18 d: 28.575 mm (1-1/8 in) | Housing: PA206 | Insert: UC206-18 | Mass: 1.24 kg
UCPA206 d: 30 mm | Housing: PA206 | Insert: UC206 | Mass: 1.22 kg
UCPA206-19 d: 30.162 mm (1-3/16 in) | Housing: PA206 | Insert: UC206-19 | Mass: 1.22 kg
UCPA206-20 d: 31.75 mm (1-1/4 in) | Housing: PA206 | Insert: UC206-20 | Mass: 1.2 kg
UCPA207-20 d: 31.75 mm (1-1/4 in) | Housing: PA207 | Insert: UC207-20 | Mass: 1.75 kg
UCPA207-21 d: 33.338 mm (1-5/16 in) | Housing: PA207 | Insert: UC207-21 | Mass: 1.73 kg
UCPA207-22 d: 34.925 mm (1-3/8 in) | Housing: PA207 | Insert: UC207-22 | Mass: 1.7 kg
UCPA207 d: 35 mm | Housing: PA207 | Insert: UC207 | Mass: 1.7 kg
UCPA207-23 d: 36.512 mm (1-7/16 in) | Housing: PA207 | Insert: UC207-23 | Mass: 1.67 kg
UCPA208-24 d: 38.1 mm (1-1/2 in) | Housing: PA208 | Insert: UC208-24 | Mass: 1.96 kg
UCPA208-25 d: 39.688 mm (1-9/16 in) | Housing: PA208 | Insert: UC208-25 | Mass: 1.92 kg
UCPA208 d: 40 mm | Housing: PA208 | Insert: UC208 | Mass: 1.91 kg
UCPA209-26 d: 41.275 mm (1-5/8 in) | Housing: PA209 | Insert: UC209-26 | Mass: 2.28 kg
UCPA209-27 d: 42.862 mm (1-11/16 in) | Housing: PA209 | Insert: UC209-27 | Mass: 2.24 kg
UCPA209-28 d: 44.45 mm (1-3/4 in) | Housing: PA209 | Insert: UC209-28 | Mass: 2.2 kg
UCPA209 d: 45 mm | Housing: PA209 | Insert: UC209 | Mass: 2.19 kg
UCPA210-29 d: 46.038 mm (1-13/16 in) | Housing: PA210 | Insert: UC210-29 | Mass: 2.9 kg
UCPA210-30 d: 47.625 mm (1-7/8 in) | Housing: PA210 | Insert: UC210-30 | Mass: 2.85 kg
UCPA210-31 d: 49.212 mm (1-15/16 in) | Housing: PA210 | Insert: UC210-31 | Mass: 2.8 kg
UCPA210 d: 50 mm | Housing: PA210 | Insert: UC210 | Mass: 2.78 kg
UCPA210-32 d: 50.8 mm (2 in) | Housing: PA210 | Insert: UC210-32 | Mass: 2.76 kg
Mounted Bearing UnitsFAG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG UCPA Black Series Plummer Block Units, Short Base (Grub Screw)

Brand FAG·Mounted Bearing Units

Available part numbers (36)

UCPA201, UCPA201-08, UCPA202-09, UCPA202, UCPA202-10, UCPA203, UCPA203-11, UCPA204-12, UCPA204, UCPA205-13 + 26 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCPA201d: 12 mm | Housing: PA204 | Insert: UC201 | Mass: 0.65 kg
UCPA201-08d: 12.7 mm (1/2 in) | Housing: PA204 | Insert: UC201-08 | Mass: 0.65 kg
UCPA202-09d: 14.288 mm (9/16 in) | Housing: PA204 | Insert: UC202-09 | Mass: 0.64 kg
UCPA202d: 15 mm | Housing: PA204 | Insert: UC202 | Mass: 0.64 kg
UCPA202-10d: 15.875 mm (5/8 in) | Housing: PA204 | Insert: UC202-10 | Mass: 0.63 kg
UCPA203d: 17 mm | Housing: PA204 | Insert: UC203 | Mass: 0.63 kg
UCPA203-11d: 17.462 mm (11/16 in) | Housing: PA204 | Insert: UC203-11 | Mass: 0.63 kg
UCPA204-12d: 19.05 mm (3/4 in) | Housing: PA204 | Insert: UC204-12 | Mass: 0.62 kg
UCPA204d: 20 mm | Housing: PA204 | Insert: UC204 | Mass: 0.61 kg
UCPA205-13d: 20.638 mm (13/16 in) | Housing: PA205 | Insert: UC205-13 | Mass: 0.87 kg
UCPA205-14d: 22.225 mm (7/8 in) | Housing: PA205 | Insert: UC205-14 | Mass: 0.86 kg
UCPA205-15d: 23.812 mm (15/16 in) | Housing: PA205 | Insert: UC205-15 | Mass: 0.84 kg
UCPA205d: 25 mm | Housing: PA205 | Insert: UC205 | Mass: 0.83 kg
UCPA205-16d: 25.4 mm (1 in) | Housing: PA205 | Insert: UC205-16 | Mass: 0.83 kg
UCPA206-17d: 26.988 mm (1-1/16 in) | Housing: PA206 | Insert: UC206-17 | Mass: 1.26 kg
UCPA206-18d: 28.575 mm (1-1/8 in) | Housing: PA206 | Insert: UC206-18 | Mass: 1.24 kg
UCPA206d: 30 mm | Housing: PA206 | Insert: UC206 | Mass: 1.22 kg
UCPA206-19d: 30.162 mm (1-3/16 in) | Housing: PA206 | Insert: UC206-19 | Mass: 1.22 kg
UCPA206-20d: 31.75 mm (1-1/4 in) | Housing: PA206 | Insert: UC206-20 | Mass: 1.2 kg
UCPA207-20d: 31.75 mm (1-1/4 in) | Housing: PA207 | Insert: UC207-20 | Mass: 1.75 kg
UCPA207-21d: 33.338 mm (1-5/16 in) | Housing: PA207 | Insert: UC207-21 | Mass: 1.73 kg
UCPA207-22d: 34.925 mm (1-3/8 in) | Housing: PA207 | Insert: UC207-22 | Mass: 1.7 kg
UCPA207d: 35 mm | Housing: PA207 | Insert: UC207 | Mass: 1.7 kg
UCPA207-23d: 36.512 mm (1-7/16 in) | Housing: PA207 | Insert: UC207-23 | Mass: 1.67 kg
UCPA208-24d: 38.1 mm (1-1/2 in) | Housing: PA208 | Insert: UC208-24 | Mass: 1.96 kg
UCPA208-25d: 39.688 mm (1-9/16 in) | Housing: PA208 | Insert: UC208-25 | Mass: 1.92 kg
UCPA208d: 40 mm | Housing: PA208 | Insert: UC208 | Mass: 1.91 kg
UCPA209-26d: 41.275 mm (1-5/8 in) | Housing: PA209 | Insert: UC209-26 | Mass: 2.28 kg
UCPA209-27d: 42.862 mm (1-11/16 in) | Housing: PA209 | Insert: UC209-27 | Mass: 2.24 kg
UCPA209-28d: 44.45 mm (1-3/4 in) | Housing: PA209 | Insert: UC209-28 | Mass: 2.2 kg
UCPA209d: 45 mm | Housing: PA209 | Insert: UC209 | Mass: 2.19 kg
UCPA210-29d: 46.038 mm (1-13/16 in) | Housing: PA210 | Insert: UC210-29 | Mass: 2.9 kg
UCPA210-30d: 47.625 mm (1-7/8 in) | Housing: PA210 | Insert: UC210-30 | Mass: 2.85 kg
UCPA210-31d: 49.212 mm (1-15/16 in) | Housing: PA210 | Insert: UC210-31 | Mass: 2.8 kg
UCPA210d: 50 mm | Housing: PA210 | Insert: UC210 | Mass: 2.78 kg
UCPA210-32d: 50.8 mm (2 in) | Housing: PA210 | Insert: UC210-32 | Mass: 2.76 kg
