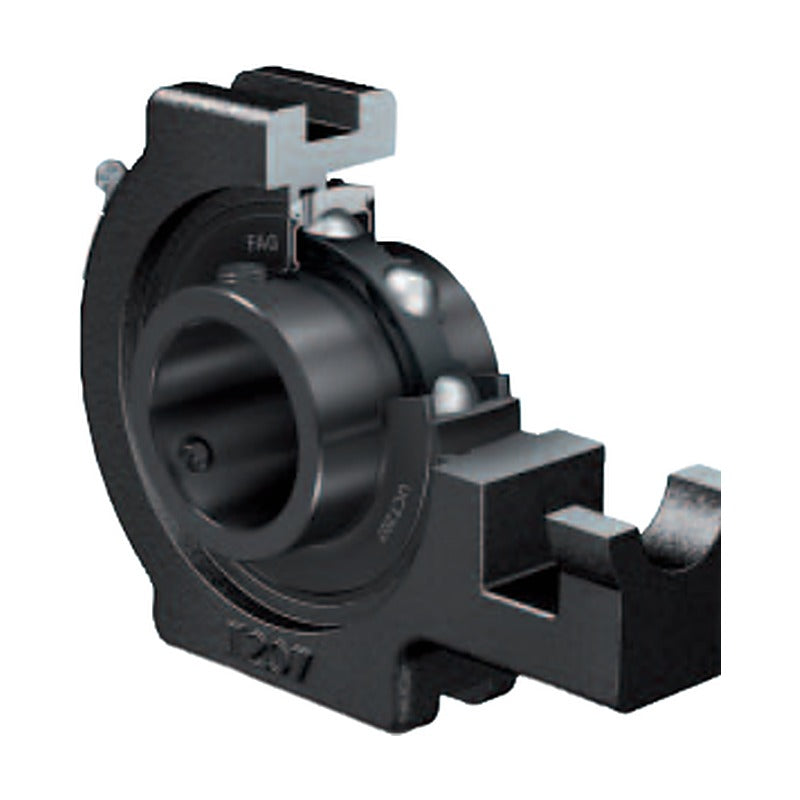

FAG UCT Black Series Take-Up Units (Grub Screw)

FAG UCT Black Series Take-Up Units (Grub Screw)

FAG Black Series take-up housing units for linear adjustment, cast iron housing T2.. and grub screw insert bearing UC. Ready-to-fit units with black-coated components, shaft 12-90 mm.

Key features

  • Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
  • Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
  • Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
  • Inner ring located by two grub screws; metric and inch bores
  • Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series UCT
Housing material Flake graphite cast iron (JIS B 1559)
Housing range T204-T218
Insert bearing UC2.. (grub screws)
Shaft range 12-90 mm
Finish Two-coat black paint, Durotect BS insert
Applications Agriculture, conveying, pumps, food, textile
Source FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 54-57
UCT201 d: 12 mm | Housing: T204 | Insert: UC201 | Mass: 0.77 kg
UCT201-08 d: 12.7 mm (1/2 in) | Housing: T204 | Insert: UC201-08 | Mass: 0.77 kg
UCT202-09 d: 14.288 mm (9/16 in) | Housing: T204 | Insert: UC202-09 | Mass: 0.76 kg
UCT202 d: 15 mm | Housing: T204 | Insert: UC202 | Mass: 0.75 kg
UCT202-10 d: 15.875 mm (5/8 in) | Housing: T204 | Insert: UC202-10 | Mass: 0.75 kg
UCT203 d: 17 mm | Housing: T204 | Insert: UC203 | Mass: 0.74 kg
UCT203-11 d: 17.463 mm (11/16 in) | Housing: T204 | Insert: UC203-11 | Mass: 0.74 kg
UCT204-12 d: 19.05 mm (3/4 in) | Housing: T204 | Insert: UC204-12 | Mass: 0.73 kg
UCT204 d: 20 mm | Housing: T204 | Insert: UC204 | Mass: 0.72 kg
UCT205-13 d: 20.638 mm (13/16 in) | Housing: T205 | Insert: UC205-13 | Mass: 0.84 kg
UCT205-14 d: 22.225 mm (7/8 in) | Housing: T205 | Insert: UC205-14 | Mass: 0.83 kg
UCT205-15 d: 23.812 mm (15/16 in) | Housing: T205 | Insert: UC205-15 | Mass: 0.81 kg
UCT205 d: 25 mm | Housing: T205 | Insert: UC205 | Mass: 0.8 kg
UCT205-16 d: 25.4 mm (1 in) | Housing: T205 | Insert: UC205-16 | Mass: 0.8 kg
UCT206-17 d: 26.988 mm (1-1/16 in) | Housing: T206 | Insert: UC206-17 | Mass: 1.27 kg
UCT206-18 d: 28.575 mm (1-1/8 in) | Housing: T206 | Insert: UC206-18 | Mass: 1.25 kg
UCT206 d: 30 mm | Housing: T206 | Insert: UC206 | Mass: 1.23 kg
UCT206-19 d: 30.162 mm (1-3/16 in) | Housing: T206 | Insert: UC206-19 | Mass: 1.23 kg
UCT206-20 d: 31.75 mm (1-1/4 in) | Housing: T206 | Insert: UC206-20 | Mass: 1.2 kg
UCT207-20 d: 31.75 mm (1-1/4 in) | Housing: T207 | Insert: UC207-20 | Mass: 1.64 kg
UCT207-21 d: 33.338 mm (1-5/16 in) | Housing: T207 | Insert: UC207-21 | Mass: 1.61 kg
UCT207-22 d: 34.925 mm (1-3/8 in) | Housing: T207 | Insert: UC207-22 | Mass: 1.58 kg
UCT207 d: 35 mm | Housing: T207 | Insert: UC207 | Mass: 1.58 kg
UCT207-23 d: 36.512 mm (1-7/16 in) | Housing: T207 | Insert: UC207-23 | Mass: 1.55 kg
UCT208-24 d: 38.1 mm (1-1/2 in) | Housing: T208 | Insert: UC208-24 | Mass: 2.36 kg
UCT208-25 d: 39.688 mm (1-9/16 in) | Housing: T208 | Insert: UC208-25 | Mass: 2.33 kg
UCT208 d: 40 mm | Housing: T208 | Insert: UC208 | Mass: 2.32 kg
UCT209-26 d: 41.275 mm (1-5/8 in) | Housing: T209 | Insert: UC209-26 | Mass: 2.46 kg
UCT209-27 d: 42.862 mm (1-11/16 in) | Housing: T209 | Insert: UC209-27 | Mass: 2.42 kg
UCT209-28 d: 44.45 mm (1-3/4 in) | Housing: T209 | Insert: UC209-28 | Mass: 2.38 kg
UCT209 d: 45 mm | Housing: T209 | Insert: UC209 | Mass: 2.37 kg
UCT210-29 d: 46.038 mm (1-13/16 in) | Housing: T210 | Insert: UC210-29 | Mass: 2.64 kg
UCT210-30 d: 47.625 mm (1-7/8 in) | Housing: T210 | Insert: UC210-30 | Mass: 2.59 kg
UCT210-31 d: 49.212 mm (1-15/16 in) | Housing: T210 | Insert: UC210-31 | Mass: 2.54 kg
UCT210 d: 50 mm | Housing: T210 | Insert: UC210 | Mass: 2.52 kg
UCT210-32 d: 50.8 mm (2 in) | Housing: T210 | Insert: UC210-32 | Mass: 2.5 kg
UCT211-32 d: 50.8 mm (2 in) | Housing: T211 | Insert: UC211-32 | Mass: 3.98 kg
UCT211-33 d: 52.388 mm (2-1/16 in) | Housing: T211 | Insert: UC211-33 | Mass: 3.93 kg
UCT211-34 d: 53.975 mm (2-1/8 in) | Housing: T211 | Insert: UC211-34 | Mass: 3.87 kg
UCT211 d: 55 mm | Housing: T211 | Insert: UC211 | Mass: 3.83 kg
UCT211-35 d: 55.562 mm (2-3/16 in) | Housing: T211 | Insert: UC211-35 | Mass: 3.81 kg
UCT212-36 d: 57.15 mm (2-1/4 in) | Housing: T212 | Insert: UC212-36 | Mass: 4.84 kg
UCT212-37 d: 58.738 mm (2-5/16 in) | Housing: T212 | Insert: UC212-37 | Mass: 4.77 kg
UCT212 d: 60 mm | Housing: T212 | Insert: UC212 | Mass: 4.71 kg
UCT212-38 d: 60.325 mm (2-3/8 in) | Housing: T212 | Insert: UC212-38 | Mass: 4.69 kg
UCT212-39 d: 61.912 mm (2-7/16 in) | Housing: T212 | Insert: UC212-39 | Mass: 4.61 kg
UCT213-40 d: 63.5 mm (2-1/2 in) | Housing: T213 | Insert: UC213-40 | Mass: 6.68 kg
UCT213 d: 65 mm | Housing: T213 | Insert: UC213 | Mass: 6.61 kg
UCT213-41 d: 65.087 mm (2-9/16 in) | Housing: T213 | Insert: UC213-41 | Mass: 6.6 kg
UCT214-42 d: 66.675 mm (2-5/8 in) | Housing: T214 | Insert: UC214-42 | Mass: 6.98 kg
UCT214-43 d: 68.262 mm (2-11/16 in) | Housing: T214 | Insert: UC214-43 | Mass: 6.88 kg
UCT214-44 d: 69.85 mm (2-3/4 in) | Housing: T214 | Insert: UC214-44 | Mass: 6.78 kg
UCT214 d: 70 mm | Housing: T214 | Insert: UC214 | Mass: 6.77 kg
UCT215-45 d: 71.438 mm (2-13/16 in) | Housing: T215 | Insert: UC215-45 | Mass: 7.45 kg
UCT215-46 d: 73.025 mm (2-7/8 in) | Housing: T215 | Insert: UC215-46 | Mass: 7.34 kg
UCT215-47 d: 74.612 mm (2-15/16 in) | Housing: T215 | Insert: UC215-47 | Mass: 7.23 kg
UCT215 d: 75 mm | Housing: T215 | Insert: UC215 | Mass: 7.2 kg
UCT215-48 d: 76.2 mm (3 in) | Housing: T215 | Insert: UC215-48 | Mass: 7.12 kg
UCT216-49 d: 77.787 mm (3-1/16 in) | Housing: T216 | Insert: UC216-49 | Mass: 8.27 kg
UCT216-50 d: 79.375 mm (3-1/8 in) | Housing: T216 | Insert: UC216-50 | Mass: 8.14 kg
UCT216 d: 80 mm | Housing: T216 | Insert: UC216 | Mass: 8.09 kg
UCT216-51 d: 80.962 mm (3-3/16 in) | Housing: T216 | Insert: UC216-51 | Mass: 8.01 kg
UCT217-52 d: 82.55 mm (3-1/4 in) | Housing: T217 | Insert: UC217-52 | Mass: 10.8 kg
UCT217-53 d: 84.137 mm (3-5/16 in) | Housing: T217 | Insert: UC217-53 | Mass: 10.7 kg
UCT217 d: 85 mm | Housing: T217 | Insert: UC217 | Mass: 10.6 kg
UCT217-55 d: 87.312 mm (3-7/16 in) | Housing: T217 | Insert: UC217-55 | Mass: 10.4 kg
UCT218-56 d: 88.9 mm (3-1/2 in) | Housing: T218 | Insert: UC218-56 | Mass: 12.37 kg
UCT218 d: 90 mm | Housing: T218 | Insert: UC218 | Mass: 12.26 kg
Mounted Bearing UnitsFAG
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG UCT Black Series Take-Up Units (Grub Screw)

Brand FAG·Mounted Bearing Units

Available part numbers (68)

UCT201, UCT201-08, UCT202-09, UCT202, UCT202-10, UCT203, UCT203-11, UCT204-12, UCT204, UCT205-13 + 58 more — see full table ↓
