FAG UK2 Black Series Radial Insert Ball Bearings (Adapter Sleeve)

FAG UK2 Black Series Radial Insert Ball Bearings (Adapter Sleeve)

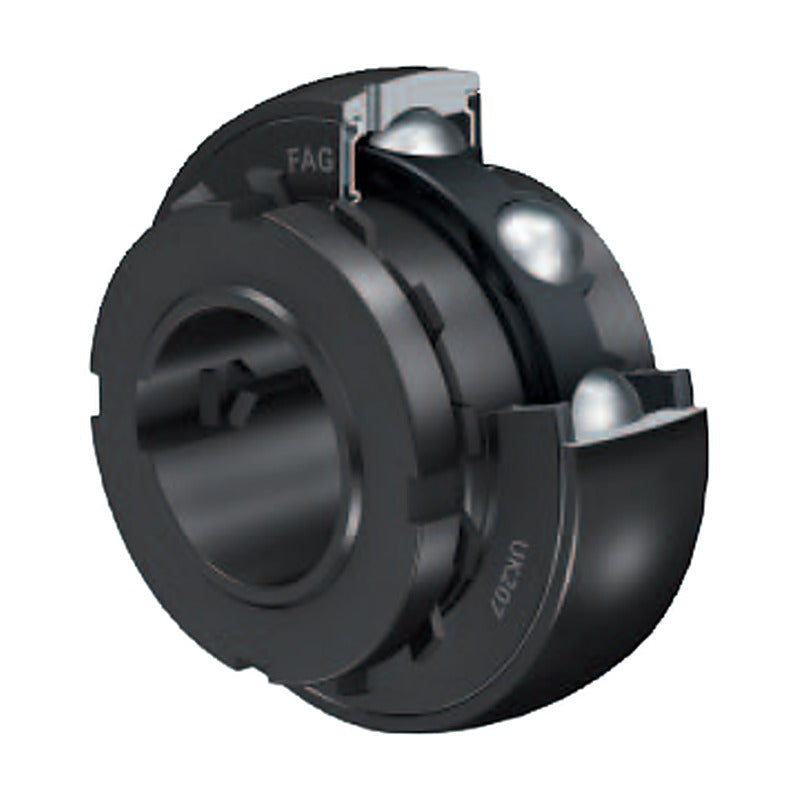

FAG Black Series radial insert ball bearings UK with tapered bore and spherical outer ring, located on the shaft by an adapter sleeve H..X. Shaft diameters 20 to 80 mm.

Key features

  • Tapered bore for mounting with adapter sleeve H23..X (supplied with the bearing)
  • Durotect BS black coating for corrosion protection
  • RSR seals with additional flinger shields on both sides
  • Spherical outer ring compensates static misalignment in concave housing bores
  • Greased, with relubrication facility

Specifications

Series UK2 (sizes 205-218)
Bore Tapered, with adapter sleeve H..X
Outer ring Spherical
Seal RSR seal + flinger shield
Coating Durotect BS
Shaft range 20-80 mm
Source FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 18
UK205 Shaft d: 20 mm | D: 52 mm | B: 23 mm | Cr: 14.9 kN | C0r: 7.8 kN | Mass: 0.25 kg
UK206 Shaft d: 25 mm | D: 62 mm | B: 26 mm | Cr: 20.7 kN | C0r: 11.3 kN | Mass: 0.37 kg
UK207 Shaft d: 30 mm | D: 72 mm | B: 29 mm | Cr: 27.5 kN | C0r: 15.3 kN | Mass: 0.54 kg
UK208 Shaft d: 35 mm | D: 80 mm | B: 31 mm | Cr: 34.5 kN | C0r: 19.8 kN | Mass: 0.7 kg
UK209 Shaft d: 40 mm | D: 85 mm | B: 32 mm | Cr: 34.5 kN | C0r: 20.4 kN | Mass: 0.83 kg
UK210 Shaft d: 45 mm | D: 90 mm | B: 34 mm | Cr: 37.5 kN | C0r: 23.2 kN | Mass: 0.98 kg
UK211 Shaft d: 50 mm | D: 100 mm | B: 36 mm | Cr: 46 kN | C0r: 29 kN | Mass: 1.24 kg
UK212 Shaft d: 55 mm | D: 110 mm | B: 40 mm | Cr: 56 kN | C0r: 36 kN | Mass: 1.58 kg
UK213 Shaft d: 60 mm | D: 120 mm | B: 41 mm | Cr: 61 kN | C0r: 40 kN | Mass: 1.88 kg
UK215 Shaft d: 65 mm | D: 130 mm | B: 44 mm | Cr: 66 kN | C0r: 44.5 kN | Mass: 2.62 kg
UK216 Shaft d: 70 mm | D: 140 mm | B: 46 mm | Cr: 76 kN | C0r: 54 kN | Mass: 3.23 kg
UK217 Shaft d: 75 mm | D: 150 mm | B: 48 mm | Cr: 88 kN | C0r: 64 kN | Mass: 3.9 kg
UK218 Shaft d: 80 mm | D: 160 mm | B: 51 mm | Cr: 102 kN | C0r: 72 kN | Mass: 4.62 kg
Insert BearingsFAG
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG UK2 Black Series Radial Insert Ball Bearings (Adapter Sleeve)

Brand FAG·Insert Bearings

Available part numbers (13)

UK205, UK206, UK207, UK208, UK209, UK210, UK211, UK212, UK213, UK215 + 3 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UK205Shaft d: 20 mm | D: 52 mm | B: 23 mm | Cr: 14.9 kN | C0r: 7.8 kN | Mass: 0.25 kg
UK206Shaft d: 25 mm | D: 62 mm | B: 26 mm | Cr: 20.7 kN | C0r: 11.3 kN | Mass: 0.37 kg
UK207Shaft d: 30 mm | D: 72 mm | B: 29 mm | Cr: 27.5 kN | C0r: 15.3 kN | Mass: 0.54 kg
UK208Shaft d: 35 mm | D: 80 mm | B: 31 mm | Cr: 34.5 kN | C0r: 19.8 kN | Mass: 0.7 kg
UK209Shaft d: 40 mm | D: 85 mm | B: 32 mm | Cr: 34.5 kN | C0r: 20.4 kN | Mass: 0.83 kg
UK210Shaft d: 45 mm | D: 90 mm | B: 34 mm | Cr: 37.5 kN | C0r: 23.2 kN | Mass: 0.98 kg
UK211Shaft d: 50 mm | D: 100 mm | B: 36 mm | Cr: 46 kN | C0r: 29 kN | Mass: 1.24 kg
UK212Shaft d: 55 mm | D: 110 mm | B: 40 mm | Cr: 56 kN | C0r: 36 kN | Mass: 1.58 kg
UK213Shaft d: 60 mm | D: 120 mm | B: 41 mm | Cr: 61 kN | C0r: 40 kN | Mass: 1.88 kg
UK215Shaft d: 65 mm | D: 130 mm | B: 44 mm | Cr: 66 kN | C0r: 44.5 kN | Mass: 2.62 kg
UK216Shaft d: 70 mm | D: 140 mm | B: 46 mm | Cr: 76 kN | C0r: 54 kN | Mass: 3.23 kg
UK217Shaft d: 75 mm | D: 150 mm | B: 48 mm | Cr: 88 kN | C0r: 64 kN | Mass: 3.9 kg
UK218Shaft d: 80 mm | D: 160 mm | B: 51 mm | Cr: 102 kN | C0r: 72 kN | Mass: 4.62 kg
