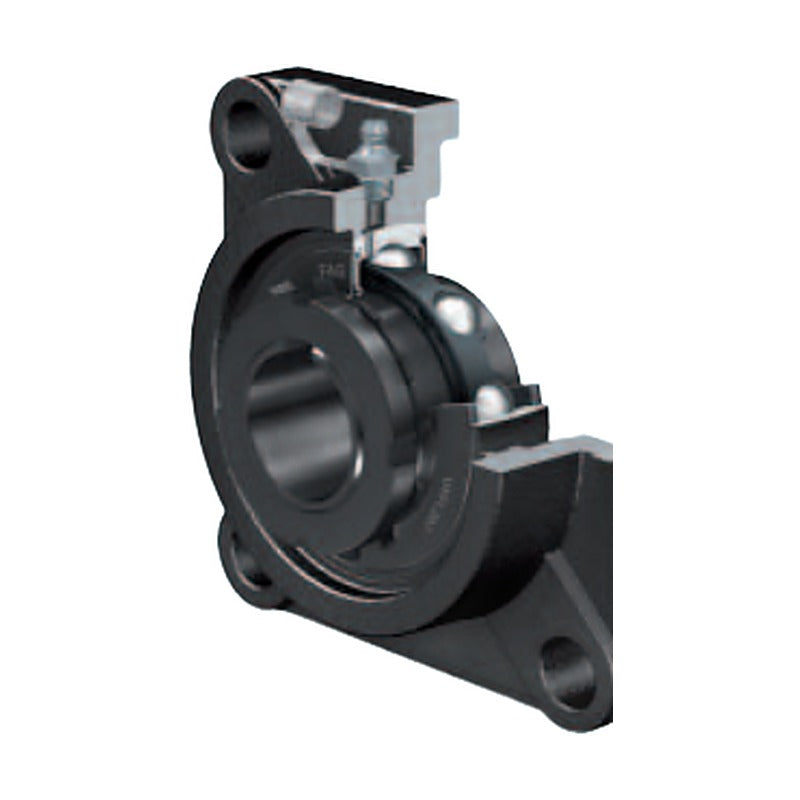

FAG UKF Black Series Four-Bolt Square Flanged Units (Adapter Sleeve)

FAG Black Series four-bolt flanged housing units, square version, cast iron housing F2.. and insert bearing UK with adapter sleeve. Ready-to-fit units with black-coated components, shaft 20-80 mm.

Key features

Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
Located on plain shafts by adapter sleeve H23..X
Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series	UKF
Housing material	Flake graphite cast iron (JIS B 1559)
Housing range	F205-F218
Insert bearing	UK2.. + adapter sleeve H23..X
Shaft range	20-80 mm
Finish	Two-coat black paint, Durotect BS insert
Applications	Agriculture, conveying, pumps, food, textile
Source	FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 47

UKF205		Shaft d: 20 mm \| Housing: F205 \| Insert: UK205 \| Mass: 0.9 kg
UKF206		Shaft d: 25 mm \| Housing: F206 \| Insert: UK206 \| Mass: 1.18 kg
UKF207		Shaft d: 30 mm \| Housing: F207 \| Insert: UK207 \| Mass: 1.58 kg
UKF208		Shaft d: 35 mm \| Housing: F208 \| Insert: UK208 \| Mass: 1.99 kg
UKF209		Shaft d: 40 mm \| Housing: F209 \| Insert: UK209 \| Mass: 2.44 kg
UKF210		Shaft d: 45 mm \| Housing: F210 \| Insert: UK210 \| Mass: 2.73 kg
UKF211		Shaft d: 50 mm \| Housing: F211 \| Insert: UK211 \| Mass: 3.48 kg
UKF212		Shaft d: 55 mm \| Housing: F212 \| Insert: UK212 \| Mass: 4.34 kg
UKF213		Shaft d: 60 mm \| Housing: F213 \| Insert: UK213 \| Mass: 5.06 kg
UKF215		Shaft d: 65 mm \| Housing: F215 \| Insert: UK215 \| Mass: 7.12 kg
UKF216		Shaft d: 70 mm \| Housing: F216 \| Insert: UK216 \| Mass: 7.9 kg
UKF217		Shaft d: 75 mm \| Housing: F217 \| Insert: UK217 \| Mass: 9.51 kg
UKF218		Shaft d: 80 mm \| Housing: F218 \| Insert: UK218 \| Mass: 11.16 kg
