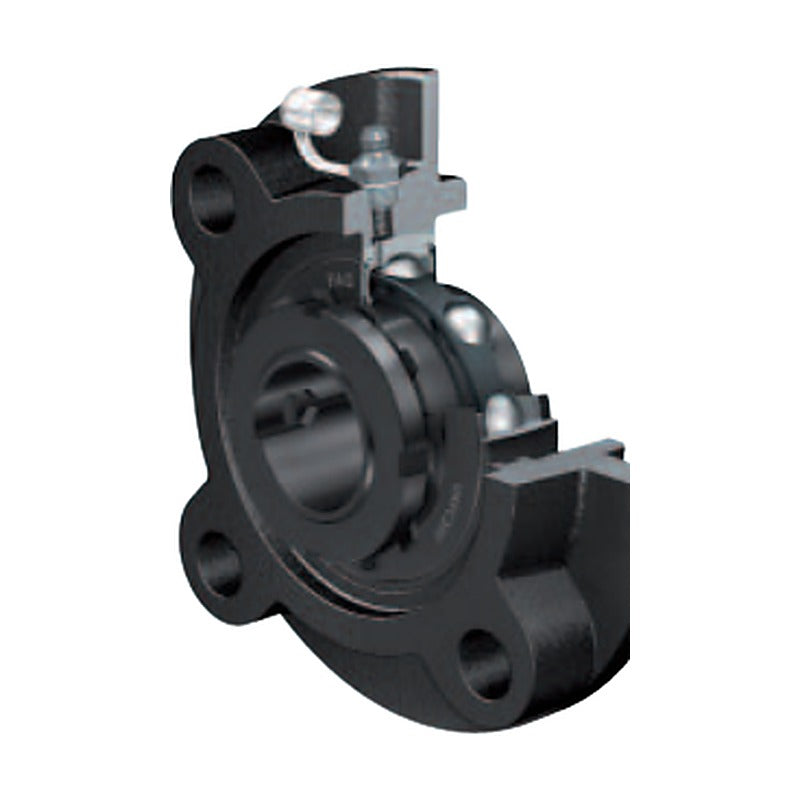

FAG UKFC Black Series Four-Bolt Round Flanged Units (Adapter Sleeve)

FAG Black Series four-bolt flanged housing units, round version with centring spigot, cast iron housing FC2.. and insert bearing UK with adapter sleeve. Ready-to-fit units with black-coated components, shaft 20-80 mm.

Key features

Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
Located on plain shafts by adapter sleeve H23..X
Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series	UKFC
Housing material	Flake graphite cast iron (JIS B 1559)
Housing range	FC205-FC218
Insert bearing	UK2.. + adapter sleeve H23..X
Shaft range	20-80 mm
Finish	Two-coat black paint, Durotect BS insert
Applications	Agriculture, conveying, pumps, food, textile
Source	FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 52-53

UKFC205		Shaft d: 20 mm \| Housing: FC205 \| Insert: UK205 \| Mass: 0.99 kg
UKFC206		Shaft d: 25 mm \| Housing: FC206 \| Insert: UK206 \| Mass: 1.31 kg
UKFC207		Shaft d: 30 mm \| Housing: FC207 \| Insert: UK207 \| Mass: 1.78 kg
UKFC208		Shaft d: 35 mm \| Housing: FC208 \| Insert: UK208 \| Mass: 2.12 kg
UKFC209		Shaft d: 40 mm \| Housing: FC209 \| Insert: UK209 \| Mass: 2.82 kg
UKFC210		Shaft d: 45 mm \| Housing: FC210 \| Insert: UK210 \| Mass: 3.14 kg
UKFC211		Shaft d: 50 mm \| Housing: FC211 \| Insert: UK211 \| Mass: 4.15 kg
UKFC212		Shaft d: 55 mm \| Housing: FC212 \| Insert: UK212 \| Mass: 4.95 kg
UKFC213		Shaft d: 60 mm \| Housing: FC213 \| Insert: UK213 \| Mass: 5.62 kg
UKFC215		Shaft d: 65 mm \| Housing: FC215 \| Insert: UK215 \| Mass: 7.69 kg
UKFC216		Shaft d: 70 mm \| Housing: FC216 \| Insert: UK216 \| Mass: 9.28 kg
UKFC217		Shaft d: 75 mm \| Housing: FC217 \| Insert: UK217 \| Mass: 10.83 kg
UKFC218		Shaft d: 80 mm \| Housing: FC218 \| Insert: UK218 \| Mass: 12.72 kg

Mounted Bearing UnitsFAG

13 product codes available in this family
