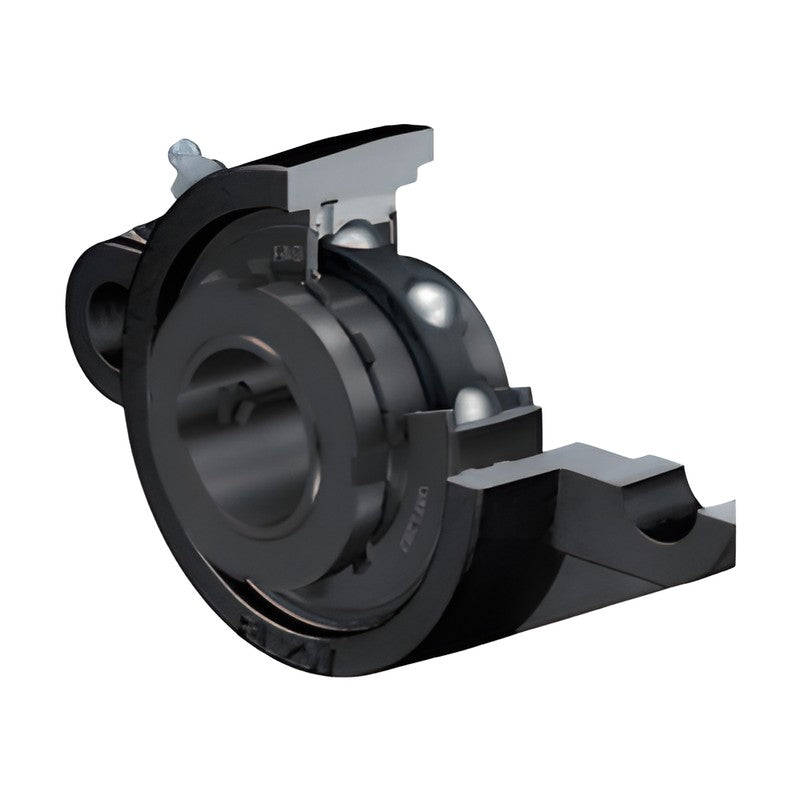

FAG UKFL Black Series Two-Bolt Oval Flanged Units (Adapter Sleeve)

FAG Black Series two-bolt flanged housing units, oval version, cast iron housing FL2.. and insert bearing UK with adapter sleeve. Ready-to-fit units with black-coated components, shaft 20-80 mm.

Key features

Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
Located on plain shafts by adapter sleeve H23..X
Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series	UKFL
Housing material	Flake graphite cast iron (JIS B 1559)
Housing range	FL205-FL218
Insert bearing	UK2.. + adapter sleeve H23..X
Shaft range	20-80 mm
Finish	Two-coat black paint, Durotect BS insert
Applications	Agriculture, conveying, pumps, food, textile
Source	FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 44

UKFL205		Shaft d: 20 mm \| Housing: FL205 \| Insert: UK205 \| Mass: 0.69 kg
UKFL206		Shaft d: 25 mm \| Housing: FL206 \| Insert: UK206 \| Mass: 0.94 kg
UKFL207		Shaft d: 30 mm \| Housing: FL207 \| Insert: UK207 \| Mass: 1.29 kg
UKFL208		Shaft d: 35 mm \| Housing: FL208 \| Insert: UK208 \| Mass: 1.56 kg
UKFL209		Shaft d: 40 mm \| Housing: FL209 \| Insert: UK209 \| Mass: 2.08 kg
UKFL210		Shaft d: 45 mm \| Housing: FL210 \| Insert: UK210 \| Mass: 2.4 kg
UKFL211		Shaft d: 50 mm \| Housing: FL211 \| Insert: UK211 \| Mass: 3.04 kg
UKFL212		Shaft d: 55 mm \| Housing: FL212 \| Insert: UK212 \| Mass: 4.05 kg
UKFL213		Shaft d: 60 mm \| Housing: FL213 \| Insert: UK213 \| Mass: 4.84 kg
UKFL215		Shaft d: 65 mm \| Housing: FL215 \| Insert: UK215 \| Mass: 6.17 kg
UKFL216		Shaft d: 70 mm \| Housing: FL216 \| Insert: UK216 \| Mass: 7.74 kg
UKFL217		Shaft d: 75 mm \| Housing: FL217 \| Insert: UK217 \| Mass: 9.08 kg
UKFL218		Shaft d: 80 mm \| Housing: FL218 \| Insert: UK218 \| Mass: 10.9 kg

Mounted Bearing UnitsFAG

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG UKFL Black Series Two-Bolt Oval Flanged Units (Adapter Sleeve)

Brand FAG·Mounted Bearing Units

Available part numbers (13)

UKFL205, UKFL206, UKFL207, UKFL208, UKFL209, UKFL210, UKFL211, UKFL212, UKFL213, UKFL215 + 3 more — see full table ↓
