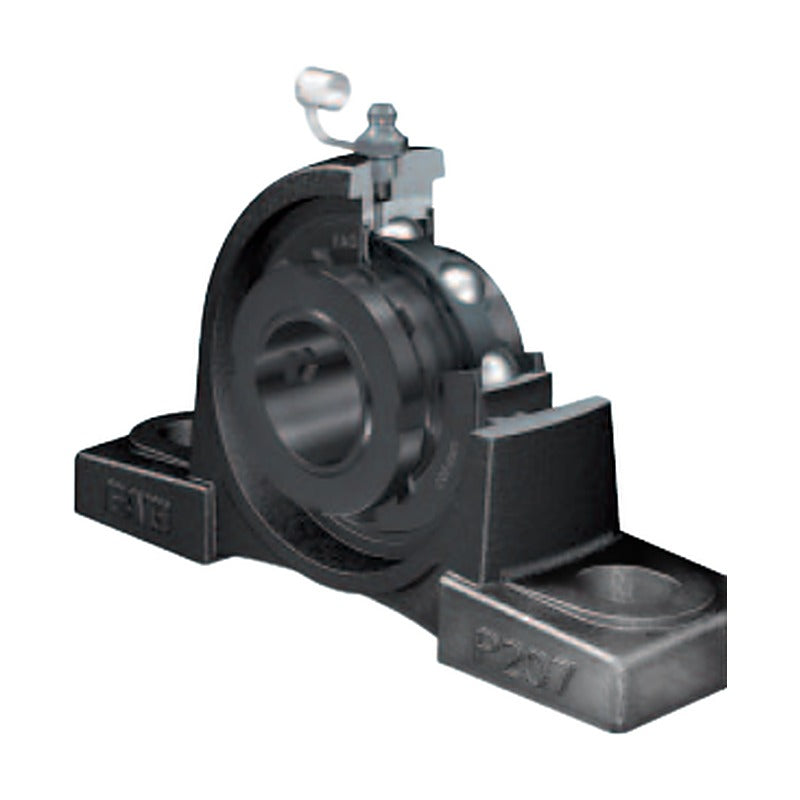

FAG UKP Black Series Plummer Block Units, Long Base (Adapter Sleeve)

FAG Black Series plummer block housing units with long base, flake graphite cast iron housing P2.. and insert bearing UK with adapter sleeve. Ready-to-fit units with black-coated components, shaft 20-80 mm.

Key features

Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
Located on plain shafts by adapter sleeve H23..X
Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series	UKP
Housing material	Flake graphite cast iron (JIS B 1559)
Housing range	P205-P218
Insert bearing	UK2.. + adapter sleeve H23..X
Shaft range	20-80 mm
Finish	Two-coat black paint, Durotect BS insert
Applications	Agriculture, conveying, pumps, food, textile
Source	FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 38

UKP205		Shaft d: 20 mm \| Housing: P205 \| Insert: UK205 \| Mass: 0.84 kg
UKP206		Shaft d: 25 mm \| Housing: P206 \| Insert: UK206 \| Mass: 1.36 kg
UKP207		Shaft d: 30 mm \| Housing: P207 \| Insert: UK207 \| Mass: 1.63 kg
UKP208		Shaft d: 35 mm \| Housing: P208 \| Insert: UK208 \| Mass: 1.92 kg
UKP209		Shaft d: 40 mm \| Housing: P209 \| Insert: UK209 \| Mass: 2.33 kg
UKP210		Shaft d: 45 mm \| Housing: P210 \| Insert: UK210 \| Mass: 2.95 kg
UKP211		Shaft d: 50 mm \| Housing: P211 \| Insert: UK211 \| Mass: 3.58 kg
UKP212		Shaft d: 55 mm \| Housing: P212 \| Insert: UK212 \| Mass: 4.71 kg
UKP213		Shaft d: 60 mm \| Housing: P213 \| Insert: UK213 \| Mass: 5.71 kg
UKP215		Shaft d: 65 mm \| Housing: P215 \| Insert: UK215 \| Mass: 7.11 kg
UKP216		Shaft d: 70 mm \| Housing: P216 \| Insert: UK216 \| Mass: 8.86 kg
UKP217		Shaft d: 75 mm \| Housing: P217 \| Insert: UK217 \| Mass: 10.58 kg
UKP218		Shaft d: 80 mm \| Housing: P218 \| Insert: UK218 \| Mass: 12.71 kg
