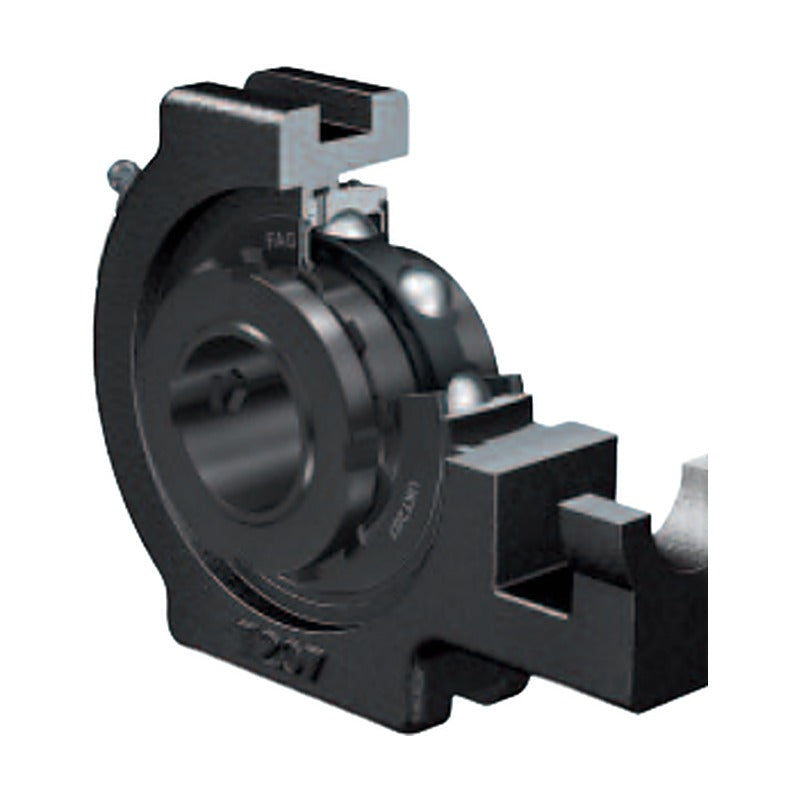

FAG UKT Black Series Take-Up Units (Adapter Sleeve)

FAG Black Series take-up housing units for linear adjustment, cast iron housing T2.. and insert bearing UK with adapter sleeve. Ready-to-fit units with black-coated components, shaft 20-80 mm.

Key features

Durotect BS black coating on inner ring, outer ring and flinger shields for corrosion protection
Housings of flake graphite cast iron with two-coat black paint, dimensions to JIS B 1559
Inserts based on deep groove ball bearings 62, with RSR seals plus flinger shields, greased for life
Located on plain shafts by adapter sleeve H23..X
Ready-to-fit unit; housing and insert also available as replacement parts

Specifications

Unit series	UKT
Housing material	Flake graphite cast iron (JIS B 1559)
Housing range	T205-T218
Insert bearing	UK2.. + adapter sleeve H23..X
Shaft range	20-80 mm
Finish	Two-coat black paint, Durotect BS insert
Applications	Agriculture, conveying, pumps, food, textile
Source	FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 58-59

UKT205		Shaft d: 20 mm \| Housing: T205 \| Insert: UK205 \| Mass: 0.85 kg
UKT206		Shaft d: 25 mm \| Housing: T206 \| Insert: UK206 \| Mass: 1.29 kg
UKT207		Shaft d: 30 mm \| Housing: T207 \| Insert: UK207 \| Mass: 1.66 kg
UKT208		Shaft d: 35 mm \| Housing: T208 \| Insert: UK208 \| Mass: 2.4 kg
UKT209		Shaft d: 40 mm \| Housing: T209 \| Insert: UK209 \| Mass: 2.5 kg
UKT210		Shaft d: 45 mm \| Housing: T210 \| Insert: UK210 \| Mass: 2.7 kg
UKT211		Shaft d: 50 mm \| Housing: T211 \| Insert: UK211 \| Mass: 4 kg
UKT212		Shaft d: 55 mm \| Housing: T212 \| Insert: UK212 \| Mass: 4.79 kg
UKT213		Shaft d: 60 mm \| Housing: T213 \| Insert: UK213 \| Mass: 6.76 kg
UKT215		Shaft d: 65 mm \| Housing: T215 \| Insert: UK215 \| Mass: 7.68 kg
UKT216		Shaft d: 70 mm \| Housing: T216 \| Insert: UK216 \| Mass: 8.6 kg
UKT217		Shaft d: 75 mm \| Housing: T217 \| Insert: UK217 \| Mass: 11.2 kg
UKT218		Shaft d: 80 mm \| Housing: T218 \| Insert: UK218 \| Mass: 12.77 kg

Mounted Bearing UnitsFAG

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG UKT Black Series Take-Up Units (Adapter Sleeve)

Brand FAG·Mounted Bearing Units

Available part numbers (13)

UKT205, UKT206, UKT207, UKT208, UKT209, UKT210, UKT211, UKT212, UKT213, UKT215 + 3 more — see full table ↓
