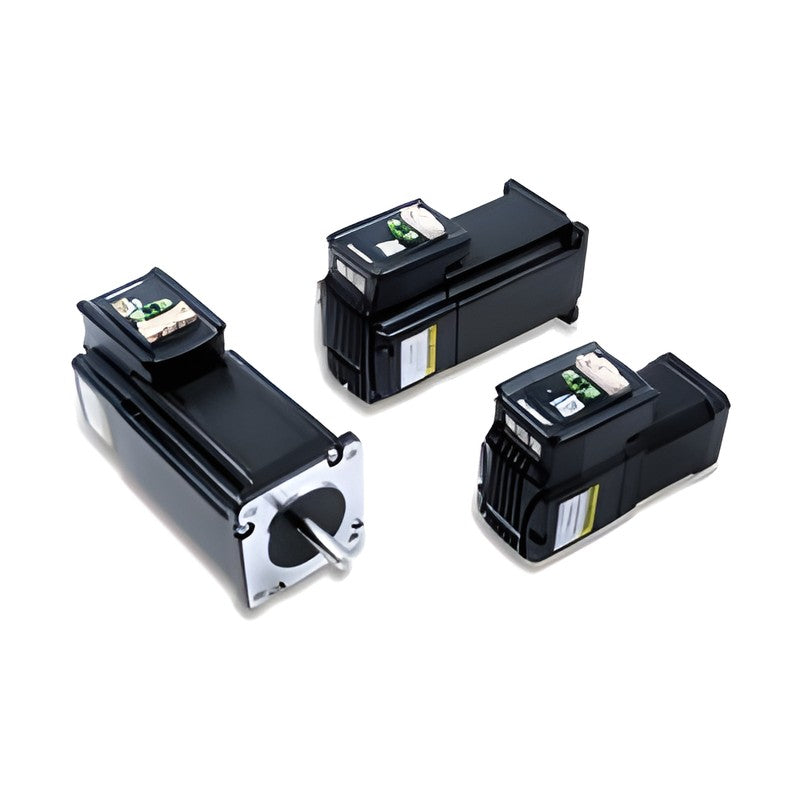

FASTECH Ezi-SERVO BT Integrated Closed-Loop Stepper Motors

Motor, encoder and drive integrated in one body for wiring-free closed-loop stepping. Pulse-input control in 42, 56 and 60 mm frames.

Key features

Motor, encoder and drive in one unit
Reduced wiring and cabinet space
Closed-loop stepping with built-in encoder, no step loss
No gain tuning and no hunting at standstill
Fast response and short settling time
Encoder resolution 10,000 or 20,000 ppr

Specifications

Construction	Motor + encoder + drive integrated
Input voltage	24 VDC
Command input	Pulse train, 500 kHz max.
Frame sizes	42 / 56 / 60 mm
Encoder resolution	A: 10,000 ppr, B: 20,000 ppr
Source	FASTECH Ezi-SERVO BT catalogue

Ezi-SERVO-BT-42S-A		Frame: 42 mm \| Length: S \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-42S-B		Frame: 42 mm \| Length: S \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-42M-A		Frame: 42 mm \| Length: M \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-42M-B		Frame: 42 mm \| Length: M \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-42L-A		Frame: 42 mm \| Length: L \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-42L-B		Frame: 42 mm \| Length: L \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-42XL-A		Frame: 42 mm \| Length: XL \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-42XL-B		Frame: 42 mm \| Length: XL \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-56S-A		Frame: 56 mm \| Length: S \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-56S-B		Frame: 56 mm \| Length: S \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-56M-A		Frame: 56 mm \| Length: M \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-56M-B		Frame: 56 mm \| Length: M \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-56L-A		Frame: 56 mm \| Length: L \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-56L-B		Frame: 56 mm \| Length: L \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-60S-A		Frame: 60 mm \| Length: S \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-60S-B		Frame: 60 mm \| Length: S \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-60M-A		Frame: 60 mm \| Length: M \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-60M-B		Frame: 60 mm \| Length: M \| Encoder: 20,000 ppr \| Drive: integrated
Ezi-SERVO-BT-60L-A		Frame: 60 mm \| Length: L \| Encoder: 10,000 ppr \| Drive: integrated
Ezi-SERVO-BT-60L-B		Frame: 60 mm \| Length: L \| Encoder: 20,000 ppr \| Drive: integrated

Closed-Loop Stepper SystemsFASTECH

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FASTECH Ezi-SERVO BT Integrated Closed-Loop Stepper Motors

Brand FASTECH·Closed-Loop Stepper Systems

Available part numbers (20)

Ezi-SERVO-BT-42S-A, Ezi-SERVO-BT-42S-B, Ezi-SERVO-BT-42M-A, Ezi-SERVO-BT-42M-B, Ezi-SERVO-BT-42L-A, Ezi-SERVO-BT-42L-B, Ezi-SERVO-BT-42XL-A, Ezi-SERVO-BT-42XL-B, Ezi-SERVO-BT-56S-A, Ezi-SERVO-BT-56S-B + 10 more — see full table ↓

How to order

Send the FASTECH part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
