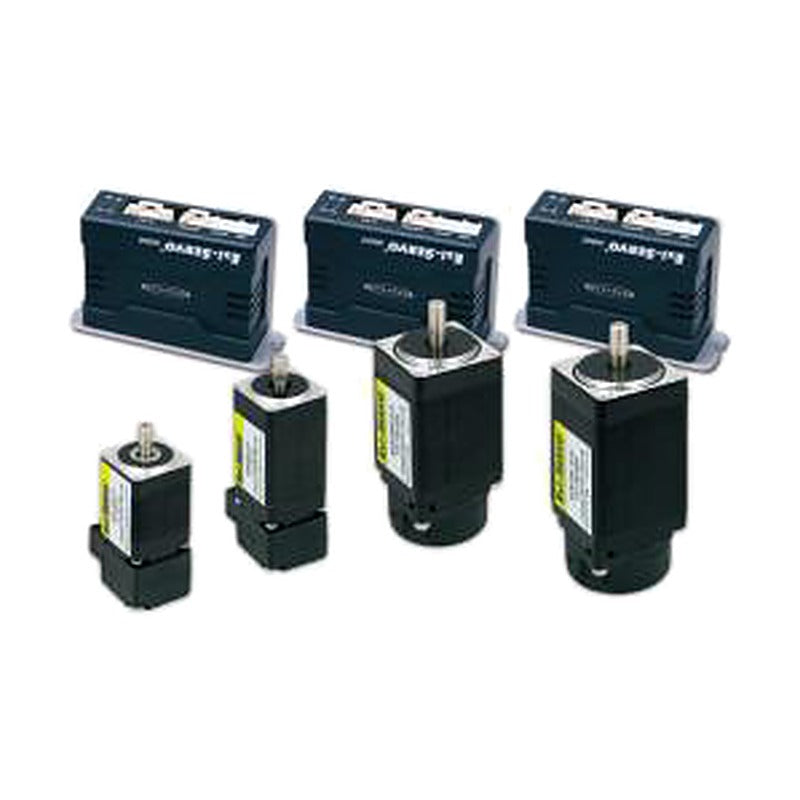

FASTECH Ezi-SERVO MINI Compact Closed-Loop Stepper Systems

FASTECH Ezi-SERVO MINI Compact Closed-Loop Stepper Systems

Miniaturised pulse-input closed-loop stepping systems for 20 to 42 mm motors. The compact EzS-PD-MI drive saves cabinet space in small equipment.

Key features

  • Miniaturised drive for compact machines
  • Closed-loop stepping with built-in encoder, no step loss
  • No gain tuning and no hunting at standstill
  • Fast response and short settling time
  • Frame sizes 20, 25, 28, 35 and 42 mm

Specifications

Control 32-bit DSP closed-loop control
Input voltage 24 VDC ±10 %
Command input Pulse train, 500 kHz max.
Encoder resolution 4,000 to 32,000 ppr by model
Frame sizes 20 / 25 / 28 / 35 / 42 mm
Package Unit = EzM motor + EzS-PD-MI drive
Source FASTECH Ezi-SERVO MINI catalogue
Ezi-SERVO-MI-20M-F Frame: 20 mm | Length: M | Encoder: 4,000 ppr | Motor: EzM-20M-F | Drive: EzS-PD-MI-20M-F
Ezi-SERVO-MI-20L-F Frame: 20 mm | Length: L | Encoder: 4,000 ppr | Motor: EzM-20L-F | Drive: EzS-PD-MI-20L-F
Ezi-SERVO-MI-25S-F-L Frame: 25 mm S | Encoder: 4,000 ppr | Low-vibration | Motor: EzM-25S-L-F | Drive: EzS-PD-MI-25S-F
Ezi-SERVO-MI-25M-F-L Frame: 25 mm M | Encoder: 4,000 ppr | Low-vibration | Motor: EzM-25M-L-F | Drive: EzS-PD-MI-25M-F
Ezi-SERVO-MI-25L-F-L Frame: 25 mm L | Encoder: 4,000 ppr | Low-vibration | Motor: EzM-25L-L-F | Drive: EzS-PD-MI-25L-F
Ezi-SERVO-MI-28S-D Frame: 28 mm | Length: S | Encoder: 16,000 ppr | Motor: EzM-28S-D | Drive: EzS-PD-MI-28S-D
Ezi-SERVO-MI-28M-D Frame: 28 mm | Length: M | Encoder: 16,000 ppr | Motor: EzM-28M-D | Drive: EzS-PD-MI-28M-D
Ezi-SERVO-MI-28L-D Frame: 28 mm | Length: L | Encoder: 16,000 ppr | Motor: EzM-28L-D | Drive: EzS-PD-MI-28L-D
Ezi-SERVO-MI-35S-D Frame: 35 mm | Length: S | Encoder: 16,000 ppr | Motor: EzM-35S-D | Drive: EzS-PD-MI-35S-D
Ezi-SERVO-MI-35M-D Frame: 35 mm | Length: M | Encoder: 16,000 ppr | Motor: EzM-35M-D | Drive: EzS-PD-MI-35M-D
Ezi-SERVO-MI-35L-D Frame: 35 mm | Length: L | Encoder: 16,000 ppr | Motor: EzM-35L-D | Drive: EzS-PD-MI-35L-D
Ezi-SERVO-MI-35XL-D Frame: 35 mm | Length: XL | Encoder: 16,000 ppr | Motor: EzM-35XL-D | Drive: EzS-PD-MI-35XL-D
Ezi-SERVO-MI-42S-A Frame: 42 mm | Length: S | Encoder: 10,000 ppr | Motor: EzM-42S-A | Drive: EzS-PD-MI-42S-A
Ezi-SERVO-MI-42S-B Frame: 42 mm | Length: S | Encoder: 20,000 ppr | Motor: EzM-42S-B | Drive: EzS-PD-MI-42S-B
Ezi-SERVO-MI-42S-C Frame: 42 mm | Length: S | Encoder: 32,000 ppr | Motor: EzM-42S-C | Drive: EzS-PD-MI-42S-C
Ezi-SERVO-MI-42M-A Frame: 42 mm | Length: M | Encoder: 10,000 ppr | Motor: EzM-42M-A | Drive: EzS-PD-MI-42M-A
Ezi-SERVO-MI-42M-B Frame: 42 mm | Length: M | Encoder: 20,000 ppr | Motor: EzM-42M-B | Drive: EzS-PD-MI-42M-B
Ezi-SERVO-MI-42M-C Frame: 42 mm | Length: M | Encoder: 32,000 ppr | Motor: EzM-42M-C | Drive: EzS-PD-MI-42M-C
Ezi-SERVO-MI-42L-A Frame: 42 mm | Length: L | Encoder: 10,000 ppr | Motor: EzM-42L-A | Drive: EzS-PD-MI-42L-A
Ezi-SERVO-MI-42L-B Frame: 42 mm | Length: L | Encoder: 20,000 ppr | Motor: EzM-42L-B | Drive: EzS-PD-MI-42L-B
Ezi-SERVO-MI-42L-C Frame: 42 mm | Length: L | Encoder: 32,000 ppr | Motor: EzM-42L-C | Drive: EzS-PD-MI-42L-C
Ezi-SERVO-MI-42XL-A Frame: 42 mm | Length: XL | Encoder: 10,000 ppr | Motor: EzM-42XL-A | Drive: EzS-PD-MI-42XL-A
Ezi-SERVO-MI-42XL-B Frame: 42 mm | Length: XL | Encoder: 20,000 ppr | Motor: EzM-42XL-B | Drive: EzS-PD-MI-42XL-B
Ezi-SERVO-MI-42XL-C Frame: 42 mm | Length: XL | Encoder: 32,000 ppr | Motor: EzM-42XL-C | Drive: EzS-PD-MI-42XL-C
Closed-Loop Stepper SystemsFASTECH
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FASTECH Ezi-SERVO MINI Compact Closed-Loop Stepper Systems

Brand FASTECH·Closed-Loop Stepper Systems

Available part numbers (24)

Ezi-SERVO-MI-20M-F, Ezi-SERVO-MI-20L-F, Ezi-SERVO-MI-25S-F-L, Ezi-SERVO-MI-25M-F-L, Ezi-SERVO-MI-25L-F-L, Ezi-SERVO-MI-28S-D, Ezi-SERVO-MI-28M-D, Ezi-SERVO-MI-28L-D, Ezi-SERVO-MI-35S-D, Ezi-SERVO-MI-35M-D + 14 more — see full table ↓

How to order

Send the FASTECH part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
Ezi-SERVO-MI-20M-FFrame: 20 mm | Length: M | Encoder: 4,000 ppr | Motor: EzM-20M-F | Drive: EzS-PD-MI-20M-F
Ezi-SERVO-MI-20L-FFrame: 20 mm | Length: L | Encoder: 4,000 ppr | Motor: EzM-20L-F | Drive: EzS-PD-MI-20L-F
Ezi-SERVO-MI-25S-F-LFrame: 25 mm S | Encoder: 4,000 ppr | Low-vibration | Motor: EzM-25S-L-F | Drive: EzS-PD-MI-25S-F
Ezi-SERVO-MI-25M-F-LFrame: 25 mm M | Encoder: 4,000 ppr | Low-vibration | Motor: EzM-25M-L-F | Drive: EzS-PD-MI-25M-F
Ezi-SERVO-MI-25L-F-LFrame: 25 mm L | Encoder: 4,000 ppr | Low-vibration | Motor: EzM-25L-L-F | Drive: EzS-PD-MI-25L-F
Ezi-SERVO-MI-28S-DFrame: 28 mm | Length: S | Encoder: 16,000 ppr | Motor: EzM-28S-D | Drive: EzS-PD-MI-28S-D
Ezi-SERVO-MI-28M-DFrame: 28 mm | Length: M | Encoder: 16,000 ppr | Motor: EzM-28M-D | Drive: EzS-PD-MI-28M-D
Ezi-SERVO-MI-28L-DFrame: 28 mm | Length: L | Encoder: 16,000 ppr | Motor: EzM-28L-D | Drive: EzS-PD-MI-28L-D
Ezi-SERVO-MI-35S-DFrame: 35 mm | Length: S | Encoder: 16,000 ppr | Motor: EzM-35S-D | Drive: EzS-PD-MI-35S-D
Ezi-SERVO-MI-35M-DFrame: 35 mm | Length: M | Encoder: 16,000 ppr | Motor: EzM-35M-D | Drive: EzS-PD-MI-35M-D
Ezi-SERVO-MI-35L-DFrame: 35 mm | Length: L | Encoder: 16,000 ppr | Motor: EzM-35L-D | Drive: EzS-PD-MI-35L-D
Ezi-SERVO-MI-35XL-DFrame: 35 mm | Length: XL | Encoder: 16,000 ppr | Motor: EzM-35XL-D | Drive: EzS-PD-MI-35XL-D
Ezi-SERVO-MI-42S-AFrame: 42 mm | Length: S | Encoder: 10,000 ppr | Motor: EzM-42S-A | Drive: EzS-PD-MI-42S-A
Ezi-SERVO-MI-42S-BFrame: 42 mm | Length: S | Encoder: 20,000 ppr | Motor: EzM-42S-B | Drive: EzS-PD-MI-42S-B
Ezi-SERVO-MI-42S-CFrame: 42 mm | Length: S | Encoder: 32,000 ppr | Motor: EzM-42S-C | Drive: EzS-PD-MI-42S-C
Ezi-SERVO-MI-42M-AFrame: 42 mm | Length: M | Encoder: 10,000 ppr | Motor: EzM-42M-A | Drive: EzS-PD-MI-42M-A
Ezi-SERVO-MI-42M-BFrame: 42 mm | Length: M | Encoder: 20,000 ppr | Motor: EzM-42M-B | Drive: EzS-PD-MI-42M-B
Ezi-SERVO-MI-42M-CFrame: 42 mm | Length: M | Encoder: 32,000 ppr | Motor: EzM-42M-C | Drive: EzS-PD-MI-42M-C
Ezi-SERVO-MI-42L-AFrame: 42 mm | Length: L | Encoder: 10,000 ppr | Motor: EzM-42L-A | Drive: EzS-PD-MI-42L-A
Ezi-SERVO-MI-42L-BFrame: 42 mm | Length: L | Encoder: 20,000 ppr | Motor: EzM-42L-B | Drive: EzS-PD-MI-42L-B
Ezi-SERVO-MI-42L-CFrame: 42 mm | Length: L | Encoder: 32,000 ppr | Motor: EzM-42L-C | Drive: EzS-PD-MI-42L-C
Ezi-SERVO-MI-42XL-AFrame: 42 mm | Length: XL | Encoder: 10,000 ppr | Motor: EzM-42XL-A | Drive: EzS-PD-MI-42XL-A
Ezi-SERVO-MI-42XL-BFrame: 42 mm | Length: XL | Encoder: 20,000 ppr | Motor: EzM-42XL-B | Drive: EzS-PD-MI-42XL-B
Ezi-SERVO-MI-42XL-CFrame: 42 mm | Length: XL | Encoder: 32,000 ppr | Motor: EzM-42XL-C | Drive: EzS-PD-MI-42XL-C
