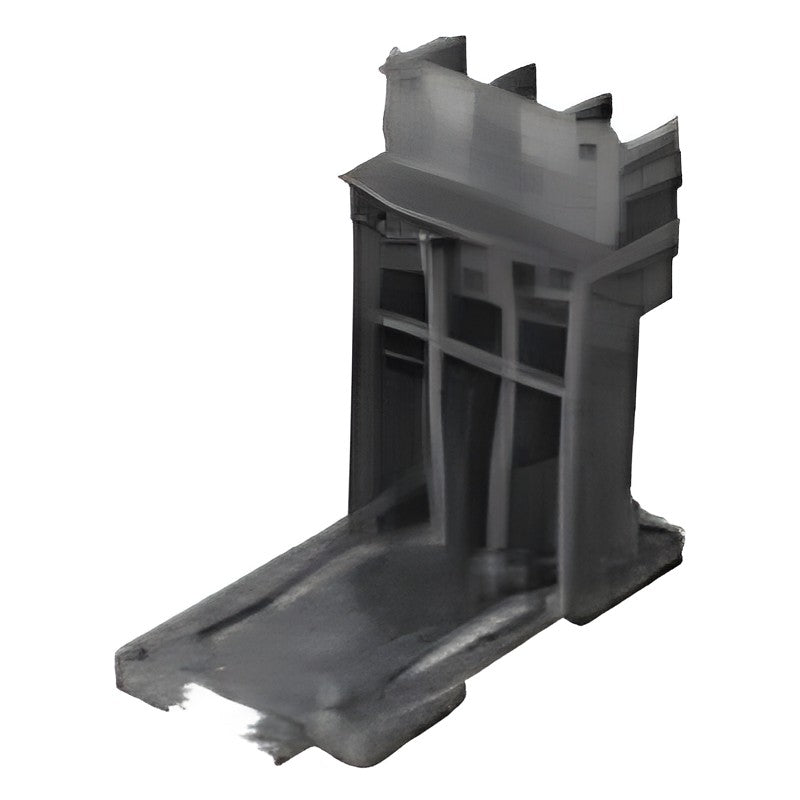

Fuji Electric SZ Thermal Overload Relay Accessories

Fuji Electric SZ Thermal Overload Relay Accessories

Accessories for TR / TK thermal overload relays: separate mounting units, trip indicator lamps, remote reset releases and setting dial covers.

Key features

  • Separate mounting units for screw or rail mounting
  • Trip indicator lamps for AC100-110V and AC200-230V
  • Reset releases in 300, 500 and 700 mm lengths
  • Dial cover prevents setting changes
  • For New SC and NEO SC thermal relays

Specifications

Series New SC / NEO SC
Supply Separately sold part
Code format SZ- + option code
Reset release lengths 300, 500, 700 mm
Lamp voltages AC100-110V, AC200-230V
Source Fuji Electric New SC / NEO SC contactor catalogue, p. 27, 43
SZ-HB Part: Separate mounting unit | Detail: - | Applies to: TR-0N, TK-0N
SZ-HC Part: Separate mounting unit | Detail: - | Applies to: TR-5-1N, TK-5-1N
SZ-HD Part: Separate mounting unit | Detail: - | Applies to: TR-N2, TK-N2
SZ-HE Part: Separate mounting unit | Detail: - | Applies to: TR-N3, TK-N3
SZ-L100 Part: Trip indicator lamp | Detail: AC100-110V | Applies to: TR/TK-0N, 5-1N, N10~N14
SZ-L200 Part: Trip indicator lamp | Detail: AC200-230V | Applies to: TR/TK-0N, 5-1N, N10~N14
SZ-L100N2 Part: Trip indicator lamp | Detail: AC100-110V | Applies to: TR/TK-N2~N8
SZ-L200N2 Part: Trip indicator lamp | Detail: AC200-230V | Applies to: TR/TK-N2~N8
SZ-R1 Part: Reset release | Detail: 300 mm | Applies to: TR/TK-0N, 5-1N, N10~N14
SZ-R2 Part: Reset release | Detail: 500 mm | Applies to: TR/TK-0N, 5-1N, N10~N14
SZ-R3 Part: Reset release | Detail: 700 mm | Applies to: TR/TK-0N, 5-1N, N10~N14
SZ-R4 Part: Reset release | Detail: 300 mm | Applies to: TR/TK-N2~N8
SZ-R5 Part: Reset release | Detail: 500 mm | Applies to: TR/TK-N2~N8
SZ-R6 Part: Reset release | Detail: 700 mm | Applies to: TR/TK-N2~N8
SZ-DA Part: Dial cover (setting lock) | Detail: - | Applies to: TR-0N~N14, TK-0N~N14
