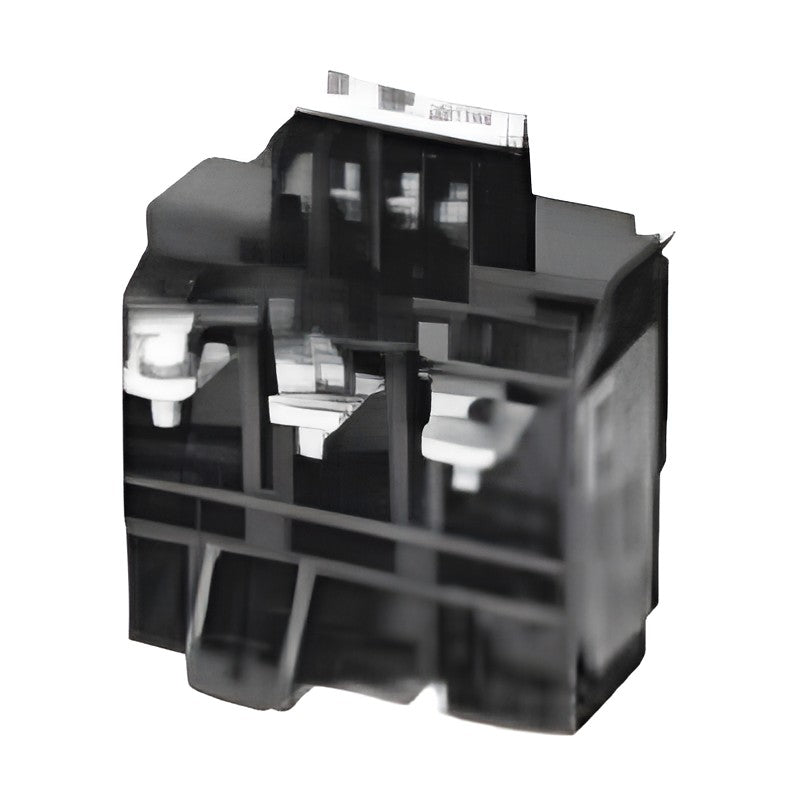

Fuji Electric TR/TK Thermal Relay Variants (3E, 2E, Slow, Quick)

Fuji Electric TR/TK Thermal Relay Variants (3E, 2E, Slow, Quick)

Application variants of the TR thermal overload relay family: 3-heat-element (/3), 2E phase-loss protecting (TK), time-lag (L) and quick-trip (Q) types.

Key features

  • 3-heat-element (/3) versions for frames 0N to N14
  • TK 2E relays with phase-loss protection
  • Time-lag types for heavy-starting loads
  • Quick-trip types for submersible pumps and similar loads
  • Heater element letter appended to the product code

Specifications

Series New SC / NEO SC
Ordering Type + heater element rating
Heater ranges Some ratings unavailable for L and Q types
Frame range 0N-N14
Aux contacts 1a1b
Source Fuji Electric New SC / NEO SC contactor catalogue, p. 24-25
TR-0N/3 Variant: 3-heat-element | Frame: 0N | Product code: TR13DW-[heater]
TR-5-1N/3 Variant: 3-heat-element | Frame: 5-1N | Product code: TR20DW-[heater]
TR-N2/3 Variant: 3-heat-element | Frame: N2 | Product code: TR35BDW-[heater]
TR-N3/3 Variant: 3-heat-element | Frame: N3 | Product code: TR65BDW-[heater]
TR-N5/3 Variant: 3-heat-element | Frame: N5 | Product code: TR93BDW-[heater]
TR-N6/3 Variant: 3-heat-element | Frame: N6 | Product code: TR1CBDW-[heater]
TR-N7/3 Variant: 3-heat-element | Frame: N7 | Product code: TR1FBDW-[heater]
TR-N8/3 Variant: 3-heat-element | Frame: N8 | Product code: TR1JBDW-[heater]
TR-N10/3 Variant: 3-heat-element | Frame: N10 | Product code: TR2CBDW-[heater]
TR-N12/3 Variant: 3-heat-element | Frame: N12 | Product code: TR4ABDW-[heater]
TR-N14/3 Variant: 3-heat-element | Frame: N14 | Product code: TR6ABDW-[heater]
TK-0N Variant: 2E (phase-loss) | Frame: 0N | Product code: TR13EW-[heater]
TK-5-1N Variant: 2E (phase-loss) | Frame: 5-1N | Product code: TR20EW-[heater]
TK-N2 Variant: 2E (phase-loss) | Frame: N2 | Product code: TR35BEW-[heater]
TK-N3 Variant: 2E (phase-loss) | Frame: N3 | Product code: TR65BEW-[heater]
TK-N5 Variant: 2E (phase-loss) | Frame: N5 | Product code: TR93BEW-[heater]
TK-N6 Variant: 2E (phase-loss) | Frame: N6 | Product code: TR1CBEW-[heater]
TK-N7 Variant: 2E (phase-loss) | Frame: N7 | Product code: TR1FBEW-[heater]
TK-N8 Variant: 2E (phase-loss) | Frame: N8 | Product code: TR1JBEW-[heater]
TK-N10 Variant: 2E (phase-loss) | Frame: N10 | Product code: TR2CBEW-[heater]
TK-N12 Variant: 2E (phase-loss) | Frame: N12 | Product code: TR4ABEW-[heater]
TK-N14 Variant: 2E (phase-loss) | Frame: N14 | Product code: TR6ABEW-[heater]
TR-0NLH Variant: Time-lag (slow) | Frame: 0N | Product code: TR13LH-[heater]
TR-5-1NLH Variant: Time-lag (slow) | Frame: 5-1N | Product code: TR20LH-[heater]
TR-N2L Variant: Time-lag (slow) | Frame: N2 | Product code: TR35BLW-[heater]
TR-N3L Variant: Time-lag (slow) | Frame: N3 | Product code: TR65BLW-[heater]
TR-N5L Variant: Time-lag (slow) | Frame: N5 | Product code: TR93BLW-[heater]
TR-N6L Variant: Time-lag (slow) | Frame: N6 | Product code: TR1CBLW-[heater]
TR-N7L Variant: Time-lag (slow) | Frame: N7 | Product code: TR1FBLW-[heater]
TR-N10L Variant: Time-lag (slow) | Frame: N10 | Product code: TR2CBLW-[heater]
TR-N12L Variant: Time-lag (slow) | Frame: N12 | Product code: TR4ABLW-[heater]
TR-N14L Variant: Time-lag (slow) | Frame: N14 | Product code: TR6ABLW-[heater]
TR-0NQ Variant: Quick-trip | Frame: 0N | Product code: TR13SW-[heater]
TR-5-1NQ Variant: Quick-trip | Frame: 5-1N | Product code: TR20SW-[heater]
TR-N2Q Variant: Quick-trip | Frame: N2 | Product code: TR35BSW-[heater]
TR-N3Q Variant: Quick-trip | Frame: N3 | Product code: TR65BSW-[heater]
TR-N5Q Variant: Quick-trip | Frame: N5 | Product code: TR93BSW-[heater]
Thermal Overload RelaysFuji Electric
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric TR/TK Thermal Relay Variants (3E, 2E, Slow, Quick)

Brand Fuji Electric·Thermal Overload Relays

Available part numbers (37)

TR-0N/3, TR-5-1N/3, TR-N2/3, TR-N3/3, TR-N5/3, TR-N6/3, TR-N7/3, TR-N8/3, TR-N10/3, TR-N12/3 + 27 more — see full table ↓
