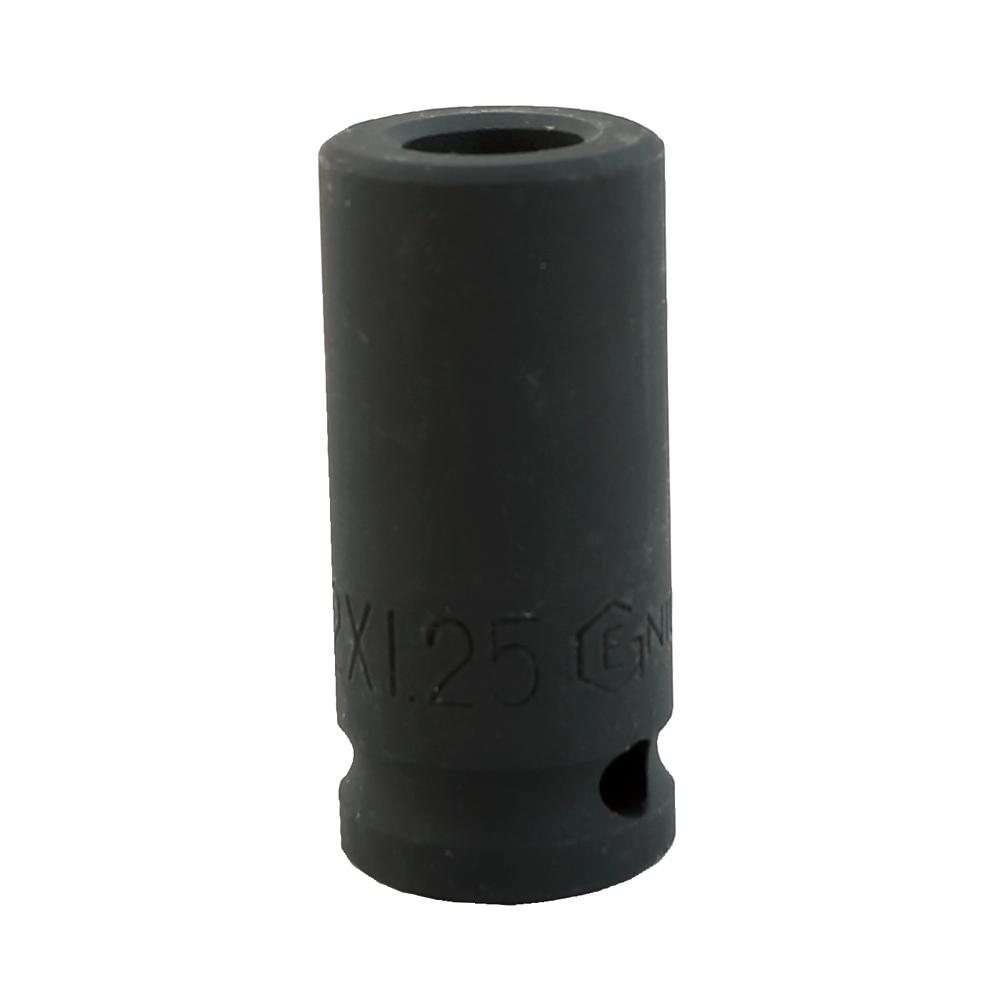

• Genius Stud Bolt Socket 1/2" Drive (M6–M16x2.0)
1 1

Genius Stud Bolt Socket 1/2" Drive (M6–M16x2.0)

Genius Stud Bolt Socket 1/2" Drive (M6–M16x2.0)

Genius 1/2 in (12.7mm) drive stud bolt socket.

Key features

  • Available: M6x1.0 / M8x1.25 / M10x1.25 / M10x1.5 / M12x1.25 / M12x1.75 / M14x1.5 / M14x2.0 / M16x1.5 / M16x2.0
  • D1: 12–26mm / D2: 24–26mm / L: 52–75mm
  • Origin: Taiwan

Specifications

Drive 1/2 in
200-4143 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M6x1.0 | D1: 12mm | D2: 17mm | A: 6.4mm | B: 5.2mm | L: 52mm
200-4152 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M8x1.25 | D1: 14.5mm | D2: 24mm | A: 8.4mm | B: 6.9mm | L: 52mm
200-4161 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M10x1.25 | D1: 17mm | D2: 24mm | A: 10.4mm | B: 8.9mm | L: 52mm
200-4170 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M10x1.5 | D1: 17mm | D2: 24mm | A: 10.4mm | B: 8.6mm | L: 52mm
200-4189 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M12x1.25 | D1: 24mm | D2: 24mm | A: 12.4mm | B: 10.9mm | L: 52mm
200-4198 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M12x1.75 | D1: 24mm | D2: 24mm | A: 12.4mm | B: 10.4mm | L: 52mm
200-9564 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M14x1.5 | D1: 26mm | D2: 26mm | A: 14.5mm | B: 12.5mm | L: 60mm
201-1815 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M14x2.0 | D1: 26mm | D2: 26mm | L: 60mm
200-9573 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M16x1.5 | D1: 26mm | D2: 26mm | A: 16.5mm | B: 12mm | L: 75mm
201-1055 1/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M16x2.0 | D1: 26mm | D2: 26mm | A: 16.5mm | B: 14.5mm | L: 75mm
Hand SocketsGenius
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Genius Stud Bolt Socket 1/2" Drive (M6–M16x2.0)

Brand Genius·Hand Sockets

Available part numbers (10)

200-4143, 200-4152, 200-4161, 200-4170, 200-4189, 200-4198, 200-9564, 201-1815, 200-9573, 201-1055

How to order

Send the Genius part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
200-41431/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M6x1.0 | D1: 12mm | D2: 17mm | A: 6.4mm | B: 5.2mm | L: 52mm
200-41521/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M8x1.25 | D1: 14.5mm | D2: 24mm | A: 8.4mm | B: 6.9mm | L: 52mm
200-41611/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M10x1.25 | D1: 17mm | D2: 24mm | A: 10.4mm | B: 8.9mm | L: 52mm
200-41701/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M10x1.5 | D1: 17mm | D2: 24mm | A: 10.4mm | B: 8.6mm | L: 52mm
200-41891/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M12x1.25 | D1: 24mm | D2: 24mm | A: 12.4mm | B: 10.9mm | L: 52mm
200-41981/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M12x1.75 | D1: 24mm | D2: 24mm | A: 12.4mm | B: 10.4mm | L: 52mm
200-95641/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M14x1.5 | D1: 26mm | D2: 26mm | A: 14.5mm | B: 12.5mm | L: 60mm
201-18151/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M14x2.0 | D1: 26mm | D2: 26mm | L: 60mm
200-95731/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M16x1.5 | D1: 26mm | D2: 26mm | A: 16.5mm | B: 12mm | L: 75mm
201-10551/2 in drive stud bolt socket. | Drive: 1/2 in | Thread: M16x2.0 | D1: 26mm | D2: 26mm | A: 16.5mm | B: 14.5mm | L: 75mm
