TAUMAX PVTME Series MC Power Vise (Entry Type)

TAUMAX PVTME Series MC Power Vise (Entry Type)

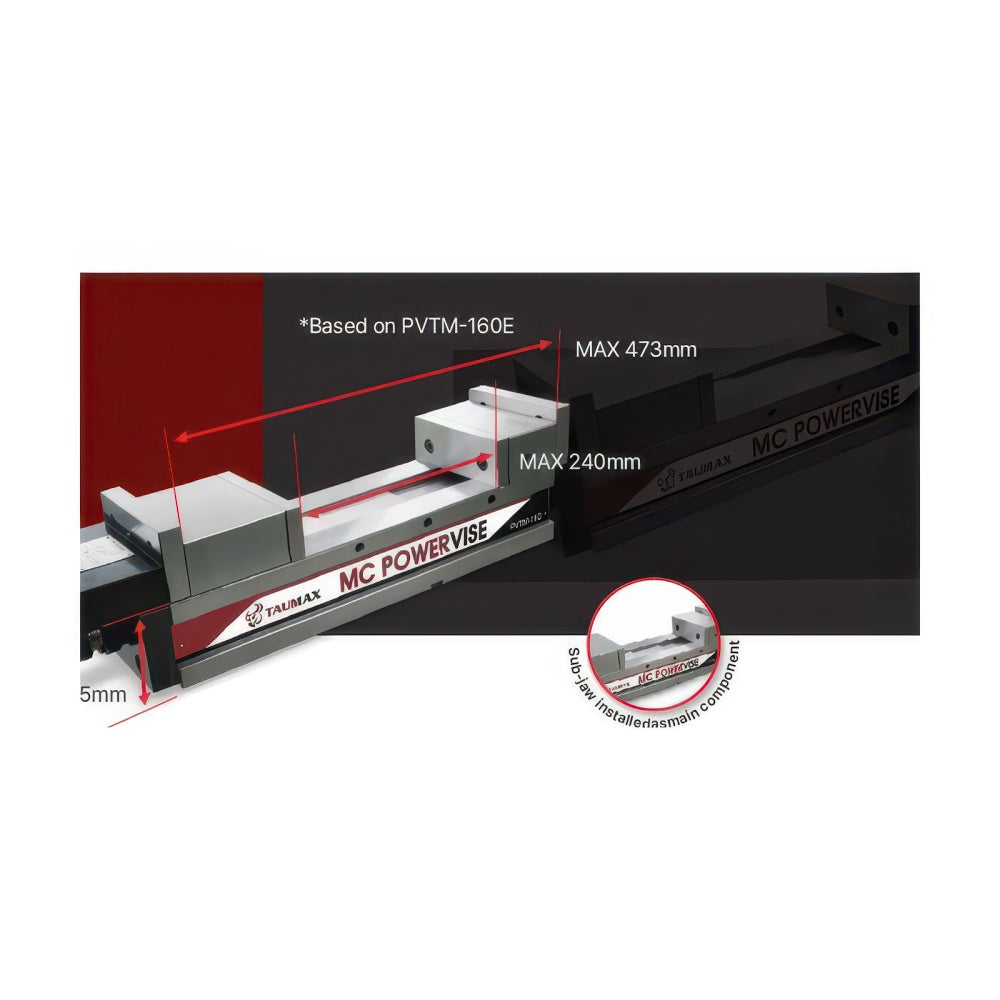

Entry-level mechanical power vise for machining centers with a force-boosting device and ratchet-handle clamping.

Key features

  • Easy-to-use entry-type power vise
  • Built-in mechanical power-boost device
  • Inside sub-jaws included (15T; 19T on PVTM-200E)
  • Height tolerance 0.01 mm; can be used side by side in parallel

Specifications

Type Mechanical power vise (entry type)
Included Handle, ratchet handle, inside sub-jaws, clamp set, guide key
Unit mm
PVTM-100E Jaw width (A): 102 mm | Body length (B): 341 mm | Overall length (C): 465 mm | Height (D): 85 mm | Max opening (J1): 313 mm | Max clamping force: 4,000 kgf | Clamping force steps 1-4: 1,500 / 2,500 / 3,500 / 4,000 kgf | Package weight: 25 kg
PVTM-130E Jaw width (A): 130 mm | Body length (B): 416 mm | Overall length (C): 540 mm | Height (D): 95 mm | Max opening (J1): 390 mm | Max clamping force: 4,500 kgf | Clamping force steps 1-4: 2,000 / 3,000 / 4,000 / 4,500 kgf | Package weight: 36 kg
PVTM-160E Jaw width (A): 160 mm | Body length (B): 516 mm | Overall length (C): 640 mm | Height (D): 105 mm | Max opening (J1): 473 mm | Max clamping force: 4,500 kgf | Clamping force steps 1-4: 2,000 / 3,000 / 4,000 / 4,500 kgf | Package weight: 55 kg
PVTM-160LE Jaw width (A): 160 mm | Body length (B): 561 mm | Overall length (C): 685 mm | Height (D): 105 mm | Max opening (J1): 533 mm | Max clamping force: 4,500 kgf | Package weight: 58 kg
PVTM-200E Jaw width (A): 200 mm | Body length (B): 612 mm | Overall length (C): 736 mm | Height (D): 120 mm | Max opening (J1): 594 mm | Max clamping force: 5,000 kgf | Clamping force steps 1-4: 2,000 / 3,000 / 4,000 / 5,000 kgf | Package weight: 89 kg
Machine VisesTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX PVTME Series MC Power Vise (Entry Type)

Brand TAUMAX·Machine Vises

Available part numbers (5)

PVTM-100E, PVTM-130E, PVTM-160E, PVTM-160LE, PVTM-200E

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PVTM-100EJaw width (A): 102 mm | Body length (B): 341 mm | Overall length (C): 465 mm | Height (D): 85 mm | Max opening (J1): 313 mm | Max clamping force: 4,000 kgf | Clamping force steps 1-4: 1,500 / 2,500 / 3,500 / 4,000 kgf | Package weight: 25 kg
PVTM-130EJaw width (A): 130 mm | Body length (B): 416 mm | Overall length (C): 540 mm | Height (D): 95 mm | Max opening (J1): 390 mm | Max clamping force: 4,500 kgf | Clamping force steps 1-4: 2,000 / 3,000 / 4,000 / 4,500 kgf | Package weight: 36 kg
PVTM-160EJaw width (A): 160 mm | Body length (B): 516 mm | Overall length (C): 640 mm | Height (D): 105 mm | Max opening (J1): 473 mm | Max clamping force: 4,500 kgf | Clamping force steps 1-4: 2,000 / 3,000 / 4,000 / 4,500 kgf | Package weight: 55 kg
PVTM-160LEJaw width (A): 160 mm | Body length (B): 561 mm | Overall length (C): 685 mm | Height (D): 105 mm | Max opening (J1): 533 mm | Max clamping force: 4,500 kgf | Package weight: 58 kg
PVTM-200EJaw width (A): 200 mm | Body length (B): 612 mm | Overall length (C): 736 mm | Height (D): 120 mm | Max opening (J1): 594 mm | Max clamping force: 5,000 kgf | Clamping force steps 1-4: 2,000 / 3,000 / 4,000 / 5,000 kgf | Package weight: 89 kg
