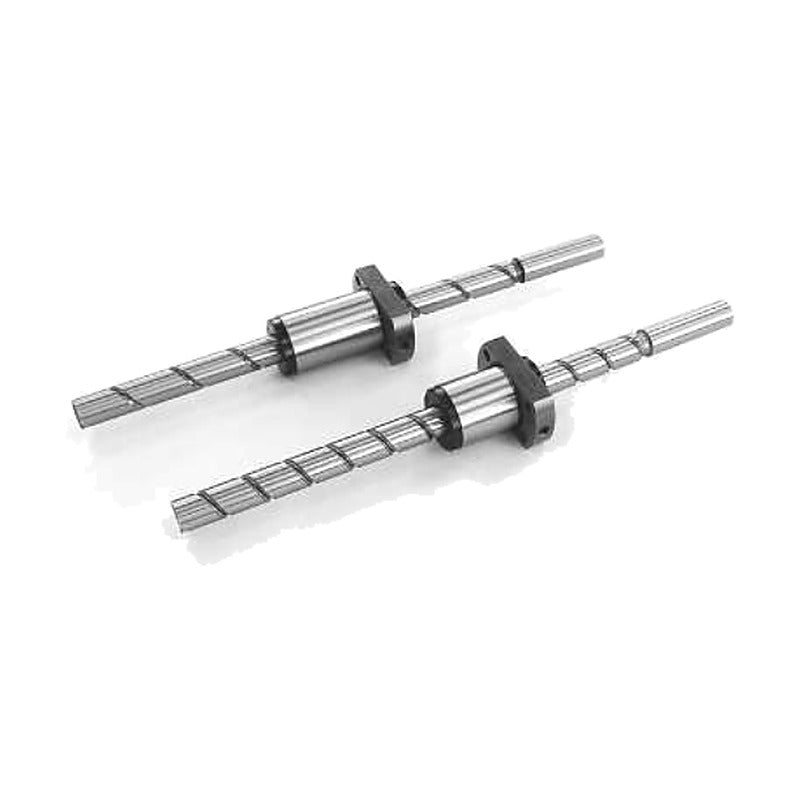

HANSAN SHIR/SHER High-Speed Ball Screws C5

HANSAN SHIR/SHER High-Speed Ball Screws C5

High-speed internal-return (SHIR) and end-cap (SHER) ball screws in grade C5 with unmachined shaft ends.

Key features

  • Nut types: SHER (high-speed end-cap), SHIR (high-speed internal-return)
  • Shaft diameters 8-25 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • All screws and nuts lapped for low noise and long life

Specifications

Accuracy standard JIS B 1192
Brand HANSAN
Product type Ball Screws
Series SHIR/SHER
Designations listed 64
Units mm, kN
Source HANSAN Ball Screw catalogue, p. 98-113
SHIR0804RC5T-220 Size: 8 x 4 mm | Shaft length: 220 mm | Stroke: 125 mm | Clearance: T | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC5T-300 Size: 8 x 4 mm | Shaft length: 300 mm | Stroke: 205 mm | Clearance: T | Ca: 1.79 kN | C0a: 2.89 kN
SHIR1205RC5T-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 190 mm | Clearance: T | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC5T-450 Size: 12 x 5 mm | Shaft length: 450 mm | Stroke: 340 mm | Clearance: T | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1210RC5T-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 170 mm | Clearance: T | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC5T-450 Size: 12 x 10 mm | Shaft length: 450 mm | Stroke: 320 mm | Clearance: T | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1220TC5T-450 Size: 12 x 20 mm | Shaft length: 450 mm | Stroke: 308 mm | Clearance: T | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC5T-600 Size: 12 x 20 mm | Shaft length: 600 mm | Stroke: 458 mm | Clearance: T | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC5T-S1-450 Size: 12 x 20 mm | Shaft length: 450 mm | Stroke: 308 mm | Clearance: T | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC5T-S1-600 Size: 12 x 20 mm | Shaft length: 600 mm | Stroke: 458 mm | Clearance: T | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1505RC5T-S1-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 185 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC5T-S1-450 Size: 15 x 5 mm | Shaft length: 450 mm | Stroke: 335 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC5T-S1-600 Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 485 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC5T-S1-750 Size: 15 x 5 mm | Shaft length: 750 mm | Stroke: 635 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC5T-S1-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 785 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC5T-S1-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 163 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC5T-S1-450 Size: 15 x 10 mm | Shaft length: 450 mm | Stroke: 313 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC5T-S1-600 Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 463 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC5T-S1-750 Size: 15 x 10 mm | Shaft length: 750 mm | Stroke: 613 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC5T-S1-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 763 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC5T-S1-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 963 mm | Clearance: T | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1520TC5T-S1-450 Size: 15 x 20 mm | Shaft length: 450 mm | Stroke: 301 mm | Clearance: T | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC5T-S1-600 Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 451 mm | Clearance: T | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC5T-S1-750 Size: 15 x 20 mm | Shaft length: 750 mm | Stroke: 601 mm | Clearance: T | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC5T-S1-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 751 mm | Clearance: T | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC5T-S1-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 951 mm | Clearance: T | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC5T-S1-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1151 mm | Clearance: T | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC5T-S1-1500 Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1351 mm | Clearance: T | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC5T-650 Size: 15 x 20 mm | Shaft length: 650 mm | Stroke: 507 mm | Clearance: T | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC5T-850 Size: 15 x 20 mm | Shaft length: 850 mm | Stroke: 707 mm | Clearance: T | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC5T-1050 Size: 15 x 20 mm | Shaft length: 1050 mm | Stroke: 907 mm | Clearance: T | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC5T-1250 Size: 15 x 20 mm | Shaft length: 1250 mm | Stroke: 1107 mm | Clearance: T | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC5T-1450 Size: 15 x 20 mm | Shaft length: 1450 mm | Stroke: 1307 mm | Clearance: T | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1530TC5T-650 Size: 15 x 30 mm | Shaft length: 650 mm | Stroke: 480 mm | Clearance: T | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC5T-950 Size: 15 x 30 mm | Shaft length: 950 mm | Stroke: 780 mm | Clearance: T | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC5T-1250 Size: 15 x 30 mm | Shaft length: 1250 mm | Stroke: 1080 mm | Clearance: T | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC5T-1550 Size: 15 x 30 mm | Shaft length: 1550 mm | Stroke: 1380 mm | Clearance: T | Ca: 4.26 kN | C0a: 7.96 kN
SHIR2020TC5T-900 Size: 20 x 20 mm | Shaft length: 900 mm | Stroke: 737 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC5T-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1137 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC5T-1700 Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1537 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC5T-2100 Size: 20 x 20 mm | Shaft length: 2100 mm | Stroke: 1937 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC5T-S1-900 Size: 20 x 20 mm | Shaft length: 900 mm | Stroke: 737 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC5T-S1-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1137 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC5T-S1-1700 Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1537 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC5T-S1-2100 Size: 20 x 20 mm | Shaft length: 2100 mm | Stroke: 1937 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2030TC5T-900 Size: 20 x 30 mm | Shaft length: 900 mm | Stroke: 707 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2030TC5T-1300 Size: 20 x 30 mm | Shaft length: 1300 mm | Stroke: 1107 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2030TC5T-1700 Size: 20 x 30 mm | Shaft length: 1700 mm | Stroke: 1507 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2030TC5T-2100 Size: 20 x 30 mm | Shaft length: 2100 mm | Stroke: 1907 mm | Clearance: T | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2040TC5T-1100 Size: 20 x 40 mm | Shaft length: 1100 mm | Stroke: 878 mm | Clearance: T | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC5T-1500 Size: 20 x 40 mm | Shaft length: 1500 mm | Stroke: 1278 mm | Clearance: T | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC5T-1900 Size: 20 x 40 mm | Shaft length: 1900 mm | Stroke: 1678 mm | Clearance: T | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC5T-2100 Size: 20 x 40 mm | Shaft length: 2100 mm | Stroke: 1878 mm | Clearance: T | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2525TC5T-1100 Size: 25 x 25 mm | Shaft length: 1100 mm | Stroke: 895 mm | Clearance: T | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC5T-1600 Size: 25 x 25 mm | Shaft length: 1600 mm | Stroke: 1395 mm | Clearance: T | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC5T-2100 Size: 25 x 25 mm | Shaft length: 2100 mm | Stroke: 1995 mm | Clearance: T | Ca: 6.72 kN | C0a: 14.9 kN
SHER2550TC5T-1100 Size: 25 x 50 mm | Shaft length: 1100 mm | Stroke: 822 mm | Clearance: T | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC5Z-1100 Size: 25 x 50 mm | Shaft length: 1100 mm | Stroke: 822 mm | Clearance: Z | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC5T-1500 Size: 25 x 50 mm | Shaft length: 1500 mm | Stroke: 1222 mm | Clearance: T | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC5Z-1500 Size: 25 x 50 mm | Shaft length: 1500 mm | Stroke: 1222 mm | Clearance: Z | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC5T-1900 Size: 25 x 50 mm | Shaft length: 1900 mm | Stroke: 1622 mm | Clearance: T | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC5Z-1900 Size: 25 x 50 mm | Shaft length: 1900 mm | Stroke: 1622 mm | Clearance: Z | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC5T-2100 Size: 25 x 50 mm | Shaft length: 2100 mm | Stroke: 1822 mm | Clearance: T | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC5Z-2100 Size: 25 x 50 mm | Shaft length: 2100 mm | Stroke: 1822 mm | Clearance: Z | Ca: 4.599 kN | C0a: 11.543 kN
Ball ScrewsHANSAN
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HANSAN SHIR/SHER High-Speed Ball Screws C5

Brand HANSAN·Ball Screws

Available part numbers (64)

SHIR0804RC5T-220, SHIR0804RC5T-300, SHIR1205RC5T-300, SHIR1205RC5T-450, SHIR1210RC5T-300, SHIR1210RC5T-450, SHIR1220TC5T-450, SHIR1220TC5T-600, SHIR1220TC5T-S1-450, SHIR1220TC5T-S1-600 + 54 more — see full table ↓
