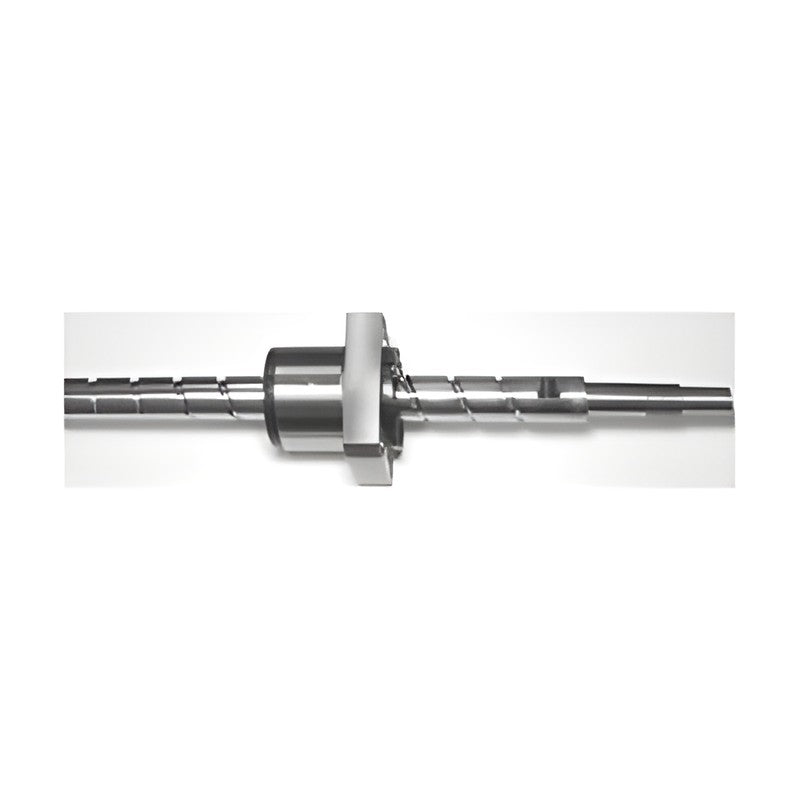

HANSAN SHIR/SHER High-Speed Ball Screws C7

HANSAN SHIR/SHER High-Speed Ball Screws C7

High-speed internal-return (SHIR) and end-cap (SHER) ball screws in grade C7 with machined or unmachined ends.

Key features

  • Nut types: SHER (high-speed end-cap), SHIR (high-speed internal-return)
  • Shaft diameters 8-25 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • All screws and nuts lapped for low noise and long life

Specifications

Accuracy standard JIS B 1192
Brand HANSAN
Product type Ball Screws
Series SHIR/SHER
Designations listed 140
Units mm, kN
Source HANSAN Ball Screw catalogue, p. 115-130
SHIR0804RC7S-200 Size: 8 x 4 mm | Shaft length: 200 mm | Stroke: 102 mm | Clearance: S | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7N-200 Size: 8 x 4 mm | Shaft length: 200 mm | Stroke: 102 mm | Clearance: N | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7S-400 Size: 8 x 4 mm | Shaft length: 400 mm | Stroke: 302 mm | Clearance: S | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7N-400 Size: 8 x 4 mm | Shaft length: 400 mm | Stroke: 302 mm | Clearance: N | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7S-600 Size: 8 x 4 mm | Shaft length: 600 mm | Stroke: 502 mm | Clearance: S | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7N-600 Size: 8 x 4 mm | Shaft length: 600 mm | Stroke: 502 mm | Clearance: N | Ca: 1.79 kN | C0a: 2.89 kN
SHIR1205RC7S-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7N-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7S-500 Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7N-500 Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7S-700 Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7N-700 Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7S-1000 Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7N-1000 Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1210RC7S-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 155 mm | Clearance: S | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7N-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 155 mm | Clearance: N | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7S-500 Size: 12 x 10 mm | Shaft length: 500 mm | Stroke: 355 mm | Clearance: S | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7N-500 Size: 12 x 10 mm | Shaft length: 500 mm | Stroke: 355 mm | Clearance: N | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7S-700 Size: 12 x 10 mm | Shaft length: 700 mm | Stroke: 555 mm | Clearance: S | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7N-700 Size: 12 x 10 mm | Shaft length: 700 mm | Stroke: 555 mm | Clearance: N | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7S-1000 Size: 12 x 10 mm | Shaft length: 1000 mm | Stroke: 855 mm | Clearance: S | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7N-1000 Size: 12 x 10 mm | Shaft length: 1000 mm | Stroke: 855 mm | Clearance: N | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1220TC7S-300 Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-300 Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-500 Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-500 Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-700 Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-700 Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-1000 Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 843 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-1000 Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 843 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-S1-300 Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-S1-300 Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-S1-500 Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-S1-500 Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-S1-700 Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-S1-700 Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-S1-1000 Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 843 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-S1-1000 Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 843 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1505RC7S-S1-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 165 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 165 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-500 Size: 15 x 5 mm | Shaft length: 500 mm | Stroke: 365 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-500 Size: 15 x 5 mm | Shaft length: 500 mm | Stroke: 365 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-700 Size: 15 x 5 mm | Shaft length: 700 mm | Stroke: 565 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-700 Size: 15 x 5 mm | Shaft length: 700 mm | Stroke: 565 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 765 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 765 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-1100 Size: 15 x 5 mm | Shaft length: 1100 mm | Stroke: 965 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-1100 Size: 15 x 5 mm | Shaft length: 1100 mm | Stroke: 965 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-1300 Size: 15 x 5 mm | Shaft length: 1300 mm | Stroke: 1165 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-1300 Size: 15 x 5 mm | Shaft length: 1300 mm | Stroke: 1165 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-1500 Size: 15 x 5 mm | Shaft length: 1500 mm | Stroke: 1365 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-1500 Size: 15 x 5 mm | Shaft length: 1500 mm | Stroke: 1365 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-500 Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-500 Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-700 Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-700 Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-1300 Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-1300 Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-1500 Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-1500 Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1520TC7S-S1-300 Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 131 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-300 Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 131 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-500 Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 331 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-500 Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 331 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-700 Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 531 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-700 Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 531 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 731 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 731 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 931 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 931 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1131 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1131 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-1500 Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1331 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-1500 Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1331 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-2000 Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1831 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-2000 Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1831 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-300 Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 140 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-500 Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 340 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-700 Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 540 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 740 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 940 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1140 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-1500 Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1340 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-2000 Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1840 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1530TC7S-500 Size: 15 x 30 mm | Shaft length: 500 mm | Stroke: 313 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-700 Size: 15 x 30 mm | Shaft length: 700 mm | Stroke: 513 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-900 Size: 15 x 30 mm | Shaft length: 900 mm | Stroke: 713 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-1100 Size: 15 x 30 mm | Shaft length: 1100 mm | Stroke: 913 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-1300 Size: 15 x 30 mm | Shaft length: 1300 mm | Stroke: 1113 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-1500 Size: 15 x 30 mm | Shaft length: 1500 mm | Stroke: 1313 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-1700 Size: 15 x 30 mm | Shaft length: 1700 mm | Stroke: 1513 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-2000 Size: 15 x 30 mm | Shaft length: 2000 mm | Stroke: 1813 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR2020TC7S-700 Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 517 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 817 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1117 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1317 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-1700 Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1517 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-2000 Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1817 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-2500 Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2317 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-700 Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 517 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 817 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1117 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1317 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-1700 Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1517 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-2000 Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1817 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-2500 Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2317 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2030TC7S-700 Size: 20 x 30 mm | Shaft length: 700 mm | Stroke: 487 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-1000 Size: 20 x 30 mm | Shaft length: 1000 mm | Stroke: 787 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-1300 Size: 20 x 30 mm | Shaft length: 1300 mm | Stroke: 1087 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-1500 Size: 20 x 30 mm | Shaft length: 1500 mm | Stroke: 1287 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-1700 Size: 20 x 30 mm | Shaft length: 1700 mm | Stroke: 1487 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-2000 Size: 20 x 30 mm | Shaft length: 2000 mm | Stroke: 1787 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-2500 Size: 20 x 30 mm | Shaft length: 2500 mm | Stroke: 2287 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2040TC7S-700 Size: 20 x 40 mm | Shaft length: 700 mm | Stroke: 458 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-1000 Size: 20 x 40 mm | Shaft length: 1000 mm | Stroke: 758 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-1300 Size: 20 x 40 mm | Shaft length: 1300 mm | Stroke: 1058 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-1500 Size: 20 x 40 mm | Shaft length: 1500 mm | Stroke: 1258 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-1700 Size: 20 x 40 mm | Shaft length: 1700 mm | Stroke: 1458 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-2000 Size: 20 x 40 mm | Shaft length: 2000 mm | Stroke: 1758 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-2500 Size: 20 x 40 mm | Shaft length: 2500 mm | Stroke: 2258 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2525TC7S-700 Size: 25 x 25 mm | Shaft length: 700 mm | Stroke: 476 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-1000 Size: 25 x 25 mm | Shaft length: 1000 mm | Stroke: 776 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-1300 Size: 25 x 25 mm | Shaft length: 1300 mm | Stroke: 1076 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-1500 Size: 25 x 25 mm | Shaft length: 1500 mm | Stroke: 1276 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-1700 Size: 25 x 25 mm | Shaft length: 1700 mm | Stroke: 1476 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-2000 Size: 25 x 25 mm | Shaft length: 2000 mm | Stroke: 1776 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-2500 Size: 25 x 25 mm | Shaft length: 2500 mm | Stroke: 2276 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHER2550TC7S-700 Size: 25 x 50 mm | Shaft length: 700 mm | Stroke: 403 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-1000 Size: 25 x 50 mm | Shaft length: 1000 mm | Stroke: 703 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-1300 Size: 25 x 50 mm | Shaft length: 1300 mm | Stroke: 1003 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-1500 Size: 25 x 50 mm | Shaft length: 1500 mm | Stroke: 1203 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-1700 Size: 25 x 50 mm | Shaft length: 1700 mm | Stroke: 1403 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-2000 Size: 25 x 50 mm | Shaft length: 2000 mm | Stroke: 1703 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-2500 Size: 25 x 50 mm | Shaft length: 2500 mm | Stroke: 2203 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
Ball ScrewsHANSAN
140 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HANSAN SHIR/SHER High-Speed Ball Screws C7

Brand HANSAN·Ball Screws

Available part numbers (140)

SHIR0804RC7S-200, SHIR0804RC7N-200, SHIR0804RC7S-400, SHIR0804RC7N-400, SHIR0804RC7S-600, SHIR0804RC7N-600, SHIR1205RC7S-300, SHIR1205RC7N-300, SHIR1205RC7S-500, SHIR1205RC7N-500 + 130 more — see full table ↓

How to order

Send the HANSAN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHIR0804RC7S-200Size: 8 x 4 mm | Shaft length: 200 mm | Stroke: 102 mm | Clearance: S | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7N-200Size: 8 x 4 mm | Shaft length: 200 mm | Stroke: 102 mm | Clearance: N | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7S-400Size: 8 x 4 mm | Shaft length: 400 mm | Stroke: 302 mm | Clearance: S | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7N-400Size: 8 x 4 mm | Shaft length: 400 mm | Stroke: 302 mm | Clearance: N | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7S-600Size: 8 x 4 mm | Shaft length: 600 mm | Stroke: 502 mm | Clearance: S | Ca: 1.79 kN | C0a: 2.89 kN
SHIR0804RC7N-600Size: 8 x 4 mm | Shaft length: 600 mm | Stroke: 502 mm | Clearance: N | Ca: 1.79 kN | C0a: 2.89 kN
SHIR1205RC7S-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7N-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7S-500Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7N-500Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7S-700Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7N-700Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7S-1000Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RC7N-1000Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1210RC7S-300Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 155 mm | Clearance: S | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7N-300Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 155 mm | Clearance: N | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7S-500Size: 12 x 10 mm | Shaft length: 500 mm | Stroke: 355 mm | Clearance: S | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7N-500Size: 12 x 10 mm | Shaft length: 500 mm | Stroke: 355 mm | Clearance: N | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7S-700Size: 12 x 10 mm | Shaft length: 700 mm | Stroke: 555 mm | Clearance: S | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7N-700Size: 12 x 10 mm | Shaft length: 700 mm | Stroke: 555 mm | Clearance: N | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7S-1000Size: 12 x 10 mm | Shaft length: 1000 mm | Stroke: 855 mm | Clearance: S | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1210RC7N-1000Size: 12 x 10 mm | Shaft length: 1000 mm | Stroke: 855 mm | Clearance: N | Ca: 3.15 kN | C0a: 5.88 kN
SHIR1220TC7S-300Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-300Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-500Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-500Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-700Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-700Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-1000Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 843 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-1000Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 843 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-S1-300Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-S1-300Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-S1-500Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-S1-500Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-S1-700Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-S1-700Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7S-S1-1000Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 843 mm | Clearance: S | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1220TC7N-S1-1000Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 843 mm | Clearance: N | Ca: 2.04 kN | C0a: 3.8 kN
SHIR1505RC7S-S1-300Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 165 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-300Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 165 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-500Size: 15 x 5 mm | Shaft length: 500 mm | Stroke: 365 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-500Size: 15 x 5 mm | Shaft length: 500 mm | Stroke: 365 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-700Size: 15 x 5 mm | Shaft length: 700 mm | Stroke: 565 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-700Size: 15 x 5 mm | Shaft length: 700 mm | Stroke: 565 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-900Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 765 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-900Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 765 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-1100Size: 15 x 5 mm | Shaft length: 1100 mm | Stroke: 965 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-1100Size: 15 x 5 mm | Shaft length: 1100 mm | Stroke: 965 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-1300Size: 15 x 5 mm | Shaft length: 1300 mm | Stroke: 1165 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-1300Size: 15 x 5 mm | Shaft length: 1300 mm | Stroke: 1165 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7S-S1-1500Size: 15 x 5 mm | Shaft length: 1500 mm | Stroke: 1365 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1505RC7N-S1-1500Size: 15 x 5 mm | Shaft length: 1500 mm | Stroke: 1365 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-500Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-500Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-700Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-700Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-1100Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-1100Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-1300Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-1300Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7S-S1-1500Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: S | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1510RC7N-S1-1500Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: N | Ca: 6.35 kN | C0a: 10.5 kN
SHIR1520TC7S-S1-300Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 131 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-300Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 131 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-500Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 331 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-500Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 331 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-700Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 531 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-700Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 531 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-900Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 731 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-900Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 731 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-1100Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 931 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-1100Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 931 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-1300Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1131 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-1300Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1131 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-1500Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1331 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-1500Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1331 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-S1-2000Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1831 mm | Clearance: S | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7N-S1-2000Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1831 mm | Clearance: N | Ca: 3.69 kN | C0a: 6.68 kN
SHIR1520TC7S-300Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 140 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-500Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 340 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-700Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 540 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-900Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 740 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-1100Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 940 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-1300Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1140 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-1500Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1340 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1520TC7S-2000Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1840 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
SHIR1530TC7S-500Size: 15 x 30 mm | Shaft length: 500 mm | Stroke: 313 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-700Size: 15 x 30 mm | Shaft length: 700 mm | Stroke: 513 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-900Size: 15 x 30 mm | Shaft length: 900 mm | Stroke: 713 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-1100Size: 15 x 30 mm | Shaft length: 1100 mm | Stroke: 913 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-1300Size: 15 x 30 mm | Shaft length: 1300 mm | Stroke: 1113 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-1500Size: 15 x 30 mm | Shaft length: 1500 mm | Stroke: 1313 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-1700Size: 15 x 30 mm | Shaft length: 1700 mm | Stroke: 1513 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR1530TC7S-2000Size: 15 x 30 mm | Shaft length: 2000 mm | Stroke: 1813 mm | Clearance: S | Ca: 4.26 kN | C0a: 7.96 kN
SHIR2020TC7S-700Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 517 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 817 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-1300Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1117 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1317 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-1700Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1517 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-2000Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1817 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-2500Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2317 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-700Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 517 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 817 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-1300Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1117 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1317 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-1700Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1517 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-2000Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1817 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2020TC7S-S1-2500Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2317 mm | Clearance: S | Ca: 5.77 kN | C0a: 12.28 kN
SHIR2030TC7S-700Size: 20 x 30 mm | Shaft length: 700 mm | Stroke: 487 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-1000Size: 20 x 30 mm | Shaft length: 1000 mm | Stroke: 787 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-1300Size: 20 x 30 mm | Shaft length: 1300 mm | Stroke: 1087 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-1500Size: 20 x 30 mm | Shaft length: 1500 mm | Stroke: 1287 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-1700Size: 20 x 30 mm | Shaft length: 1700 mm | Stroke: 1487 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-2000Size: 20 x 30 mm | Shaft length: 2000 mm | Stroke: 1787 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2030TC7S-2500Size: 20 x 30 mm | Shaft length: 2500 mm | Stroke: 2287 mm | Clearance: S | Ca: 5.04 kN | C0a: 10.55 kN
SHIR2040TC7S-700Size: 20 x 40 mm | Shaft length: 700 mm | Stroke: 458 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-1000Size: 20 x 40 mm | Shaft length: 1000 mm | Stroke: 758 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-1300Size: 20 x 40 mm | Shaft length: 1300 mm | Stroke: 1058 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-1500Size: 20 x 40 mm | Shaft length: 1500 mm | Stroke: 1258 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-1700Size: 20 x 40 mm | Shaft length: 1700 mm | Stroke: 1458 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-2000Size: 20 x 40 mm | Shaft length: 2000 mm | Stroke: 1758 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2040TC7S-2500Size: 20 x 40 mm | Shaft length: 2500 mm | Stroke: 2258 mm | Clearance: S | Ca: 5.44 kN | C0a: 12.5 kN
SHIR2525TC7S-700Size: 25 x 25 mm | Shaft length: 700 mm | Stroke: 476 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-1000Size: 25 x 25 mm | Shaft length: 1000 mm | Stroke: 776 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-1300Size: 25 x 25 mm | Shaft length: 1300 mm | Stroke: 1076 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-1500Size: 25 x 25 mm | Shaft length: 1500 mm | Stroke: 1276 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-1700Size: 25 x 25 mm | Shaft length: 1700 mm | Stroke: 1476 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-2000Size: 25 x 25 mm | Shaft length: 2000 mm | Stroke: 1776 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHIR2525TC7S-2500Size: 25 x 25 mm | Shaft length: 2500 mm | Stroke: 2276 mm | Clearance: S | Ca: 6.72 kN | C0a: 14.9 kN
SHER2550TC7S-700Size: 25 x 50 mm | Shaft length: 700 mm | Stroke: 403 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-1000Size: 25 x 50 mm | Shaft length: 1000 mm | Stroke: 703 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-1300Size: 25 x 50 mm | Shaft length: 1300 mm | Stroke: 1003 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-1500Size: 25 x 50 mm | Shaft length: 1500 mm | Stroke: 1203 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-1700Size: 25 x 50 mm | Shaft length: 1700 mm | Stroke: 1403 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-2000Size: 25 x 50 mm | Shaft length: 2000 mm | Stroke: 1703 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN
SHER2550TC7S-2500Size: 25 x 50 mm | Shaft length: 2500 mm | Stroke: 2203 mm | Clearance: S | Ca: 4.599 kN | C0a: 11.543 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
