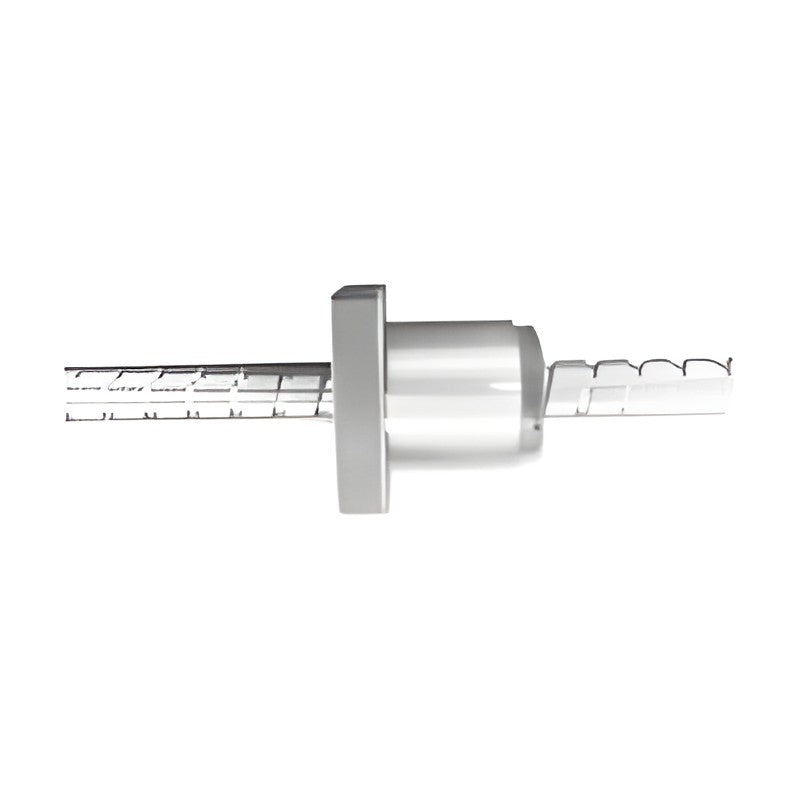

HANSAN Left-Hand Thread Ball Screws C7

HANSAN Left-Hand Thread Ball Screws C7

Precision ball screws with left-hand thread in grade C7.

Key features

  • Nut types: HDR (miniature deflector-type), HIR (internal-deflector), SHIR (high-speed internal-return)
  • Shaft diameters 12-20 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • All screws and nuts lapped for low noise and long life

Specifications

Accuracy standard JIS B 1192
Brand HANSAN
Product type Ball Screws
Designations listed 50
Units mm, kN
Source HANSAN Ball Screw catalogue, p. 139-142
SHIR1205RLC7S-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7N-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7S-500 Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7N-500 Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7S-700 Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7N-700 Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7S-1000 Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7N-1000 Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
HIR1510RLC7S-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 146 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 146 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-500 Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 346 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-500 Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 346 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-700 Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 546 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-700 Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 546 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 746 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 746 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 946 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 946 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-1300 Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1146 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-1300 Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1146 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-1500 Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1346 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-1500 Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1346 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR2020TLC7S-700 Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 515 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-700 Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 515 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 815 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 815 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1015 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1015 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1315 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1315 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-1700 Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1515 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-1700 Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1515 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-2000 Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1815 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-2000 Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1815 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-2500 Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2325 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-2500 Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2325 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HDR1605D4LC7S-300 Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-300 Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-500 Size: 16 x 5 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-500 Size: 16 x 5 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-700 Size: 16 x 5 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-700 Size: 16 x 5 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-900 Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-900 Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-1100 Size: 16 x 5 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-1100 Size: 16 x 5 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-1300 Size: 16 x 5 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-1300 Size: 16 x 5 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-1500 Size: 16 x 5 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-1500 Size: 16 x 5 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
Ball ScrewsHANSAN
50 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HANSAN Left-Hand Thread Ball Screws C7

Brand HANSAN·Ball Screws

Available part numbers (50)

SHIR1205RLC7S-300, SHIR1205RLC7N-300, SHIR1205RLC7S-500, SHIR1205RLC7N-500, SHIR1205RLC7S-700, SHIR1205RLC7N-700, SHIR1205RLC7S-1000, SHIR1205RLC7N-1000, HIR1510RLC7S-300, HIR1510RLC7N-300 + 40 more — see full table ↓

How to order

Send the HANSAN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHIR1205RLC7S-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7N-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7S-500Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7N-500Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7S-700Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7N-700Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7S-1000Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RLC7N-1000Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
HIR1510RLC7S-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 146 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 146 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-500Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 346 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-500Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 346 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-700Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 546 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-700Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 546 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 746 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 746 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-1100Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 946 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-1100Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 946 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-1300Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1146 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-1300Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1146 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7S-1500Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1346 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RLC7N-1500Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1346 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR2020TLC7S-700Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 515 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-700Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 515 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 815 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 815 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-1300Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1015 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-1300Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1015 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1315 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1315 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-1700Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1515 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-1700Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1515 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-2000Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1815 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-2000Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1815 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7S-2500Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2325 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TLC7N-2500Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2325 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HDR1605D4LC7S-300Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-300Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-500Size: 16 x 5 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-500Size: 16 x 5 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-700Size: 16 x 5 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-700Size: 16 x 5 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-900Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-900Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-1100Size: 16 x 5 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-1100Size: 16 x 5 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-1300Size: 16 x 5 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-1300Size: 16 x 5 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7S-1500Size: 16 x 5 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4LC7N-1500Size: 16 x 5 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
