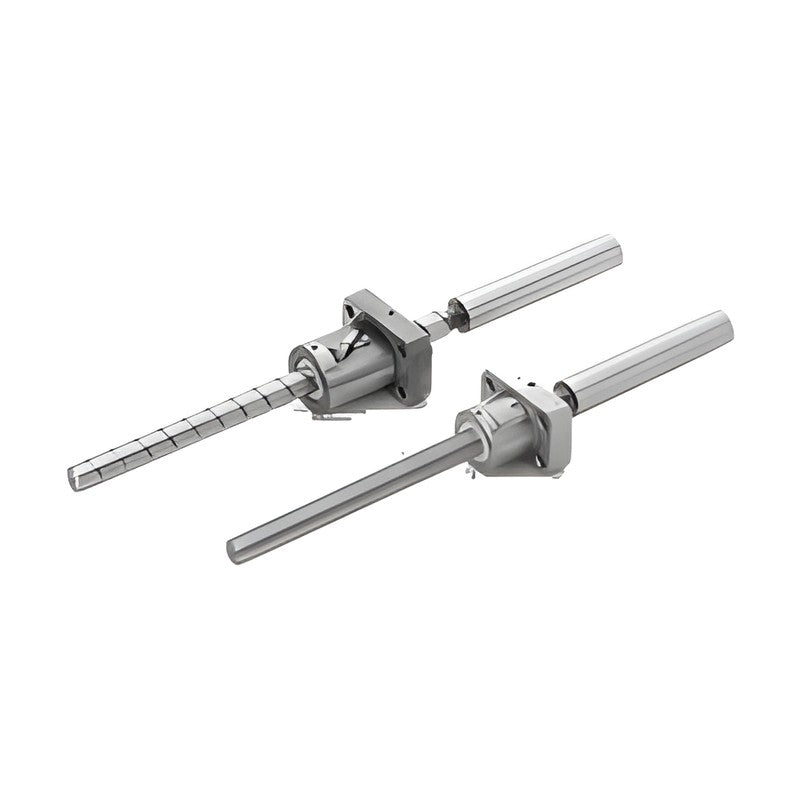

HANSAN Precision Ball Screws C5, Unmachined Ends

HANSAN Precision Ball Screws C5, Unmachined Ends

Precision ball screws in grade C5 with deflector, plate, tube or end-cap nuts, stock items with unmachined shaft ends.

Key features

  • Nut types: HDR (miniature deflector-type), HIR (internal-deflector), HPR (return-plate), HTR (return-tube)
  • Shaft diameters 8-32 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • All screws and nuts lapped for low noise and long life

Specifications

Accuracy standard JIS B 1192
Brand HANSAN
Product type Ball Screws
Designations listed 148
Units mm, kN
Source HANSAN Ball Screw catalogue, p. 36-63
HDR0801D3C5T-100 Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 25 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5Z-100 Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 25 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5T-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 75 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5Z-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 75 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5T-220 Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 145 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5Z-220 Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 145 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5T-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 225 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5Z-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 225 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDR0802D3C5T-100 Size: 8 x 2 mm | Shaft length: 100 mm | Stroke: 25 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5Z-100 Size: 8 x 2 mm | Shaft length: 100 mm | Stroke: 25 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5T-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 75 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5Z-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 75 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5T-220 Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 145 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5Z-220 Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 145 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5T-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 225 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5Z-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 225 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDR1002D3C5T-220 Size: 10 x 2 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: T | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C5Z-220 Size: 10 x 2 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: Z | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C5T-300 Size: 10 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: T | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C5Z-300 Size: 10 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: Z | Ca: 1.48 kN | C0a: 3.02 kN
HDR1201D3C5T-220 Size: 12 x 1 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: T | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C5Z-220 Size: 12 x 1 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: Z | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C5T-300 Size: 12 x 1 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: T | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C5Z-300 Size: 12 x 1 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: Z | Ca: 1.031 kN | C0a: 2.439 kN
HDR1202D3C5T-220 Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: T | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C5Z-220 Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: Z | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C5T-300 Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: T | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C5Z-300 Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: Z | Ca: 1.67 kN | C0a: 3.64 kN
HPR0802RC5T-220 Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 118 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC5Z-220 Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 118 mm | Clearance: Z | Ca: 1.099 kN | C0a: 1.543 kN
HPR1202RC5T-220 Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 120 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC5Z-220 Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 120 mm | Clearance: Z | Ca: 1.456 kN | C0a: 2.278 kN
HPR1202RC5T-300 Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC5Z-300 Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.456 kN | C0a: 2.278 kN
HTR0804EC5T-220 Size: 8 x 4 mm | Shaft length: 220 mm | Stroke: 115 mm | Clearance: T | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC5Z-220 Size: 8 x 4 mm | Shaft length: 220 mm | Stroke: 115 mm | Clearance: Z | Ca: 1.573 kN | C0a: 1.81 kN
HTR0804EC5T-300 Size: 8 x 4 mm | Shaft length: 300 mm | Stroke: 195 mm | Clearance: T | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC5Z-300 Size: 8 x 4 mm | Shaft length: 300 mm | Stroke: 195 mm | Clearance: Z | Ca: 1.573 kN | C0a: 1.81 kN
HTR0805EC5T-220 Size: 8 x 5 mm | Shaft length: 220 mm | Stroke: 94 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
HTR0805EC5Z-220 Size: 8 x 5 mm | Shaft length: 220 mm | Stroke: 94 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
HTR0805EC5T-300 Size: 8 x 5 mm | Shaft length: 300 mm | Stroke: 174 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
HTR0805EC5Z-300 Size: 8 x 5 mm | Shaft length: 300 mm | Stroke: 174 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
HTR0808AC5T-220 Size: 8 x 8 mm | Shaft length: 220 mm | Stroke: 111 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC5Z-220 Size: 8 x 8 mm | Shaft length: 220 mm | Stroke: 111 mm | Clearance: Z | Ca: 0.943 kN | C0a: 1.078 kN
HTR0808AC5T-300 Size: 8 x 8 mm | Shaft length: 300 mm | Stroke: 191 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC5Z-300 Size: 8 x 8 mm | Shaft length: 300 mm | Stroke: 191 mm | Clearance: Z | Ca: 0.943 kN | C0a: 1.078 kN
HTR1004EC5T-280 Size: 10 x 4 mm | Shaft length: 280 mm | Stroke: 164 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC5Z-280 Size: 10 x 4 mm | Shaft length: 280 mm | Stroke: 164 mm | Clearance: Z | Ca: 1.775 kN | C0a: 2.205 kN
HTR1004EC5T-380 Size: 10 x 4 mm | Shaft length: 380 mm | Stroke: 264 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC5Z-380 Size: 10 x 4 mm | Shaft length: 380 mm | Stroke: 264 mm | Clearance: Z | Ca: 1.775 kN | C0a: 2.205 kN
HTR1010AC5T-300 Size: 10 x 10 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC5Z-300 Size: 10 x 10 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: Z | Ca: 1.118 kN | C0a: 1.373 kN
HTR1010AC5T-500 Size: 10 x 10 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC5Z-500 Size: 10 x 10 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: Z | Ca: 1.118 kN | C0a: 1.373 kN
HTR2505EC5Z-600 Size: 25 x 5 mm | Shaft length: 600 mm | Stroke: 370 mm | Clearance: Z | Ca: 5.02 kN | C0a: 9.67 kN
HTR2505EC5Z-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 770 mm | Clearance: Z | Ca: 5.02 kN | C0a: 9.67 kN
HTR2505FC5Z-600 Size: 25 x 5 mm | Shaft length: 600 mm | Stroke: 347 mm | Clearance: Z | Ca: 9.28 kN | C0a: 19.35 kN
HTR2505FC5Z-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 747 mm | Clearance: Z | Ca: 9.28 kN | C0a: 19.35 kN
HTR2510EC5Z-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 729 mm | Clearance: Z | Ca: 8.27 kN | C0a: 13.5 kN
HTR2510EC5Z-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1229 mm | Clearance: Z | Ca: 8.27 kN | C0a: 13.5 kN
HTR2510BC5Z-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 708 mm | Clearance: Z | Ca: 9.68 kN | C0a: 16.2 kN
HTR2510BC5Z-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1208 mm | Clearance: Z | Ca: 9.68 kN | C0a: 16.2 kN
HTR2520AC5T-1000 Size: 25 x 20 mm | Shaft length: 1000 mm | Stroke: 717 mm | Clearance: T | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC5Z-1000 Size: 25 x 20 mm | Shaft length: 1000 mm | Stroke: 717 mm | Clearance: Z | Ca: 5.551 kN | C0a: 8.45 kN
HTR2520AC5T-1500 Size: 25 x 20 mm | Shaft length: 1500 mm | Stroke: 1217 mm | Clearance: T | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC5Z-1500 Size: 25 x 20 mm | Shaft length: 1500 mm | Stroke: 1217 mm | Clearance: Z | Ca: 5.551 kN | C0a: 8.45 kN
HTR2520AC5T-2000 Size: 25 x 20 mm | Shaft length: 2000 mm | Stroke: 1717 mm | Clearance: T | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC5Z-2000 Size: 25 x 20 mm | Shaft length: 2000 mm | Stroke: 1717 mm | Clearance: Z | Ca: 5.551 kN | C0a: 8.45 kN
HTR3205FC5Z-600 Size: 32 x 5 mm | Shaft length: 600 mm | Stroke: 301 mm | Clearance: Z | Ca: 10.15 kN | C0a: 25.03 kN
HTR3205FC5Z-1000 Size: 32 x 5 mm | Shaft length: 1000 mm | Stroke: 701 mm | Clearance: Z | Ca: 10.15 kN | C0a: 25.03 kN
HTR3210FC5Z-1000 Size: 32 x 10 mm | Shaft length: 1000 mm | Stroke: 640 mm | Clearance: Z | Ca: 25.5 kN | C0a: 48.05 kN
HTR3210FC5Z-1500 Size: 32 x 10 mm | Shaft length: 1500 mm | Stroke: 1140 mm | Clearance: Z | Ca: 25.5 kN | C0a: 48.05 kN
HIR1205RC5T-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 190 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC5Z-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 190 mm | Clearance: Z | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC5T-450 Size: 12 x 5 mm | Shaft length: 450 mm | Stroke: 340 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC5Z-450 Size: 12 x 5 mm | Shaft length: 450 mm | Stroke: 340 mm | Clearance: Z | Ca: 3.77 kN | C0a: 6.32 kN
HIR1210RC5T-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 167 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC5Z-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 167 mm | Clearance: Z | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC5T-450 Size: 12 x 10 mm | Shaft length: 450 mm | Stroke: 317 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC5Z-450 Size: 12 x 10 mm | Shaft length: 450 mm | Stroke: 317 mm | Clearance: Z | Ca: 3.82 kN | C0a: 6.48 kN
HIR1220TC5T-450 Size: 12 x 20 mm | Shaft length: 450 mm | Stroke: 307 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC5Z-450 Size: 12 x 20 mm | Shaft length: 450 mm | Stroke: 307 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC5T-600 Size: 12 x 20 mm | Shaft length: 600 mm | Stroke: 457 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC5Z-600 Size: 12 x 20 mm | Shaft length: 600 mm | Stroke: 457 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.92 kN
HIR1505RC5T-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 178 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 178 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5T-450 Size: 15 x 5 mm | Shaft length: 450 mm | Stroke: 338 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-450 Size: 15 x 5 mm | Shaft length: 450 mm | Stroke: 338 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5T-600 Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 478 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-600 Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 478 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5T-750 Size: 15 x 5 mm | Shaft length: 750 mm | Stroke: 638 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-750 Size: 15 x 5 mm | Shaft length: 750 mm | Stroke: 638 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5T-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 778 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 778 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 166 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 166 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-450 Size: 15 x 10 mm | Shaft length: 450 mm | Stroke: 316 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-450 Size: 15 x 10 mm | Shaft length: 450 mm | Stroke: 316 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-600 Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 466 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-600 Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 466 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-750 Size: 15 x 10 mm | Shaft length: 750 mm | Stroke: 616 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-750 Size: 15 x 10 mm | Shaft length: 750 mm | Stroke: 616 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 766 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 766 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 966 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 966 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1520TC5T-450 Size: 15 x 20 mm | Shaft length: 450 mm | Stroke: 307 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-450 Size: 15 x 20 mm | Shaft length: 450 mm | Stroke: 307 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-600 Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 457 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-600 Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 457 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-750 Size: 15 x 20 mm | Shaft length: 750 mm | Stroke: 607 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-750 Size: 15 x 20 mm | Shaft length: 750 mm | Stroke: 607 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 757 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 757 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 957 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 957 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1157 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1157 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR2005RC5T-400 Size: 20 x 5 mm | Shaft length: 400 mm | Stroke: 267 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5Z-400 Size: 20 x 5 mm | Shaft length: 400 mm | Stroke: 267 mm | Clearance: Z | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5T-600 Size: 20 x 5 mm | Shaft length: 600 mm | Stroke: 467 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5Z-600 Size: 20 x 5 mm | Shaft length: 600 mm | Stroke: 467 mm | Clearance: Z | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5T-800 Size: 20 x 5 mm | Shaft length: 800 mm | Stroke: 667 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5Z-800 Size: 20 x 5 mm | Shaft length: 800 mm | Stroke: 667 mm | Clearance: Z | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5T-1000 Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 867 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5Z-1000 Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 867 mm | Clearance: Z | Ca: 8.15 kN | C0a: 17.15 kN
HIR2010RC5T-600 Size: 20 x 10 mm | Shaft length: 600 mm | Stroke: 446 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-600 Size: 20 x 10 mm | Shaft length: 600 mm | Stroke: 446 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5T-800 Size: 20 x 10 mm | Shaft length: 800 mm | Stroke: 646 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-800 Size: 20 x 10 mm | Shaft length: 800 mm | Stroke: 646 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5T-1000 Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 846 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-1000 Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 846 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5T-1300 Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1146 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-1300 Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1146 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5T-1500 Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1346 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-1500 Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1346 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2020TC5T-800 Size: 20 x 20 mm | Shaft length: 800 mm | Stroke: 632 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-800 Size: 20 x 20 mm | Shaft length: 800 mm | Stroke: 632 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 832 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 832 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1132 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1132 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1332 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1332 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1650 Size: 20 x 20 mm | Shaft length: 1650 mm | Stroke: 1432 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1650 Size: 20 x 20 mm | Shaft length: 1650 mm | Stroke: 1432 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1800 Size: 20 x 20 mm | Shaft length: 1800 mm | Stroke: 1532 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1800 Size: 20 x 20 mm | Shaft length: 1800 mm | Stroke: 1532 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
Ball ScrewsHANSAN
148 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HANSAN Precision Ball Screws C5, Unmachined Ends

Brand HANSAN·Ball Screws

Available part numbers (148)

HDR0801D3C5T-100, HDR0801D3C5Z-100, HDR0801D3C5T-150, HDR0801D3C5Z-150, HDR0801D3C5T-220, HDR0801D3C5Z-220, HDR0801D3C5T-300, HDR0801D3C5Z-300, HDR0802D3C5T-100, HDR0802D3C5Z-100 + 138 more — see full table ↓

How to order

Send the HANSAN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HDR0801D3C5T-100Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 25 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5Z-100Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 25 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5T-150Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 75 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5Z-150Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 75 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5T-220Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 145 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5Z-220Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 145 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5T-300Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 225 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C5Z-300Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 225 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDR0802D3C5T-100Size: 8 x 2 mm | Shaft length: 100 mm | Stroke: 25 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5Z-100Size: 8 x 2 mm | Shaft length: 100 mm | Stroke: 25 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5T-150Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 75 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5Z-150Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 75 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5T-220Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 145 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5Z-220Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 145 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5T-300Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 225 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C5Z-300Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 225 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDR1002D3C5T-220Size: 10 x 2 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: T | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C5Z-220Size: 10 x 2 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: Z | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C5T-300Size: 10 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: T | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C5Z-300Size: 10 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: Z | Ca: 1.48 kN | C0a: 3.02 kN
HDR1201D3C5T-220Size: 12 x 1 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: T | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C5Z-220Size: 12 x 1 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: Z | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C5T-300Size: 12 x 1 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: T | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C5Z-300Size: 12 x 1 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: Z | Ca: 1.031 kN | C0a: 2.439 kN
HDR1202D3C5T-220Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: T | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C5Z-220Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 130 mm | Clearance: Z | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C5T-300Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: T | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C5Z-300Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: Z | Ca: 1.67 kN | C0a: 3.64 kN
HPR0802RC5T-220Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 118 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC5Z-220Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 118 mm | Clearance: Z | Ca: 1.099 kN | C0a: 1.543 kN
HPR1202RC5T-220Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 120 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC5Z-220Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 120 mm | Clearance: Z | Ca: 1.456 kN | C0a: 2.278 kN
HPR1202RC5T-300Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC5Z-300Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.456 kN | C0a: 2.278 kN
HTR0804EC5T-220Size: 8 x 4 mm | Shaft length: 220 mm | Stroke: 115 mm | Clearance: T | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC5Z-220Size: 8 x 4 mm | Shaft length: 220 mm | Stroke: 115 mm | Clearance: Z | Ca: 1.573 kN | C0a: 1.81 kN
HTR0804EC5T-300Size: 8 x 4 mm | Shaft length: 300 mm | Stroke: 195 mm | Clearance: T | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC5Z-300Size: 8 x 4 mm | Shaft length: 300 mm | Stroke: 195 mm | Clearance: Z | Ca: 1.573 kN | C0a: 1.81 kN
HTR0805EC5T-220Size: 8 x 5 mm | Shaft length: 220 mm | Stroke: 94 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
HTR0805EC5Z-220Size: 8 x 5 mm | Shaft length: 220 mm | Stroke: 94 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
HTR0805EC5T-300Size: 8 x 5 mm | Shaft length: 300 mm | Stroke: 174 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
HTR0805EC5Z-300Size: 8 x 5 mm | Shaft length: 300 mm | Stroke: 174 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
HTR0808AC5T-220Size: 8 x 8 mm | Shaft length: 220 mm | Stroke: 111 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC5Z-220Size: 8 x 8 mm | Shaft length: 220 mm | Stroke: 111 mm | Clearance: Z | Ca: 0.943 kN | C0a: 1.078 kN
HTR0808AC5T-300Size: 8 x 8 mm | Shaft length: 300 mm | Stroke: 191 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC5Z-300Size: 8 x 8 mm | Shaft length: 300 mm | Stroke: 191 mm | Clearance: Z | Ca: 0.943 kN | C0a: 1.078 kN
HTR1004EC5T-280Size: 10 x 4 mm | Shaft length: 280 mm | Stroke: 164 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC5Z-280Size: 10 x 4 mm | Shaft length: 280 mm | Stroke: 164 mm | Clearance: Z | Ca: 1.775 kN | C0a: 2.205 kN
HTR1004EC5T-380Size: 10 x 4 mm | Shaft length: 380 mm | Stroke: 264 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC5Z-380Size: 10 x 4 mm | Shaft length: 380 mm | Stroke: 264 mm | Clearance: Z | Ca: 1.775 kN | C0a: 2.205 kN
HTR1010AC5T-300Size: 10 x 10 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC5Z-300Size: 10 x 10 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: Z | Ca: 1.118 kN | C0a: 1.373 kN
HTR1010AC5T-500Size: 10 x 10 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC5Z-500Size: 10 x 10 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: Z | Ca: 1.118 kN | C0a: 1.373 kN
HTR2505EC5Z-600Size: 25 x 5 mm | Shaft length: 600 mm | Stroke: 370 mm | Clearance: Z | Ca: 5.02 kN | C0a: 9.67 kN
HTR2505EC5Z-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 770 mm | Clearance: Z | Ca: 5.02 kN | C0a: 9.67 kN
HTR2505FC5Z-600Size: 25 x 5 mm | Shaft length: 600 mm | Stroke: 347 mm | Clearance: Z | Ca: 9.28 kN | C0a: 19.35 kN
HTR2505FC5Z-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 747 mm | Clearance: Z | Ca: 9.28 kN | C0a: 19.35 kN
HTR2510EC5Z-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 729 mm | Clearance: Z | Ca: 8.27 kN | C0a: 13.5 kN
HTR2510EC5Z-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1229 mm | Clearance: Z | Ca: 8.27 kN | C0a: 13.5 kN
HTR2510BC5Z-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 708 mm | Clearance: Z | Ca: 9.68 kN | C0a: 16.2 kN
HTR2510BC5Z-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1208 mm | Clearance: Z | Ca: 9.68 kN | C0a: 16.2 kN
HTR2520AC5T-1000Size: 25 x 20 mm | Shaft length: 1000 mm | Stroke: 717 mm | Clearance: T | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC5Z-1000Size: 25 x 20 mm | Shaft length: 1000 mm | Stroke: 717 mm | Clearance: Z | Ca: 5.551 kN | C0a: 8.45 kN
HTR2520AC5T-1500Size: 25 x 20 mm | Shaft length: 1500 mm | Stroke: 1217 mm | Clearance: T | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC5Z-1500Size: 25 x 20 mm | Shaft length: 1500 mm | Stroke: 1217 mm | Clearance: Z | Ca: 5.551 kN | C0a: 8.45 kN
HTR2520AC5T-2000Size: 25 x 20 mm | Shaft length: 2000 mm | Stroke: 1717 mm | Clearance: T | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC5Z-2000Size: 25 x 20 mm | Shaft length: 2000 mm | Stroke: 1717 mm | Clearance: Z | Ca: 5.551 kN | C0a: 8.45 kN
HTR3205FC5Z-600Size: 32 x 5 mm | Shaft length: 600 mm | Stroke: 301 mm | Clearance: Z | Ca: 10.15 kN | C0a: 25.03 kN
HTR3205FC5Z-1000Size: 32 x 5 mm | Shaft length: 1000 mm | Stroke: 701 mm | Clearance: Z | Ca: 10.15 kN | C0a: 25.03 kN
HTR3210FC5Z-1000Size: 32 x 10 mm | Shaft length: 1000 mm | Stroke: 640 mm | Clearance: Z | Ca: 25.5 kN | C0a: 48.05 kN
HTR3210FC5Z-1500Size: 32 x 10 mm | Shaft length: 1500 mm | Stroke: 1140 mm | Clearance: Z | Ca: 25.5 kN | C0a: 48.05 kN
HIR1205RC5T-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 190 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC5Z-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 190 mm | Clearance: Z | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC5T-450Size: 12 x 5 mm | Shaft length: 450 mm | Stroke: 340 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC5Z-450Size: 12 x 5 mm | Shaft length: 450 mm | Stroke: 340 mm | Clearance: Z | Ca: 3.77 kN | C0a: 6.32 kN
HIR1210RC5T-300Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 167 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC5Z-300Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 167 mm | Clearance: Z | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC5T-450Size: 12 x 10 mm | Shaft length: 450 mm | Stroke: 317 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC5Z-450Size: 12 x 10 mm | Shaft length: 450 mm | Stroke: 317 mm | Clearance: Z | Ca: 3.82 kN | C0a: 6.48 kN
HIR1220TC5T-450Size: 12 x 20 mm | Shaft length: 450 mm | Stroke: 307 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC5Z-450Size: 12 x 20 mm | Shaft length: 450 mm | Stroke: 307 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC5T-600Size: 12 x 20 mm | Shaft length: 600 mm | Stroke: 457 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC5Z-600Size: 12 x 20 mm | Shaft length: 600 mm | Stroke: 457 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.92 kN
HIR1505RC5T-300Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 178 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-300Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 178 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5T-450Size: 15 x 5 mm | Shaft length: 450 mm | Stroke: 338 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-450Size: 15 x 5 mm | Shaft length: 450 mm | Stroke: 338 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5T-600Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 478 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-600Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 478 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5T-750Size: 15 x 5 mm | Shaft length: 750 mm | Stroke: 638 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-750Size: 15 x 5 mm | Shaft length: 750 mm | Stroke: 638 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5T-900Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 778 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC5Z-900Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 778 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 166 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 166 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-450Size: 15 x 10 mm | Shaft length: 450 mm | Stroke: 316 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-450Size: 15 x 10 mm | Shaft length: 450 mm | Stroke: 316 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-600Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 466 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-600Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 466 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-750Size: 15 x 10 mm | Shaft length: 750 mm | Stroke: 616 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-750Size: 15 x 10 mm | Shaft length: 750 mm | Stroke: 616 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 766 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 766 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5T-1100Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 966 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC5Z-1100Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 966 mm | Clearance: Z | Ca: 6.61 kN | C0a: 12.545 kN
HIR1520TC5T-450Size: 15 x 20 mm | Shaft length: 450 mm | Stroke: 307 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-450Size: 15 x 20 mm | Shaft length: 450 mm | Stroke: 307 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-600Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 457 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-600Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 457 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-750Size: 15 x 20 mm | Shaft length: 750 mm | Stroke: 607 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-750Size: 15 x 20 mm | Shaft length: 750 mm | Stroke: 607 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-900Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 757 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-900Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 757 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-1100Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 957 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-1100Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 957 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5T-1300Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1157 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
HIR1520TC5Z-1300Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1157 mm | Clearance: Z | Ca: 4.23 kN | C0a: 7.84 kN
HIR2005RC5T-400Size: 20 x 5 mm | Shaft length: 400 mm | Stroke: 267 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5Z-400Size: 20 x 5 mm | Shaft length: 400 mm | Stroke: 267 mm | Clearance: Z | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5T-600Size: 20 x 5 mm | Shaft length: 600 mm | Stroke: 467 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5Z-600Size: 20 x 5 mm | Shaft length: 600 mm | Stroke: 467 mm | Clearance: Z | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5T-800Size: 20 x 5 mm | Shaft length: 800 mm | Stroke: 667 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5Z-800Size: 20 x 5 mm | Shaft length: 800 mm | Stroke: 667 mm | Clearance: Z | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5T-1000Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 867 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC5Z-1000Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 867 mm | Clearance: Z | Ca: 8.15 kN | C0a: 17.15 kN
HIR2010RC5T-600Size: 20 x 10 mm | Shaft length: 600 mm | Stroke: 446 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-600Size: 20 x 10 mm | Shaft length: 600 mm | Stroke: 446 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5T-800Size: 20 x 10 mm | Shaft length: 800 mm | Stroke: 646 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-800Size: 20 x 10 mm | Shaft length: 800 mm | Stroke: 646 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5T-1000Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 846 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-1000Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 846 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5T-1300Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1146 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-1300Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1146 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5T-1500Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1346 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC5Z-1500Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1346 mm | Clearance: Z | Ca: 11.1 kN | C0a: 22.1 kN
HIR2020TC5T-800Size: 20 x 20 mm | Shaft length: 800 mm | Stroke: 632 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-800Size: 20 x 20 mm | Shaft length: 800 mm | Stroke: 632 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 832 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 832 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1300Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1132 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1300Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1132 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1332 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1332 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1650Size: 20 x 20 mm | Shaft length: 1650 mm | Stroke: 1432 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1650Size: 20 x 20 mm | Shaft length: 1650 mm | Stroke: 1432 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5T-1800Size: 20 x 20 mm | Shaft length: 1800 mm | Stroke: 1532 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TC5Z-1800Size: 20 x 20 mm | Shaft length: 1800 mm | Stroke: 1532 mm | Clearance: Z | Ca: 6.71 kN | C0a: 12.64 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
