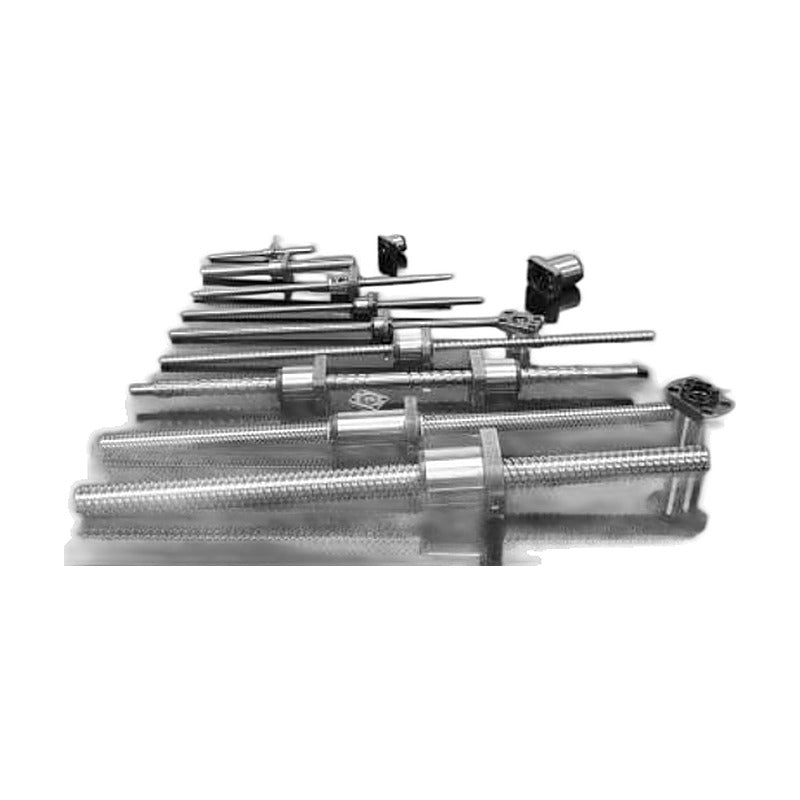

HANSAN Precision Ball Screws C7, Machined or Unmachined

HANSAN Precision Ball Screws C7, Machined or Unmachined

Precision ball screws in grade C7, stock items with machined or unmachined shaft ends.

Key features

  • Nut types: HDR (miniature deflector-type), HIR (internal-deflector), HPR (return-plate), HTR (return-tube), HTRS (double-nut return-tube)
  • Shaft diameters 8-32 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • All screws and nuts lapped for low noise and long life

Specifications

Accuracy standard JIS B 1192
Brand HANSAN
Product type Ball Screws
Designations listed 321
Units mm, kN
Source HANSAN Ball Screw catalogue, p. 65-95
HDR0801D3C7S-100 Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 30 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-100 Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 30 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7S-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 72 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 72 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7S-200 Size: 8 x 1 mm | Shaft length: 200 mm | Stroke: 122 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-200 Size: 8 x 1 mm | Shaft length: 200 mm | Stroke: 122 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7S-250 Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 172 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-250 Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 172 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7S-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 222 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 222 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0802D3C7S-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 67 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7N-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 67 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7S-200 Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 117 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7N-200 Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 117 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7S-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 167 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7N-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 167 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7S-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 217 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7N-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 217 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDR1002D3C7S-150 Size: 10 x 2 mm | Shaft length: 150 mm | Stroke: 60 mm | Clearance: S | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7N-150 Size: 10 x 2 mm | Shaft length: 150 mm | Stroke: 60 mm | Clearance: N | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7S-200 Size: 10 x 2 mm | Shaft length: 200 mm | Stroke: 110 mm | Clearance: S | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7N-200 Size: 10 x 2 mm | Shaft length: 200 mm | Stroke: 110 mm | Clearance: N | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7S-250 Size: 10 x 2 mm | Shaft length: 250 mm | Stroke: 130 mm | Clearance: S | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7N-250 Size: 10 x 2 mm | Shaft length: 250 mm | Stroke: 130 mm | Clearance: N | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7S-300 Size: 10 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: S | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7N-300 Size: 10 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: N | Ca: 1.48 kN | C0a: 3.02 kN
HDR1201D3C7S-150 Size: 12 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: S | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7N-150 Size: 12 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: N | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7S-200 Size: 12 x 1 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: S | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7N-200 Size: 12 x 1 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: N | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7S-250 Size: 12 x 1 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: S | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7N-250 Size: 12 x 1 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: N | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7S-300 Size: 12 x 1 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: S | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7N-300 Size: 12 x 1 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: N | Ca: 1.031 kN | C0a: 2.439 kN
HDR1202D3C7S-150 Size: 12 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-150 Size: 12 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7S-200 Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-200 Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7S-250 Size: 12 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-250 Size: 12 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7S-300 Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-300 Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7S-350 Size: 12 x 2 mm | Shaft length: 350 mm | Stroke: 250 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-350 Size: 12 x 2 mm | Shaft length: 350 mm | Stroke: 250 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1602D3C7S-150 Size: 16 x 2 mm | Shaft length: 150 mm | Stroke: 32 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-150 Size: 16 x 2 mm | Shaft length: 150 mm | Stroke: 32 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7S-200 Size: 16 x 2 mm | Shaft length: 200 mm | Stroke: 82 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-200 Size: 16 x 2 mm | Shaft length: 200 mm | Stroke: 82 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7S-250 Size: 16 x 2 mm | Shaft length: 250 mm | Stroke: 132 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-250 Size: 16 x 2 mm | Shaft length: 250 mm | Stroke: 132 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7S-300 Size: 16 x 2 mm | Shaft length: 300 mm | Stroke: 182 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-300 Size: 16 x 2 mm | Shaft length: 300 mm | Stroke: 182 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7S-400 Size: 16 x 2 mm | Shaft length: 400 mm | Stroke: 282 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-400 Size: 16 x 2 mm | Shaft length: 400 mm | Stroke: 282 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1605D4C7S-300 Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-300 Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-500 Size: 16 x 5 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-500 Size: 16 x 5 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-700 Size: 16 x 5 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-700 Size: 16 x 5 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-900 Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-900 Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-1100 Size: 16 x 5 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-1100 Size: 16 x 5 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-1300 Size: 16 x 5 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-1300 Size: 16 x 5 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-1500 Size: 16 x 5 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-1500 Size: 16 x 5 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HPR0802RC7S-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 67 mm | Clearance: S | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7N-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 67 mm | Clearance: N | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7S-200 Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 117 mm | Clearance: S | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7N-200 Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 117 mm | Clearance: N | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7S-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 167 mm | Clearance: S | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7N-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 167 mm | Clearance: N | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7S-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 217 mm | Clearance: S | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7N-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 217 mm | Clearance: N | Ca: 1.69 kN | C0a: 3.085 kN
HPR1202RC7S-150 Size: 12 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-150 Size: 12 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7S-200 Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-200 Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7S-250 Size: 12 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-250 Size: 12 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7S-300 Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-300 Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7S-350 Size: 12 x 2 mm | Shaft length: 350 mm | Stroke: 250 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-350 Size: 12 x 2 mm | Shaft length: 350 mm | Stroke: 250 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HTR0804EC7S-200 Size: 8 x 4 mm | Shaft length: 200 mm | Stroke: 88 mm | Clearance: S | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7N-200 Size: 8 x 4 mm | Shaft length: 200 mm | Stroke: 88 mm | Clearance: N | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7S-400 Size: 8 x 4 mm | Shaft length: 400 mm | Stroke: 288 mm | Clearance: S | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7N-400 Size: 8 x 4 mm | Shaft length: 400 mm | Stroke: 288 mm | Clearance: N | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7S-600 Size: 8 x 4 mm | Shaft length: 600 mm | Stroke: 388 mm | Clearance: S | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7N-600 Size: 8 x 4 mm | Shaft length: 600 mm | Stroke: 388 mm | Clearance: N | Ca: 2.42 kN | C0a: 3.62 kN
HTR0808AC7S-200 Size: 8 x 8 mm | Shaft length: 200 mm | Stroke: 83 mm | Clearance: S | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7N-200 Size: 8 x 8 mm | Shaft length: 200 mm | Stroke: 83 mm | Clearance: N | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7S-400 Size: 8 x 8 mm | Shaft length: 400 mm | Stroke: 283 mm | Clearance: S | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7N-400 Size: 8 x 8 mm | Shaft length: 400 mm | Stroke: 283 mm | Clearance: N | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7S-600 Size: 8 x 8 mm | Shaft length: 600 mm | Stroke: 483 mm | Clearance: S | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7N-600 Size: 8 x 8 mm | Shaft length: 600 mm | Stroke: 483 mm | Clearance: N | Ca: 1.45 kN | C0a: 2.155 kN
HTR1004EC7S-300 Size: 10 x 4 mm | Shaft length: 300 mm | Stroke: 179 mm | Clearance: S | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7N-300 Size: 10 x 4 mm | Shaft length: 300 mm | Stroke: 179 mm | Clearance: N | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7S-500 Size: 10 x 4 mm | Shaft length: 500 mm | Stroke: 379 mm | Clearance: S | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7N-500 Size: 10 x 4 mm | Shaft length: 500 mm | Stroke: 379 mm | Clearance: N | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7S-700 Size: 10 x 4 mm | Shaft length: 700 mm | Stroke: 579 mm | Clearance: S | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7N-700 Size: 10 x 4 mm | Shaft length: 700 mm | Stroke: 579 mm | Clearance: N | Ca: 2.73 kN | C0a: 4.41 kN
HTR1010AC7S-300 Size: 10 x 10 mm | Shaft length: 300 mm | Stroke: 170 mm | Clearance: S | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7N-300 Size: 10 x 10 mm | Shaft length: 300 mm | Stroke: 170 mm | Clearance: N | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7S-500 Size: 10 x 10 mm | Shaft length: 500 mm | Stroke: 370 mm | Clearance: S | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7N-500 Size: 10 x 10 mm | Shaft length: 500 mm | Stroke: 370 mm | Clearance: N | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7S-700 Size: 10 x 10 mm | Shaft length: 700 mm | Stroke: 570 mm | Clearance: S | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7N-700 Size: 10 x 10 mm | Shaft length: 700 mm | Stroke: 570 mm | Clearance: N | Ca: 1.72 kN | C0a: 2.745 kN
HTR2505EC7S-700 Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 511 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-700 Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 511 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 811 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 811 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-1300 Size: 25 x 5 mm | Shaft length: 1300 mm | Stroke: 1111 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-1300 Size: 25 x 5 mm | Shaft length: 1300 mm | Stroke: 1111 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-1500 Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1311 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-1500 Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1311 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-1700 Size: 25 x 5 mm | Shaft length: 1700 mm | Stroke: 1511 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-1700 Size: 25 x 5 mm | Shaft length: 1700 mm | Stroke: 1511 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-2000 Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1811 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-2000 Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1811 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505FC7S-700 Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 488 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-700 Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 488 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 788 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 788 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-1300 Size: 25 x 5 mm | Shaft length: 1300 mm | Stroke: 1088 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-1300 Size: 25 x 5 mm | Shaft length: 1300 mm | Stroke: 1088 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-1500 Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1288 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-1500 Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1288 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-1700 Size: 25 x 5 mm | Shaft length: 1700 mm | Stroke: 1488 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-1700 Size: 25 x 5 mm | Shaft length: 1700 mm | Stroke: 1488 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-2000 Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1788 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-2000 Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1788 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2510EC7S-700 Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 470 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-700 Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 470 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 770 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 770 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-1300 Size: 25 x 10 mm | Shaft length: 1300 mm | Stroke: 1070 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-1300 Size: 25 x 10 mm | Shaft length: 1300 mm | Stroke: 1070 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1270 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1270 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-1700 Size: 25 x 10 mm | Shaft length: 1700 mm | Stroke: 1470 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-1700 Size: 25 x 10 mm | Shaft length: 1700 mm | Stroke: 1470 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-2000 Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1770 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-2000 Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1770 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-2600 Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2370 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-2600 Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2370 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510BC7S-700 Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 449 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-700 Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 449 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 749 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 749 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-1300 Size: 25 x 10 mm | Shaft length: 1300 mm | Stroke: 1049 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-1300 Size: 25 x 10 mm | Shaft length: 1300 mm | Stroke: 1049 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1249 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1249 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-1700 Size: 25 x 10 mm | Shaft length: 1700 mm | Stroke: 1449 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-1700 Size: 25 x 10 mm | Shaft length: 1700 mm | Stroke: 1449 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-2000 Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1749 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-2000 Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1749 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-2600 Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2349 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-2600 Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2349 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2520AC7S-700 Size: 25 x 20 mm | Shaft length: 700 mm | Stroke: 459 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-700 Size: 25 x 20 mm | Shaft length: 700 mm | Stroke: 459 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-1000 Size: 25 x 20 mm | Shaft length: 1000 mm | Stroke: 659 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-1000 Size: 25 x 20 mm | Shaft length: 1000 mm | Stroke: 659 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-1300 Size: 25 x 20 mm | Shaft length: 1300 mm | Stroke: 1058 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-1300 Size: 25 x 20 mm | Shaft length: 1300 mm | Stroke: 1058 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-1500 Size: 25 x 20 mm | Shaft length: 1500 mm | Stroke: 1258 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-1500 Size: 25 x 20 mm | Shaft length: 1500 mm | Stroke: 1258 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-1700 Size: 25 x 20 mm | Shaft length: 1700 mm | Stroke: 1458 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-1700 Size: 25 x 20 mm | Shaft length: 1700 mm | Stroke: 1458 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-2000 Size: 25 x 20 mm | Shaft length: 2000 mm | Stroke: 1758 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-2000 Size: 25 x 20 mm | Shaft length: 2000 mm | Stroke: 1758 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-2600 Size: 25 x 20 mm | Shaft length: 2600 mm | Stroke: 2358 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-2600 Size: 25 x 20 mm | Shaft length: 2600 mm | Stroke: 2358 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR3205FC7S-700 Size: 32 x 5 mm | Shaft length: 700 mm | Stroke: 459 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-700 Size: 32 x 5 mm | Shaft length: 700 mm | Stroke: 459 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-1000 Size: 32 x 5 mm | Shaft length: 1000 mm | Stroke: 659 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-1000 Size: 32 x 5 mm | Shaft length: 1000 mm | Stroke: 659 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-1300 Size: 32 x 5 mm | Shaft length: 1300 mm | Stroke: 959 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-1300 Size: 32 x 5 mm | Shaft length: 1300 mm | Stroke: 959 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-1500 Size: 32 x 5 mm | Shaft length: 1500 mm | Stroke: 1159 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-1500 Size: 32 x 5 mm | Shaft length: 1500 mm | Stroke: 1159 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-1700 Size: 32 x 5 mm | Shaft length: 1700 mm | Stroke: 1359 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-1700 Size: 32 x 5 mm | Shaft length: 1700 mm | Stroke: 1359 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-2000 Size: 32 x 5 mm | Shaft length: 2000 mm | Stroke: 1659 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-2000 Size: 32 x 5 mm | Shaft length: 2000 mm | Stroke: 1659 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3210FC7S-700 Size: 32 x 10 mm | Shaft length: 700 mm | Stroke: 398 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-700 Size: 32 x 10 mm | Shaft length: 700 mm | Stroke: 398 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-1000 Size: 32 x 10 mm | Shaft length: 1000 mm | Stroke: 698 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-1000 Size: 32 x 10 mm | Shaft length: 1000 mm | Stroke: 698 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-1300 Size: 32 x 10 mm | Shaft length: 1300 mm | Stroke: 998 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-1300 Size: 32 x 10 mm | Shaft length: 1300 mm | Stroke: 998 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-1500 Size: 32 x 10 mm | Shaft length: 1500 mm | Stroke: 1198 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-1500 Size: 32 x 10 mm | Shaft length: 1500 mm | Stroke: 1198 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-1700 Size: 32 x 10 mm | Shaft length: 1700 mm | Stroke: 1398 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-1700 Size: 32 x 10 mm | Shaft length: 1700 mm | Stroke: 1398 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-2000 Size: 32 x 10 mm | Shaft length: 2000 mm | Stroke: 1698 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-2000 Size: 32 x 10 mm | Shaft length: 2000 mm | Stroke: 1698 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-2600 Size: 32 x 10 mm | Shaft length: 2600 mm | Stroke: 2298 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-2600 Size: 32 x 10 mm | Shaft length: 2600 mm | Stroke: 2298 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HIR1205RC7S-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: S | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7N-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: N | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7S-500 Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: S | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7N-500 Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: N | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7S-700 Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: S | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7N-700 Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: N | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7S-1000 Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: S | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7N-1000 Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: N | Ca: 3.77 kN | C0a: 6.32 kN
HIR1210RC7S-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 154 mm | Clearance: S | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7N-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 154 mm | Clearance: N | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7S-500 Size: 12 x 10 mm | Shaft length: 500 mm | Stroke: 354 mm | Clearance: S | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7N-500 Size: 12 x 10 mm | Shaft length: 500 mm | Stroke: 354 mm | Clearance: N | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7S-700 Size: 12 x 10 mm | Shaft length: 700 mm | Stroke: 554 mm | Clearance: S | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7N-700 Size: 12 x 10 mm | Shaft length: 700 mm | Stroke: 554 mm | Clearance: N | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7S-1000 Size: 12 x 10 mm | Shaft length: 1000 mm | Stroke: 854 mm | Clearance: S | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7N-1000 Size: 12 x 10 mm | Shaft length: 1000 mm | Stroke: 854 mm | Clearance: N | Ca: 3.82 kN | C0a: 6.48 kN
HIR1220TC7S-300 Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 142 mm | Clearance: S | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7N-300 Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 142 mm | Clearance: N | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7S-500 Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 342 mm | Clearance: S | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7N-500 Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 342 mm | Clearance: N | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7S-700 Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 542 mm | Clearance: S | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7N-700 Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 542 mm | Clearance: N | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7S-1000 Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 842 mm | Clearance: S | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7N-1000 Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 842 mm | Clearance: N | Ca: 2.41 kN | C0a: 3.92 kN
HIR1505RC7S-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 168 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 168 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-500 Size: 15 x 5 mm | Shaft length: 500 mm | Stroke: 368 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-500 Size: 15 x 5 mm | Shaft length: 500 mm | Stroke: 368 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-700 Size: 15 x 5 mm | Shaft length: 700 mm | Stroke: 568 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-700 Size: 15 x 5 mm | Shaft length: 700 mm | Stroke: 568 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 768 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 768 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-1100 Size: 15 x 5 mm | Shaft length: 1100 mm | Stroke: 968 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-1100 Size: 15 x 5 mm | Shaft length: 1100 mm | Stroke: 968 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-1300 Size: 15 x 5 mm | Shaft length: 1300 mm | Stroke: 1168 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-1300 Size: 15 x 5 mm | Shaft length: 1300 mm | Stroke: 1168 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-1500 Size: 15 x 5 mm | Shaft length: 1500 mm | Stroke: 1368 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-1500 Size: 15 x 5 mm | Shaft length: 1500 mm | Stroke: 1368 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC7S-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-500 Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-500 Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-700 Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-700 Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-1300 Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-1300 Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-1500 Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-1500 Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1520TC7S-300 Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 140 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-300 Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 140 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-500 Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 340 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-500 Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 340 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-700 Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 540 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-700 Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 540 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 740 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 740 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 940 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 940 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1140 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1140 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-1500 Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1340 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-1500 Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1340 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-2000 Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1840 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-2000 Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1840 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR2005RC7S-500 Size: 20 x 5 mm | Shaft length: 500 mm | Stroke: 347 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-500 Size: 20 x 5 mm | Shaft length: 500 mm | Stroke: 347 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-700 Size: 20 x 5 mm | Shaft length: 700 mm | Stroke: 547 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-700 Size: 20 x 5 mm | Shaft length: 700 mm | Stroke: 547 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-1000 Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 847 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-1000 Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 847 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-1300 Size: 20 x 5 mm | Shaft length: 1300 mm | Stroke: 1147 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-1300 Size: 20 x 5 mm | Shaft length: 1300 mm | Stroke: 1147 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-1500 Size: 20 x 5 mm | Shaft length: 1500 mm | Stroke: 1347 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-1500 Size: 20 x 5 mm | Shaft length: 1500 mm | Stroke: 1347 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-1700 Size: 20 x 5 mm | Shaft length: 1700 mm | Stroke: 1547 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-1700 Size: 20 x 5 mm | Shaft length: 1700 mm | Stroke: 1547 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-2000 Size: 20 x 5 mm | Shaft length: 2000 mm | Stroke: 1847 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-2000 Size: 20 x 5 mm | Shaft length: 2000 mm | Stroke: 1847 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2010RC7S-700 Size: 20 x 10 mm | Shaft length: 700 mm | Stroke: 526 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-700 Size: 20 x 10 mm | Shaft length: 700 mm | Stroke: 526 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-1000 Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 826 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-1000 Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 826 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-1300 Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1126 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-1300 Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1126 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-1500 Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1326 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-1500 Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1326 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-1700 Size: 20 x 10 mm | Shaft length: 1700 mm | Stroke: 1526 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-1700 Size: 20 x 10 mm | Shaft length: 1700 mm | Stroke: 1526 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-2000 Size: 20 x 10 mm | Shaft length: 2000 mm | Stroke: 1826 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-2000 Size: 20 x 10 mm | Shaft length: 2000 mm | Stroke: 1826 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-2500 Size: 20 x 10 mm | Shaft length: 2500 mm | Stroke: 2326 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-2500 Size: 20 x 10 mm | Shaft length: 2500 mm | Stroke: 2326 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2020TC7S-700 Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 512 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-700 Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 512 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 812 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 812 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1112 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1112 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1312 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1312 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-1700 Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1512 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-1700 Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1512 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-2000 Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1812 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-2000 Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1812 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-2500 Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2412 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-2500 Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2412 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HTRS2505FC7Z-700 Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 413 mm | Clearance: Z | Ca: 14.66 kN | C0a: 38.67 kN
HTRS2505FC7Z-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 713 mm | Clearance: Z | Ca: 14.66 kN | C0a: 38.67 kN
HTRS2505FC7Z-1500 Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1213 mm | Clearance: Z | Ca: 14.66 kN | C0a: 38.67 kN
HTRS2505FC7Z-2000 Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1713 mm | Clearance: Z | Ca: 14.66 kN | C0a: 38.67 kN
HTRS2510BC7Z-700 Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 344 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
HTRS2510BC7Z-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 644 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
HTRS2510BC7Z-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1144 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
HTRS2510BC7Z-2000 Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1644 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
HTRS2510BC7Z-2600 Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2244 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
Ball ScrewsHANSAN
321 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HANSAN Precision Ball Screws C7, Machined or Unmachined

Brand HANSAN·Ball Screws

Available part numbers (321)

HDR0801D3C7S-100, HDR0801D3C7N-100, HDR0801D3C7S-150, HDR0801D3C7N-150, HDR0801D3C7S-200, HDR0801D3C7N-200, HDR0801D3C7S-250, HDR0801D3C7N-250, HDR0801D3C7S-300, HDR0801D3C7N-300 + 311 more — see full table ↓

How to order

Send the HANSAN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HDR0801D3C7S-100Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 30 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-100Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 30 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7S-150Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 72 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-150Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 72 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7S-200Size: 8 x 1 mm | Shaft length: 200 mm | Stroke: 122 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-200Size: 8 x 1 mm | Shaft length: 200 mm | Stroke: 122 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7S-250Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 172 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-250Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 172 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7S-300Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 222 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDR0801D3C7N-300Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 222 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDR0802D3C7S-150Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 67 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7N-150Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 67 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7S-200Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 117 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7N-200Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 117 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7S-250Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 167 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7N-250Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 167 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7S-300Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 217 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDR0802D3C7N-300Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 217 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDR1002D3C7S-150Size: 10 x 2 mm | Shaft length: 150 mm | Stroke: 60 mm | Clearance: S | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7N-150Size: 10 x 2 mm | Shaft length: 150 mm | Stroke: 60 mm | Clearance: N | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7S-200Size: 10 x 2 mm | Shaft length: 200 mm | Stroke: 110 mm | Clearance: S | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7N-200Size: 10 x 2 mm | Shaft length: 200 mm | Stroke: 110 mm | Clearance: N | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7S-250Size: 10 x 2 mm | Shaft length: 250 mm | Stroke: 130 mm | Clearance: S | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7N-250Size: 10 x 2 mm | Shaft length: 250 mm | Stroke: 130 mm | Clearance: N | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7S-300Size: 10 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: S | Ca: 1.48 kN | C0a: 3.02 kN
HDR1002D3C7N-300Size: 10 x 2 mm | Shaft length: 300 mm | Stroke: 210 mm | Clearance: N | Ca: 1.48 kN | C0a: 3.02 kN
HDR1201D3C7S-150Size: 12 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: S | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7N-150Size: 12 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: N | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7S-200Size: 12 x 1 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: S | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7N-200Size: 12 x 1 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: N | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7S-250Size: 12 x 1 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: S | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7N-250Size: 12 x 1 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: N | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7S-300Size: 12 x 1 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: S | Ca: 1.031 kN | C0a: 2.439 kN
HDR1201D3C7N-300Size: 12 x 1 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: N | Ca: 1.031 kN | C0a: 2.439 kN
HDR1202D3C7S-150Size: 12 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-150Size: 12 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7S-200Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-200Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7S-250Size: 12 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-250Size: 12 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7S-300Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-300Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7S-350Size: 12 x 2 mm | Shaft length: 350 mm | Stroke: 250 mm | Clearance: S | Ca: 1.67 kN | C0a: 3.64 kN
HDR1202D3C7N-350Size: 12 x 2 mm | Shaft length: 350 mm | Stroke: 250 mm | Clearance: N | Ca: 1.67 kN | C0a: 3.64 kN
HDR1602D3C7S-150Size: 16 x 2 mm | Shaft length: 150 mm | Stroke: 32 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-150Size: 16 x 2 mm | Shaft length: 150 mm | Stroke: 32 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7S-200Size: 16 x 2 mm | Shaft length: 200 mm | Stroke: 82 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-200Size: 16 x 2 mm | Shaft length: 200 mm | Stroke: 82 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7S-250Size: 16 x 2 mm | Shaft length: 250 mm | Stroke: 132 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-250Size: 16 x 2 mm | Shaft length: 250 mm | Stroke: 132 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7S-300Size: 16 x 2 mm | Shaft length: 300 mm | Stroke: 182 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-300Size: 16 x 2 mm | Shaft length: 300 mm | Stroke: 182 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7S-400Size: 16 x 2 mm | Shaft length: 400 mm | Stroke: 282 mm | Clearance: S | Ca: 1.82 kN | C0a: 4.85 kN
HDR1602D3C7N-400Size: 16 x 2 mm | Shaft length: 400 mm | Stroke: 282 mm | Clearance: N | Ca: 1.82 kN | C0a: 4.85 kN
HDR1605D4C7S-300Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-300Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-500Size: 16 x 5 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-500Size: 16 x 5 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-700Size: 16 x 5 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-700Size: 16 x 5 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-900Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-900Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-1100Size: 16 x 5 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-1100Size: 16 x 5 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-1300Size: 16 x 5 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-1300Size: 16 x 5 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7S-1500Size: 16 x 5 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4C7N-1500Size: 16 x 5 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HPR0802RC7S-150Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 67 mm | Clearance: S | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7N-150Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 67 mm | Clearance: N | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7S-200Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 117 mm | Clearance: S | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7N-200Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 117 mm | Clearance: N | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7S-250Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 167 mm | Clearance: S | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7N-250Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 167 mm | Clearance: N | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7S-300Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 217 mm | Clearance: S | Ca: 1.69 kN | C0a: 3.085 kN
HPR0802RC7N-300Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 217 mm | Clearance: N | Ca: 1.69 kN | C0a: 3.085 kN
HPR1202RC7S-150Size: 12 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-150Size: 12 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7S-200Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-200Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7S-250Size: 12 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-250Size: 12 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7S-300Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-300Size: 12 x 2 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7S-350Size: 12 x 2 mm | Shaft length: 350 mm | Stroke: 250 mm | Clearance: S | Ca: 2.24 kN | C0a: 4.555 kN
HPR1202RC7N-350Size: 12 x 2 mm | Shaft length: 350 mm | Stroke: 250 mm | Clearance: N | Ca: 2.24 kN | C0a: 4.555 kN
HTR0804EC7S-200Size: 8 x 4 mm | Shaft length: 200 mm | Stroke: 88 mm | Clearance: S | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7N-200Size: 8 x 4 mm | Shaft length: 200 mm | Stroke: 88 mm | Clearance: N | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7S-400Size: 8 x 4 mm | Shaft length: 400 mm | Stroke: 288 mm | Clearance: S | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7N-400Size: 8 x 4 mm | Shaft length: 400 mm | Stroke: 288 mm | Clearance: N | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7S-600Size: 8 x 4 mm | Shaft length: 600 mm | Stroke: 388 mm | Clearance: S | Ca: 2.42 kN | C0a: 3.62 kN
HTR0804EC7N-600Size: 8 x 4 mm | Shaft length: 600 mm | Stroke: 388 mm | Clearance: N | Ca: 2.42 kN | C0a: 3.62 kN
HTR0808AC7S-200Size: 8 x 8 mm | Shaft length: 200 mm | Stroke: 83 mm | Clearance: S | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7N-200Size: 8 x 8 mm | Shaft length: 200 mm | Stroke: 83 mm | Clearance: N | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7S-400Size: 8 x 8 mm | Shaft length: 400 mm | Stroke: 283 mm | Clearance: S | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7N-400Size: 8 x 8 mm | Shaft length: 400 mm | Stroke: 283 mm | Clearance: N | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7S-600Size: 8 x 8 mm | Shaft length: 600 mm | Stroke: 483 mm | Clearance: S | Ca: 1.45 kN | C0a: 2.155 kN
HTR0808AC7N-600Size: 8 x 8 mm | Shaft length: 600 mm | Stroke: 483 mm | Clearance: N | Ca: 1.45 kN | C0a: 2.155 kN
HTR1004EC7S-300Size: 10 x 4 mm | Shaft length: 300 mm | Stroke: 179 mm | Clearance: S | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7N-300Size: 10 x 4 mm | Shaft length: 300 mm | Stroke: 179 mm | Clearance: N | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7S-500Size: 10 x 4 mm | Shaft length: 500 mm | Stroke: 379 mm | Clearance: S | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7N-500Size: 10 x 4 mm | Shaft length: 500 mm | Stroke: 379 mm | Clearance: N | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7S-700Size: 10 x 4 mm | Shaft length: 700 mm | Stroke: 579 mm | Clearance: S | Ca: 2.73 kN | C0a: 4.41 kN
HTR1004EC7N-700Size: 10 x 4 mm | Shaft length: 700 mm | Stroke: 579 mm | Clearance: N | Ca: 2.73 kN | C0a: 4.41 kN
HTR1010AC7S-300Size: 10 x 10 mm | Shaft length: 300 mm | Stroke: 170 mm | Clearance: S | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7N-300Size: 10 x 10 mm | Shaft length: 300 mm | Stroke: 170 mm | Clearance: N | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7S-500Size: 10 x 10 mm | Shaft length: 500 mm | Stroke: 370 mm | Clearance: S | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7N-500Size: 10 x 10 mm | Shaft length: 500 mm | Stroke: 370 mm | Clearance: N | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7S-700Size: 10 x 10 mm | Shaft length: 700 mm | Stroke: 570 mm | Clearance: S | Ca: 1.72 kN | C0a: 2.745 kN
HTR1010AC7N-700Size: 10 x 10 mm | Shaft length: 700 mm | Stroke: 570 mm | Clearance: N | Ca: 1.72 kN | C0a: 2.745 kN
HTR2505EC7S-700Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 511 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-700Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 511 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 811 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 811 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-1300Size: 25 x 5 mm | Shaft length: 1300 mm | Stroke: 1111 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-1300Size: 25 x 5 mm | Shaft length: 1300 mm | Stroke: 1111 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-1500Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1311 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-1500Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1311 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-1700Size: 25 x 5 mm | Shaft length: 1700 mm | Stroke: 1511 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-1700Size: 25 x 5 mm | Shaft length: 1700 mm | Stroke: 1511 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7S-2000Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1811 mm | Clearance: S | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505EC7N-2000Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1811 mm | Clearance: N | Ca: 7.97 kN | C0a: 19.34 kN
HTR2505FC7S-700Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 488 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-700Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 488 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 788 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 788 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-1300Size: 25 x 5 mm | Shaft length: 1300 mm | Stroke: 1088 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-1300Size: 25 x 5 mm | Shaft length: 1300 mm | Stroke: 1088 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-1500Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1288 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-1500Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1288 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-1700Size: 25 x 5 mm | Shaft length: 1700 mm | Stroke: 1488 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-1700Size: 25 x 5 mm | Shaft length: 1700 mm | Stroke: 1488 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7S-2000Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1788 mm | Clearance: S | Ca: 14.66 kN | C0a: 38.67 kN
HTR2505FC7N-2000Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1788 mm | Clearance: N | Ca: 14.66 kN | C0a: 38.67 kN
HTR2510EC7S-700Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 470 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-700Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 470 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 770 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 770 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-1300Size: 25 x 10 mm | Shaft length: 1300 mm | Stroke: 1070 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-1300Size: 25 x 10 mm | Shaft length: 1300 mm | Stroke: 1070 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1270 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1270 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-1700Size: 25 x 10 mm | Shaft length: 1700 mm | Stroke: 1470 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-1700Size: 25 x 10 mm | Shaft length: 1700 mm | Stroke: 1470 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-2000Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1770 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-2000Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1770 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7S-2600Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2370 mm | Clearance: S | Ca: 13.12 kN | C0a: 27 kN
HTR2510EC7N-2600Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2370 mm | Clearance: N | Ca: 13.12 kN | C0a: 27 kN
HTR2510BC7S-700Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 449 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-700Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 449 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 749 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 749 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-1300Size: 25 x 10 mm | Shaft length: 1300 mm | Stroke: 1049 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-1300Size: 25 x 10 mm | Shaft length: 1300 mm | Stroke: 1049 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1249 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1249 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-1700Size: 25 x 10 mm | Shaft length: 1700 mm | Stroke: 1449 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-1700Size: 25 x 10 mm | Shaft length: 1700 mm | Stroke: 1449 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-2000Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1749 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-2000Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1749 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7S-2600Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2349 mm | Clearance: S | Ca: 15.35 kN | C0a: 32.4 kN
HTR2510BC7N-2600Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2349 mm | Clearance: N | Ca: 15.35 kN | C0a: 32.4 kN
HTR2520AC7S-700Size: 25 x 20 mm | Shaft length: 700 mm | Stroke: 459 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-700Size: 25 x 20 mm | Shaft length: 700 mm | Stroke: 459 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-1000Size: 25 x 20 mm | Shaft length: 1000 mm | Stroke: 659 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-1000Size: 25 x 20 mm | Shaft length: 1000 mm | Stroke: 659 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-1300Size: 25 x 20 mm | Shaft length: 1300 mm | Stroke: 1058 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-1300Size: 25 x 20 mm | Shaft length: 1300 mm | Stroke: 1058 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-1500Size: 25 x 20 mm | Shaft length: 1500 mm | Stroke: 1258 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-1500Size: 25 x 20 mm | Shaft length: 1500 mm | Stroke: 1258 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-1700Size: 25 x 20 mm | Shaft length: 1700 mm | Stroke: 1458 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-1700Size: 25 x 20 mm | Shaft length: 1700 mm | Stroke: 1458 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-2000Size: 25 x 20 mm | Shaft length: 2000 mm | Stroke: 1758 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-2000Size: 25 x 20 mm | Shaft length: 2000 mm | Stroke: 1758 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7S-2600Size: 25 x 20 mm | Shaft length: 2600 mm | Stroke: 2358 mm | Clearance: S | Ca: 8.54 kN | C0a: 16.9 kN
HTR2520AC7N-2600Size: 25 x 20 mm | Shaft length: 2600 mm | Stroke: 2358 mm | Clearance: N | Ca: 8.54 kN | C0a: 16.9 kN
HTR3205FC7S-700Size: 32 x 5 mm | Shaft length: 700 mm | Stroke: 459 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-700Size: 32 x 5 mm | Shaft length: 700 mm | Stroke: 459 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-1000Size: 32 x 5 mm | Shaft length: 1000 mm | Stroke: 659 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-1000Size: 32 x 5 mm | Shaft length: 1000 mm | Stroke: 659 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-1300Size: 32 x 5 mm | Shaft length: 1300 mm | Stroke: 959 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-1300Size: 32 x 5 mm | Shaft length: 1300 mm | Stroke: 959 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-1500Size: 32 x 5 mm | Shaft length: 1500 mm | Stroke: 1159 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-1500Size: 32 x 5 mm | Shaft length: 1500 mm | Stroke: 1159 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-1700Size: 32 x 5 mm | Shaft length: 1700 mm | Stroke: 1359 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-1700Size: 32 x 5 mm | Shaft length: 1700 mm | Stroke: 1359 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7S-2000Size: 32 x 5 mm | Shaft length: 2000 mm | Stroke: 1659 mm | Clearance: S | Ca: 19.98 kN | C0a: 50.05 kN
HTR3205FC7N-2000Size: 32 x 5 mm | Shaft length: 2000 mm | Stroke: 1659 mm | Clearance: N | Ca: 19.98 kN | C0a: 50.05 kN
HTR3210FC7S-700Size: 32 x 10 mm | Shaft length: 700 mm | Stroke: 398 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-700Size: 32 x 10 mm | Shaft length: 700 mm | Stroke: 398 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-1000Size: 32 x 10 mm | Shaft length: 1000 mm | Stroke: 698 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-1000Size: 32 x 10 mm | Shaft length: 1000 mm | Stroke: 698 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-1300Size: 32 x 10 mm | Shaft length: 1300 mm | Stroke: 998 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-1300Size: 32 x 10 mm | Shaft length: 1300 mm | Stroke: 998 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-1500Size: 32 x 10 mm | Shaft length: 1500 mm | Stroke: 1198 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-1500Size: 32 x 10 mm | Shaft length: 1500 mm | Stroke: 1198 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-1700Size: 32 x 10 mm | Shaft length: 1700 mm | Stroke: 1398 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-1700Size: 32 x 10 mm | Shaft length: 1700 mm | Stroke: 1398 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-2000Size: 32 x 10 mm | Shaft length: 2000 mm | Stroke: 1698 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-2000Size: 32 x 10 mm | Shaft length: 2000 mm | Stroke: 1698 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7S-2600Size: 32 x 10 mm | Shaft length: 2600 mm | Stroke: 2298 mm | Clearance: S | Ca: 40.29 kN | C0a: 96.1 kN
HTR3210FC7N-2600Size: 32 x 10 mm | Shaft length: 2600 mm | Stroke: 2298 mm | Clearance: N | Ca: 40.29 kN | C0a: 96.1 kN
HIR1205RC7S-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: S | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7N-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 175 mm | Clearance: N | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7S-500Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: S | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7N-500Size: 12 x 5 mm | Shaft length: 500 mm | Stroke: 375 mm | Clearance: N | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7S-700Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: S | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7N-700Size: 12 x 5 mm | Shaft length: 700 mm | Stroke: 575 mm | Clearance: N | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7S-1000Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: S | Ca: 3.77 kN | C0a: 6.32 kN
HIR1205RC7N-1000Size: 12 x 5 mm | Shaft length: 1000 mm | Stroke: 875 mm | Clearance: N | Ca: 3.77 kN | C0a: 6.32 kN
HIR1210RC7S-300Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 154 mm | Clearance: S | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7N-300Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 154 mm | Clearance: N | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7S-500Size: 12 x 10 mm | Shaft length: 500 mm | Stroke: 354 mm | Clearance: S | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7N-500Size: 12 x 10 mm | Shaft length: 500 mm | Stroke: 354 mm | Clearance: N | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7S-700Size: 12 x 10 mm | Shaft length: 700 mm | Stroke: 554 mm | Clearance: S | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7N-700Size: 12 x 10 mm | Shaft length: 700 mm | Stroke: 554 mm | Clearance: N | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7S-1000Size: 12 x 10 mm | Shaft length: 1000 mm | Stroke: 854 mm | Clearance: S | Ca: 3.82 kN | C0a: 6.48 kN
HIR1210RC7N-1000Size: 12 x 10 mm | Shaft length: 1000 mm | Stroke: 854 mm | Clearance: N | Ca: 3.82 kN | C0a: 6.48 kN
HIR1220TC7S-300Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 142 mm | Clearance: S | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7N-300Size: 12 x 20 mm | Shaft length: 300 mm | Stroke: 142 mm | Clearance: N | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7S-500Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 342 mm | Clearance: S | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7N-500Size: 12 x 20 mm | Shaft length: 500 mm | Stroke: 342 mm | Clearance: N | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7S-700Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 542 mm | Clearance: S | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7N-700Size: 12 x 20 mm | Shaft length: 700 mm | Stroke: 542 mm | Clearance: N | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7S-1000Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 842 mm | Clearance: S | Ca: 2.41 kN | C0a: 3.92 kN
HIR1220TC7N-1000Size: 12 x 20 mm | Shaft length: 1000 mm | Stroke: 842 mm | Clearance: N | Ca: 2.41 kN | C0a: 3.92 kN
HIR1505RC7S-300Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 168 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-300Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 168 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-500Size: 15 x 5 mm | Shaft length: 500 mm | Stroke: 368 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-500Size: 15 x 5 mm | Shaft length: 500 mm | Stroke: 368 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-700Size: 15 x 5 mm | Shaft length: 700 mm | Stroke: 568 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-700Size: 15 x 5 mm | Shaft length: 700 mm | Stroke: 568 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-900Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 768 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-900Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 768 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-1100Size: 15 x 5 mm | Shaft length: 1100 mm | Stroke: 968 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-1100Size: 15 x 5 mm | Shaft length: 1100 mm | Stroke: 968 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-1300Size: 15 x 5 mm | Shaft length: 1300 mm | Stroke: 1168 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-1300Size: 15 x 5 mm | Shaft length: 1300 mm | Stroke: 1168 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7S-1500Size: 15 x 5 mm | Shaft length: 1500 mm | Stroke: 1368 mm | Clearance: S | Ca: 6.61 kN | C0a: 12.545 kN
HIR1505RC7N-1500Size: 15 x 5 mm | Shaft length: 1500 mm | Stroke: 1368 mm | Clearance: N | Ca: 6.61 kN | C0a: 12.545 kN
HIR1510RC7S-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 143 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-500Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-500Size: 15 x 10 mm | Shaft length: 500 mm | Stroke: 343 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-700Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-700Size: 15 x 10 mm | Shaft length: 700 mm | Stroke: 543 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 743 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-1100Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-1100Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 943 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-1300Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-1300Size: 15 x 10 mm | Shaft length: 1300 mm | Stroke: 1143 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7S-1500Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RC7N-1500Size: 15 x 10 mm | Shaft length: 1500 mm | Stroke: 1343 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1520TC7S-300Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 140 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-300Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 140 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-500Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 340 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-500Size: 15 x 20 mm | Shaft length: 500 mm | Stroke: 340 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-700Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 540 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-700Size: 15 x 20 mm | Shaft length: 700 mm | Stroke: 540 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-900Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 740 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-900Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 740 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-1100Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 940 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-1100Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 940 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-1300Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1140 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-1300Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1140 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-1500Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1340 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-1500Size: 15 x 20 mm | Shaft length: 1500 mm | Stroke: 1340 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7S-2000Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1840 mm | Clearance: S | Ca: 4.36 kN | C0a: 7.67 kN
HIR1520TC7N-2000Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1840 mm | Clearance: N | Ca: 4.36 kN | C0a: 7.67 kN
HIR2005RC7S-500Size: 20 x 5 mm | Shaft length: 500 mm | Stroke: 347 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-500Size: 20 x 5 mm | Shaft length: 500 mm | Stroke: 347 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-700Size: 20 x 5 mm | Shaft length: 700 mm | Stroke: 547 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-700Size: 20 x 5 mm | Shaft length: 700 mm | Stroke: 547 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-1000Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 847 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-1000Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 847 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-1300Size: 20 x 5 mm | Shaft length: 1300 mm | Stroke: 1147 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-1300Size: 20 x 5 mm | Shaft length: 1300 mm | Stroke: 1147 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-1500Size: 20 x 5 mm | Shaft length: 1500 mm | Stroke: 1347 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-1500Size: 20 x 5 mm | Shaft length: 1500 mm | Stroke: 1347 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-1700Size: 20 x 5 mm | Shaft length: 1700 mm | Stroke: 1547 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-1700Size: 20 x 5 mm | Shaft length: 1700 mm | Stroke: 1547 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7S-2000Size: 20 x 5 mm | Shaft length: 2000 mm | Stroke: 1847 mm | Clearance: S | Ca: 8.15 kN | C0a: 17.15 kN
HIR2005RC7N-2000Size: 20 x 5 mm | Shaft length: 2000 mm | Stroke: 1847 mm | Clearance: N | Ca: 8.15 kN | C0a: 17.15 kN
HIR2010RC7S-700Size: 20 x 10 mm | Shaft length: 700 mm | Stroke: 526 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-700Size: 20 x 10 mm | Shaft length: 700 mm | Stroke: 526 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-1000Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 826 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-1000Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 826 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-1300Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1126 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-1300Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1126 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-1500Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1326 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-1500Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1326 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-1700Size: 20 x 10 mm | Shaft length: 1700 mm | Stroke: 1526 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-1700Size: 20 x 10 mm | Shaft length: 1700 mm | Stroke: 1526 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-2000Size: 20 x 10 mm | Shaft length: 2000 mm | Stroke: 1826 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-2000Size: 20 x 10 mm | Shaft length: 2000 mm | Stroke: 1826 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7S-2500Size: 20 x 10 mm | Shaft length: 2500 mm | Stroke: 2326 mm | Clearance: S | Ca: 11.1 kN | C0a: 22.1 kN
HIR2010RC7N-2500Size: 20 x 10 mm | Shaft length: 2500 mm | Stroke: 2326 mm | Clearance: N | Ca: 11.1 kN | C0a: 22.1 kN
HIR2020TC7S-700Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 512 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-700Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 512 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 812 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 812 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-1300Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1112 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-1300Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1112 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1312 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1312 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-1700Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1512 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-1700Size: 20 x 20 mm | Shaft length: 1700 mm | Stroke: 1512 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-2000Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1812 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-2000Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1812 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7S-2500Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2412 mm | Clearance: S | Ca: 6.95 kN | C0a: 13.09 kN
HIR2020TC7N-2500Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2412 mm | Clearance: N | Ca: 6.95 kN | C0a: 13.09 kN
HTRS2505FC7Z-700Size: 25 x 5 mm | Shaft length: 700 mm | Stroke: 413 mm | Clearance: Z | Ca: 14.66 kN | C0a: 38.67 kN
HTRS2505FC7Z-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 713 mm | Clearance: Z | Ca: 14.66 kN | C0a: 38.67 kN
HTRS2505FC7Z-1500Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1213 mm | Clearance: Z | Ca: 14.66 kN | C0a: 38.67 kN
HTRS2505FC7Z-2000Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1713 mm | Clearance: Z | Ca: 14.66 kN | C0a: 38.67 kN
HTRS2510BC7Z-700Size: 25 x 10 mm | Shaft length: 700 mm | Stroke: 344 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
HTRS2510BC7Z-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 644 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
HTRS2510BC7Z-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1144 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
HTRS2510BC7Z-2000Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1644 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN
HTRS2510BC7Z-2600Size: 25 x 10 mm | Shaft length: 2600 mm | Stroke: 2244 mm | Clearance: Z | Ca: 15.35 kN | C0a: 32.4 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
