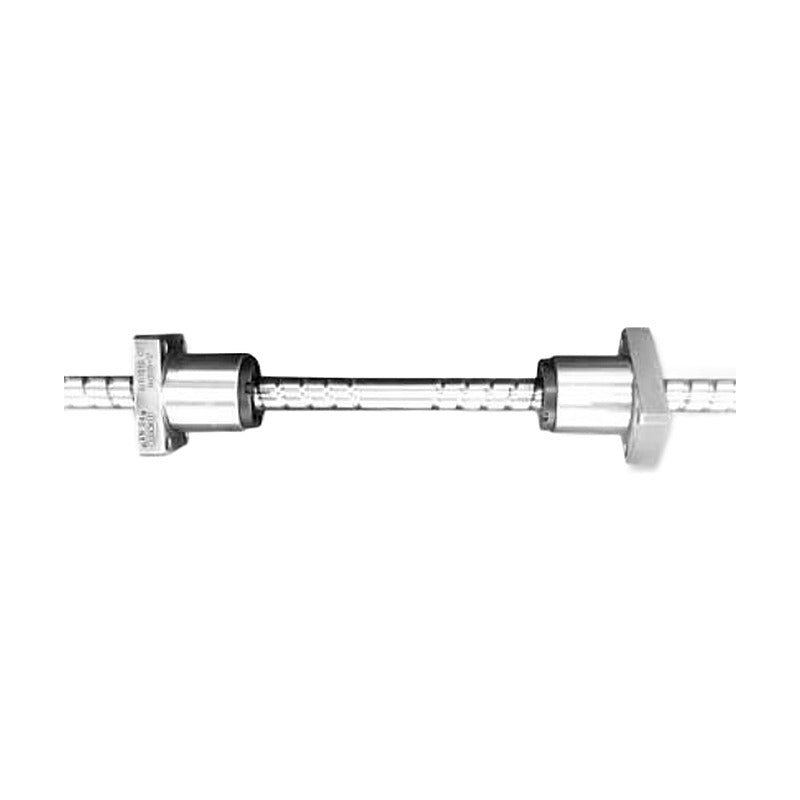

HANSAN Right/Left-Hand Thread Ball Screws C7

HANSAN Right/Left-Hand Thread Ball Screws C7

Precision ball screws with right- and left-hand threaded sections on one shaft (two nuts), grade C7.

Key features

  • Nut types: HDR (miniature deflector-type), HIR (internal-deflector), SHIR (high-speed internal-return)
  • Shaft diameters 12-20 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • All screws and nuts lapped for low noise and long life

Specifications

Accuracy standard JIS B 1192
Brand HANSAN
Product type Ball Screws
Designations listed 38
Units mm, kN
Source HANSAN Ball Screw catalogue, p. 144-147
SHIR1205RRLC7S-530 Size: 12 x 5 mm | Shaft length: 530 mm | Stroke: 195 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RRLC7N-530 Size: 12 x 5 mm | Shaft length: 530 mm | Stroke: 195 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RRLC7S-730 Size: 12 x 5 mm | Shaft length: 730 mm | Stroke: 295 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RRLC7N-730 Size: 12 x 5 mm | Shaft length: 730 mm | Stroke: 295 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RRLC7S-1030 Size: 12 x 5 mm | Shaft length: 1030 mm | Stroke: 445 mm | Clearance: S | Ca: 3.25 kN | C0a: 6.03 kN
SHIR1205RRLC7N-1030 Size: 12 x 5 mm | Shaft length: 1030 mm | Stroke: 445 mm | Clearance: N | Ca: 3.25 kN | C0a: 6.03 kN
HIR1510RRLC7S-530 Size: 15 x 10 mm | Shaft length: 530 mm | Stroke: 171 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7N-530 Size: 15 x 10 mm | Shaft length: 530 mm | Stroke: 171 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7S-730 Size: 15 x 10 mm | Shaft length: 730 mm | Stroke: 271 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7N-730 Size: 15 x 10 mm | Shaft length: 730 mm | Stroke: 271 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7S-930 Size: 15 x 10 mm | Shaft length: 930 mm | Stroke: 371 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7N-930 Size: 15 x 10 mm | Shaft length: 930 mm | Stroke: 371 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7S-1130 Size: 15 x 10 mm | Shaft length: 1130 mm | Stroke: 471 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7N-1130 Size: 15 x 10 mm | Shaft length: 1130 mm | Stroke: 471 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7S-1330 Size: 15 x 10 mm | Shaft length: 1330 mm | Stroke: 571 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7N-1330 Size: 15 x 10 mm | Shaft length: 1330 mm | Stroke: 571 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7S-1530 Size: 15 x 10 mm | Shaft length: 1530 mm | Stroke: 671 mm | Clearance: S | Ca: 6.63 kN | C0a: 11.93 kN
HIR1510RRLC7N-1530 Size: 15 x 10 mm | Shaft length: 1530 mm | Stroke: 671 mm | Clearance: N | Ca: 6.63 kN | C0a: 11.93 kN
HIR2020TRLC7S-730 Size: 20 x 20 mm | Shaft length: 730 mm | Stroke: 257 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TRLC7N-730 Size: 20 x 20 mm | Shaft length: 730 mm | Stroke: 257 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TRLC7S-1030 Size: 20 x 20 mm | Shaft length: 1030 mm | Stroke: 407 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TRLC7N-1030 Size: 20 x 20 mm | Shaft length: 1030 mm | Stroke: 407 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TRLC7S-1530 Size: 20 x 20 mm | Shaft length: 1530 mm | Stroke: 657 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TRLC7N-1530 Size: 20 x 20 mm | Shaft length: 1530 mm | Stroke: 657 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TRLC7S-2030 Size: 20 x 20 mm | Shaft length: 2030 mm | Stroke: 907 mm | Clearance: S | Ca: 6.71 kN | C0a: 12.64 kN
HIR2020TRLC7N-2030 Size: 20 x 20 mm | Shaft length: 2030 mm | Stroke: 907 mm | Clearance: N | Ca: 6.71 kN | C0a: 12.64 kN
HDR1605D4RLC7S-530 Size: 16 x 5 mm | Shaft length: 530 mm | Stroke: 165 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7N-530 Size: 16 x 5 mm | Shaft length: 530 mm | Stroke: 165 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7S-730 Size: 16 x 5 mm | Shaft length: 730 mm | Stroke: 265 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7N-730 Size: 16 x 5 mm | Shaft length: 730 mm | Stroke: 265 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7S-930 Size: 16 x 5 mm | Shaft length: 930 mm | Stroke: 365 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7N-930 Size: 16 x 5 mm | Shaft length: 930 mm | Stroke: 365 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7S-1130 Size: 16 x 5 mm | Shaft length: 1130 mm | Stroke: 465 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7N-1130 Size: 16 x 5 mm | Shaft length: 1130 mm | Stroke: 465 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7S-1330 Size: 16 x 5 mm | Shaft length: 1330 mm | Stroke: 565 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7N-1330 Size: 16 x 5 mm | Shaft length: 1330 mm | Stroke: 565 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7S-1530 Size: 16 x 5 mm | Shaft length: 1530 mm | Stroke: 665 mm | Clearance: S | Ca: 11.68 kN | C0a: 18.278 kN
HDR1605D4RLC7N-1530 Size: 16 x 5 mm | Shaft length: 1530 mm | Stroke: 665 mm | Clearance: N | Ca: 11.68 kN | C0a: 18.278 kN
Ball ScrewsHANSAN
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HANSAN Right/Left-Hand Thread Ball Screws C7

Brand HANSAN·Ball Screws

Available part numbers (38)

SHIR1205RRLC7S-530, SHIR1205RRLC7N-530, SHIR1205RRLC7S-730, SHIR1205RRLC7N-730, SHIR1205RRLC7S-1030, SHIR1205RRLC7N-1030, HIR1510RRLC7S-530, HIR1510RRLC7N-530, HIR1510RRLC7S-730, HIR1510RRLC7N-730 + 28 more — see full table ↓

How to order

Send the HANSAN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
