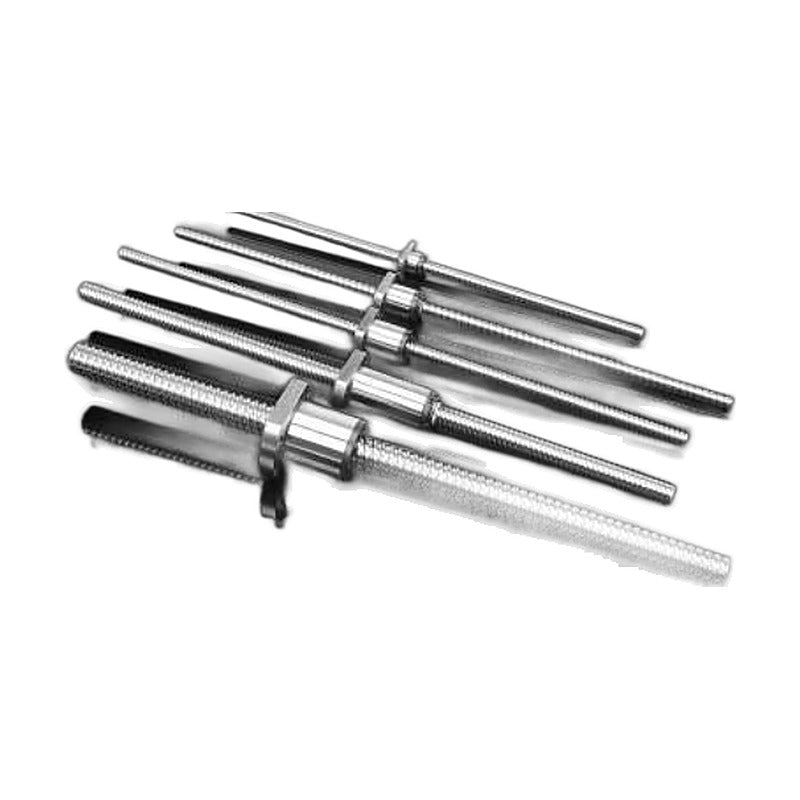

HANSAN HOR/SHOR Precision Rolled Ball Screws C10

HANSAN HOR/SHOR Precision Rolled Ball Screws C10

Precision rolled ball screws in grade C10 on SUJ2 shafts, stock items with machined or unmachined ends.

Key features

  • Nut types: HOR (rolled), SHOR (high-speed rolled)
  • Shaft diameters 8-25 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • All screws and nuts lapped for low noise and long life

Specifications

Accuracy standard JIS B 1192
Clearance M2
Brand HANSAN
Product type Ball Screws
Series HOR/SHOR
Designations listed 141
Units mm, kN
Source HANSAN Ball Screw catalogue, p. 151-176
HOR0801D3C10M2-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 110 mm | Ca: 0.73 kN | C0a: 1.48 kN
HOR0801D3C10M2-250 Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 210 mm | Ca: 0.73 kN | C0a: 1.48 kN
HOR0801D3C10M2-350 Size: 8 x 1 mm | Shaft length: 350 mm | Stroke: 310 mm | Ca: 0.73 kN | C0a: 1.48 kN
HOR0801D3C10M2-450 Size: 8 x 1 mm | Shaft length: 450 mm | Stroke: 410 mm | Ca: 0.73 kN | C0a: 1.48 kN
HOR0802D3C10M2-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 100 mm | Ca: 1.42 kN | C0a: 2.29 kN
HOR0802D3C10M2-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 200 mm | Ca: 1.42 kN | C0a: 2.29 kN
HOR0802D3C10M2-350 Size: 8 x 2 mm | Shaft length: 350 mm | Stroke: 300 mm | Ca: 1.42 kN | C0a: 2.29 kN
HOR0802D3C10M2-450 Size: 8 x 2 mm | Shaft length: 450 mm | Stroke: 400 mm | Ca: 1.42 kN | C0a: 2.29 kN
HOR1006RC10M2-300 Size: 10 x 6 mm | Shaft length: 300 mm | Stroke: 227 mm | Ca: 2.64 kN | C0a: 4.75 kN
HOR1006RC10M2-500 Size: 10 x 6 mm | Shaft length: 500 mm | Stroke: 427 mm | Ca: 2.64 kN | C0a: 4.75 kN
HOR1006RC10M2-700 Size: 10 x 6 mm | Shaft length: 700 mm | Stroke: 627 mm | Ca: 2.64 kN | C0a: 4.75 kN
HOR1006RC10M2-1000 Size: 10 x 6 mm | Shaft length: 1000 mm | Stroke: 927 mm | Ca: 2.64 kN | C0a: 4.75 kN
HOR1020T4C10M2-300 Size: 10 x 20 mm | Shaft length: 300 mm | Stroke: 255 mm | Ca: 2.21 kN | C0a: 4.15 kN
HOR1020T4C10M2-500 Size: 10 x 20 mm | Shaft length: 500 mm | Stroke: 455 mm | Ca: 2.21 kN | C0a: 4.15 kN
HOR1020T4C10M2-700 Size: 10 x 20 mm | Shaft length: 700 mm | Stroke: 655 mm | Ca: 2.21 kN | C0a: 4.15 kN
HOR1020T4C10M2-1000 Size: 10 x 20 mm | Shaft length: 1000 mm | Stroke: 955 mm | Ca: 2.21 kN | C0a: 4.15 kN
HOR1202D3C10M2-200 Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 150 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1202D3C10M2-400 Size: 12 x 2 mm | Shaft length: 400 mm | Stroke: 350 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1202D3C10M2-600 Size: 12 x 2 mm | Shaft length: 600 mm | Stroke: 550 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1202D3C10M2-800 Size: 12 x 2 mm | Shaft length: 800 mm | Stroke: 750 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1202D3C10M2-1000 Size: 12 x 2 mm | Shaft length: 1000 mm | Stroke: 950 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1205RC10M2-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 245 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-600 Size: 12 x 5 mm | Shaft length: 600 mm | Stroke: 545 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-900 Size: 12 x 5 mm | Shaft length: 900 mm | Stroke: 845 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-1200 Size: 12 x 5 mm | Shaft length: 1200 mm | Stroke: 1145 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-1600 Size: 12 x 5 mm | Shaft length: 1600 mm | Stroke: 1545 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-2000 Size: 12 x 5 mm | Shaft length: 2000 mm | Stroke: 1945 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1208RC10M2-300 Size: 12 x 8 mm | Shaft length: 300 mm | Stroke: 219 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-600 Size: 12 x 8 mm | Shaft length: 600 mm | Stroke: 519 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-900 Size: 12 x 8 mm | Shaft length: 900 mm | Stroke: 819 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-1200 Size: 12 x 8 mm | Shaft length: 1200 mm | Stroke: 1119 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-1600 Size: 12 x 8 mm | Shaft length: 1600 mm | Stroke: 1519 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-2000 Size: 12 x 8 mm | Shaft length: 2000 mm | Stroke: 1919 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1210RC10M2-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 222 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-600 Size: 12 x 10 mm | Shaft length: 600 mm | Stroke: 522 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-900 Size: 12 x 10 mm | Shaft length: 900 mm | Stroke: 822 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-1200 Size: 12 x 10 mm | Shaft length: 1200 mm | Stroke: 1122 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-1600 Size: 12 x 10 mm | Shaft length: 1600 mm | Stroke: 1522 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-2000 Size: 12 x 10 mm | Shaft length: 2000 mm | Stroke: 1922 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1505RC10M2-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 243 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-600 Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 543 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 843 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-1200 Size: 15 x 5 mm | Shaft length: 1200 mm | Stroke: 1143 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-1600 Size: 15 x 5 mm | Shaft length: 1600 mm | Stroke: 1543 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-2000 Size: 15 x 5 mm | Shaft length: 2000 mm | Stroke: 1943 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 221 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-600 Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 521 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 821 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-1200 Size: 15 x 10 mm | Shaft length: 1200 mm | Stroke: 1121 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-1600 Size: 15 x 10 mm | Shaft length: 1600 mm | Stroke: 1521 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-2000 Size: 15 x 10 mm | Shaft length: 2000 mm | Stroke: 1921 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1520TC10M2-300 Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 212 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-600 Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 515 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 812 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-1200 Size: 15 x 20 mm | Shaft length: 1200 mm | Stroke: 1112 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-1600 Size: 15 x 20 mm | Shaft length: 1600 mm | Stroke: 1512 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-2000 Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1912 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1605RC10M2-300 Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 234 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-600 Size: 16 x 5 mm | Shaft length: 600 mm | Stroke: 534 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-900 Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 834 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-1200 Size: 16 x 5 mm | Shaft length: 1200 mm | Stroke: 1134 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-1600 Size: 16 x 5 mm | Shaft length: 1600 mm | Stroke: 1534 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-2000 Size: 16 x 5 mm | Shaft length: 2000 mm | Stroke: 1934 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1616T2C10M2-300 Size: 16 x 16 mm | Shaft length: 300 mm | Stroke: 212 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-600 Size: 16 x 16 mm | Shaft length: 600 mm | Stroke: 512 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-900 Size: 16 x 16 mm | Shaft length: 900 mm | Stroke: 812 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-1200 Size: 16 x 16 mm | Shaft length: 1200 mm | Stroke: 1112 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-1600 Size: 16 x 16 mm | Shaft length: 1600 mm | Stroke: 1512 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-2000 Size: 16 x 16 mm | Shaft length: 2000 mm | Stroke: 1912 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1632T2C10M2-300 Size: 16 x 32 mm | Shaft length: 300 mm | Stroke: 170 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-600 Size: 16 x 32 mm | Shaft length: 600 mm | Stroke: 470 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-900 Size: 16 x 32 mm | Shaft length: 900 mm | Stroke: 770 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-1200 Size: 16 x 32 mm | Shaft length: 1200 mm | Stroke: 1070 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-1600 Size: 16 x 32 mm | Shaft length: 1600 mm | Stroke: 1470 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-2000 Size: 16 x 32 mm | Shaft length: 2000 mm | Stroke: 1870 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR2005RC10M2-500 Size: 20 x 5 mm | Shaft length: 500 mm | Stroke: 442 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-1000 Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 942 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-1500 Size: 20 x 5 mm | Shaft length: 1500 mm | Stroke: 1442 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-2000 Size: 20 x 5 mm | Shaft length: 2000 mm | Stroke: 1942 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-2500 Size: 20 x 5 mm | Shaft length: 2500 mm | Stroke: 2442 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-3000 Size: 20 x 5 mm | Shaft length: 3000 mm | Stroke: 2942 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2010RC10M2-500 Size: 20 x 10 mm | Shaft length: 500 mm | Stroke: 421 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-1000 Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 921 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-1500 Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1421 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-2000 Size: 20 x 10 mm | Shaft length: 2000 mm | Stroke: 1921 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-2500 Size: 20 x 10 mm | Shaft length: 2500 mm | Stroke: 2421 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-3000 Size: 20 x 10 mm | Shaft length: 3000 mm | Stroke: 2921 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2020TC10M2-500 Size: 20 x 20 mm | Shaft length: 500 mm | Stroke: 407 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 907 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1407 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-2000 Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1907 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-2500 Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2407 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-3000 Size: 20 x 20 mm | Shaft length: 3000 mm | Stroke: 2907 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2505EC10M2-500 Size: 25 x 5 mm | Shaft length: 500 mm | Stroke: 430 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 930 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-1500 Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1430 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-2000 Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1930 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-2500 Size: 25 x 5 mm | Shaft length: 2500 mm | Stroke: 2430 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-3000 Size: 25 x 5 mm | Shaft length: 3000 mm | Stroke: 2930 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505FC10M2-500 Size: 25 x 5 mm | Shaft length: 500 mm | Stroke: 407 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 907 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-1500 Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1407 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-2000 Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1907 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-2500 Size: 25 x 5 mm | Shaft length: 2500 mm | Stroke: 2407 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-3000 Size: 25 x 5 mm | Shaft length: 3000 mm | Stroke: 2907 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2510EC10M2-500 Size: 25 x 10 mm | Shaft length: 500 mm | Stroke: 389 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 889 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1389 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-2000 Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1889 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-2500 Size: 25 x 10 mm | Shaft length: 2500 mm | Stroke: 2389 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-3000 Size: 25 x 10 mm | Shaft length: 3000 mm | Stroke: 2889 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510BC10M2-500 Size: 25 x 10 mm | Shaft length: 500 mm | Stroke: 368 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 868 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1368 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-2000 Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1868 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-2500 Size: 25 x 10 mm | Shaft length: 2500 mm | Stroke: 2368 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-3000 Size: 25 x 10 mm | Shaft length: 3000 mm | Stroke: 2868 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2525T2C10M2-500 Size: 25 x 25 mm | Shaft length: 500 mm | Stroke: 385 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-1000 Size: 25 x 25 mm | Shaft length: 1000 mm | Stroke: 885 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-1500 Size: 25 x 25 mm | Shaft length: 1500 mm | Stroke: 1385 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-2000 Size: 25 x 25 mm | Shaft length: 2000 mm | Stroke: 1885 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-2500 Size: 25 x 25 mm | Shaft length: 2500 mm | Stroke: 2385 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-3000 Size: 25 x 25 mm | Shaft length: 3000 mm | Stroke: 2885 mm | Ca: 14.1 kN | C0a: 37.8 kN
SHOR0805RC10M2-150 Size: 8 x 5 mm | Shaft length: 150 mm | Stroke: 101 mm | Ca: 1.8 kN | C0a: 3.05 kN
SHOR0805RC10M2-250 Size: 8 x 5 mm | Shaft length: 250 mm | Stroke: 201 mm | Ca: 1.8 kN | C0a: 3.05 kN
SHOR0805RC10M2-350 Size: 8 x 5 mm | Shaft length: 350 mm | Stroke: 301 mm | Ca: 1.8 kN | C0a: 3.05 kN
SHOR0805RC10M2-450 Size: 8 x 5 mm | Shaft length: 450 mm | Stroke: 401 mm | Ca: 1.8 kN | C0a: 3.05 kN
SHOR0810T2C10M2-150 Size: 8 x 10 mm | Shaft length: 150 mm | Stroke: 102 mm | Ca: 2.276 kN | C0a: 3.659 kN
SHOR0810T2C10M2-250 Size: 8 x 10 mm | Shaft length: 250 mm | Stroke: 202 mm | Ca: 2.276 kN | C0a: 3.659 kN
SHOR0810T2C10M2-350 Size: 8 x 10 mm | Shaft length: 350 mm | Stroke: 302 mm | Ca: 2.276 kN | C0a: 3.659 kN
SHOR0810T2C10M2-450 Size: 8 x 10 mm | Shaft length: 450 mm | Stroke: 402 mm | Ca: 2.276 kN | C0a: 3.659 kN
SHOR1205RC10M2-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 245 mm | Ca: 3.25 kN | C0a: 6.03 kN
SHOR1205RC10M2-600 Size: 12 x 5 mm | Shaft length: 600 mm | Stroke: 545 mm | Ca: 3.25 kN | C0a: 6.03 kN
SHOR1205RC10M2-900 Size: 12 x 5 mm | Shaft length: 900 mm | Stroke: 845 mm | Ca: 3.25 kN | C0a: 6.03 kN
SHOR1205RC10M2-1200 Size: 12 x 5 mm | Shaft length: 1200 mm | Stroke: 1145 mm | Ca: 3.25 kN | C0a: 6.03 kN
SHOR1210RC10M2-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 225 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-600 Size: 12 x 10 mm | Shaft length: 600 mm | Stroke: 525 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-900 Size: 12 x 10 mm | Shaft length: 900 mm | Stroke: 825 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-1200 Size: 12 x 10 mm | Shaft length: 1200 mm | Stroke: 1125 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-1600 Size: 12 x 10 mm | Shaft length: 1600 mm | Stroke: 1525 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-2000 Size: 12 x 10 mm | Shaft length: 2000 mm | Stroke: 1925 mm | Ca: 3.15 kN | C0a: 5.88 kN
Ball ScrewsHANSAN
141 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HANSAN HOR/SHOR Precision Rolled Ball Screws C10

Brand HANSAN·Ball Screws

Available part numbers (141)

HOR0801D3C10M2-150, HOR0801D3C10M2-250, HOR0801D3C10M2-350, HOR0801D3C10M2-450, HOR0802D3C10M2-150, HOR0802D3C10M2-250, HOR0802D3C10M2-350, HOR0802D3C10M2-450, HOR1006RC10M2-300, HOR1006RC10M2-500 + 131 more — see full table ↓

How to order

Send the HANSAN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HOR0801D3C10M2-150Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 110 mm | Ca: 0.73 kN | C0a: 1.48 kN
HOR0801D3C10M2-250Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 210 mm | Ca: 0.73 kN | C0a: 1.48 kN
HOR0801D3C10M2-350Size: 8 x 1 mm | Shaft length: 350 mm | Stroke: 310 mm | Ca: 0.73 kN | C0a: 1.48 kN
HOR0801D3C10M2-450Size: 8 x 1 mm | Shaft length: 450 mm | Stroke: 410 mm | Ca: 0.73 kN | C0a: 1.48 kN
HOR0802D3C10M2-150Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 100 mm | Ca: 1.42 kN | C0a: 2.29 kN
HOR0802D3C10M2-250Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 200 mm | Ca: 1.42 kN | C0a: 2.29 kN
HOR0802D3C10M2-350Size: 8 x 2 mm | Shaft length: 350 mm | Stroke: 300 mm | Ca: 1.42 kN | C0a: 2.29 kN
HOR0802D3C10M2-450Size: 8 x 2 mm | Shaft length: 450 mm | Stroke: 400 mm | Ca: 1.42 kN | C0a: 2.29 kN
HOR1006RC10M2-300Size: 10 x 6 mm | Shaft length: 300 mm | Stroke: 227 mm | Ca: 2.64 kN | C0a: 4.75 kN
HOR1006RC10M2-500Size: 10 x 6 mm | Shaft length: 500 mm | Stroke: 427 mm | Ca: 2.64 kN | C0a: 4.75 kN
HOR1006RC10M2-700Size: 10 x 6 mm | Shaft length: 700 mm | Stroke: 627 mm | Ca: 2.64 kN | C0a: 4.75 kN
HOR1006RC10M2-1000Size: 10 x 6 mm | Shaft length: 1000 mm | Stroke: 927 mm | Ca: 2.64 kN | C0a: 4.75 kN
HOR1020T4C10M2-300Size: 10 x 20 mm | Shaft length: 300 mm | Stroke: 255 mm | Ca: 2.21 kN | C0a: 4.15 kN
HOR1020T4C10M2-500Size: 10 x 20 mm | Shaft length: 500 mm | Stroke: 455 mm | Ca: 2.21 kN | C0a: 4.15 kN
HOR1020T4C10M2-700Size: 10 x 20 mm | Shaft length: 700 mm | Stroke: 655 mm | Ca: 2.21 kN | C0a: 4.15 kN
HOR1020T4C10M2-1000Size: 10 x 20 mm | Shaft length: 1000 mm | Stroke: 955 mm | Ca: 2.21 kN | C0a: 4.15 kN
HOR1202D3C10M2-200Size: 12 x 2 mm | Shaft length: 200 mm | Stroke: 150 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1202D3C10M2-400Size: 12 x 2 mm | Shaft length: 400 mm | Stroke: 350 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1202D3C10M2-600Size: 12 x 2 mm | Shaft length: 600 mm | Stroke: 550 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1202D3C10M2-800Size: 12 x 2 mm | Shaft length: 800 mm | Stroke: 750 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1202D3C10M2-1000Size: 12 x 2 mm | Shaft length: 1000 mm | Stroke: 950 mm | Ca: 1.67 kN | C0a: 3.64 kN
HOR1205RC10M2-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 245 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-600Size: 12 x 5 mm | Shaft length: 600 mm | Stroke: 545 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-900Size: 12 x 5 mm | Shaft length: 900 mm | Stroke: 845 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-1200Size: 12 x 5 mm | Shaft length: 1200 mm | Stroke: 1145 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-1600Size: 12 x 5 mm | Shaft length: 1600 mm | Stroke: 1545 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1205RC10M2-2000Size: 12 x 5 mm | Shaft length: 2000 mm | Stroke: 1945 mm | Ca: 3.77 kN | C0a: 6.32 kN
HOR1208RC10M2-300Size: 12 x 8 mm | Shaft length: 300 mm | Stroke: 219 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-600Size: 12 x 8 mm | Shaft length: 600 mm | Stroke: 519 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-900Size: 12 x 8 mm | Shaft length: 900 mm | Stroke: 819 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-1200Size: 12 x 8 mm | Shaft length: 1200 mm | Stroke: 1119 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-1600Size: 12 x 8 mm | Shaft length: 1600 mm | Stroke: 1519 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1208RC10M2-2000Size: 12 x 8 mm | Shaft length: 2000 mm | Stroke: 1919 mm | Ca: 3.77 kN | C0a: 6.74 kN
HOR1210RC10M2-300Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 222 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-600Size: 12 x 10 mm | Shaft length: 600 mm | Stroke: 522 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-900Size: 12 x 10 mm | Shaft length: 900 mm | Stroke: 822 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-1200Size: 12 x 10 mm | Shaft length: 1200 mm | Stroke: 1122 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-1600Size: 12 x 10 mm | Shaft length: 1600 mm | Stroke: 1522 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1210RC10M2-2000Size: 12 x 10 mm | Shaft length: 2000 mm | Stroke: 1922 mm | Ca: 3.82 kN | C0a: 6.48 kN
HOR1505RC10M2-300Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 243 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-600Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 543 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-900Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 843 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-1200Size: 15 x 5 mm | Shaft length: 1200 mm | Stroke: 1143 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-1600Size: 15 x 5 mm | Shaft length: 1600 mm | Stroke: 1543 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1505RC10M2-2000Size: 15 x 5 mm | Shaft length: 2000 mm | Stroke: 1943 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-300Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 221 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-600Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 521 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-900Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 821 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-1200Size: 15 x 10 mm | Shaft length: 1200 mm | Stroke: 1121 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-1600Size: 15 x 10 mm | Shaft length: 1600 mm | Stroke: 1521 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1510RC10M2-2000Size: 15 x 10 mm | Shaft length: 2000 mm | Stroke: 1921 mm | Ca: 6.61 kN | C0a: 12.545 kN
HOR1520TC10M2-300Size: 15 x 20 mm | Shaft length: 300 mm | Stroke: 212 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-600Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 515 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-900Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 812 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-1200Size: 15 x 20 mm | Shaft length: 1200 mm | Stroke: 1112 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-1600Size: 15 x 20 mm | Shaft length: 1600 mm | Stroke: 1512 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1520TC10M2-2000Size: 15 x 20 mm | Shaft length: 2000 mm | Stroke: 1912 mm | Ca: 4.32 kN | C0a: 7.84 kN
HOR1605RC10M2-300Size: 16 x 5 mm | Shaft length: 300 mm | Stroke: 234 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-600Size: 16 x 5 mm | Shaft length: 600 mm | Stroke: 534 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-900Size: 16 x 5 mm | Shaft length: 900 mm | Stroke: 834 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-1200Size: 16 x 5 mm | Shaft length: 1200 mm | Stroke: 1134 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-1600Size: 16 x 5 mm | Shaft length: 1600 mm | Stroke: 1534 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1605RC10M2-2000Size: 16 x 5 mm | Shaft length: 2000 mm | Stroke: 1934 mm | Ca: 5.34 kN | C0a: 13.49 kN
HOR1616T2C10M2-300Size: 16 x 16 mm | Shaft length: 300 mm | Stroke: 212 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-600Size: 16 x 16 mm | Shaft length: 600 mm | Stroke: 512 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-900Size: 16 x 16 mm | Shaft length: 900 mm | Stroke: 812 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-1200Size: 16 x 16 mm | Shaft length: 1200 mm | Stroke: 1112 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-1600Size: 16 x 16 mm | Shaft length: 1600 mm | Stroke: 1512 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1616T2C10M2-2000Size: 16 x 16 mm | Shaft length: 2000 mm | Stroke: 1912 mm | Ca: 5.92 kN | C0a: 13.15 kN
HOR1632T2C10M2-300Size: 16 x 32 mm | Shaft length: 300 mm | Stroke: 170 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-600Size: 16 x 32 mm | Shaft length: 600 mm | Stroke: 470 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-900Size: 16 x 32 mm | Shaft length: 900 mm | Stroke: 770 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-1200Size: 16 x 32 mm | Shaft length: 1200 mm | Stroke: 1070 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-1600Size: 16 x 32 mm | Shaft length: 1600 mm | Stroke: 1470 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR1632T2C10M2-2000Size: 16 x 32 mm | Shaft length: 2000 mm | Stroke: 1870 mm | Ca: 5.52 kN | C0a: 10.55 kN
HOR2005RC10M2-500Size: 20 x 5 mm | Shaft length: 500 mm | Stroke: 442 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-1000Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 942 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-1500Size: 20 x 5 mm | Shaft length: 1500 mm | Stroke: 1442 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-2000Size: 20 x 5 mm | Shaft length: 2000 mm | Stroke: 1942 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-2500Size: 20 x 5 mm | Shaft length: 2500 mm | Stroke: 2442 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2005RC10M2-3000Size: 20 x 5 mm | Shaft length: 3000 mm | Stroke: 2942 mm | Ca: 8.15 kN | C0a: 17.15 kN
HOR2010RC10M2-500Size: 20 x 10 mm | Shaft length: 500 mm | Stroke: 421 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-1000Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 921 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-1500Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1421 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-2000Size: 20 x 10 mm | Shaft length: 2000 mm | Stroke: 1921 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-2500Size: 20 x 10 mm | Shaft length: 2500 mm | Stroke: 2421 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2010RC10M2-3000Size: 20 x 10 mm | Shaft length: 3000 mm | Stroke: 2921 mm | Ca: 11.1 kN | C0a: 22.1 kN
HOR2020TC10M2-500Size: 20 x 20 mm | Shaft length: 500 mm | Stroke: 407 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-1000Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 907 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1407 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-2000Size: 20 x 20 mm | Shaft length: 2000 mm | Stroke: 1907 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-2500Size: 20 x 20 mm | Shaft length: 2500 mm | Stroke: 2407 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2020TC10M2-3000Size: 20 x 20 mm | Shaft length: 3000 mm | Stroke: 2907 mm | Ca: 6.71 kN | C0a: 12.64 kN
HOR2505EC10M2-500Size: 25 x 5 mm | Shaft length: 500 mm | Stroke: 430 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 930 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-1500Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1430 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-2000Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1930 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-2500Size: 25 x 5 mm | Shaft length: 2500 mm | Stroke: 2430 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505EC10M2-3000Size: 25 x 5 mm | Shaft length: 3000 mm | Stroke: 2930 mm | Ca: 7.97 kN | C0a: 19.34 kN
HOR2505FC10M2-500Size: 25 x 5 mm | Shaft length: 500 mm | Stroke: 407 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-1000Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 907 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-1500Size: 25 x 5 mm | Shaft length: 1500 mm | Stroke: 1407 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-2000Size: 25 x 5 mm | Shaft length: 2000 mm | Stroke: 1907 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-2500Size: 25 x 5 mm | Shaft length: 2500 mm | Stroke: 2407 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2505FC10M2-3000Size: 25 x 5 mm | Shaft length: 3000 mm | Stroke: 2907 mm | Ca: 14.66 kN | C0a: 38.67 kN
HOR2510EC10M2-500Size: 25 x 10 mm | Shaft length: 500 mm | Stroke: 389 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 889 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1389 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-2000Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1889 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-2500Size: 25 x 10 mm | Shaft length: 2500 mm | Stroke: 2389 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510EC10M2-3000Size: 25 x 10 mm | Shaft length: 3000 mm | Stroke: 2889 mm | Ca: 13.12 kN | C0a: 27 kN
HOR2510BC10M2-500Size: 25 x 10 mm | Shaft length: 500 mm | Stroke: 368 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-1000Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 868 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-1500Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1368 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-2000Size: 25 x 10 mm | Shaft length: 2000 mm | Stroke: 1868 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-2500Size: 25 x 10 mm | Shaft length: 2500 mm | Stroke: 2368 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2510BC10M2-3000Size: 25 x 10 mm | Shaft length: 3000 mm | Stroke: 2868 mm | Ca: 15.35 kN | C0a: 32.4 kN
HOR2525T2C10M2-500Size: 25 x 25 mm | Shaft length: 500 mm | Stroke: 385 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-1000Size: 25 x 25 mm | Shaft length: 1000 mm | Stroke: 885 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-1500Size: 25 x 25 mm | Shaft length: 1500 mm | Stroke: 1385 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-2000Size: 25 x 25 mm | Shaft length: 2000 mm | Stroke: 1885 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-2500Size: 25 x 25 mm | Shaft length: 2500 mm | Stroke: 2385 mm | Ca: 14.1 kN | C0a: 37.8 kN
HOR2525T2C10M2-3000Size: 25 x 25 mm | Shaft length: 3000 mm | Stroke: 2885 mm | Ca: 14.1 kN | C0a: 37.8 kN
SHOR0805RC10M2-150Size: 8 x 5 mm | Shaft length: 150 mm | Stroke: 101 mm | Ca: 1.8 kN | C0a: 3.05 kN
SHOR0805RC10M2-250Size: 8 x 5 mm | Shaft length: 250 mm | Stroke: 201 mm | Ca: 1.8 kN | C0a: 3.05 kN
SHOR0805RC10M2-350Size: 8 x 5 mm | Shaft length: 350 mm | Stroke: 301 mm | Ca: 1.8 kN | C0a: 3.05 kN
SHOR0805RC10M2-450Size: 8 x 5 mm | Shaft length: 450 mm | Stroke: 401 mm | Ca: 1.8 kN | C0a: 3.05 kN
SHOR0810T2C10M2-150Size: 8 x 10 mm | Shaft length: 150 mm | Stroke: 102 mm | Ca: 2.276 kN | C0a: 3.659 kN
SHOR0810T2C10M2-250Size: 8 x 10 mm | Shaft length: 250 mm | Stroke: 202 mm | Ca: 2.276 kN | C0a: 3.659 kN
SHOR0810T2C10M2-350Size: 8 x 10 mm | Shaft length: 350 mm | Stroke: 302 mm | Ca: 2.276 kN | C0a: 3.659 kN
SHOR0810T2C10M2-450Size: 8 x 10 mm | Shaft length: 450 mm | Stroke: 402 mm | Ca: 2.276 kN | C0a: 3.659 kN
SHOR1205RC10M2-300Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 245 mm | Ca: 3.25 kN | C0a: 6.03 kN
SHOR1205RC10M2-600Size: 12 x 5 mm | Shaft length: 600 mm | Stroke: 545 mm | Ca: 3.25 kN | C0a: 6.03 kN
SHOR1205RC10M2-900Size: 12 x 5 mm | Shaft length: 900 mm | Stroke: 845 mm | Ca: 3.25 kN | C0a: 6.03 kN
SHOR1205RC10M2-1200Size: 12 x 5 mm | Shaft length: 1200 mm | Stroke: 1145 mm | Ca: 3.25 kN | C0a: 6.03 kN
SHOR1210RC10M2-300Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 225 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-600Size: 12 x 10 mm | Shaft length: 600 mm | Stroke: 525 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-900Size: 12 x 10 mm | Shaft length: 900 mm | Stroke: 825 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-1200Size: 12 x 10 mm | Shaft length: 1200 mm | Stroke: 1125 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-1600Size: 12 x 10 mm | Shaft length: 1600 mm | Stroke: 1525 mm | Ca: 3.15 kN | C0a: 5.88 kN
SHOR1210RC10M2-2000Size: 12 x 10 mm | Shaft length: 2000 mm | Stroke: 1925 mm | Ca: 3.15 kN | C0a: 5.88 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
