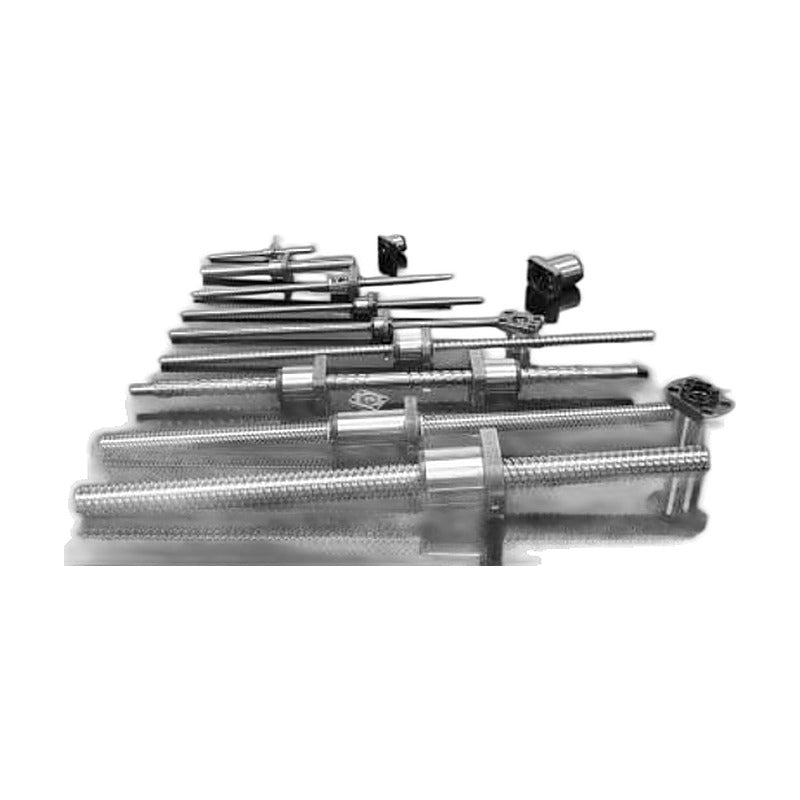

HANSAN GDT/HDT Square-Nut Ball Screws C5, C7

HANSAN GDT/HDT Square-Nut Ball Screws C5, C7

Miniature ball screws with square nuts in grades C5 and C7.

Key features

  • Nut types: GDT (square-nut ground), HDT (square-nut)
  • Shaft diameters 8-8 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • All screws and nuts lapped for low noise and long life

Specifications

Accuracy standard JIS B 1192
Brand HANSAN
Product type Ball Screws
Series GDT/HDT
Designations listed 46
Units mm, kN
Source HANSAN Ball Screw catalogue, p. 132-137
GDT0801D3C5T-100 Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 15 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
GDT0801D3C5Z-100 Size: 8 x 1 mm | Shaft length: 100 mm | Stroke: 15 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
GDT0801D3C5T-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 45 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
GDT0801D3C5Z-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 45 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
GDT0801D3C5T-220 Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 115 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
GDT0801D3C5Z-220 Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 115 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
GDT0801D3C5T-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 195 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
GDT0801D3C5Z-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 195 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
GDT0802D3C5T-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 45 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
GDT0802D3C5Z-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 45 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
GDT0802D3C5T-220 Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 115 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
GDT0802D3C5Z-220 Size: 8 x 2 mm | Shaft length: 220 mm | Stroke: 115 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
GDT0802D3C5T-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 195 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
GDT0802D3C5Z-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 195 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDT0801D3C5T-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C5Z-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C5T-200 Size: 8 x 1 mm | Shaft length: 200 mm | Stroke: 105 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C5Z-200 Size: 8 x 1 mm | Shaft length: 200 mm | Stroke: 105 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C5T-250 Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 155 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C5Z-250 Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 155 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C5T-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 205 mm | Clearance: T | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C5Z-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 205 mm | Clearance: Z | Ca: 0.73 kN | C0a: 1.48 kN
HDT0802D3C5T-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C5Z-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C5T-200 Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 105 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C5Z-200 Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 105 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C5T-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 155 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C5Z-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 155 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C5T-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 205 mm | Clearance: T | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C5Z-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 205 mm | Clearance: Z | Ca: 1.42 kN | C0a: 2.29 kN
HDT0801D3C7S-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 42 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C7N-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 42 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C7S-200 Size: 8 x 1 mm | Shaft length: 200 mm | Stroke: 92 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C7N-200 Size: 8 x 1 mm | Shaft length: 200 mm | Stroke: 92 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C7S-250 Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 142 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C7N-250 Size: 8 x 1 mm | Shaft length: 250 mm | Stroke: 142 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C7S-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 192 mm | Clearance: S | Ca: 0.73 kN | C0a: 1.48 kN
HDT0801D3C7N-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 192 mm | Clearance: N | Ca: 0.73 kN | C0a: 1.48 kN
HDT0802D3C7S-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 42 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C7N-150 Size: 8 x 2 mm | Shaft length: 150 mm | Stroke: 42 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C7S-200 Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 92 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C7N-200 Size: 8 x 2 mm | Shaft length: 200 mm | Stroke: 92 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C7S-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 142 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C7N-250 Size: 8 x 2 mm | Shaft length: 250 mm | Stroke: 142 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C7S-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 192 mm | Clearance: S | Ca: 1.42 kN | C0a: 2.29 kN
HDT0802D3C7N-300 Size: 8 x 2 mm | Shaft length: 300 mm | Stroke: 192 mm | Clearance: N | Ca: 1.42 kN | C0a: 2.29 kN
