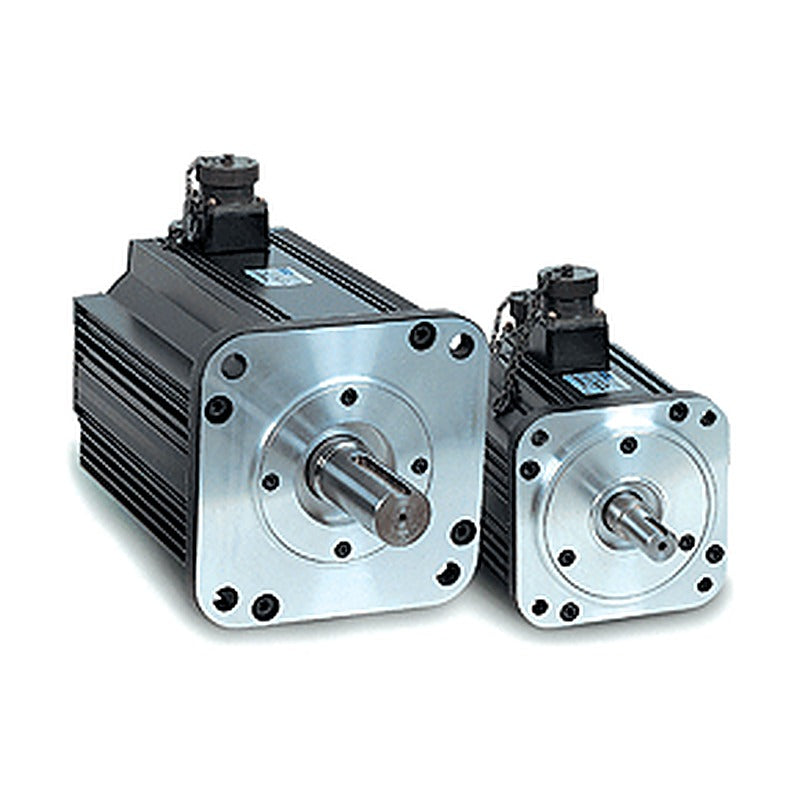

Higen FMA-KF AC Servo Motors (750 W-5 kW, 2000/3000 rpm)

Higen FMA-KF AC Servo Motors (750 W-5 kW, 2000/3000 rpm)

Higen FMA-KF series AC servo motors (medium speed, standard (F-type)), 750 W-5 kW, rated/max speed 2000/3000 rpm, for FDA7000 series 220 V servo drives.

Key features

  • KF series: medium speed, standard (F-type)
  • Rated/max speed 2000/3000 rpm
  • Incremental 2000 P/rev encoder standard; 11/13-bit absolute or 17-bit serial optional
  • Optional holding brake (24 VDC or 90 VDC by frame)
  • Straight, straight-key or taper-key shaft; optional oil seal

Specifications

Series FMA-KF
Output range 750 W-5 kW
Speed (rated/max) 2000/3000 rpm
Flange 130, 180 mm
Drive Higen FDA7000 series (AC 220 V)
Encoder Incremental 2000-6000 P/rev, abs. 11/13/17-bit
Brake 0 none, 1 DC24/90 V, 2 DC24 V
Model format FMA-KFxx-(encoder)(shaft)(brake)(oil seal)
Ambient 0-40 °C, 80 % RH max.
Source Higen FDA7000 Series Operation Manual Ver1.7, ch.1 & flange dimension sheets
FMA-KF08 Output: 750 W | Rated torque: 3.58 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 2000/3000 rpm
FMA-KF10 Output: 1 kW | Rated torque: 4.77 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 2000/3000 rpm
FMA-KF15 Output: 1.5 kW | Rated torque: 7.16 N·m | Flange: 130 mm | Drive: FDA7015 | Speed: 2000/3000 rpm
FMA-KF22 Output: 2.2 kW | Rated torque: 10.5 N·m | Flange: 180 mm | Drive: FDA7020 | Speed: 2000/3000 rpm
FMA-KF35 Output: 3.5 kW | Rated torque: 16.7 N·m | Flange: 180 mm | Drive: FDA7030 | Speed: 2000/3000 rpm
FMA-KF50 Output: 5 kW | Rated torque: 23.9 N·m | Flange: 180 mm | Drive: FDA7045 | Speed: 2000/3000 rpm
Servo MotorsHigen
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Higen FMA-KF AC Servo Motors (750 W-5 kW, 2000/3000 rpm)

Brand Higen·Servo Motors

Available part numbers (6)

FMA-KF08, FMA-KF10, FMA-KF15, FMA-KF22, FMA-KF35, FMA-KF50

How to order

Send the Higen part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMA-KF08Output: 750 W | Rated torque: 3.58 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 2000/3000 rpm
FMA-KF10Output: 1 kW | Rated torque: 4.77 N·m | Flange: 130 mm | Drive: FDA7010 | Speed: 2000/3000 rpm
FMA-KF15Output: 1.5 kW | Rated torque: 7.16 N·m | Flange: 130 mm | Drive: FDA7015 | Speed: 2000/3000 rpm
FMA-KF22Output: 2.2 kW | Rated torque: 10.5 N·m | Flange: 180 mm | Drive: FDA7020 | Speed: 2000/3000 rpm
FMA-KF35Output: 3.5 kW | Rated torque: 16.7 N·m | Flange: 180 mm | Drive: FDA7030 | Speed: 2000/3000 rpm
FMA-KF50Output: 5 kW | Rated torque: 23.9 N·m | Flange: 180 mm | Drive: FDA7045 | Speed: 2000/3000 rpm
