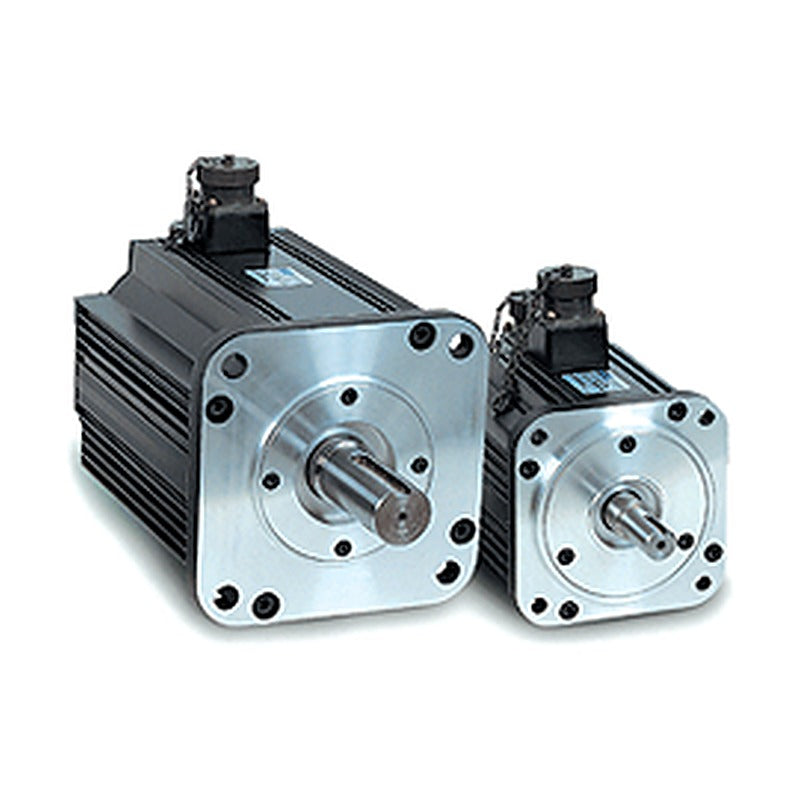

Higen FMA-KN AC Servo Motors (300 W-7 kW, 2000/3000 rpm)

Higen FMA-KN series AC servo motors (medium speed, standard), 300 W-7 kW, rated/max speed 2000/3000 rpm, for FDA7000 series 220 V servo drives.

Key features

KN series: medium speed, standard
Rated/max speed 2000/3000 rpm
Incremental 2000 P/rev encoder standard; 11/13-bit absolute or 17-bit serial optional
Optional holding brake (24 VDC or 90 VDC by frame)
Straight, straight-key or taper-key shaft; optional oil seal

Specifications

Series	FMA-KN
Output range	300 W-7 kW
Speed (rated/max)	2000/3000 rpm
Flange	80, 130, 180 mm
Drive	Higen FDA7000 series (AC 220 V)
Encoder	Incremental 2000-6000 P/rev, abs. 11/13/17-bit
Brake	0 none, 1 DC24/90 V, 2 DC24 V
Model format	FMA-KNxx-(encoder)(shaft)(brake)(oil seal)
Ambient	0-40 °C, 80 % RH max.
Source	Higen FDA7000 Series Operation Manual Ver1.7, ch.1 & flange dimension sheets

FMA-KN03		Output: 300 W \| Rated torque: 1.43 N·m \| Flange: 80 mm \| Drive: FDA7004 \| Speed: 2000/3000 rpm
FMA-KN05		Output: 450 W \| Rated torque: 2.15 N·m \| Flange: 80 mm \| Drive: FDA7004 \| Speed: 2000/3000 rpm
FMA-KN06		Output: 550 W \| Rated torque: 2.63 N·m \| Flange: 80 mm \| Drive: FDA7005 \| Speed: 2000/3000 rpm
FMA-KN07		Output: 650 W \| Rated torque: 3.1 N·m \| Flange: 80 mm \| Drive: FDA7010 \| Speed: 2000/3000 rpm
FMA-KN06A		Output: 600 W \| Rated torque: 2.86 N·m \| Flange: 130 mm \| Drive: FDA7005 \| Speed: 2000/3000 rpm
FMA-KN11		Output: 1.1 kW \| Rated torque: 5.25 N·m \| Flange: 130 mm \| Drive: FDA7010 \| Speed: 2000/3000 rpm
FMA-KN16		Output: 1.6 kW \| Rated torque: 7.64 N·m \| Flange: 130 mm \| Drive: FDA7015 \| Speed: 2000/3000 rpm
FMA-KN22		Output: 2.2 kW \| Rated torque: 10.5 N·m \| Flange: 130 mm \| Drive: FDA7020 \| Speed: 2000/3000 rpm
FMA-KN22A		Output: 2.2 kW \| Rated torque: 10.49 N·m \| Flange: 180 mm \| Drive: FDA7020 \| Speed: 2000/3000 rpm
FMA-KN35		Output: 3.5 kW \| Rated torque: 16.67 N·m \| Flange: 180 mm \| Drive: FDA7030 \| Speed: 2000/3000 rpm
FMA-KN55		Output: 5.5 kW \| Rated torque: 26.18 N·m \| Flange: 180 mm \| Drive: FDA7045 \| Speed: 2000/3000 rpm
FMA-KN70		Output: 7 kW \| Flange: 180 mm \| Drive: FDA7075 \| Speed: 2000/3000 rpm
